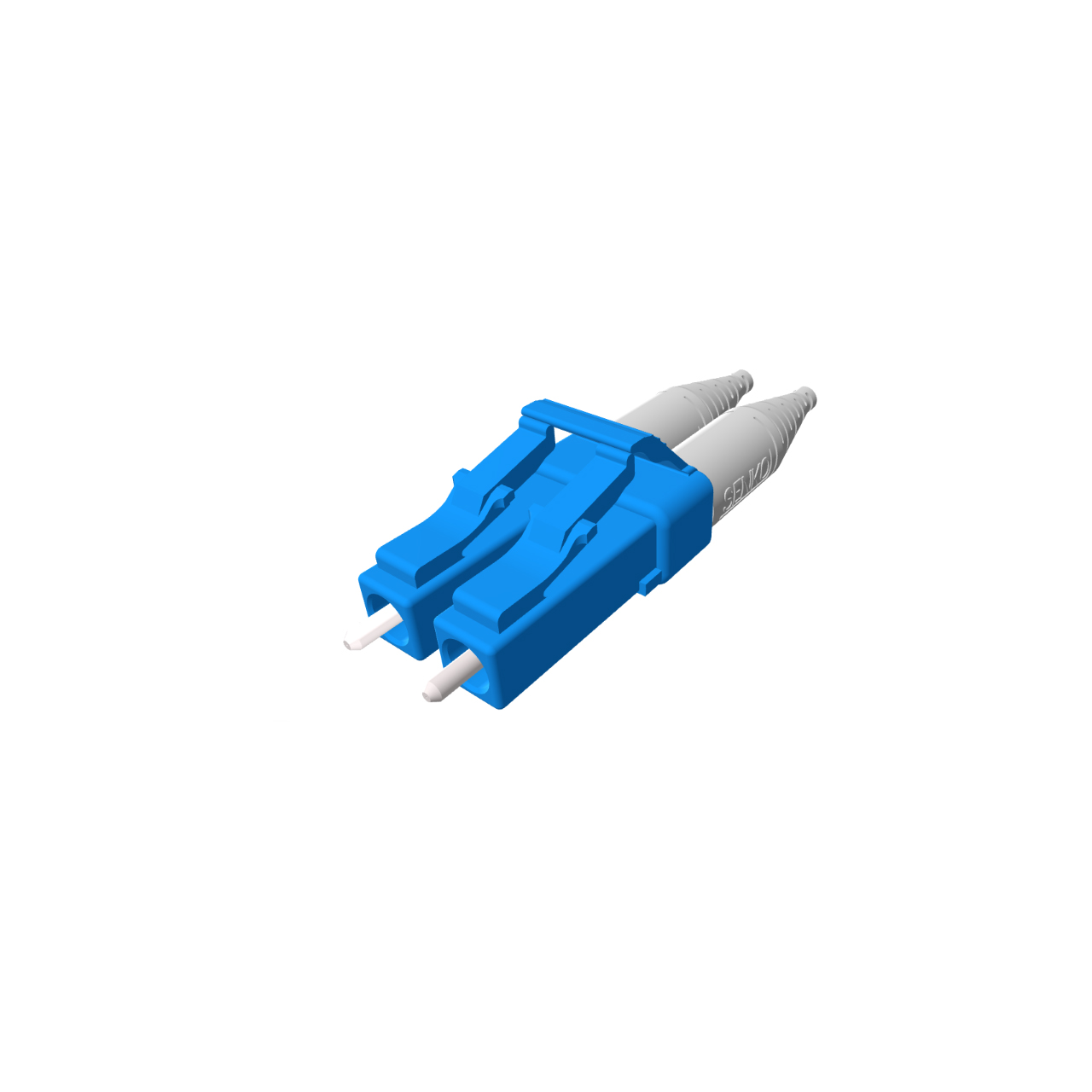

Senko 932-153-1B1 Premium 125um Duplex Singlemode 900um Fiber LC Connector with Mini Boot - Blue/White

ITEM #: SENK-932-153-1B1 MFG #: 932-153-1B1

Primary Image
Senko Advanced Components
Free Shipping with $49 Minimum Order

List Price:

$4.90

Our Price:

$4.40

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

932-153-1B1 - Overview

SENKO's 932-153-1B1 is a member of the highest quality LC Premium Unibody connector series, a series designed to exceed the telecommunication industry's rigorous GR-326-CORE testing requirements. Robust unibody connector design and precision ferrules make this the connector of choice for years of reliable service.

  • Features:

    • Exceeds GR-326-CORE Requirements
    • Grade B IEC61753-1 Random Mating
    • UL-Rated housing and boots


  • Specifications:

    • Typical Insertion Loss: 0.08dB
    • Max Insertion Loss: 0.20dB
    • Typical Return Loss: ≥55dB
    • Operating Temperature: -40°F - 167°F (-40°C - 75°C)
    • Durability: <0.2dB typical change, 500 matings
    • Ferrule: 125µm


  • Item Includes:

    • 1x 932-153-1B1 Singlemode 900um Fiber LC Connector with Mini Boot - Blue/White
