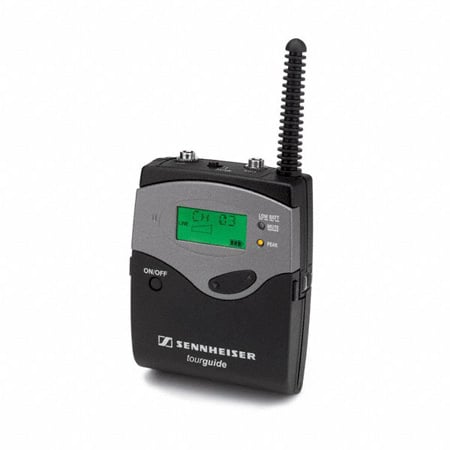

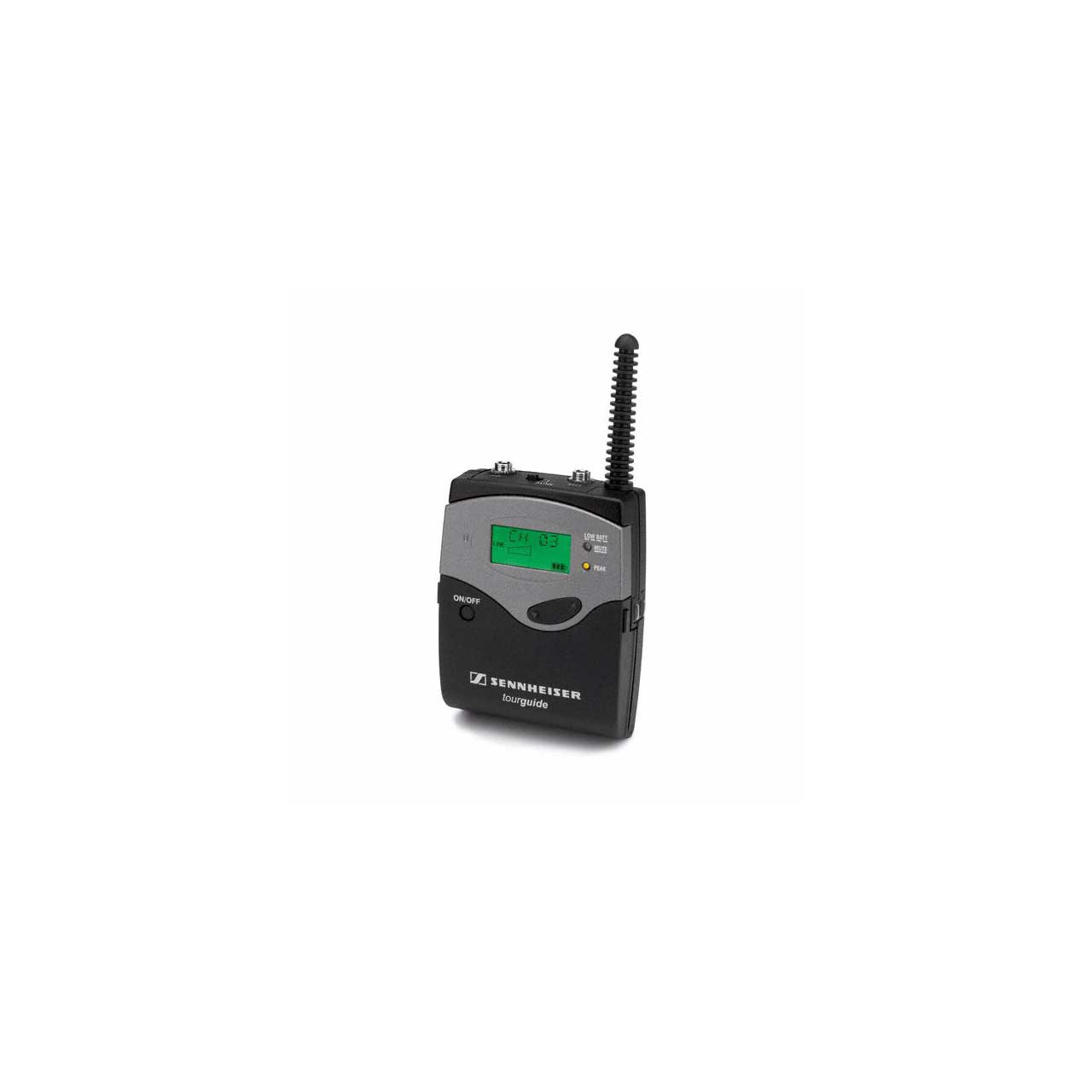

Sennheiser SK 2020-D-US SK 2020-D-US Tourguide Bodypack Transmitter

ITEM #: SENN-SK2020-D-US MFG #: 500549

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SENN-SK2020-D-US

500549 - Overview

The SK 2020-D-US, a digital Tourguide transmitter, will allow you to deliver a highly professional guided tour. Combining the bodypack transmitter with an headworn or clip-on microphone, will give you total freedom of movement during your tour. You will have both hands free to describe an object, make a presentation and express your point. The transmitter can be easily and comfortably operated, and is highly robust. The backlit display confirms channel choice, the radio signal and the status of the battery. Two jacks for the microphone and line ensure variable utilization. For example, you will be able to transmit an external audio source such as music from a portable CD player via your transmitter and continue to talk or mute the microphone.

  • Features:

    • Digital RF signal transmission
    • 6 channls in the licence-free frequency range
    • Microphone input (3.5 mm screw-type jack socket) with adjustable sensitivity
    • Line input (3.5 mm screw-type jack socket) with adjustable sensitivity
    • Audio level meter for microphone and line input
    • Backlit display for status informations

  • Specifications:

    • Modulation: 2 FSK
    • RF frequency range: 863 - 865 MHz / 926 - 928 MHz (US-Version)
    • Channels: 6
    • Frequency response: 100 - 7000 Hz
    • RF output power: 10 mW
    • Signal-to-noise ratio: > 65 dB(A)
    • Max. mic/line input voltage: microphone: 650 mVrms, line: 2 Vrms
    • Operating time: 10 h (BA 2015)
    • Power supply: BA 2015 (2,4 V; 2x AA 1,5 V)
    • Operating temperature 0 - +50°C
    • Weight incl. Battery: 14.81 oz
    • Dimensions: approx. 2.52" x 3.23" x 0.94"
    • Range Indoor: 164.04 ft
    • Range Outdoor: 328.08 ft

  • Item Includes:

    • SK 2020-D
    • BA 2015

  • GTIN:

    0615104108257
