Sennheiser Spectera DAD (UHF) Transceiving Digital Antenna Directional - UHF 470 - 608MHz/630 - 698MHz

509169 - Overview

• Features:

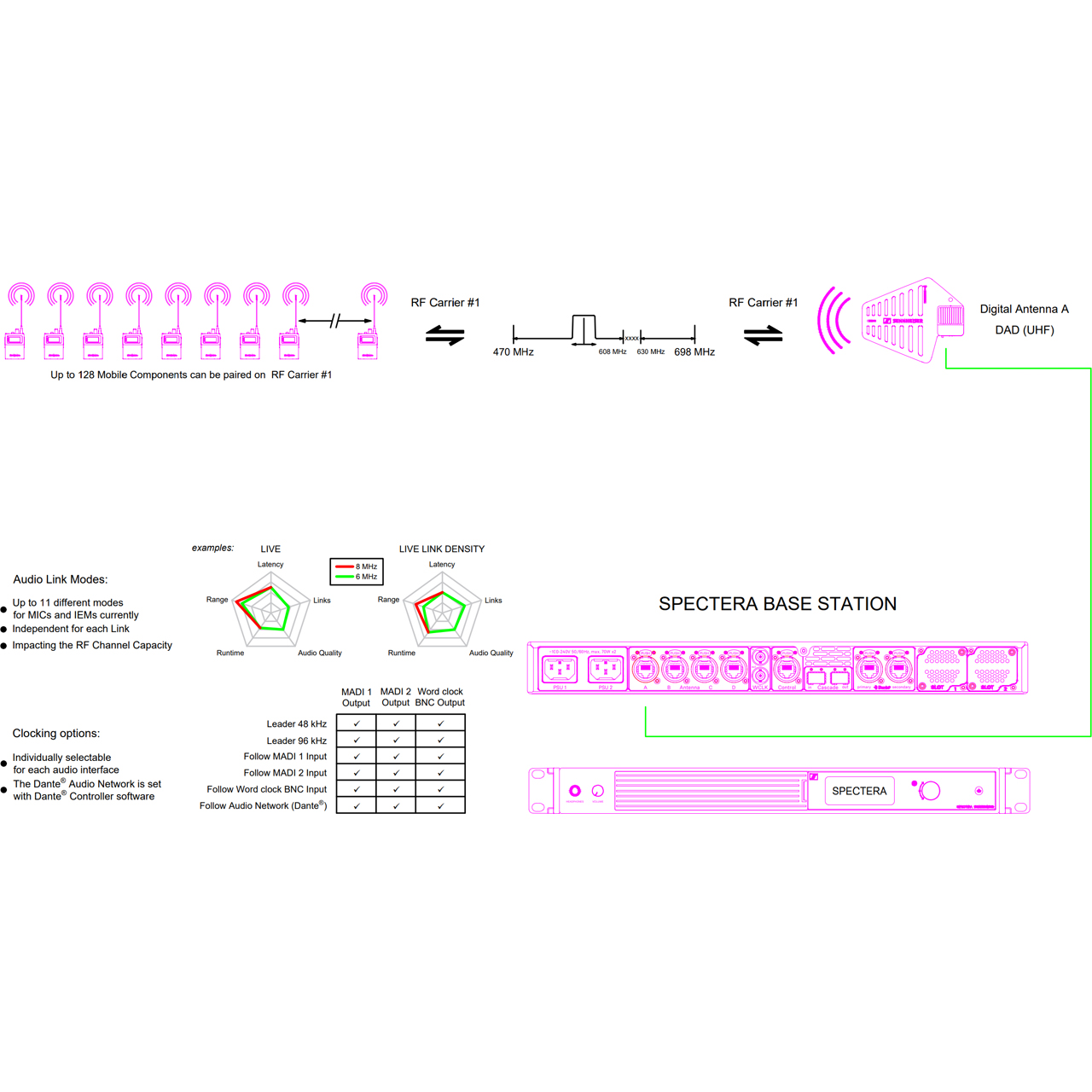

  • Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
  • Available variant: UHF (470 - 608 MHz and 630 - 698 MHz)
  • Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters

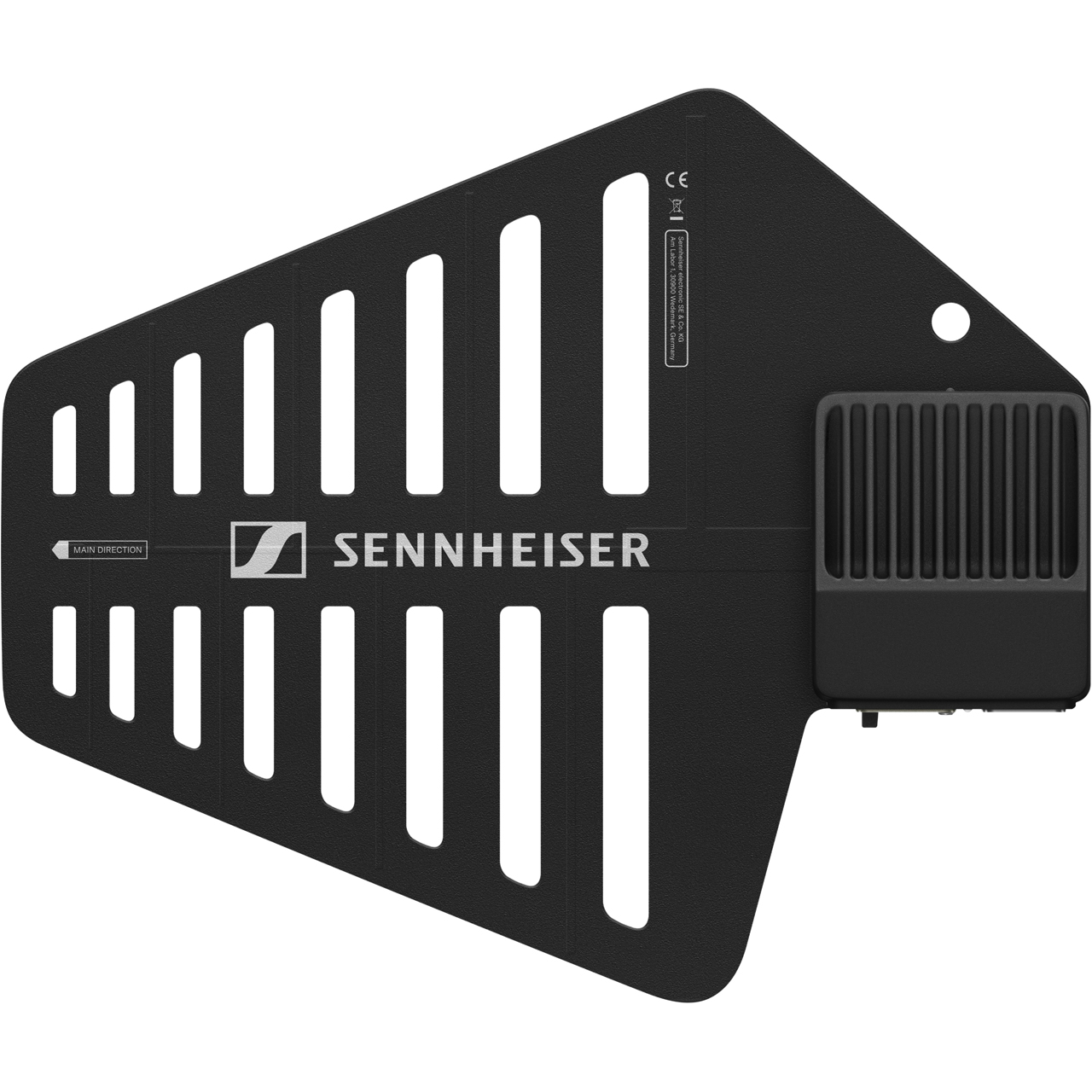

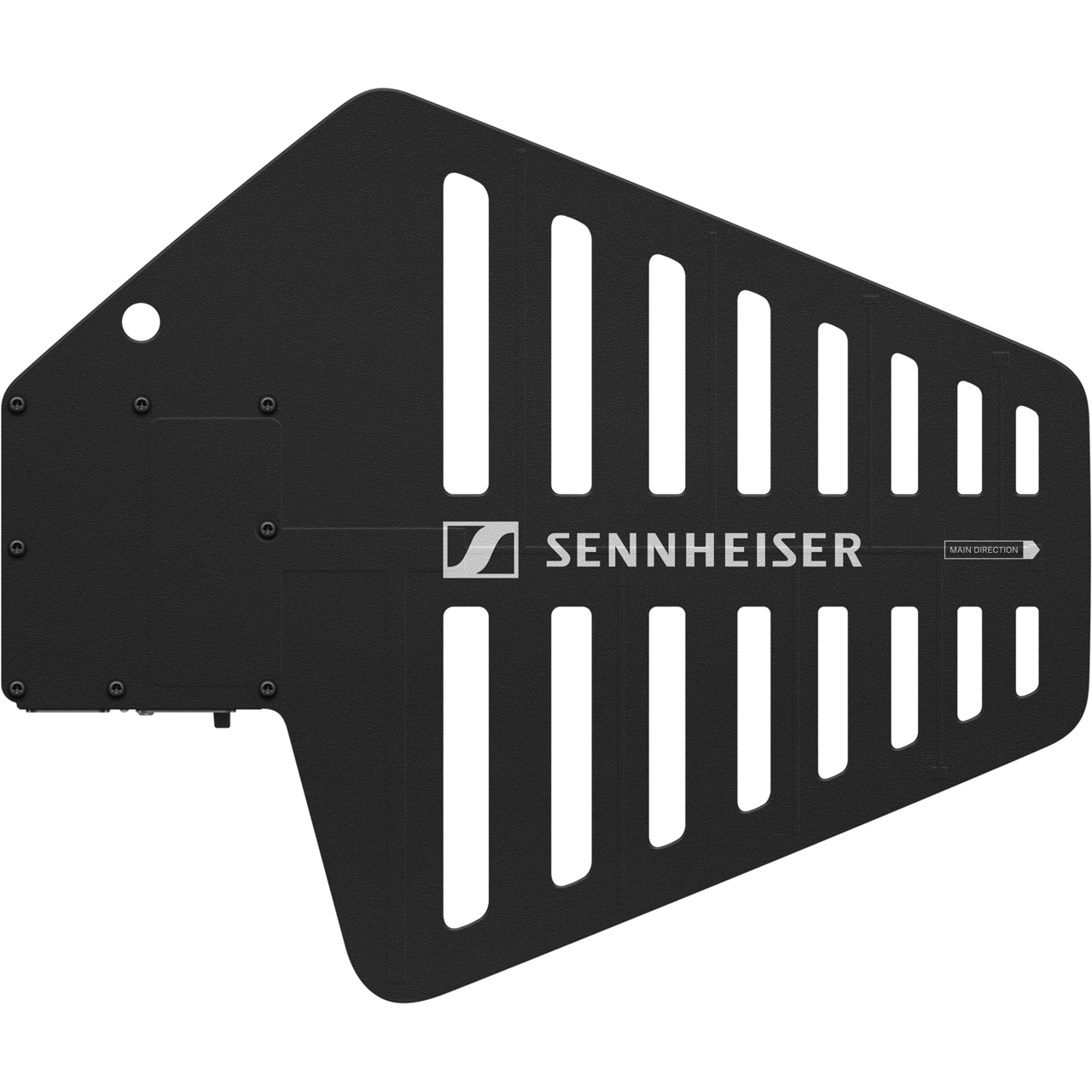

  • Directional antenna

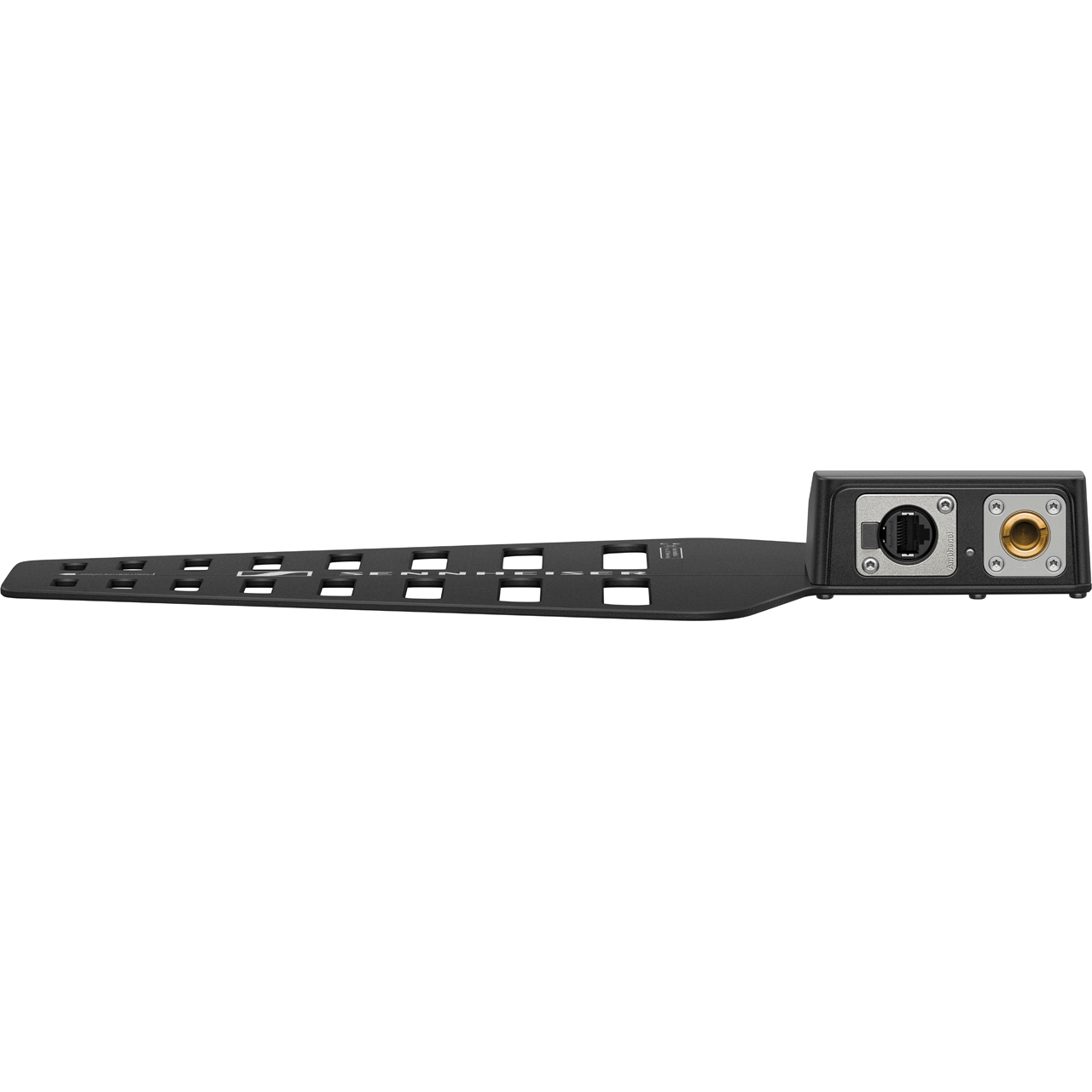

  • Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
  • Continuous interference management and remote control
  • IP54 protection
  • Fiber extension capabilities (supported converters in technical documentation)
  • Optional use as dedicated fast and high-quality scanning device
  • Powered over ethernet (standard POE)


• Specifications:

  • System
  • Transmission Scheme: Multicarrier, TDMA, TDD
  • RF Channel:
    - Bandwidth: 6MHz or 8MHz countrywise limited
    - Mobiles Devices: up to 128 per RF channel
    - Audio Links: up to 128 per RF channel
  • Radio Frequency Range:
    - UHF: 470MHz - 608MHz, 630MHz - 698MHz
    - 1G4: 1350MHz - 1400MHz, 1435MHz - 1525MHz countrywise limited
  • Audio Frequency Response: 20Hz - 20kHz (±1dB)
  • Encryption: AES 256 CTR Mode exp. >10k years

    Spectera DAD (UHF) Antenna
  • RF Transmission Power: up to 100mW; countrywise limited
  • RF Channels: 1
  • Base Station Connection: Ruggedized RJ45 including PoE, max. 100m cable, CAT5e or better, 1 Gbit/s
  • Power Consumption: PoE class 2 (<6.5W)
  • Apex Angle:
    - UHF: 65° vertical
    - 1G4: 62° vertical
    - UHF: 109° horizontal
    - 1G4: 93° horizontal
  • Front to back Ratio:
    - UHF: 15dB
    - 1G4: 17dB
  • Gain:
    - UHF: 5dB
    - 1G4: 6.5dB
  • Tripod Mounting: 3/8" to 5/8"
  • Dimensions:
    - UHF: 13.74" x 11.5" x 1.54" (349mm x 292mm x 39mm)
    - 1G4: 9.09" x 8.07" x 1.54" (231mm x 205mm x 39mm)
  • Weight:
    - UHF: approx. 1.49lbs (676g)
    - 1G4: approx. 1.18lbs (534g)
  • Temperature:
    - Operation: 14°F - 140°F (-10°C - 60°C)
    - Storage: -13°F - 176°F (-25°C - 80°C)
  • Relative Humidity: 25% - 95% (non-condensing)
  • IP Class: IP54


• Item Includes:

  • 1x Spectera DAD (UHF)
  • 1x Quick guide
  • 1x Safety guide
  • 1x Manufacturer declaration sheet
