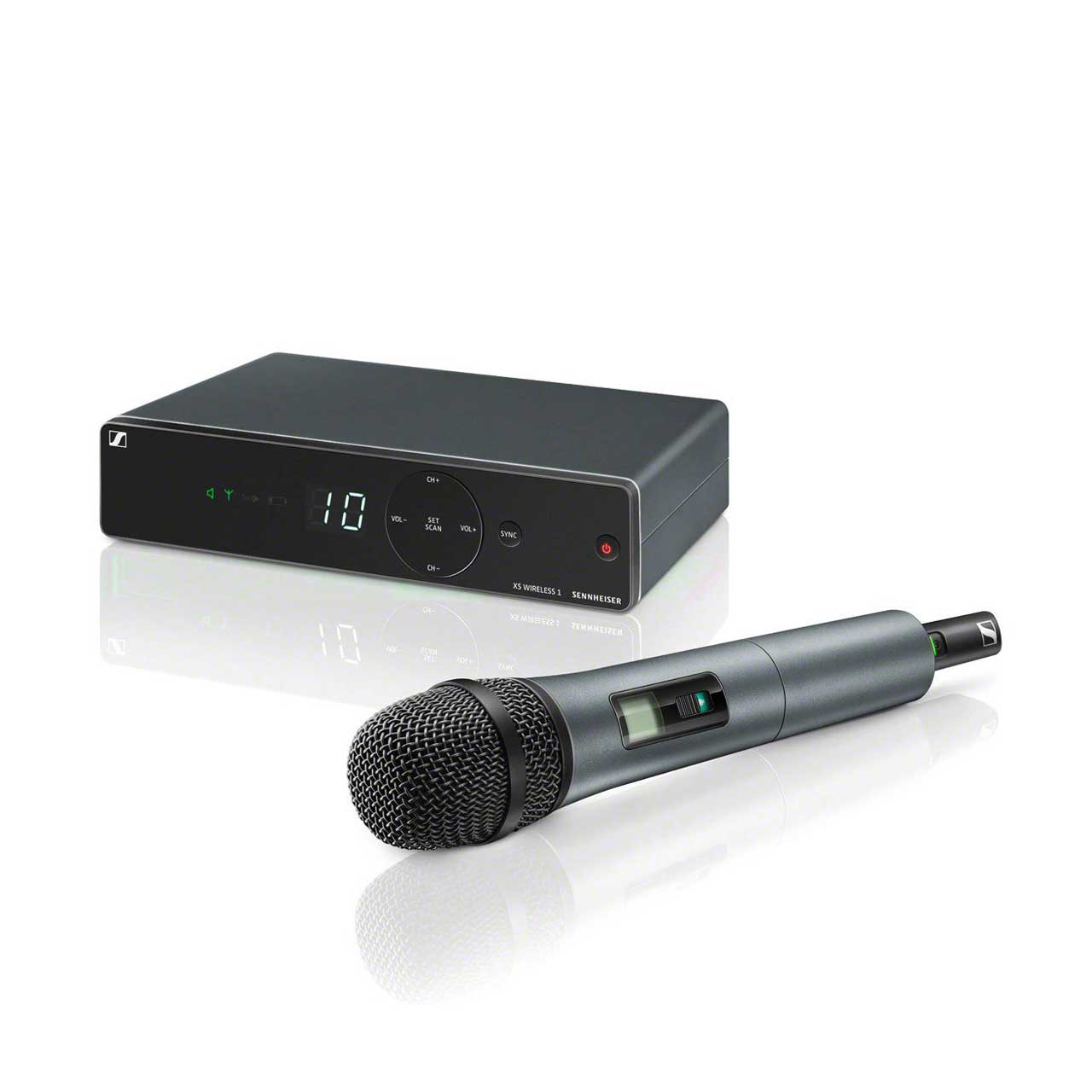

Sennheiser XSW 1-825 Handheld Wireless System - A Range: 548-572 MHz

507108 - Overview

• Features:

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules (e825 or e835)
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels


• Specifications:

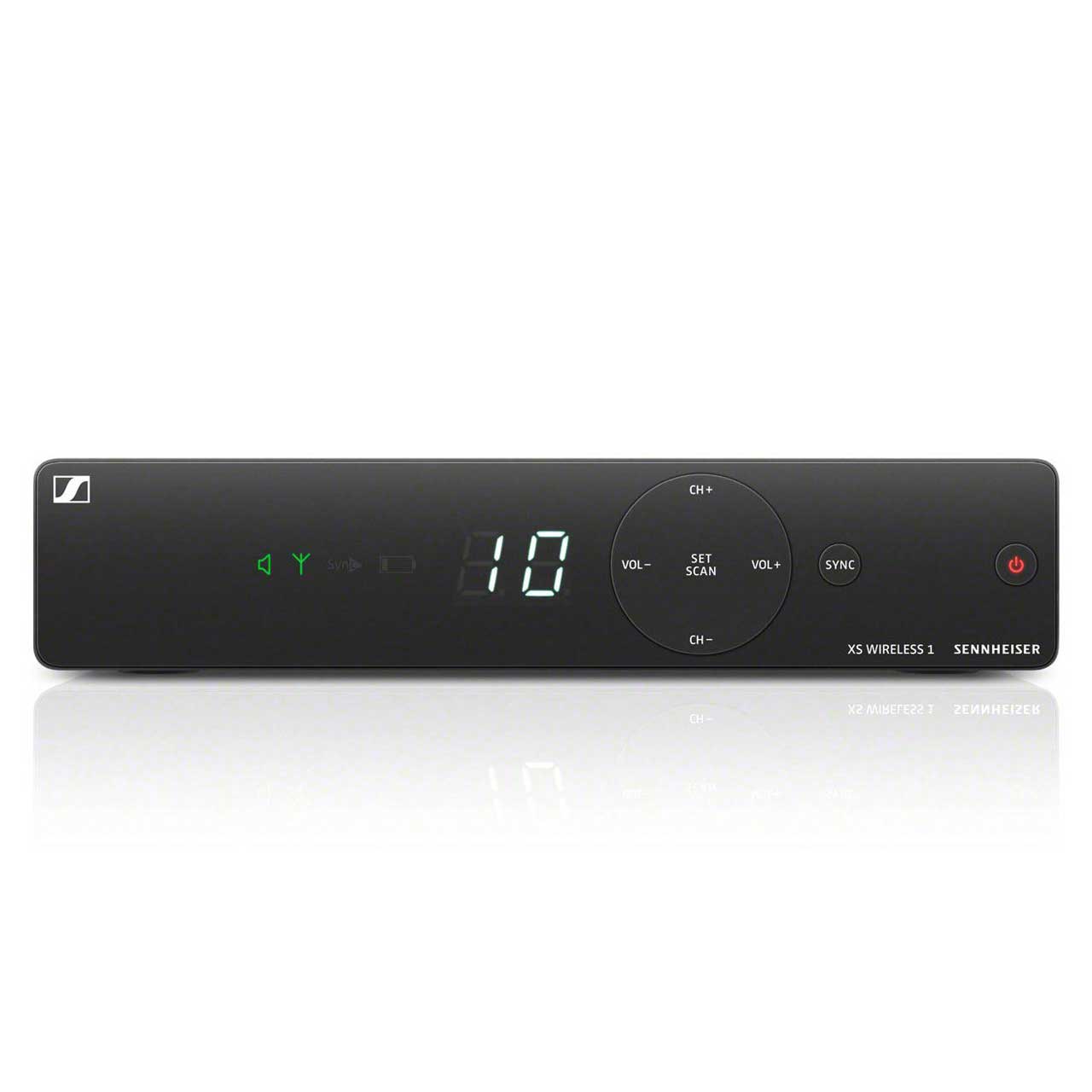

  • Receivers
  • Weight: approx. 340g
  • Power supply: Receiver: 12 V DC nom. / 300 mA
  • AF frequency response: Receiver: 50 to 16,000 Hz (-3 dB)

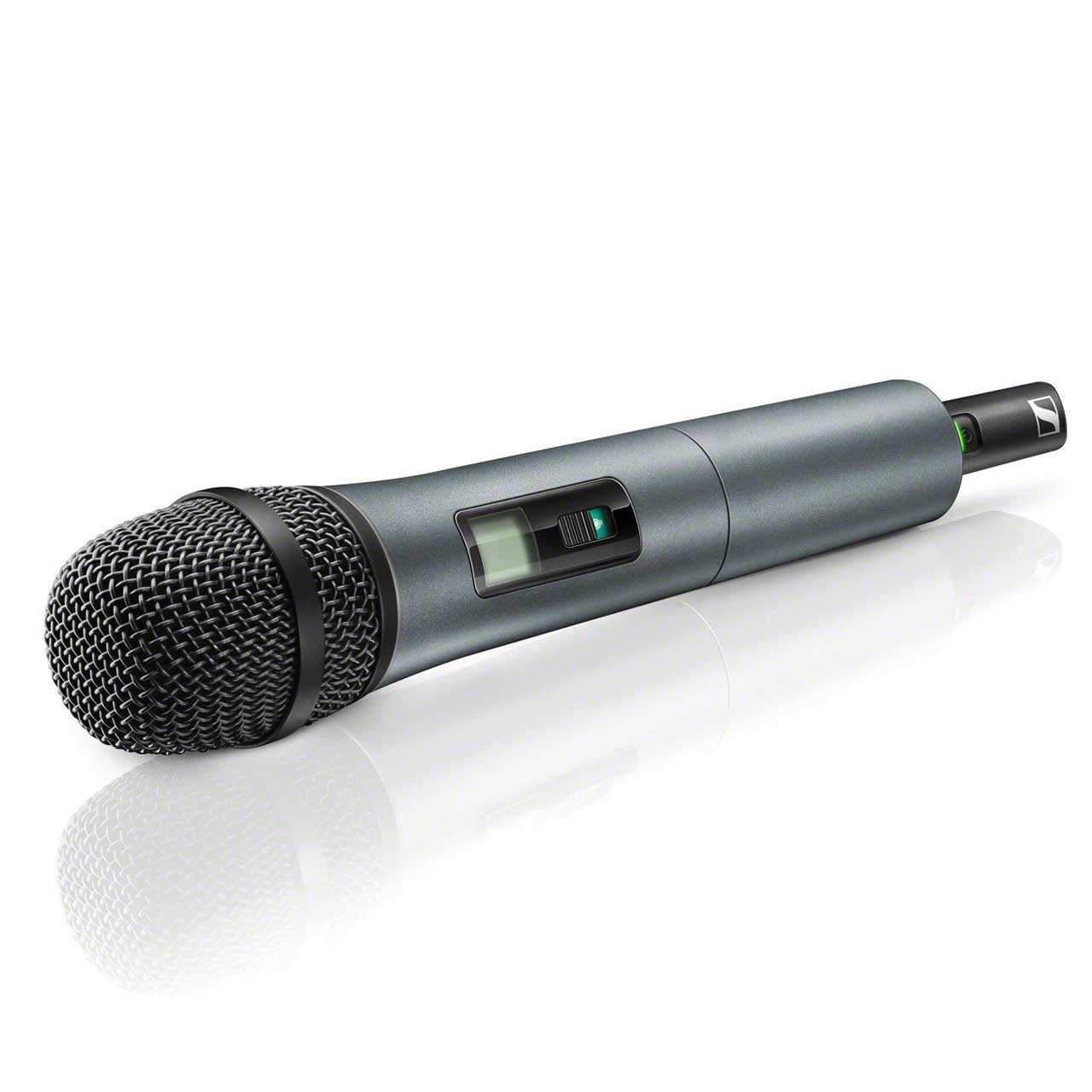

    Microphone
  • Weight: approx. 245g
  • Power supply: Microphone: 2 AA size batteries, 1.5 V
  • AF frequency response-
  • SKM 825: 80-14,000 Hz
  • SKM 835: 80-16,000 Hz

    General
  • Dimensions: approx. 200 x 42 x 127 mm
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern" cardioid
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: wideband FM

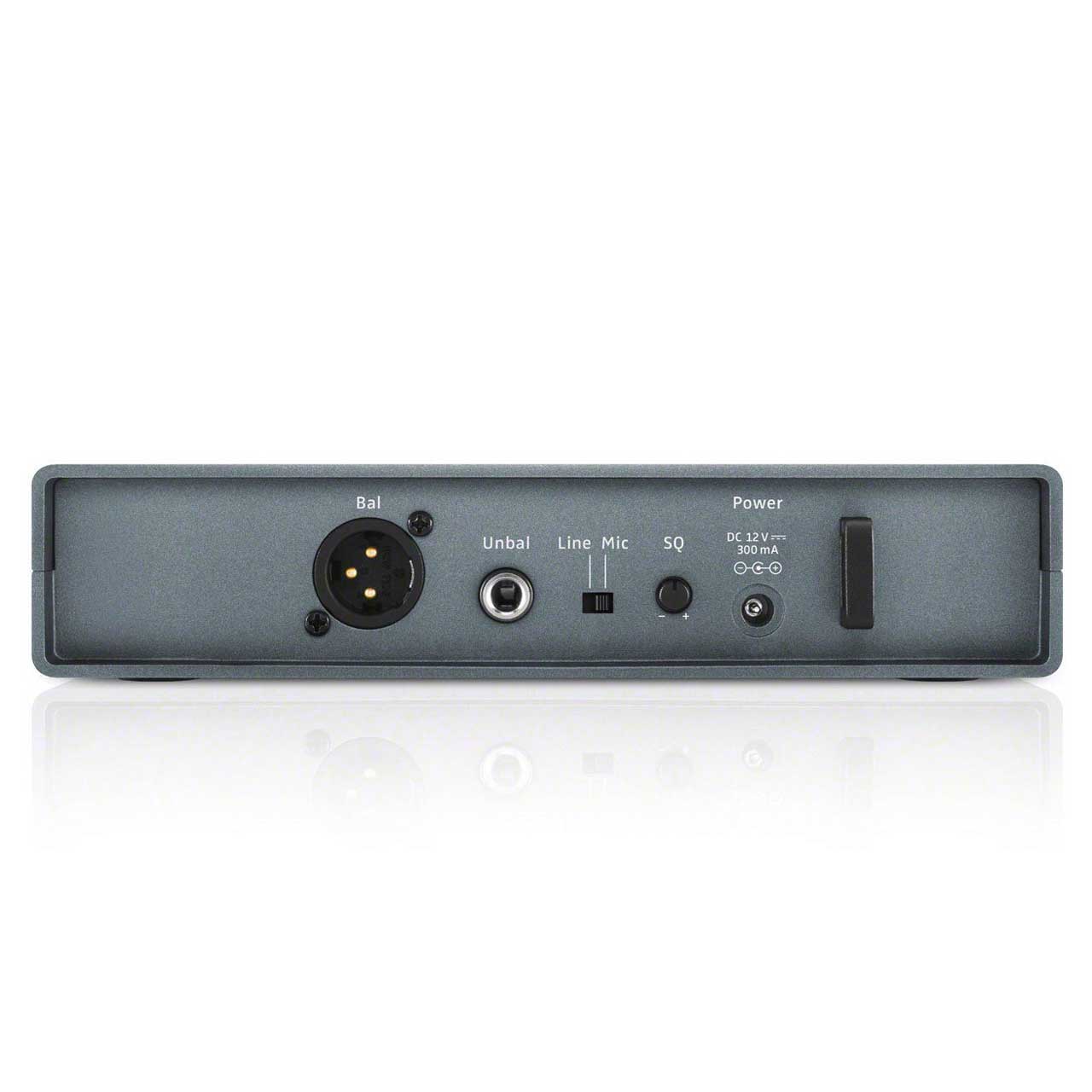

  • Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing: rugged ABS housing
  • Dynamic range: dynamic
  • Frequency: 8 frequency banks, each with up to 10 factory-preset channels
  • Frequency range-
  • A: 548-572 MHz, GB: 606-630 MHz
  • B: 614-638 MHz
  • C: 766-790 MHz
  • D: 794-806 MHz
  • E: 821-832 MHz, 863-865 MHz
  • K: 925-937.5 MHz
  • Sensitivity: < 3 µV at 52 dB(A)rms S/N
  • Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity: 1.5 mV / Pa
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 45 dB, adjustable in 5-dB steps
  • Line / Mic level: 20 dB, switchable
  • Temperature Range: 0°C to +40°C, storage: -20°C to +70°C
  • Receiver Principle: double superheterodyne
  • Diversity principle: Antenna switching diversity via internal antennas


• Item Includes:

  • 1x receiver EM-XSW 1
  • 1x handheld transmitter SKM 825-XSW or SKM 835-XSW
  • 1x microphone clamp MZQ 1
  • 1x power supply NT 12-5 CW
  • 2x AA batteries


• GTIN:

  0615104278615
