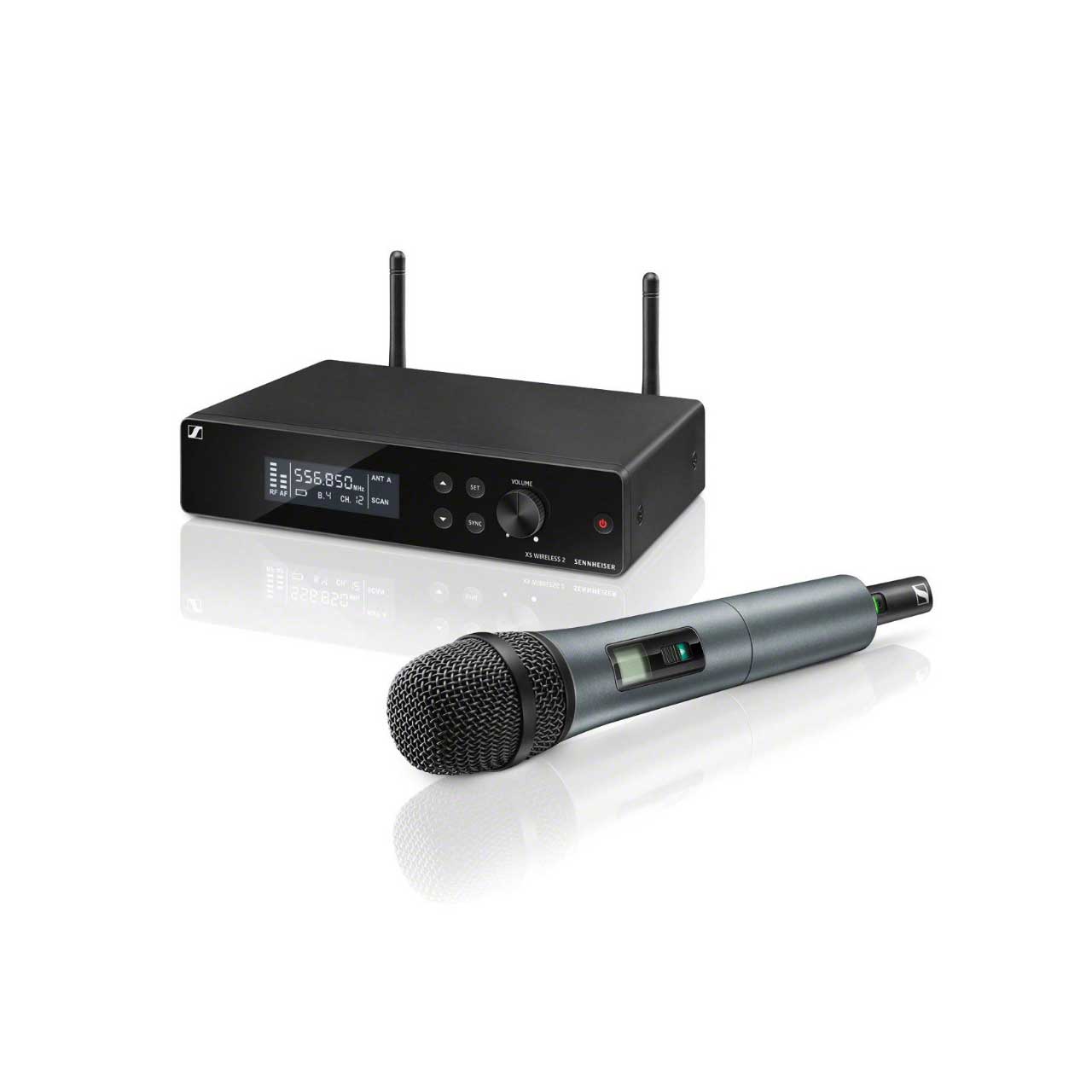

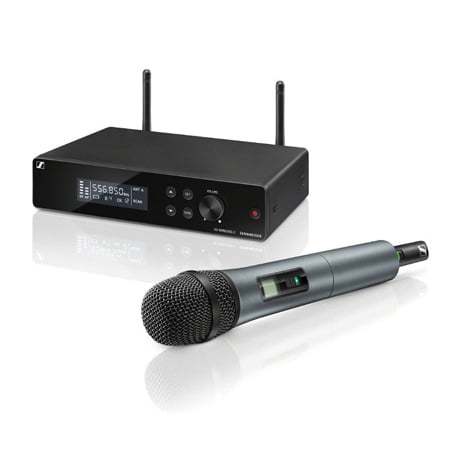

Sennheiser XSW 2-835 Handheld Wireless System with e835 Capsule and True Diversity Receiver - A Range (548-572 MHz)

507143 - Overview

• Features:

  • Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization via
  • remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels


• Specifications:

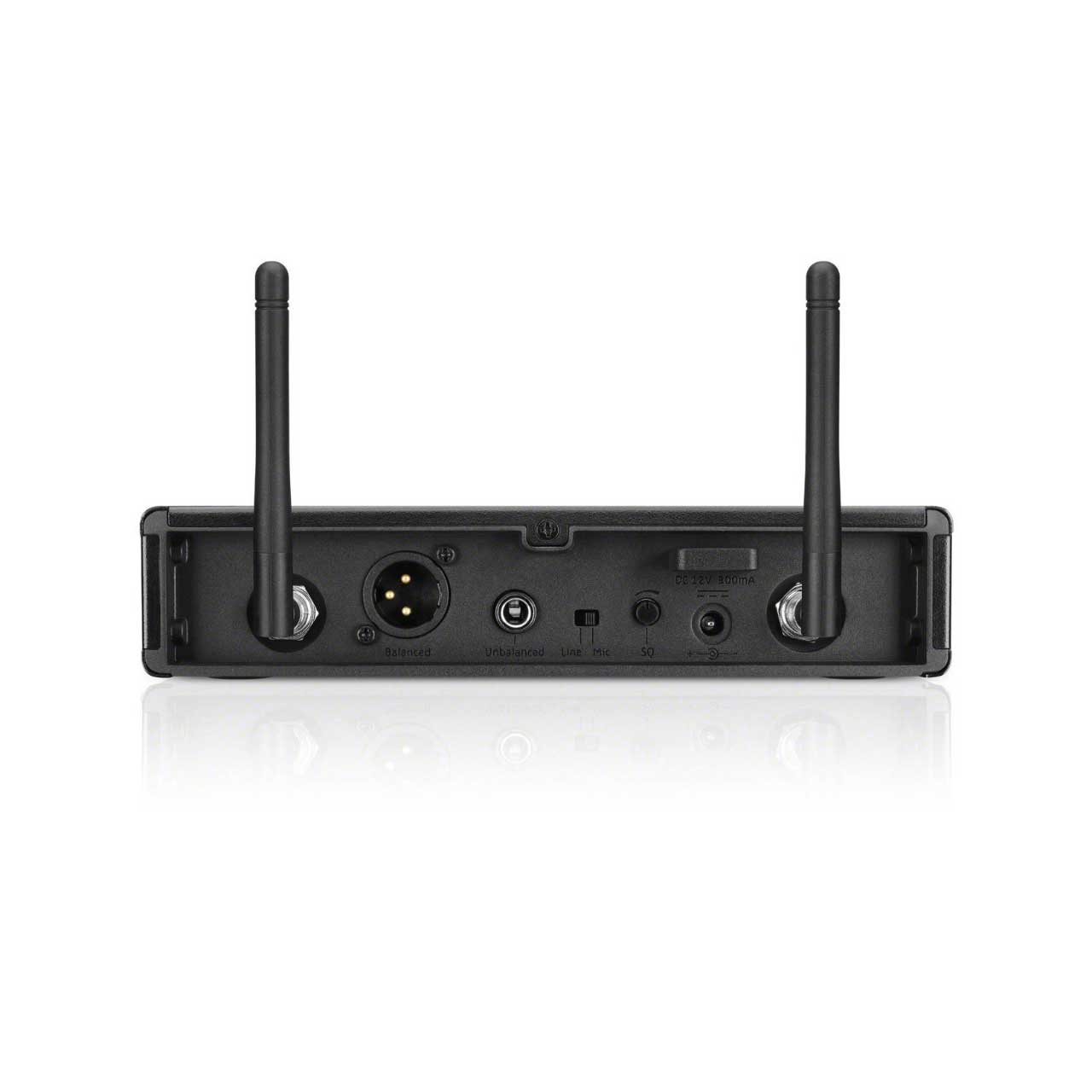

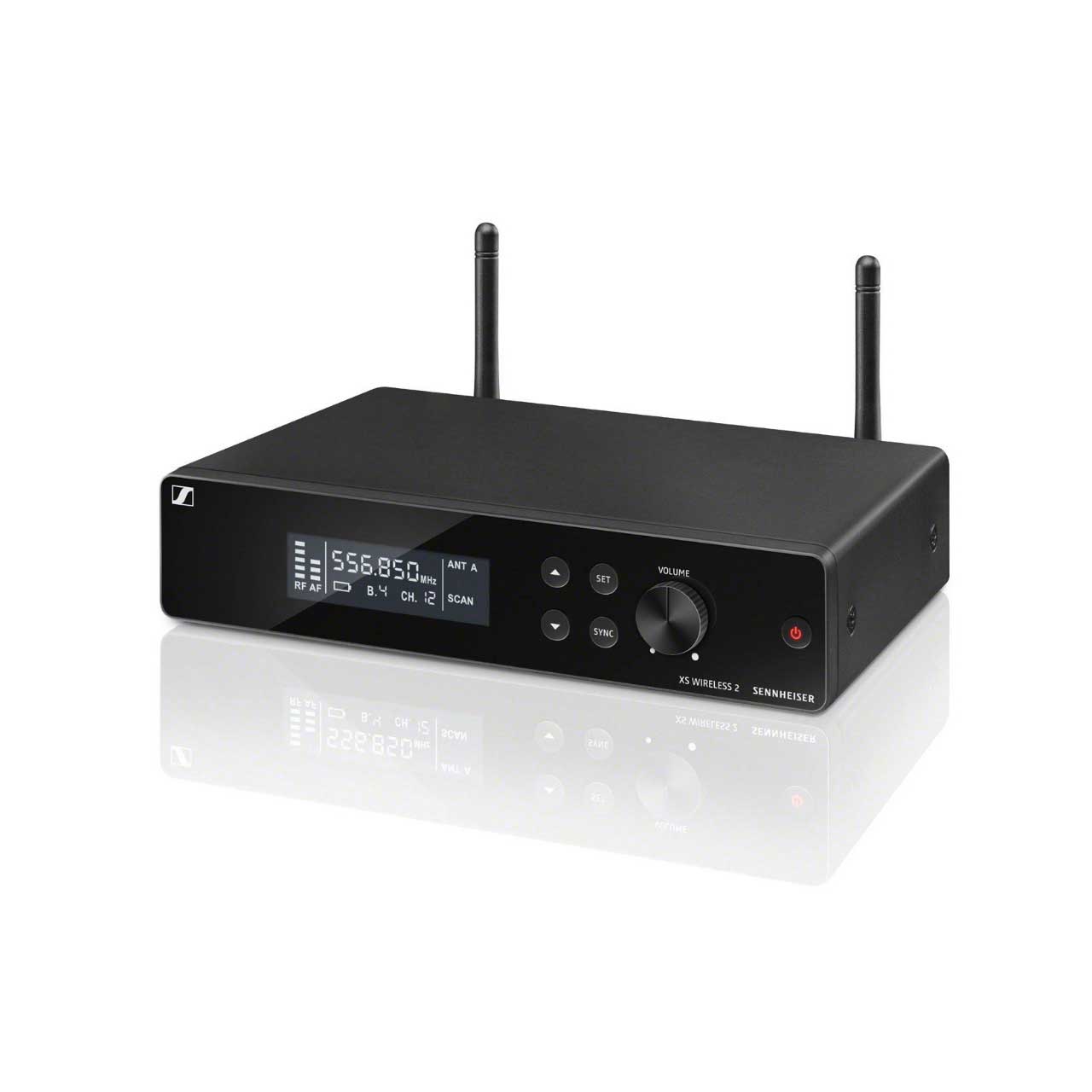

  • Receiver
  • Dimensions: approx. 7.87 x 1.65 x 5.0 Inches
  • Weight: approx. 1.5 lbs
  • Power supply: 12 V DC nom. / 300 mA
  • Housing Metal, microphone: robust ABS
  • AF frequency response: 50 to 16,000 Hz (-3 dB)

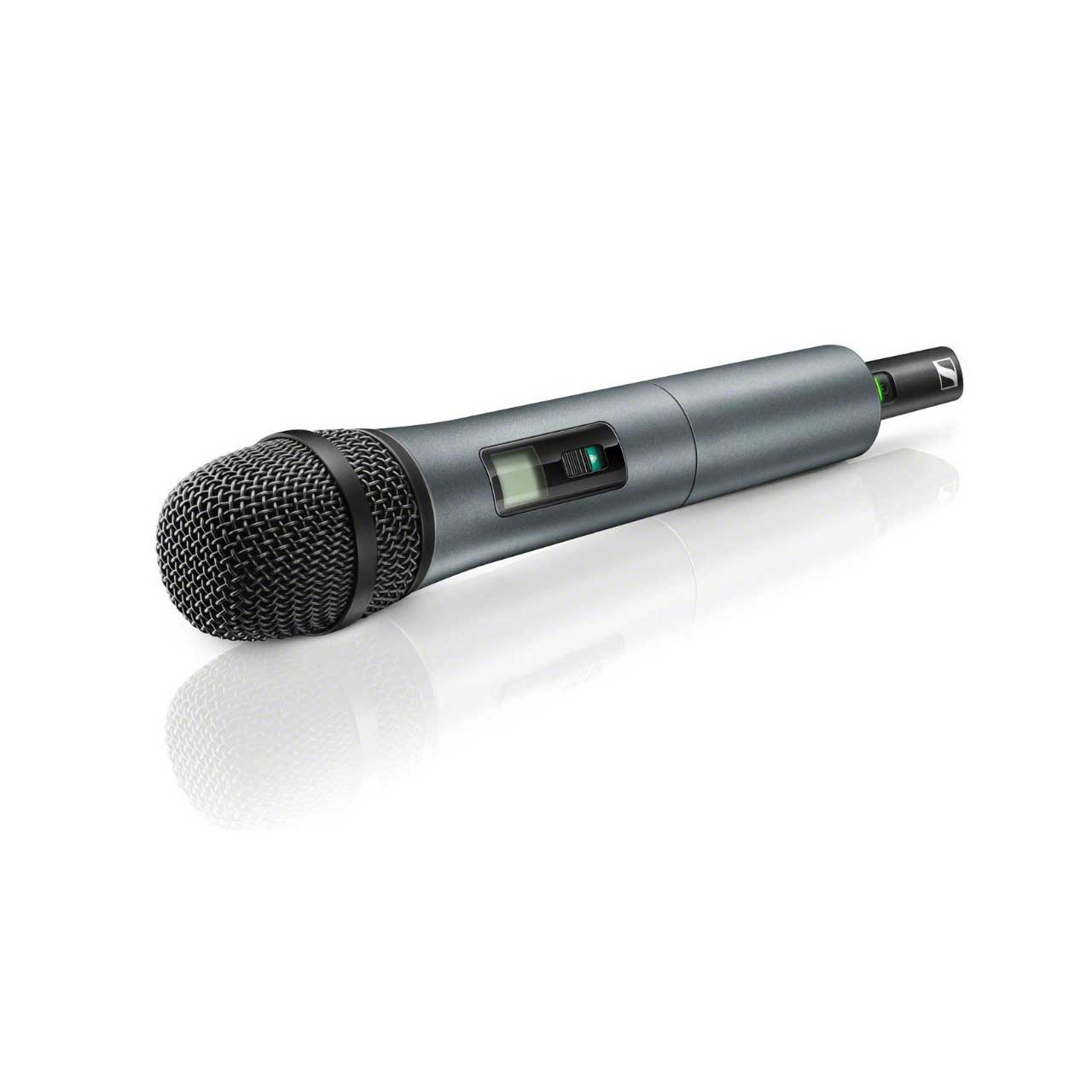

    Microphone
  • Microphone: dynamic
  • Frequency response: 50 to 16,000 Hz (-3 dB)
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: cardioid
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: wideband FM
  • Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Frequency: up to 12 factory-preset channels
  • Frequency range: 548-572 MHz
  • Sensitivity: < 3 µV at 52 dB(A)rms S/N
  • Squelch: switchable from 3 dBµV to 28 dBµV (via Pilot Tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Line: 20 dB, switchable
  • Input sensitivity: 1.5 mV / Pa
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 40 dB, adjustable in 5-dB steps
  • Temperature Range: operation: 0°C to +40°C; storage: -20°C to +70°C
  • Receiver Principle: double superheterodyne
  • Diversity principle: True Diversity
  • Dimensions: approx. 10.23 x 1.96 Inches
  • Weight: approx. 0.54 lbs
  • Power supply: 2 AA size batteries, 1.5 V
  • AF frequency response: 80-14,000 Hz


• Item Includes:

  • 1 receiver EM-XSW 2
  • 1 handheld transmitter SKM 835-XSW
  • 1 microphone clamp MZQ 1
  • 1 power supply NT 12-5 CW
  • 2 AA batteries
  • 1 rackmount kit
  • 1 pouch
  • user manual


• GTIN:

  0615104279902
