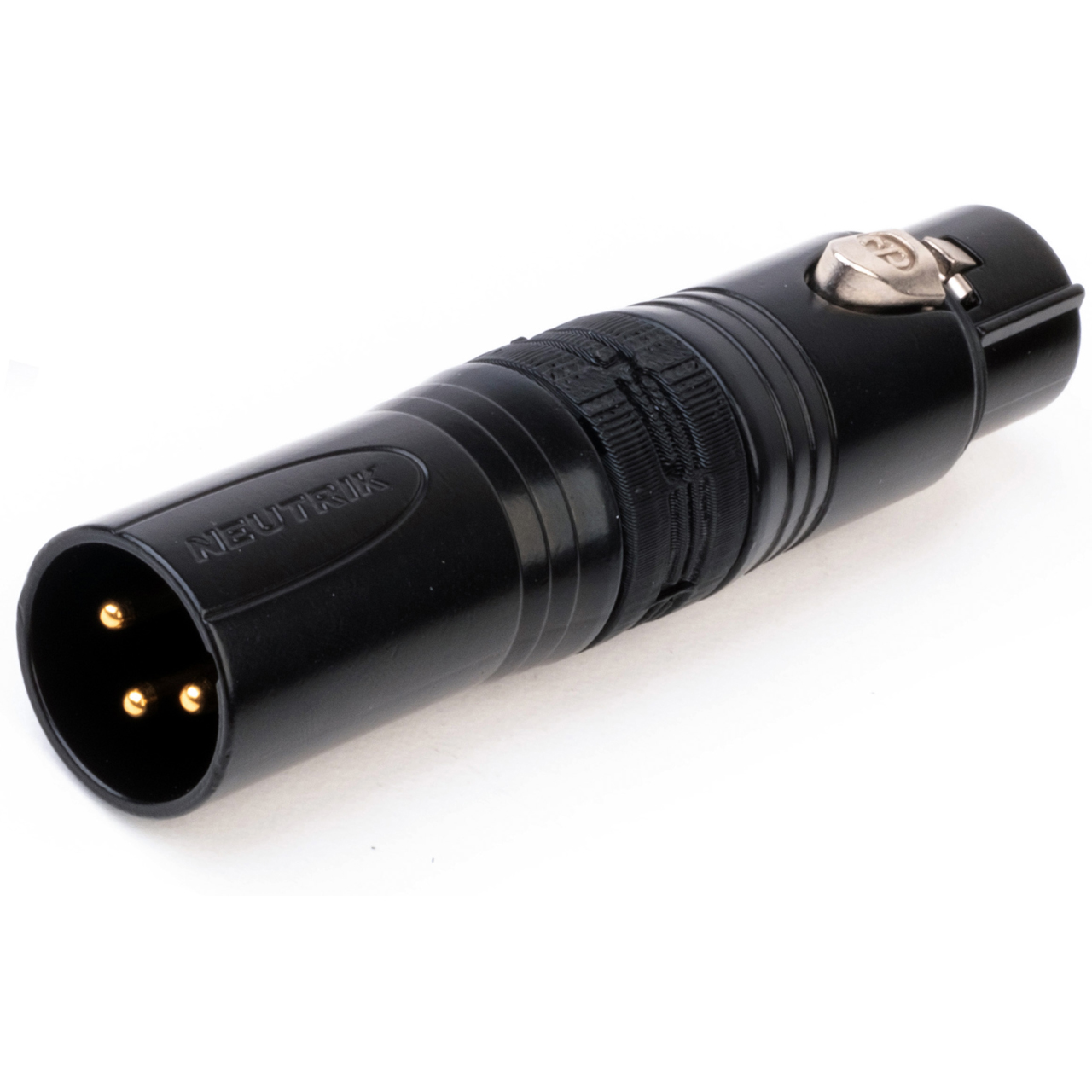

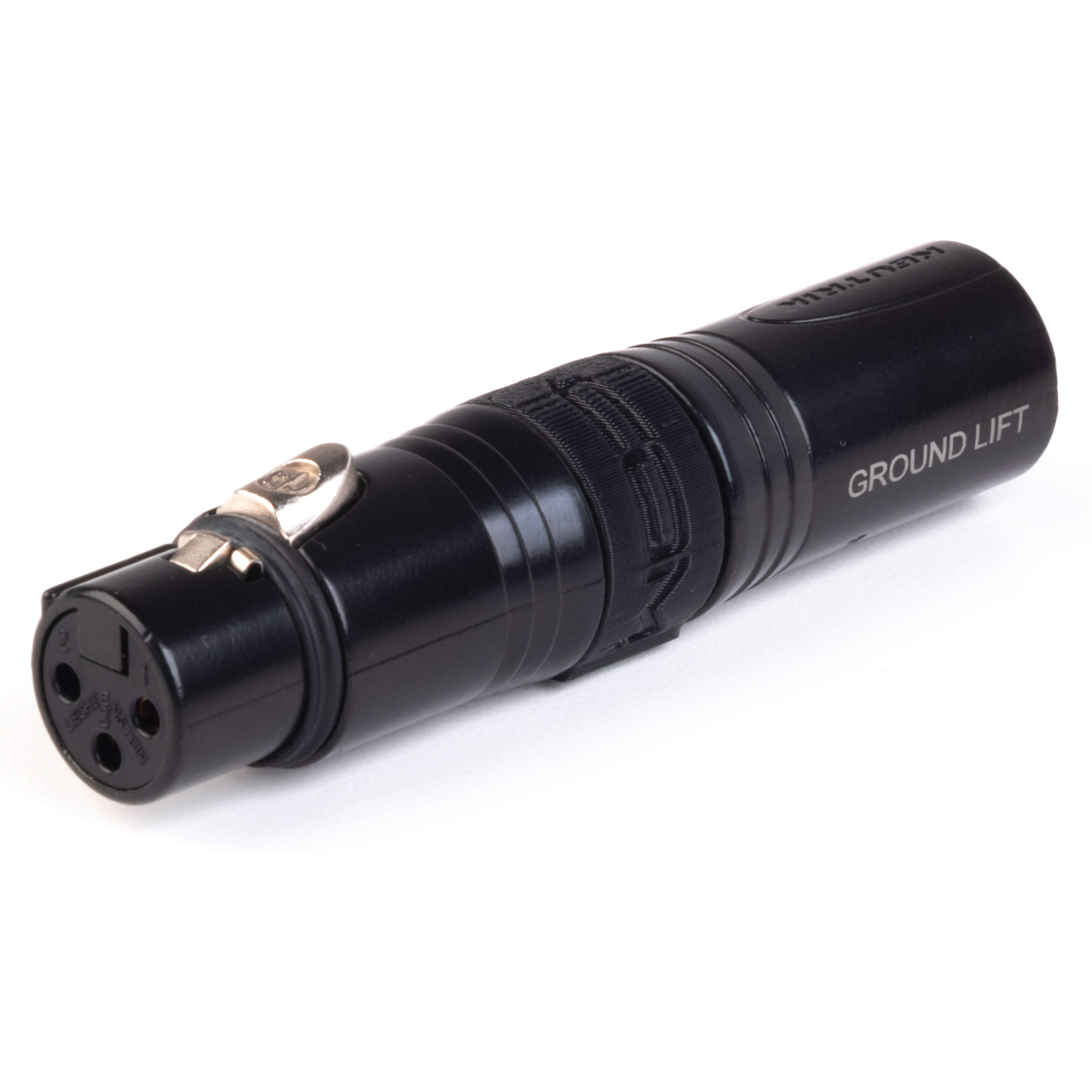

Sescom Bi-Directional 3-Pin XLR In-line Ground Lift Adapter

ITEM #: SES-GROUNDLIFTER MFG #: SES-GROUNDLIFTER

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$34.95

Our Price:

$29.95

Availability: In Stock
iAvailability Description Popup


SES-GROUNDLIFTER - Overview

Immediately and cost-effectively eliminate ground loops in your audio system with the Sescom Groundlifter. Caused by differences in electrical potential between two devices connected through the ground, a loop is that annoying buzz coming through your audio signal.

How it Works
The Sescom Groundlifter sits inline between two 3-pin XLR cables and "lifts" the ground connection by disconnecting the pin-1 ground from the XLR signal path to eliminate the electrical path that allows ground loop currents to flow. This passive unit reduces noise and offers improved audio clarity without any modifications to your equipment or signal flow.

  • Features:

    • High-quality Neutrik Connectors
    • Pin 1 lift results in an ungrounded signal
    • In-line configuration XLR Female to XLR Male; can be used in reverse

  • Specifications:

    • Connection Type: XLR
    • Capacitance between Contacts: ≤4 pF
    • Contact Resistance: ≤3 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 10 GΩ (initial)
    • Rated Current per Contact: 16 A
    • Rated Voltage: < 50 V
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock
    • Boot Material: Polyurethane
    • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
    • Contact Material:
      -Female: Bronze (CuSn8)
      -Male: Brass (CuZn39Pb3)
    • Insert Material: Polyamide (PA66)
    • Locking Element:
      -Female: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
      -Male: Zinc diecast (ZnAl4Cu1)
    • Shell Material: Zinc diecast (ZnAl4Cu1)
    • Shell Coating: Black KTL
    • Strain Relief: Polyacetal (POM)
    • Flammability: UL 94 V-0
    • Protection Class: IP 40
    • Temperature Range: -22°F to 176°F (-30 °C to +80 °C)

  • Warranty:

    • 1 Year
