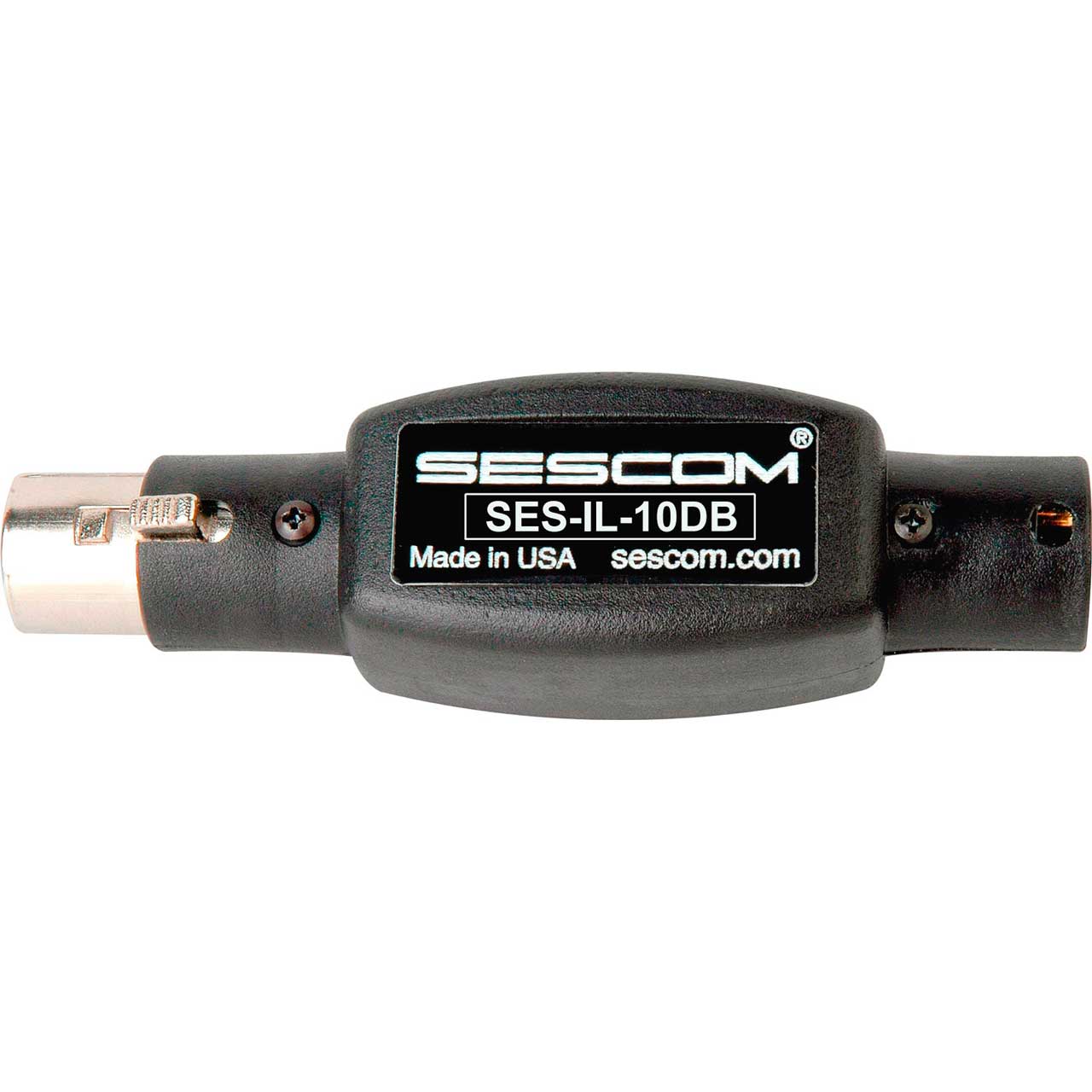

Sescom 3-Pin XLR Male to 3-Pin XLR Female Inline Attenuator - 10db

ITEM #: SES-IL-10DB MFG #: SES-IL-10DB

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$24.95

Our Price:

$23.49

Availability: In Stock
iAvailability Description Popup


SES-IL-10DB - Overview

A fully balanced XLR male to XLR female inline fixed audio pad attenuator with hot audio controller. Stops overloading peaks and distortion - Provides totally Flat, Full-Bandwidth across the board level cut; lowering the signal to the level you need! Inline design with Built-In Male and Female XLRs right in the housing: Plugs directly into equipment's inputs OR outputs - No additional cables or adapters needed.

  • Features:

    • Can also be inserted in-between two XLR cables
    • Extremely High Quality /Super Low Noise 1% metal film resistors for high performance
    • 100% Assembled and Quality Controlled in the USA
    • Impedance friendly design effectively lowers too-hot audio to proper levels to remove distortion
    • Can be used backwards if necessary, although designed to be used with signal to be cut going into the female side

  • Specifications:

    • Frequency Response Deviation (20Hz-20kHz): <0.1dB
    • Signal to Noise Ratio at 0dBFS, A-weighted: 88 dB
    • Total Harmonic Distortion at 1kHz, 0dBFS: <0.001%
    • Maximum Input Level: >24dB
    • Maximum Output Level: >14dB
    • Dynamic Range: >112 dB
    • Gain: -10 dB
    • Common Mode Rejection: 84 dB
    • Input Impedance: 2.3k ohms
    • Phase Deviation: <.1deg
    • Product Dimensions: 3.75" x 1.06" x 1.13"

  • Warranty:

    • 1 Year
