Sescom Pedal Board Patch Cable with Right Angle Pancake Style Connectors- 12 Inch

ITEM #: SES-PB12 MFG #: PB12

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$12.95

Our Price:

$11.95

Availability: In Stock
iAvailability Description Popup


PB12 - Overview

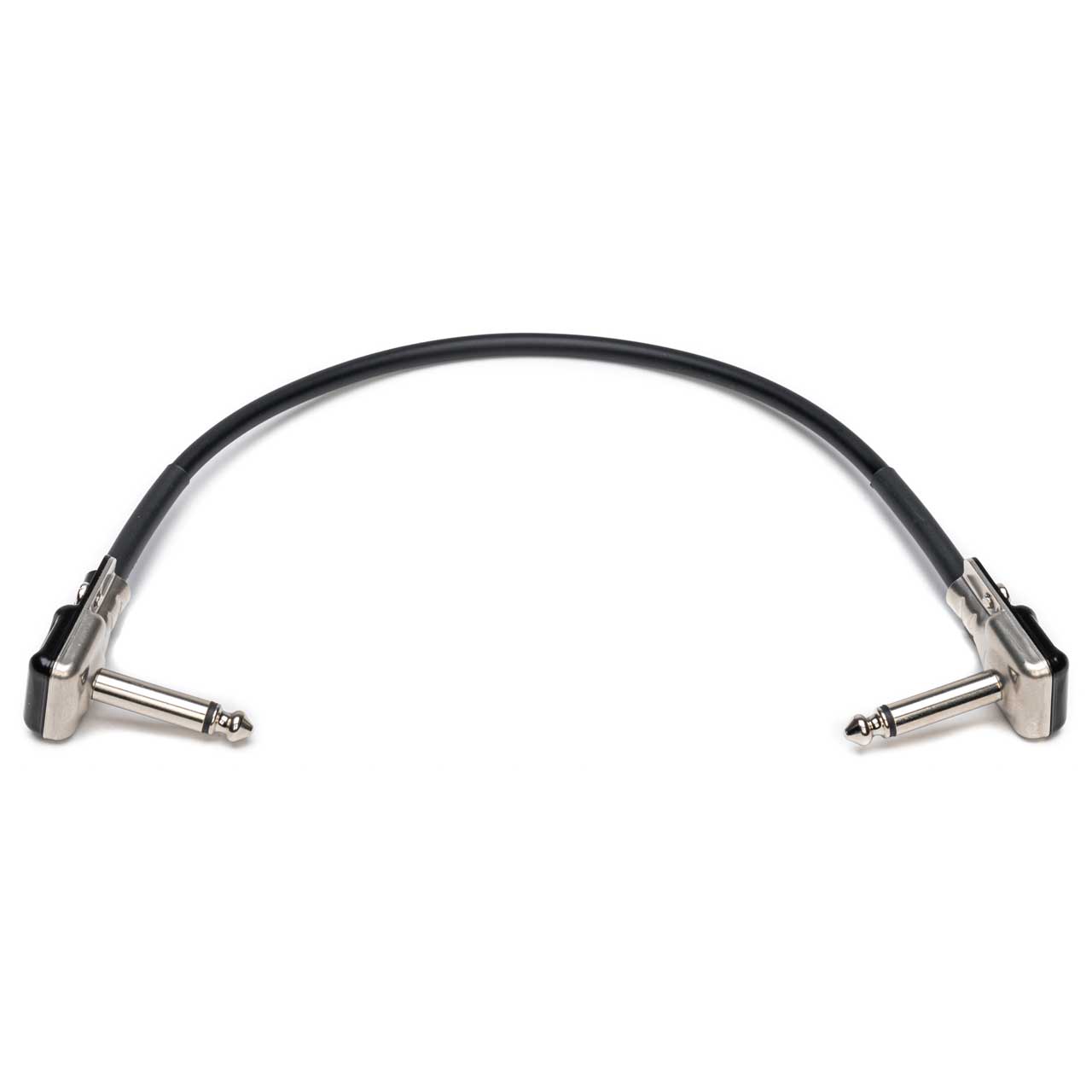

Sescom SES-PB12 Instrument-Guitar Pedal Cable with Right Angle Pancake Style Connectors-12 Inch

Why trust your sound to some cheap guitar pedal cable when you can get a hand-crafted premium cable at a competitive price? The Sescom PB Series of instrument cables are manufactured with the trusted Mogami 2319 high impedance cable guitar cable and terminated with right angle pancake-style 1/4" plugs.

The Sescom SES-PB cable features a conductive PVC layer under the shield conductor to drain away microphonic noise and deliver a crystal clear tone. and a cable that delivers the best durability. Each cable is hand-crafted in the USA and built for durability in all applications.

  • Features:

    • Maximum Clarity & Noise Free
    • Conductive PVC Layer under Shield Conductor Avoids Microphonic Noise
    • High Flexibility & Rugged Design for Frequent Use

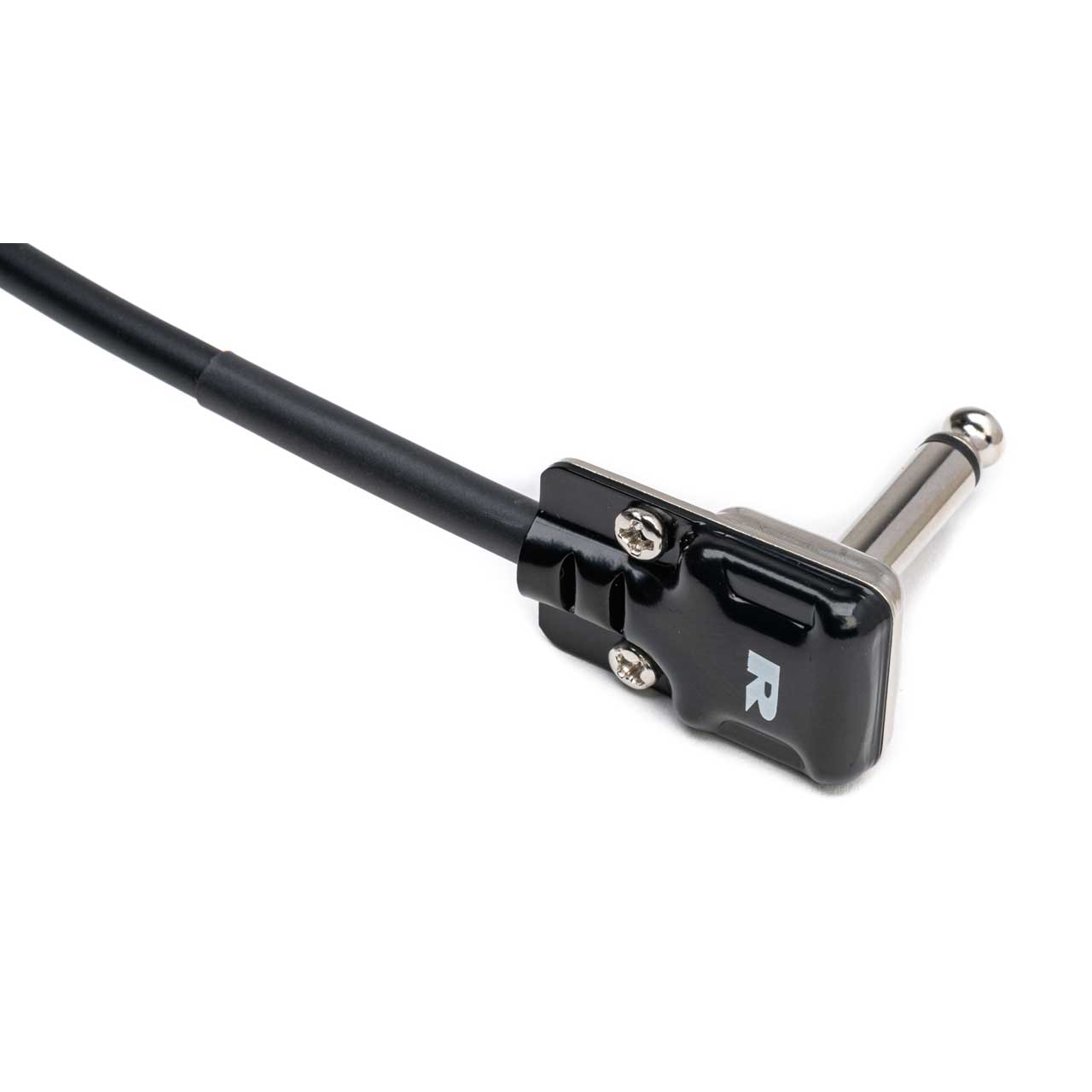

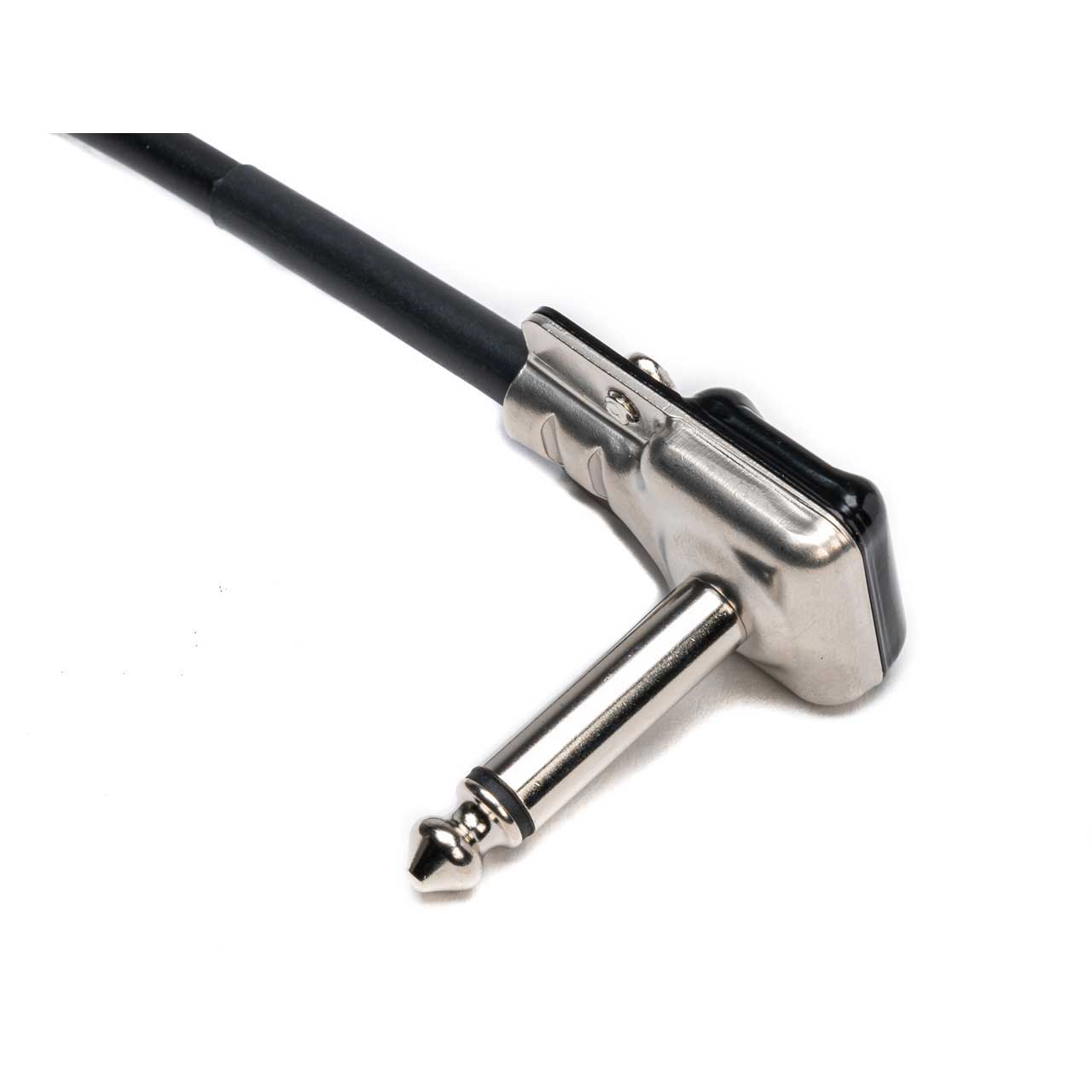

    • Right Angle 1/4-inch Mono Pancake Plugs
    • Heavy Duty Cable Clamp for Best Strain Relief

  • Specifications:

    • Cable: 23 AWG Mogami High Impedance W2319
    • Black PVC Jacket
    • DC Resistance: Inner Conductor 0.064ω/m / Shield Conductor 0.026ω/m
    • Capacitance at 1kHz: 155pF/m
    • Inductance: 0.3uH/m
    • Microphonic: 0.3mV Max
      Plug: 2 Pole 6.35 mm Right Angle
    • Steel Shell with Nickel Bottom & Top Cover
    • Brass Contacts with Nickel Plating
    • Insulation Resistance: ? 1Gω
    • Dielectric Strength: >1.0kVDC dielectric strength
    • Lifetime:>1000 mating cycles and complies with IEC 68-2-20
