Sescom Professional Grade Balanced Audio Passive XLR Pigtail 3-In 1-Out Switcher

ITEM #: SES-XLR-ABC-T MFG #: SES-XLR-ABC-T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$119.95

Our Price:

$104.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SES-XLR-ABC-T - Overview

Need More Inputs for Your Mixer?

Sescom has the perfect solution! The Sescom XLR-ABC-T allows you to add and easily switch between three audio input channels for your mixing console or powered PA system. A spin-off of the popular 3MIX, the SES-XLR-ABC-T offers enhanced control by isolating the three channels, so you can choose exactly the input you need.

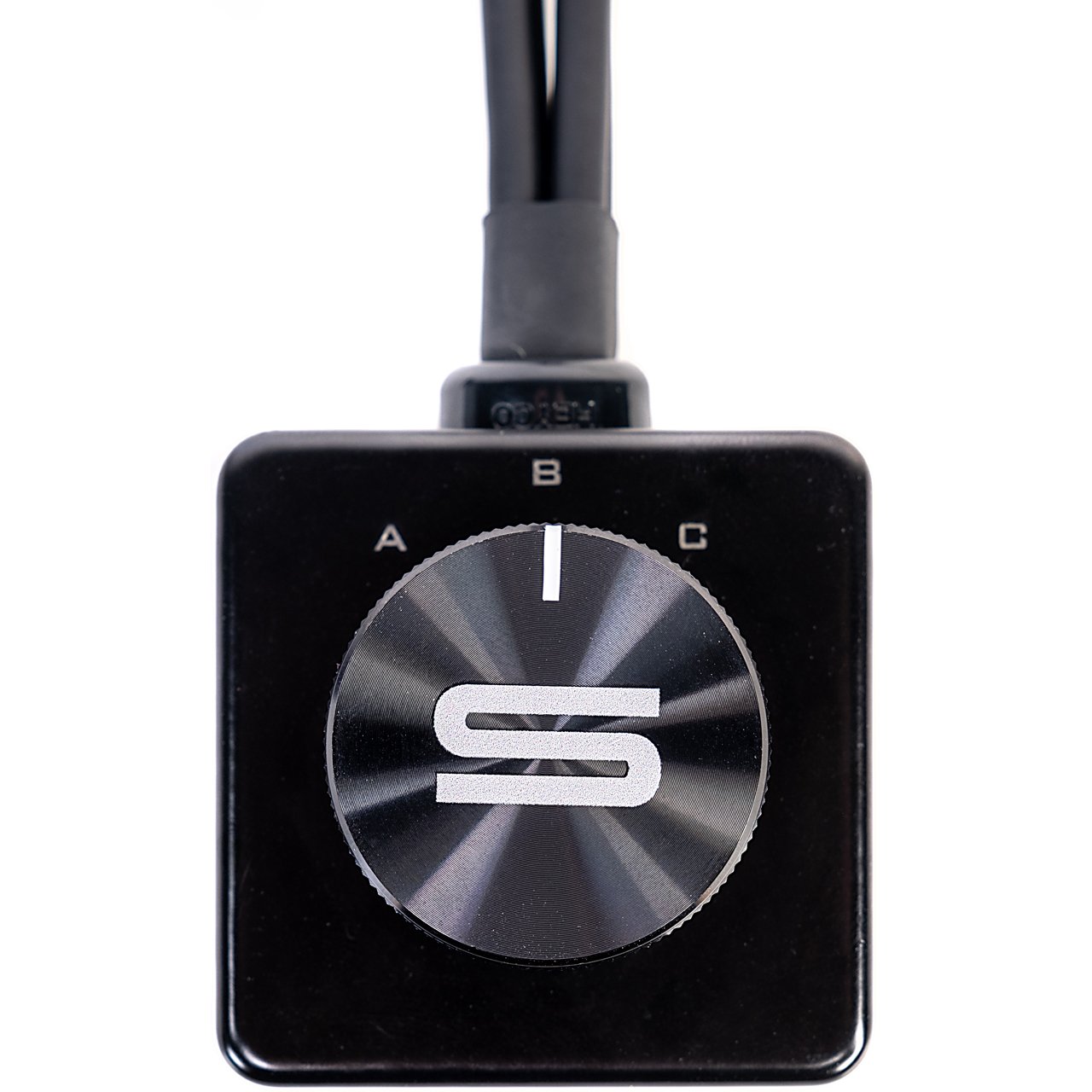

This versatile device features a simple, top-mounted rotary switch for effortless mic input selection. Handcrafted in the USA using premium components from Canare and Neutrik, the SES-XLR-ABC-T is built for durability and outstanding performance. Whether you're at a live venue or in the studio and find yourself needing more inputs, this is the go-to tool to keep the gig running without a hiccup.



Please Note:

For phantom-powered sources, we recommend muting channels before switching inputs to prevent system popping.

  • Features:

    • Rejects EMI and RFI
    • Easy to use low noise 3-Position rotary switch

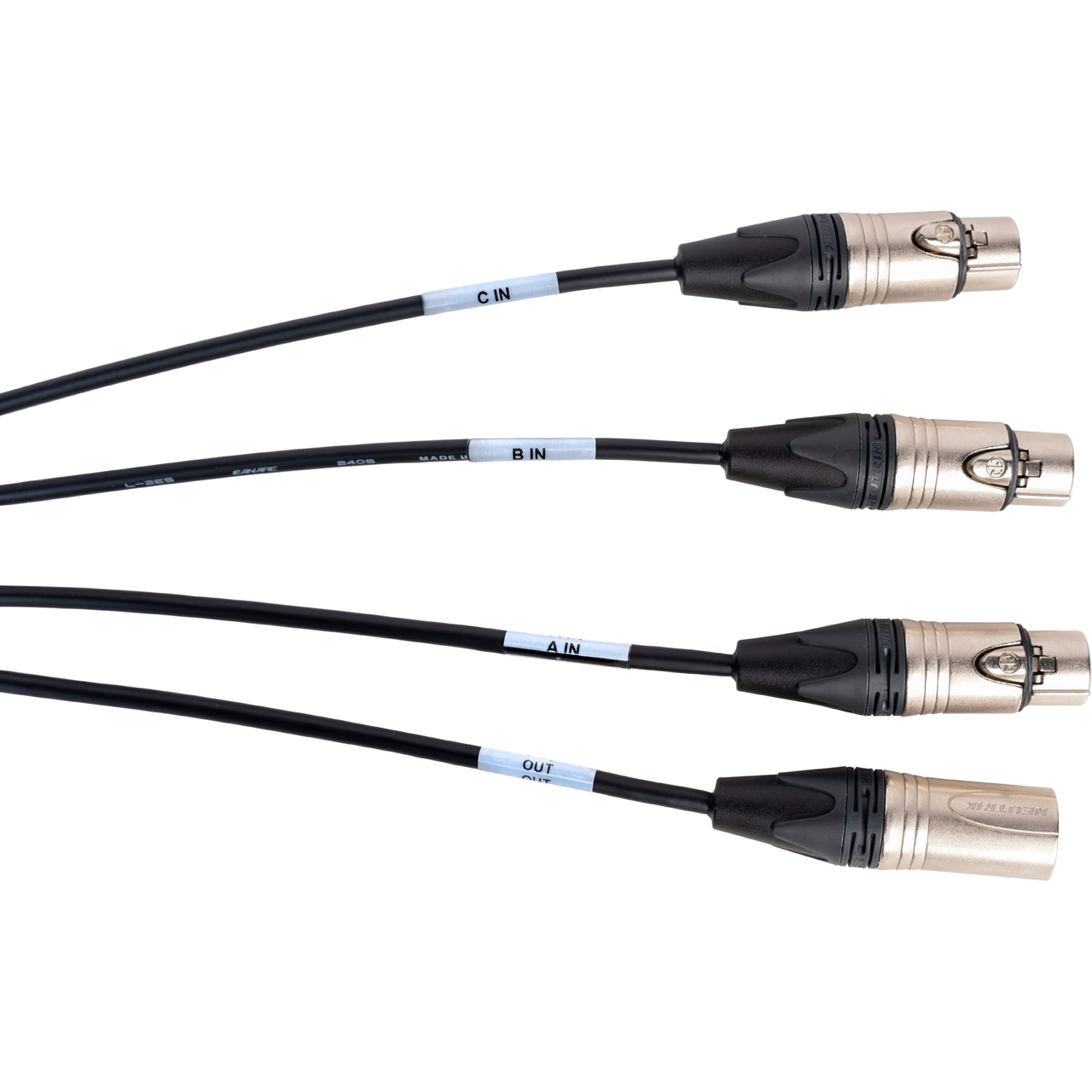

    • 3x Female XLR Connectors, 1x Male XLR Connectors
    • Terminated with Neutrik Connectors
    • Compatible with Phantom Power devices
      ** Disclaimer: It is recommended to mute channels before switching phantom-powered devices. Otherwise, you may hear a slight pop or click when switching.**

  • Specifications:

    • Cable Nom. O.D: .181in (4.6mm)
    • Jacket Nom. Thickness: 0.035in (0.9mm)
    • Number of Conductors: 2
    • Conductor AWG: 26
    • Insulation Type: IPE
    • Pitch Twist: <0.79in
    • Shield Coverage: >96.7%
    • Shield Type: TAC Braid
    • Conductor DCR: <38.7Ω/1000ft
    • Shield DCR: <6.7 Ω/1000ft
    • Cable Weight: 0.030lbs/ft

      Neutrik Connectors:
    • Capacitance Between Contacts: ≤ 4 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 10 GΩ (initial)
    • Rated Current Per contact: 16 A
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Boot Material: Polyurethane
    • Contact Plating: 2 µm Ag
      -Female Contact: Bronze (CuSn8)
      -Male Contact: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA66)
    • Locking Device: Latch Lock
      -Female Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
      -Male Locking Element: Zinc diecast (ZnAl4Cu1)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain Relief: Polyacetal (POM)
    • Protection Class: IP40
    • Temperature: -22°F to 176°F (-30 °C to +80 °C)

  • Warranty:

    • 1 Year
