Fiberplex SFP-BA10XC-0000-M MADI (AES10-2003 compliant) SFP Module

ITEM #: SFP-BA10XC0000-M MFG #: SFP-BA10XC-0000-M

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$406.19

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SFP-BA10XC-0000-M - Overview

A MADI (AES10-2003 compliant) SFP

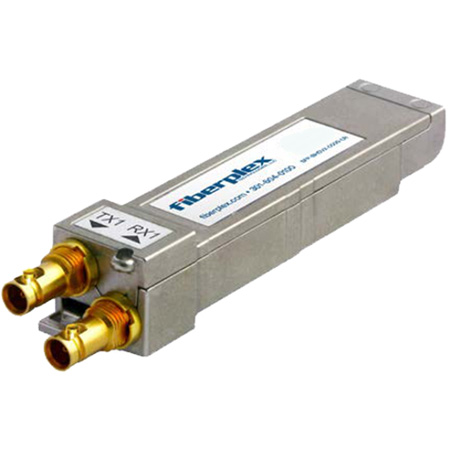

The Fiberplex SFP-BA10XC-0000-M is a medium reach electrical transceiver SFP module designed to transmit and receive MADI signals up to 125 Mbps over 75ohm coaxial cables via HD-BNC connectors. The cable driver amplitude and edge rate are automatically configured in order to achieve compliance to AES10-2003. These MADI modules are non-MSA compliant and would NOT be compatible with the WDM16.

MADI?

MADI a mystery? Here are some explanations regarding `MADI optical': The cables have an internal fiber of 50 or 62.5 m (microns) in diameter and a coating of 125 m. The plugs used are an industry standard, called SC. The cables are available as a duplex variant (2 cables being glued together) or as a simplex variant (1 cable). The transmission uses the multi-mode technique, which supports cable lengths of up to almost 2000 meters.

MADI can be used as a multi-Channel link between mixing consoles, DAWs or multi-track recorders as a transmission format in large scale digital audio routing systems. It transmits digitized microphone and line signals from a stage box to a theatre or studio mixing console.

  • Features:

    • Meet Electrical Specifications of AES10-2003.
    • Available as Transciever, Dual RX or Dual TX.
    • HD-BNC connectors (75 ohm).
    • Integrated Equalizer: Typical length of Belden1694A cable, 100m at 125Mb/s.
    • Integrated Cable Driver; Control via serial interface including, Input signal detection, Voltage & Temperature Monitoring, Module Information.

  • Specifications:

    • Power Consumption; typical 615 mW Single Supply +3.3V.
    • 56.6mm x 13.4mm x 8.6mm SFP Package.
    • Extended Temperature Range -40°C to 80°C.
