    TDR-01-AC - Overview

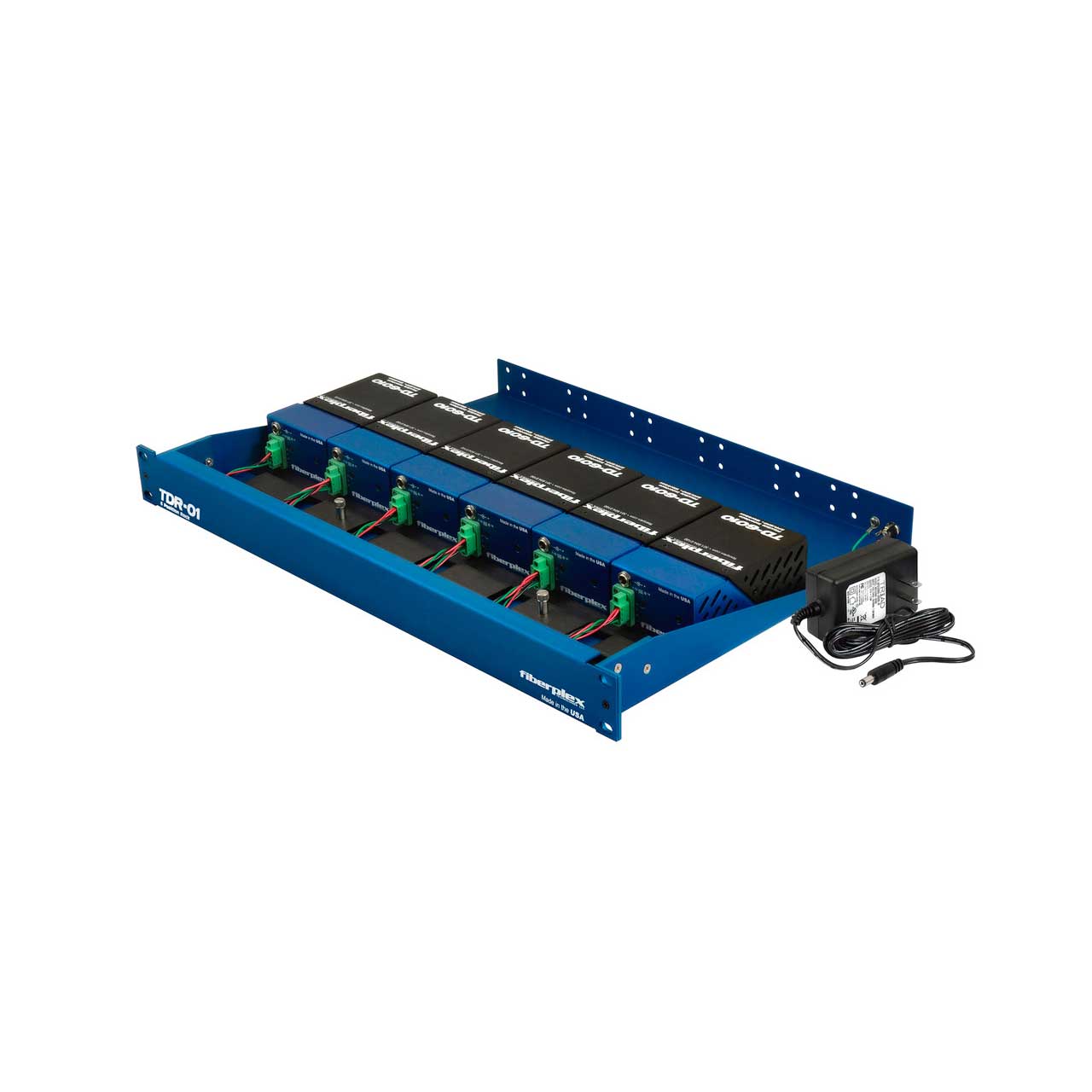

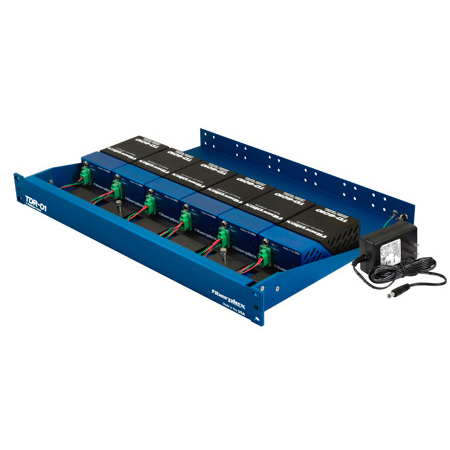

    Complementing the flexibility of the FiberPlex `TD Series' of fiber optic modules, the TDR-01-AC provides mounting, power and cable management for up to 6 modules in a compact and rugged aluminum 1U rack. With the TD modules rear facing, connections to the TD units are made from the rear, inside of the rack enclosure. The integrated key-hole mounting holes on the bottom the TD units lock securely on mating studs while a rear retention bar holds them securely in place.

    A 6 position wiring harness and included power adapter provide, not just 9 VDC power, but a positive earth ground to the modules via 3 position Phoenix™ locking power connectors. Managing all that cabling and fiber can sometimes be quite a chore so an extended cabling tray with integrated tie down points are provided to help make your installation clean.

    Applications:
    Datacom
    Broadcast
    SCADA
    A/V Installations
    Mobile Studio

    • Features:

      • Provides mounting and power for up to 6 TD Series modules
      • Securely seats modules with positive retention bar
      • Power adapter and wiring harness included
      • Convenient cable tray for clean installation
      • Grounding stud for positive earth ground
      • Reinforced rack ears

    • Specifications:

      • Case Dimensions(1U)
      • Length: 13 inch (330 mm)
      • Width: 19 inch (482 mm)
      • Height: 1.25 inch (31.7 mm)
      • Weight: 2 lb (0.9 kg)

        Power Requirements
      • Voltage range: 9 VAC
      • Power consumption: 18 - 30W

    • Item Includes:

      • DC Power supply for (6) TD-Series devices
