    TKIT-DANTE-M - Overview

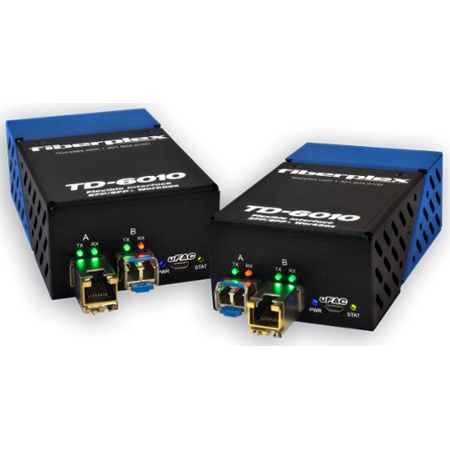

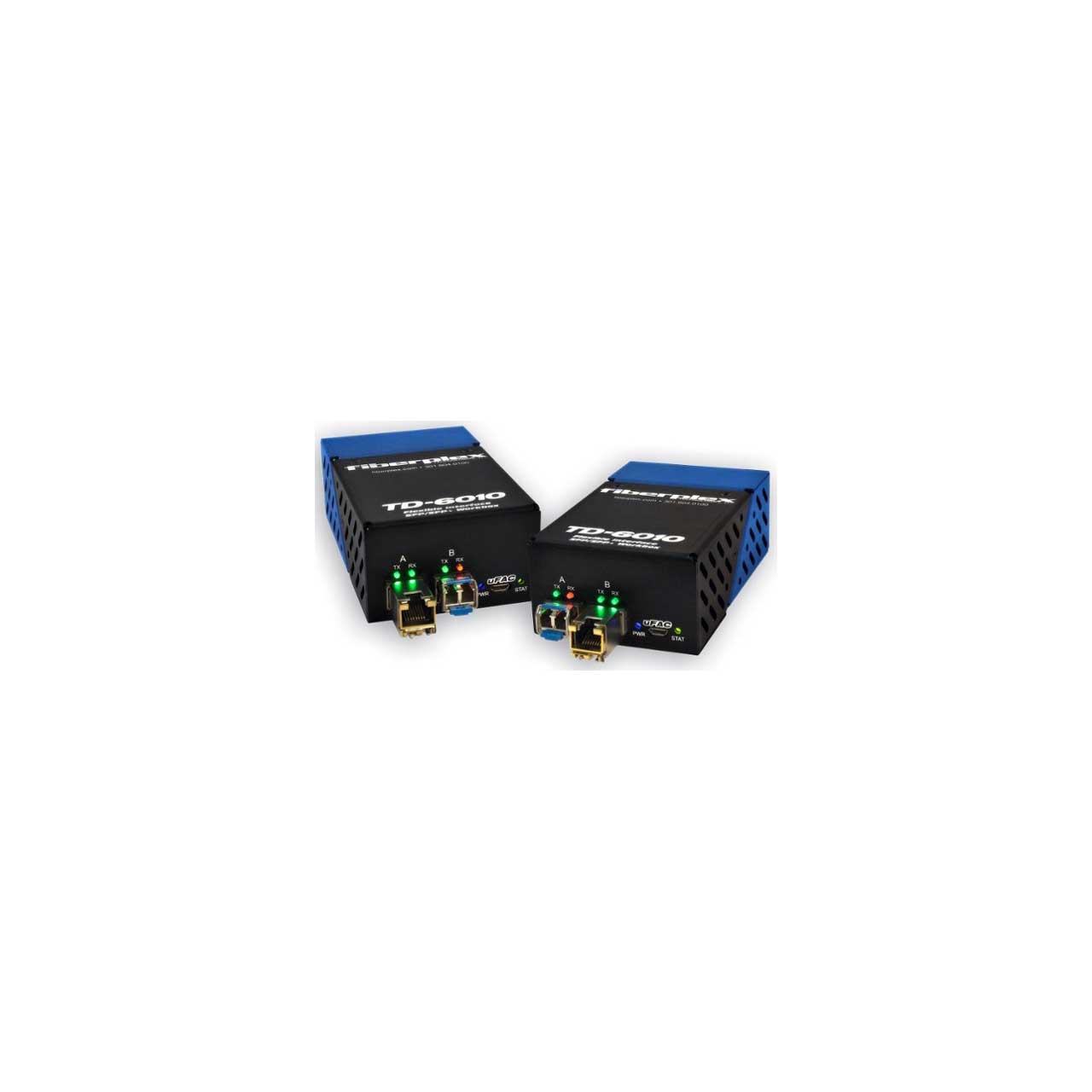

    The FiberPlex Technologies `TKIT' bundles takes the incredible flexibility of the TD-6010 (TKIT-DANTE-M)12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. Includes AC Power Adapters.

    All TKIT boxes come equipped with a USB 2.0 Micro-B Connection for monitor control. It is a USB port intended to monitor and control the installed SFP. It is for future functionality only, Fiberplex currently does not have software available for this.

    All fiber connectors are LC duplex and all TKIT kits come with all SFPs needed. All TKITs listed have HDBNC connections where applicable. RJ45 connectors on Ethernet and Dante connections.

    Applications:
    With the FOI(TD)-6010, the possible applications are virtually endless:
    Multi mode to single mode
    Optical standard duplex to single fiber bidirectional (BiDi) transport
    Fiber optic repeater
    Optical wavelength conversion
    10/100/1000 Ethernet to fiber
    ASI, SD-SDI, HD-SDI & 3G-SDI to fiber
    HDMI/DVI to fiber
    MADI to fiber
    4K UHD Video to fiber
    Video format conversion

    • Features:

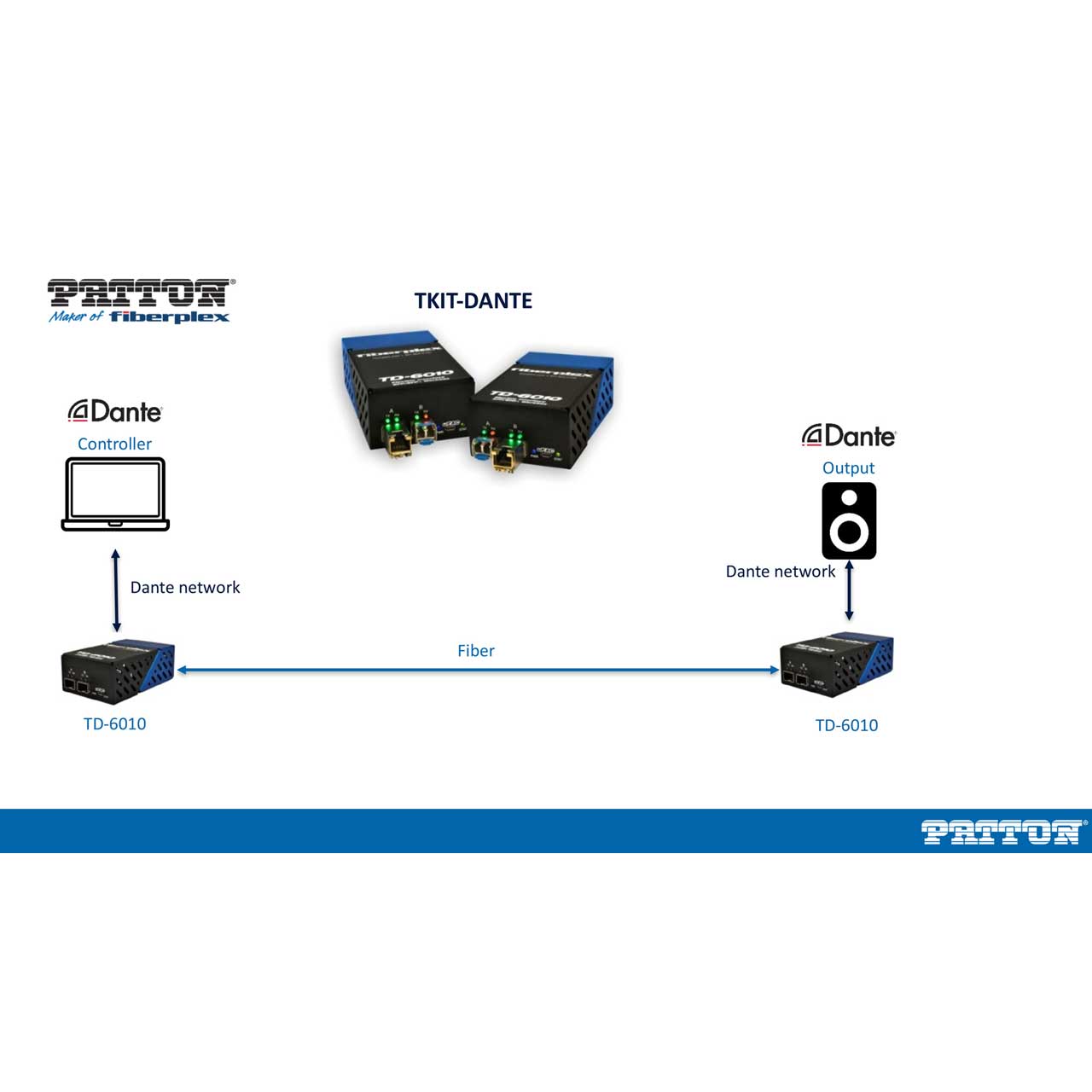

      • Extend DANTE/AVB/AES67 audio over Fiber
      • ULTRA-Low latency for AoIP and other QoS applications
      • Support multimode or singlemode operation
      • Up to 1.25 Gbps bi-directional links
      • Hot-pluggable SFPs
      • Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting
      • AC Power Adapters included

    • Specifications:

      • Power Requirement (Min/Typ/Max/Unit)
      • Voltage Range: 5/9/40/VDC
      • Supply Current, no SFPs: 21/23/30/mA
      • Supply Current, max 2 SFP+: 420/555/1000/mA

        Environmental
      • Storage Temperature: -40° to 185°F (-40° to 85°C)
      • Operating Temperature: 32° to 122°F (0° to 50°C)

        Interface
      • Full speed USB 2.0 compliant MicroB Device

        Optical Module
      • 2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 - 12.5 gigabits

        Case Dimensions
      • Length: 4.5" (114mm)
      • Width: 1.66" (42mm)
      • Height: 2.75" (70mm)
      • Weight: 0.4LBs (0.2kg)
