    TD-7280-L5B - Overview

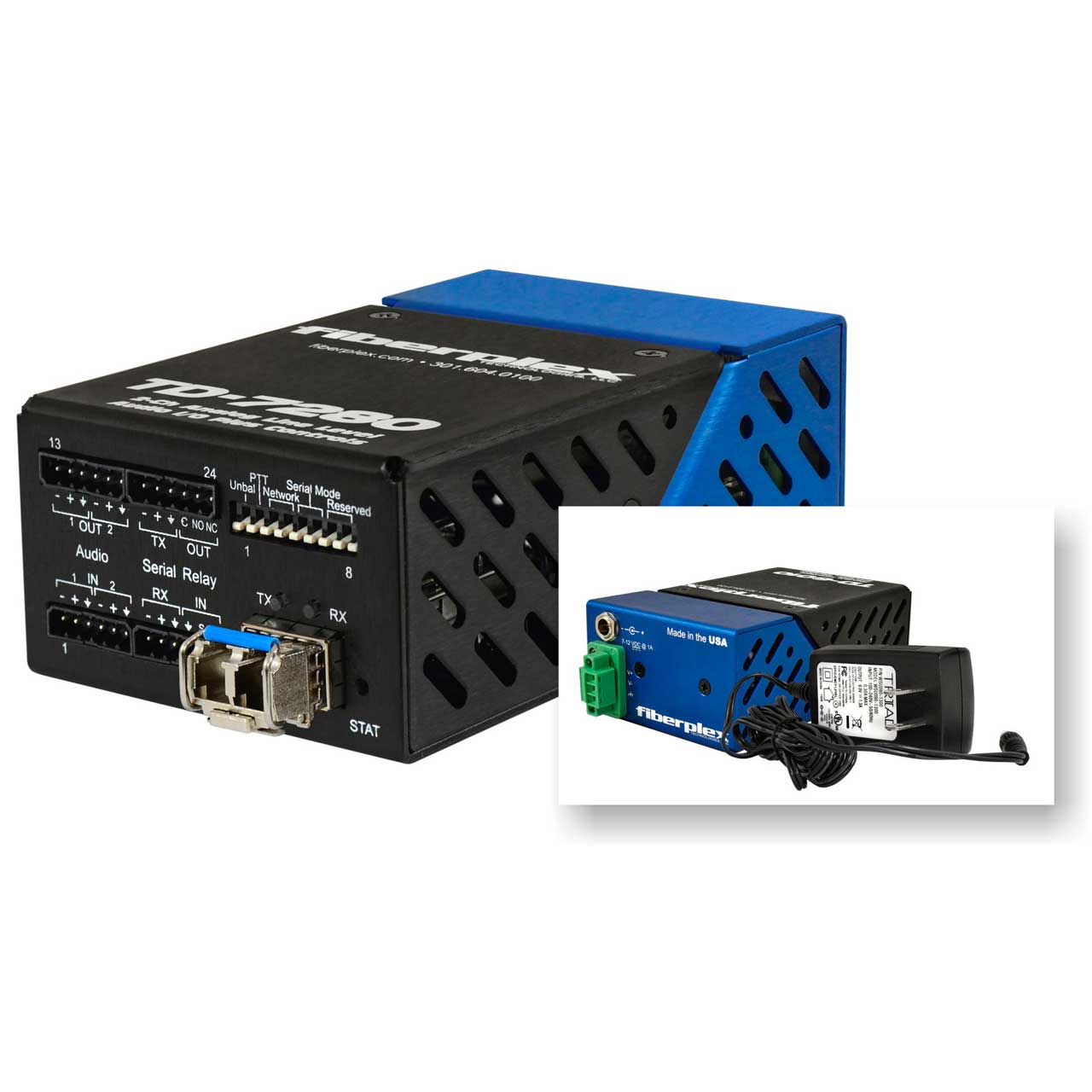

    Elegantly simple yet packed with an advanced feature set, the FiberPlex Technologies FOI(TD)-7280 is a powerful problem solver when it comes to routing audio or transporting E&M signals. The unit converts line level, stereo analog audio to fiber for long or short haul transport. In addition to the audio, a multi-format serial data connection and a bidirectional pair of contact closures are included. The combination of audio and signaling provides a seamless solution for 4-wire E&M applications.

    The L5B utilizes a singlemode, LC connector and rated for 1300nm, 20km.

    What's the difference between the FOI and the TD versions?
    Functionally, the FOI-7280 and TD-7280 are identical. The only differences are the packaging and power supply. The FOI-7280 is part of the FOI line of products designed for ruggedized military applications while the TD-7280 is housed in the commercial `Throw Down' packaging.

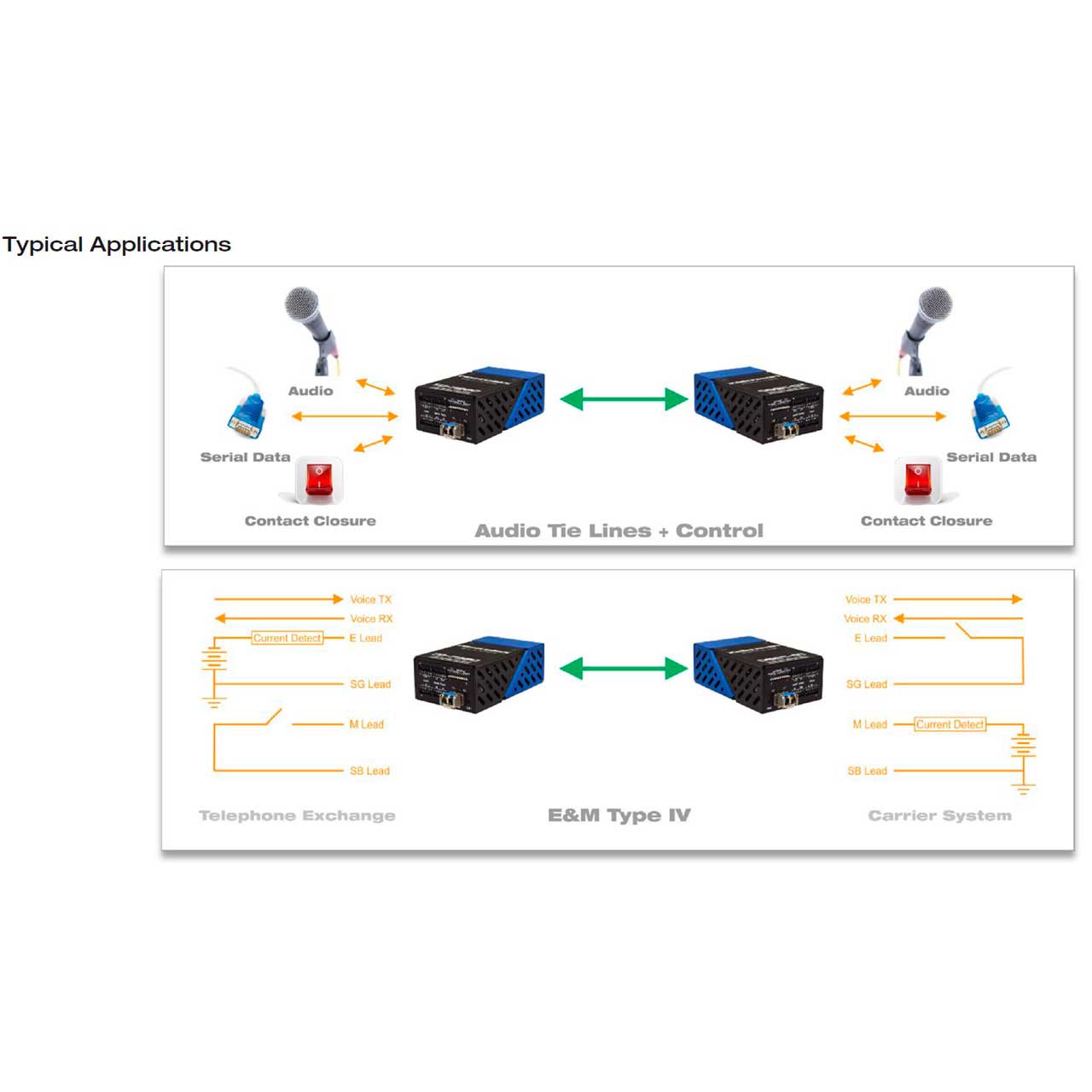

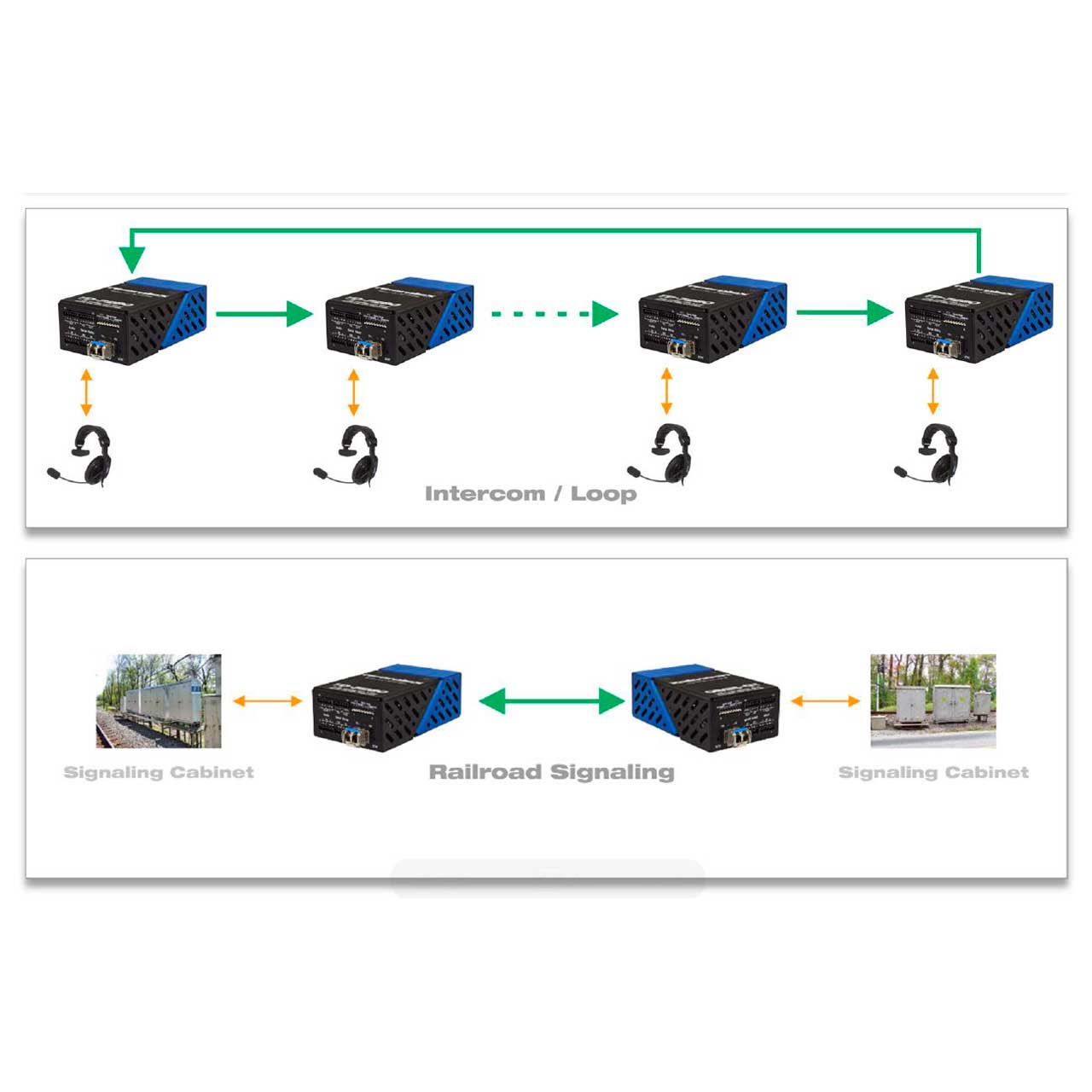

    Applications:
    Audio Tie Lines
    Audio Distribution
    Push To Talk
    Intercom
    Railway Signaling
    E&M

    • Features:

      • Audio Interface:
      • Supports Balanced and Unbalanced Audio I/O
      • Supports E&M (Ear and Mouth) Types II-V
      • High Quality 24-bit audio
      • Ultra Wide 20 Hz to 45 kHz Frequency Response
      • Supports Ultrasonic Signaling.
      • Serial Interface: RS-232, RS-422, RS-485 (2/4 wire)
      • Data Rates from 0 to 1 Mbps.
      • Contact Closures: ‘Form C’ Contacts
      • Supports Push to Talk.

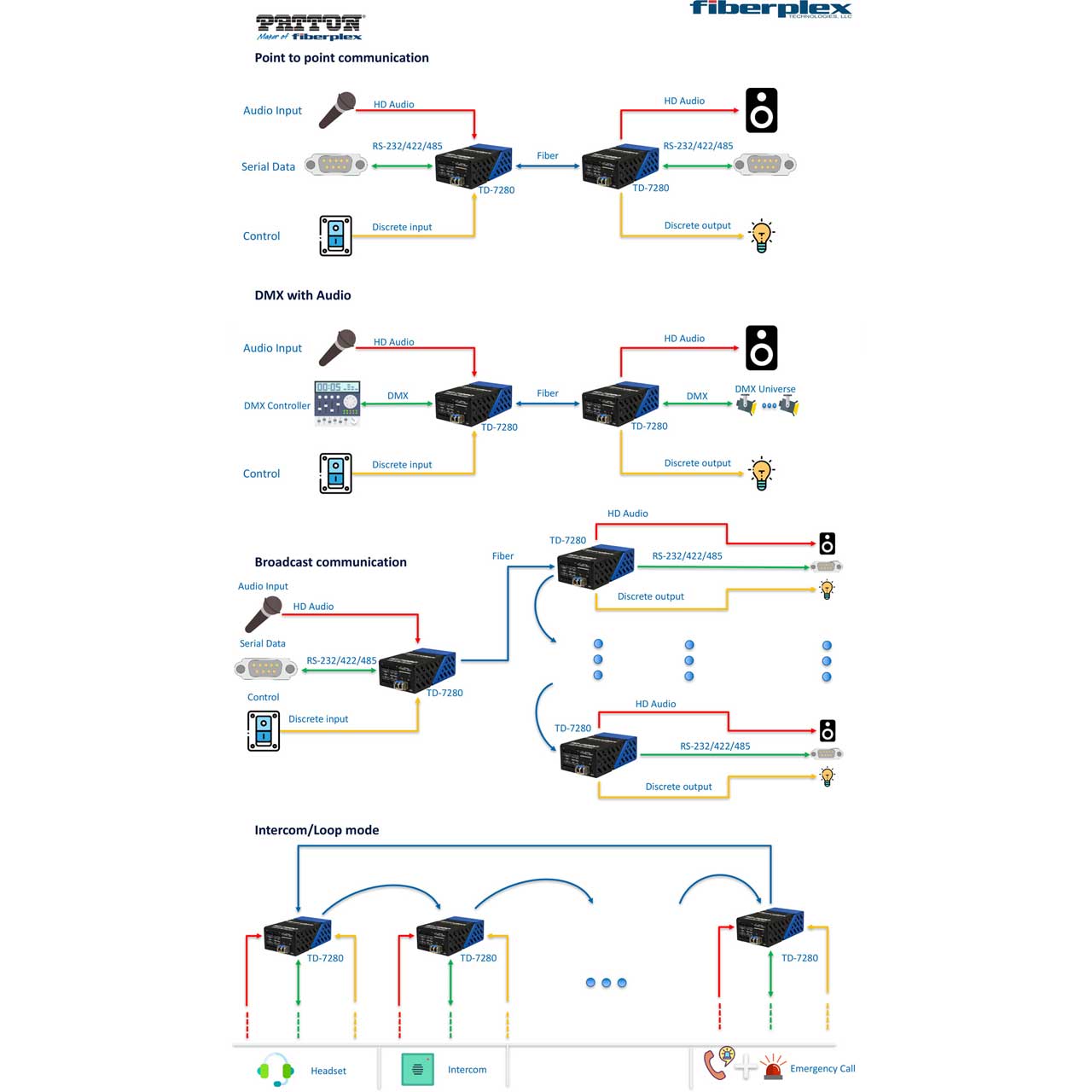

      • Advanced Routing:
      • Point to Point
      • Broadcast Mode
      • Intercom/Loop
      • Multichannel Add/Drop

    • Specifications:

      • Audio Interface:
      • Supports Balanced and Unbalanced Audio I/O
      • High Quality 24-bit audio
      • Ultra Wide 20 Hz to 45 kHz Frequency Response
      • Supports Ultrasonic Signaling

        Serial Interface:
      • RS-232, RS-422, RS-485 (2/4 wire)
      • Data Rates from 0 to 1 Mbps

        Contact Closures:
      • `Form C' Contacts
      • Supports Push to Talk

        Advanced Routing:
      • Point to Point
      • Broadcast Mode
      • Intercom/Loop
      • Multichannel Add/Drop

    • Item Includes:

      • DC Power supply and 3 position Phoenix connector
