Shure ADX5BP-TA3 Dual TA3 Back Plate for ADX5D

ITEM #: SH-ADX5BP-TA3 MFG #: ADX5BP-TA3

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$250.00

Our Price:

$200.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ADX5BP-TA3 - Overview

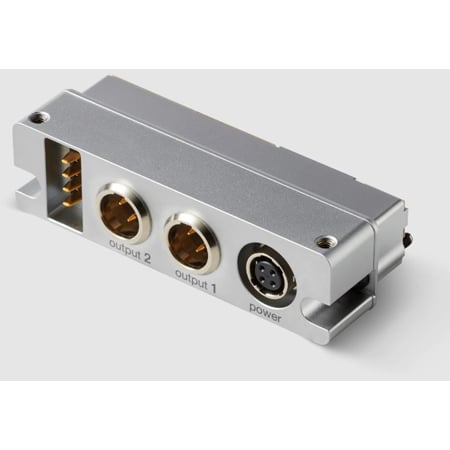

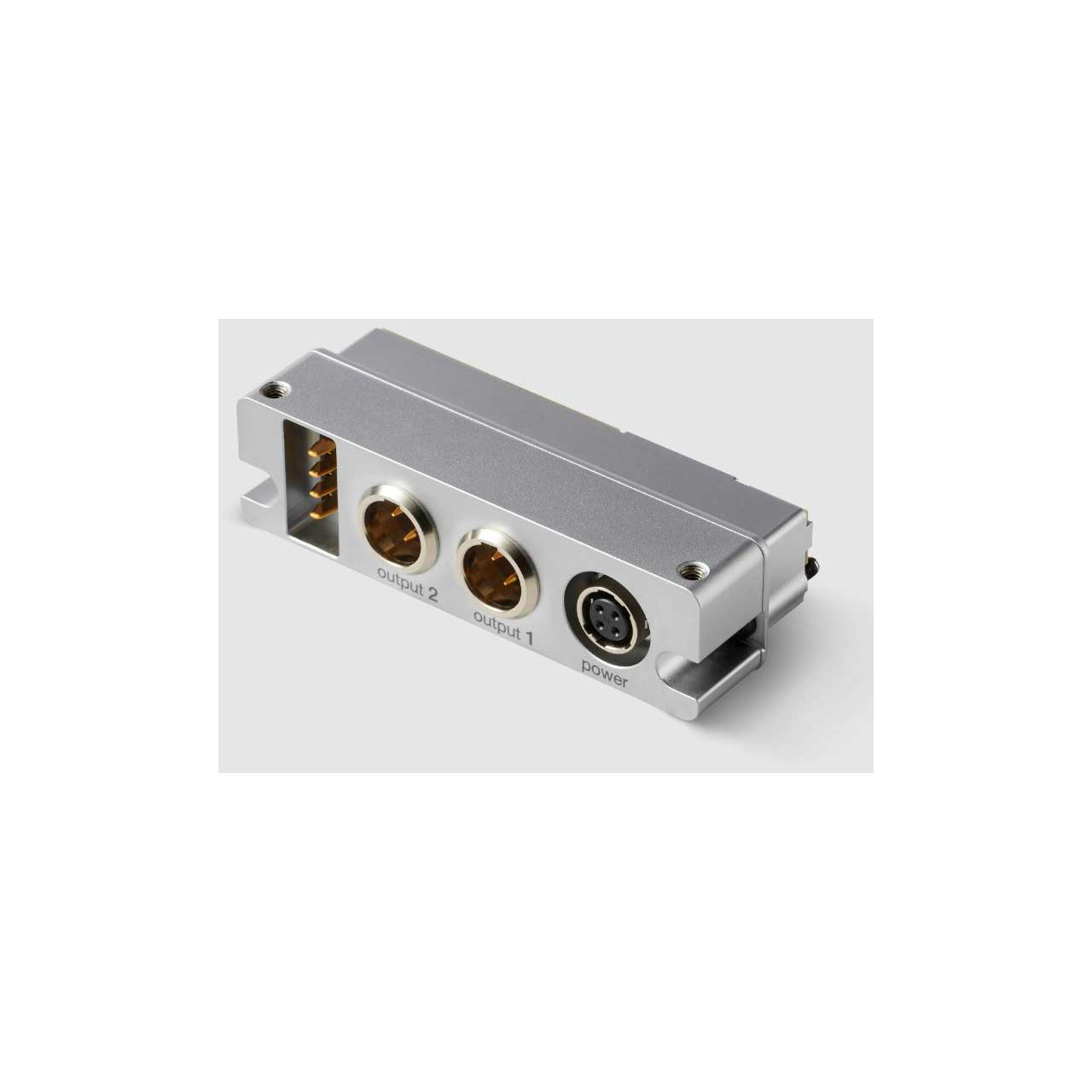

    The Shure ADX5BP-TA3 is a backplate for the ADX5D and is designed to accommodate power input from an external source, audio output for the receiver, and optional interfacing with compatible battery sleds. The panel includes a 4-pin connector for mating with the battery sled, two TA3 (mini 3-pin XLR) audio output connectors, a 4-pin locking Hirose power input connector, and captive Phillips-head screws to mount/unmount the rear panel.

    When connected, output 1 can be configured for analog or AES3 output in the device menu. Analog output 2 is disabled when AES3 is selected.

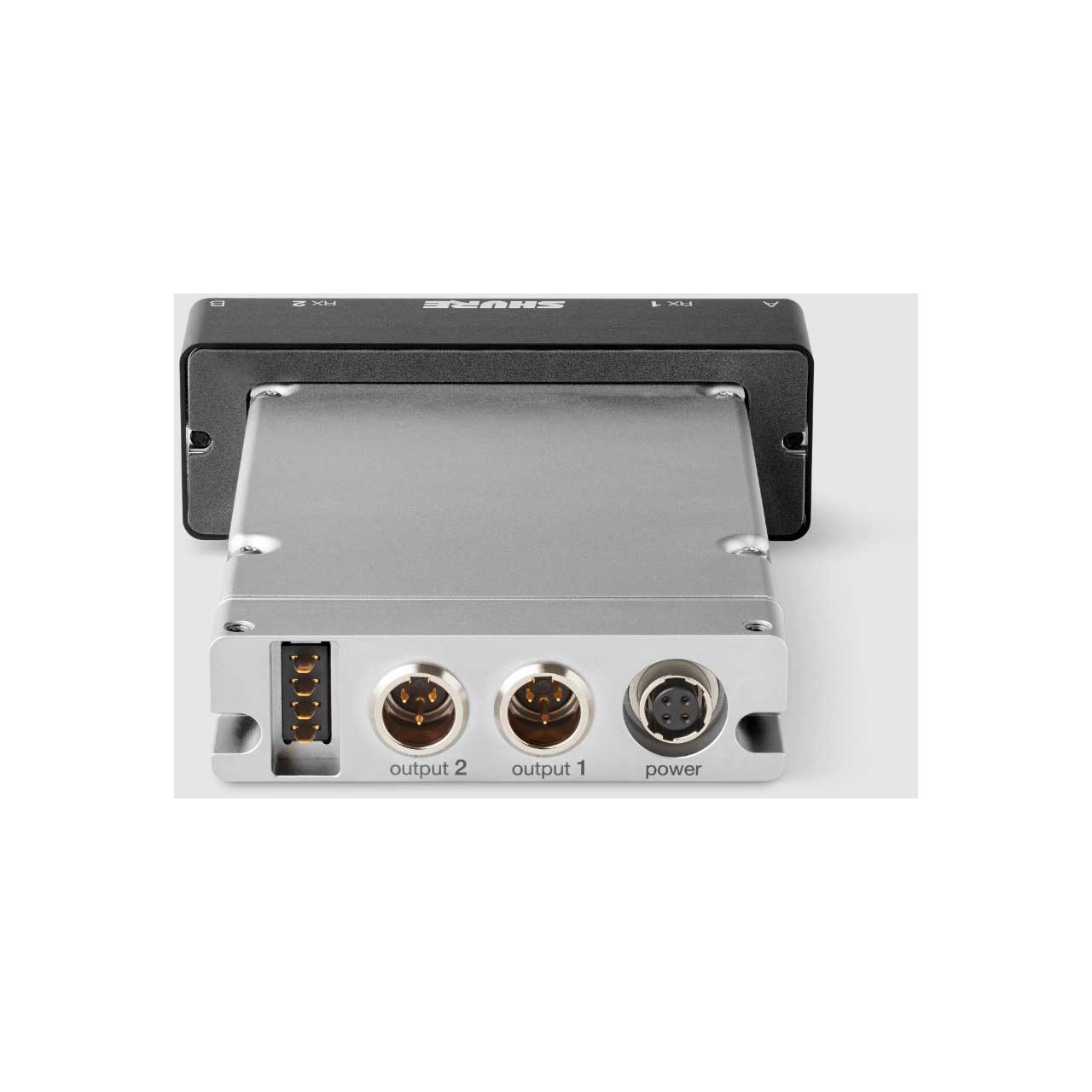

    One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides stand-alone connectivity for the Axient Digital ADX5D into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It includes a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws provide simple installation to the ADX5D. Providing two channels of audio output, ADX5BP-TA3 Output 1 and 2 are both analog. However, Output 1 can be configured for digital AES3 output in the device menu (analog Output 2 is disabled when AES3 is selected).

    Since the receiver doesn't need to mate with an external device while being used with the standalone rear panel, a spacer plate is not required or included with the rear panel.

    Connecting a Power Supply
    Connect a compatible 6-18V power supply to the power input.

    CAUTION: Always attach backplate to receiver before connecting power supply.

    • Features:

      • TA3 Backplate for the Axient Digital ADX5D dual-channel portable wireless receiver
      • 2 x TA3 analog outputs
      • Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected)
      • 1 x 4-pin power connector for battery sled use
      • 1 x Hirose 4-pin power connector
      • Input voltage: 6V DC to 18V DC
      • Captive Phillips head screws provide simple installation to the ADX5D
      • Compatible with the Shure WA451 audio cable (TA3F-to-XLR)

    • GTIN:

      0042406638838
