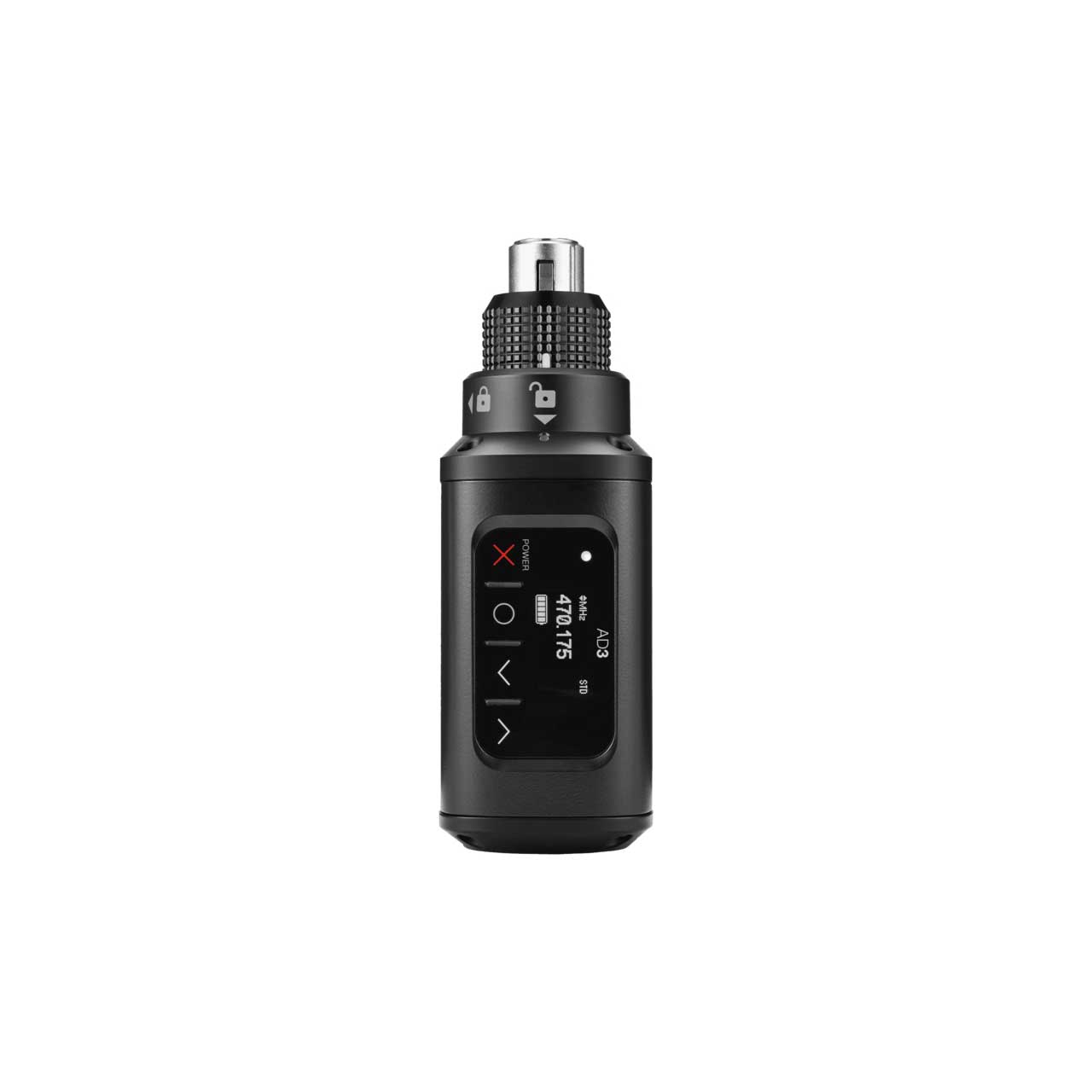

Shure AD3-G57 Axient Digital Plug-On Wireless Transmitter - 470-616 MHz

AD3=-G57 - Overview

• Features:

  • Patent-pending locking XLR connector for secure, wobble-free connection

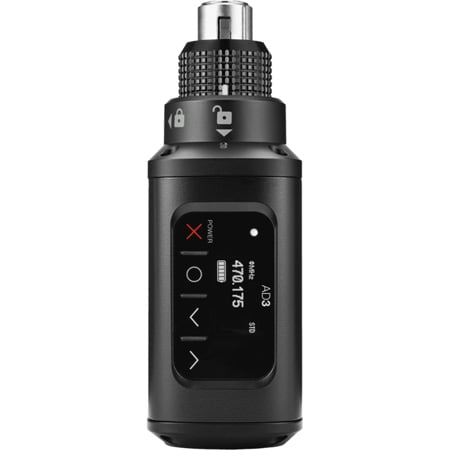

  • OLED display with easy-to-navigate menu and controls
  • Rugged metal construction that is resistant to dust and moisture
  • Automatic input staging optimizes gain setting
  • AES 256-bit encryption-enabled for secure transmission
  • 300 feet (100 meter) line-of-sight operating range
  • Selectable modulation modes optimize performance for spectral efficiency
  • Standard - Optimal coverage, low latency
  • High density - Dramatic increase in max system channel count
  • Switchable power levels (2/10/35 mW, region dependent)

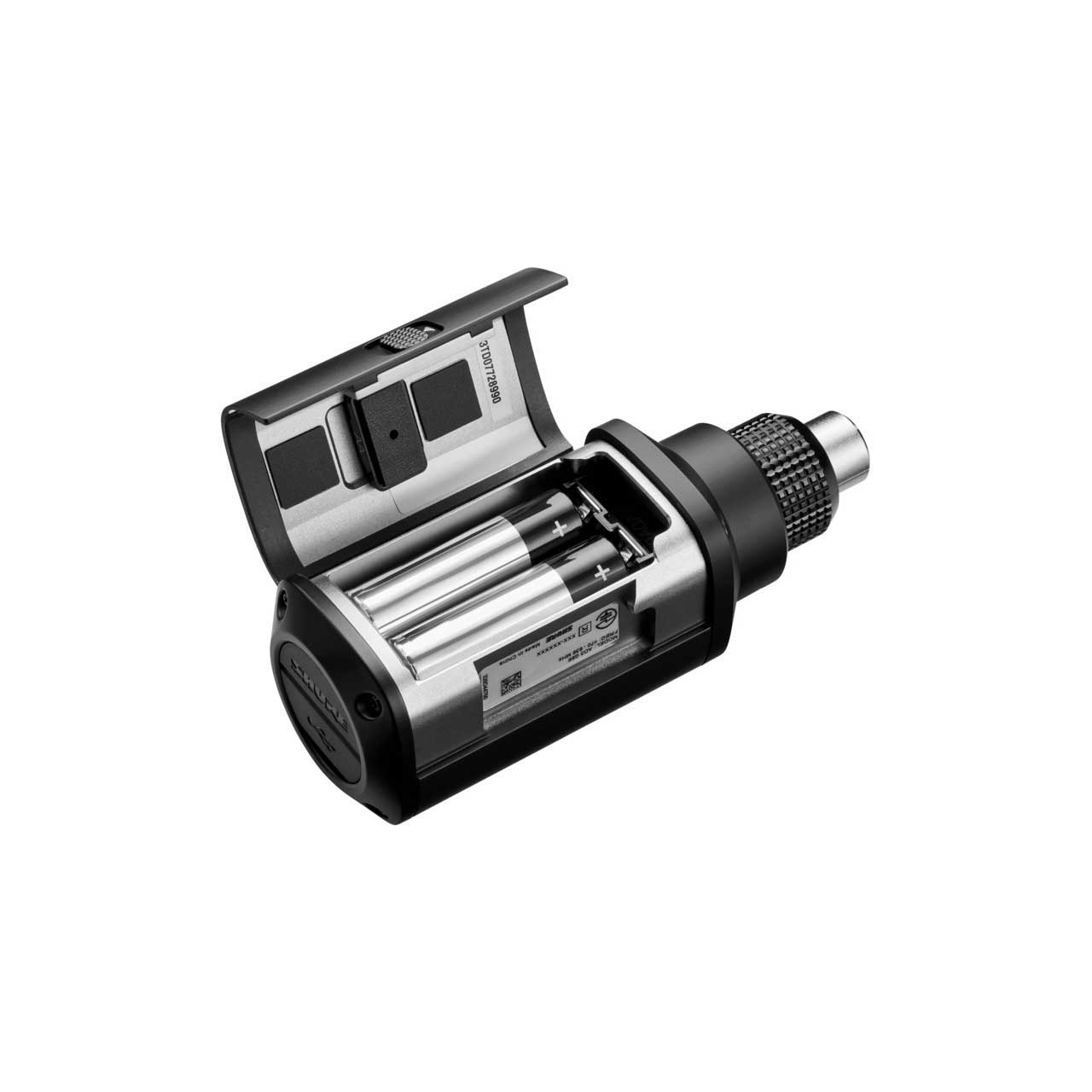

  • AA battery (included) or Shure SB900A rechargeable battery (sold separately) options

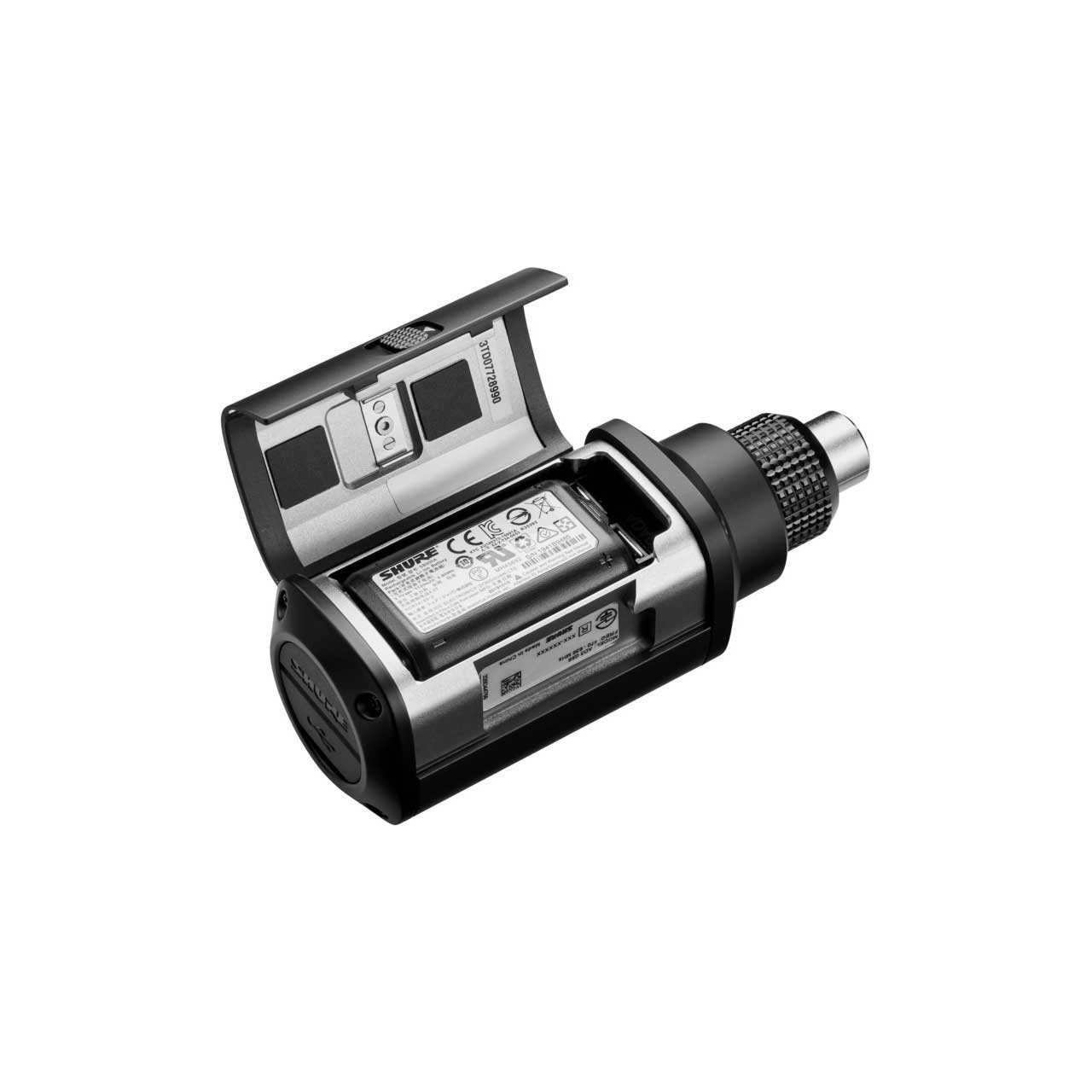

  • Optional Shure SB900A lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect
  • External power and charging option over USB-C port
  • Switchable phantom power (off, +12V, +48V)

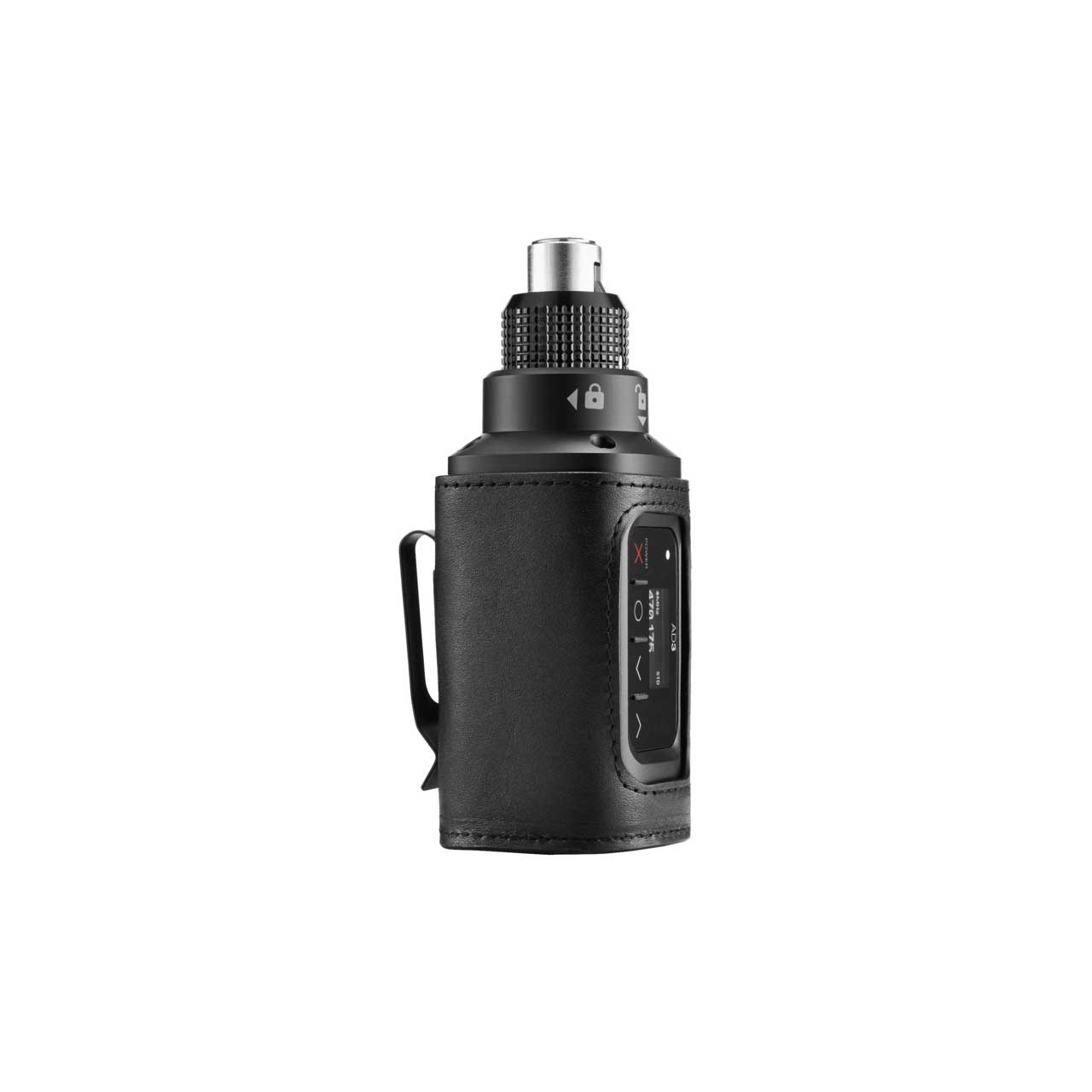

  • Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage


• Specifications:

  • Specifications
  • Mic Offset Range: -12 to 21 dB (in 1 dB steps)
  • Battery Type: Shure SB900 series Rechargeable Li-Ion or LR6 AA batteries 1.5 V
  • Battery Runtime: @ 10 mW - Shure SB900B > 8 hours, alkaline > 7 hours
  • Dimensions HxWxD: 5.0in. x 1.8in. x 1.8 in.
  • Weight: Without Battery 240 g (8.0 oz.), with AA batteries 263 g, with Shure rechargeable battery 280 g
  • Housing: Cast Metal
  • Operating Temperature Range: -10°C (-14°F) to 50°C (122°F)
  • Storage Temperature Range: -40°C (-40°F) to 74°C (165°F)

    Audio Input
  • Connector: 3-pin female XLR
  • Configuration: Balanced

    Impedance
  • Pad -12 dB: 26.64 kΩ
  • 0 dB: 6.64 kΩ
  • Boost 12 dB: 6.64 kΩ

    Maximum Input Level: 1 kHz at 1% THD
  • Pad -12 dB: 21 dBV
  • 0 dB: 9 dBV
  • Boost 12 dB: -3 dBV

    Preamplifier Equivalent Input Noise (EIN): System Gain Setting >/- +20: -115 dBV, A-weighted, typical
  • Phantom Power: +48 V(7 mA maximum), +12 V(15 mA maximum)
  • High Pass Filter: Two-pole (12 dB per octave), cut off frequency selectable from 40 to 240 in 20 Hz increments

    RF Output
  • Antenna Type: Dipole
  • Impedance: 50 Ω
  • Occupied Bandwidth: <200 kHz

    Channel-to-Channel Spacing
  • Standard Mode: 350 kHz
  • High Density Mode: 125 kHz
  • Modulation Type: Shure Axient Digital Proprietary
  • Power: 2 mW, 10 mW, 35 mW
  • Specific Absorption Rate (SAR): < 0.12 W/kg

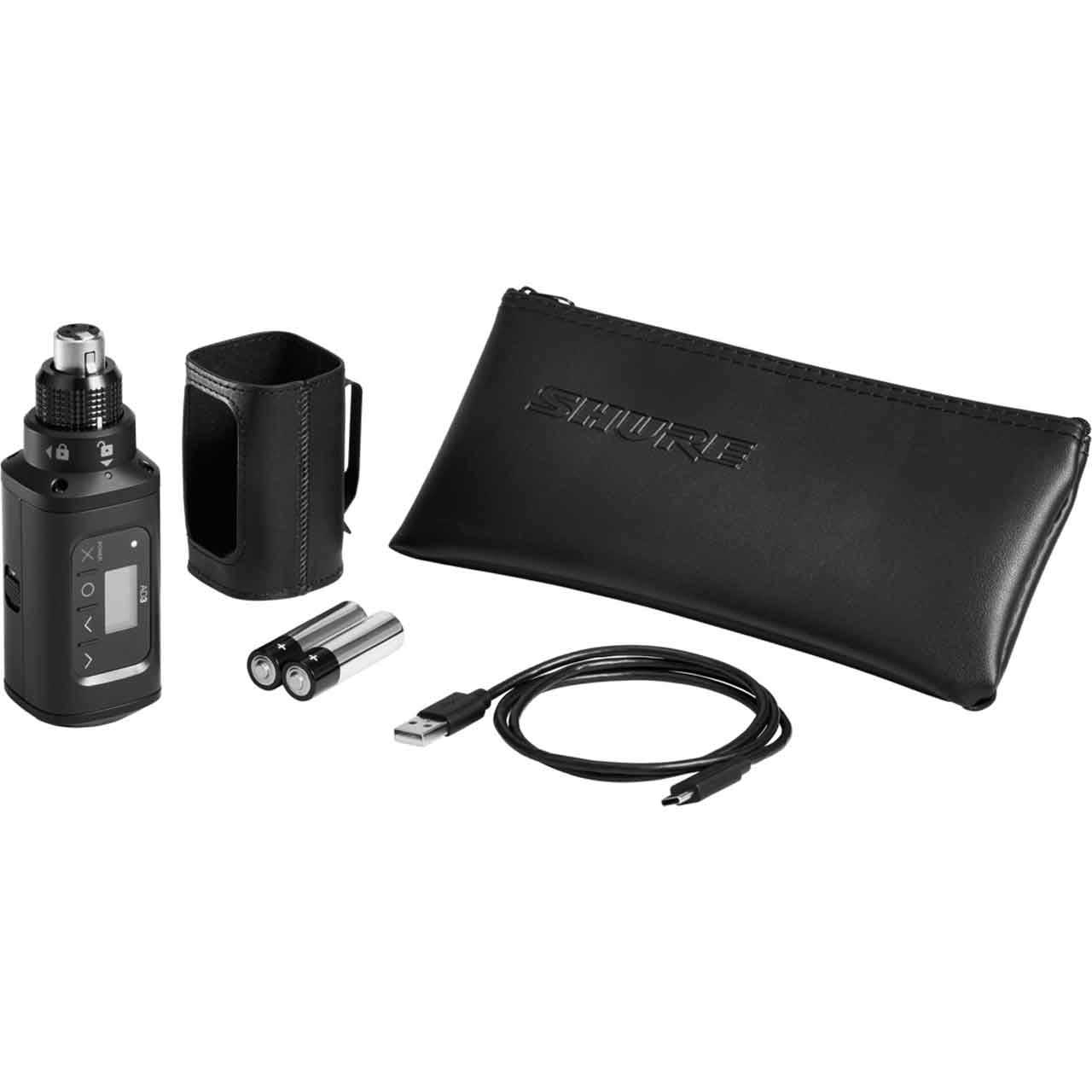

• Item Includes:

  • 1x AD3-G57 Transmitter
  • 2x AA Alkaline Batteries
  • 1x USB-A To USB-C Cable
  • 1x Belt Clip/Pouch
  • 1x Zippered Bag For Storage


• GTIN:

  0042406627528
