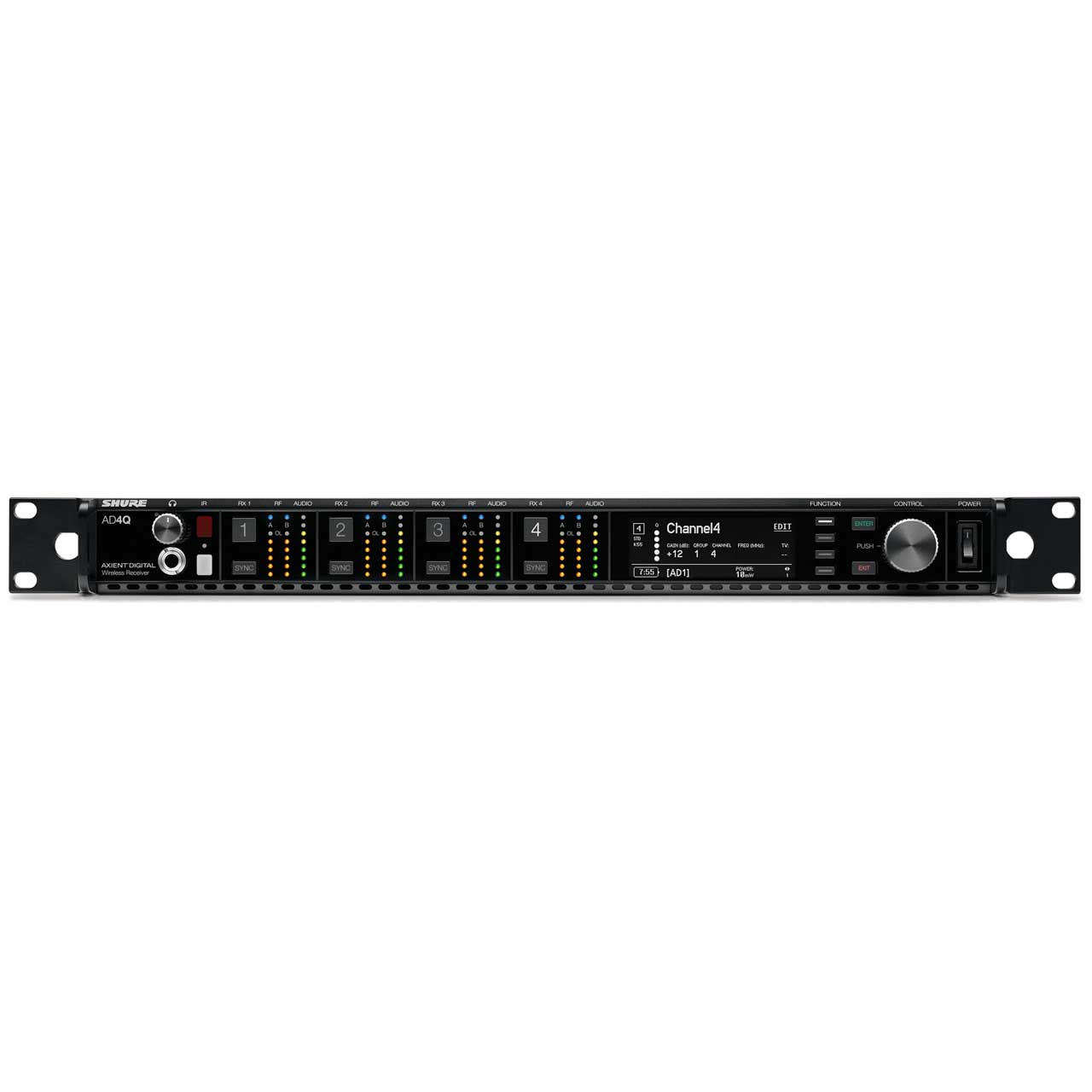

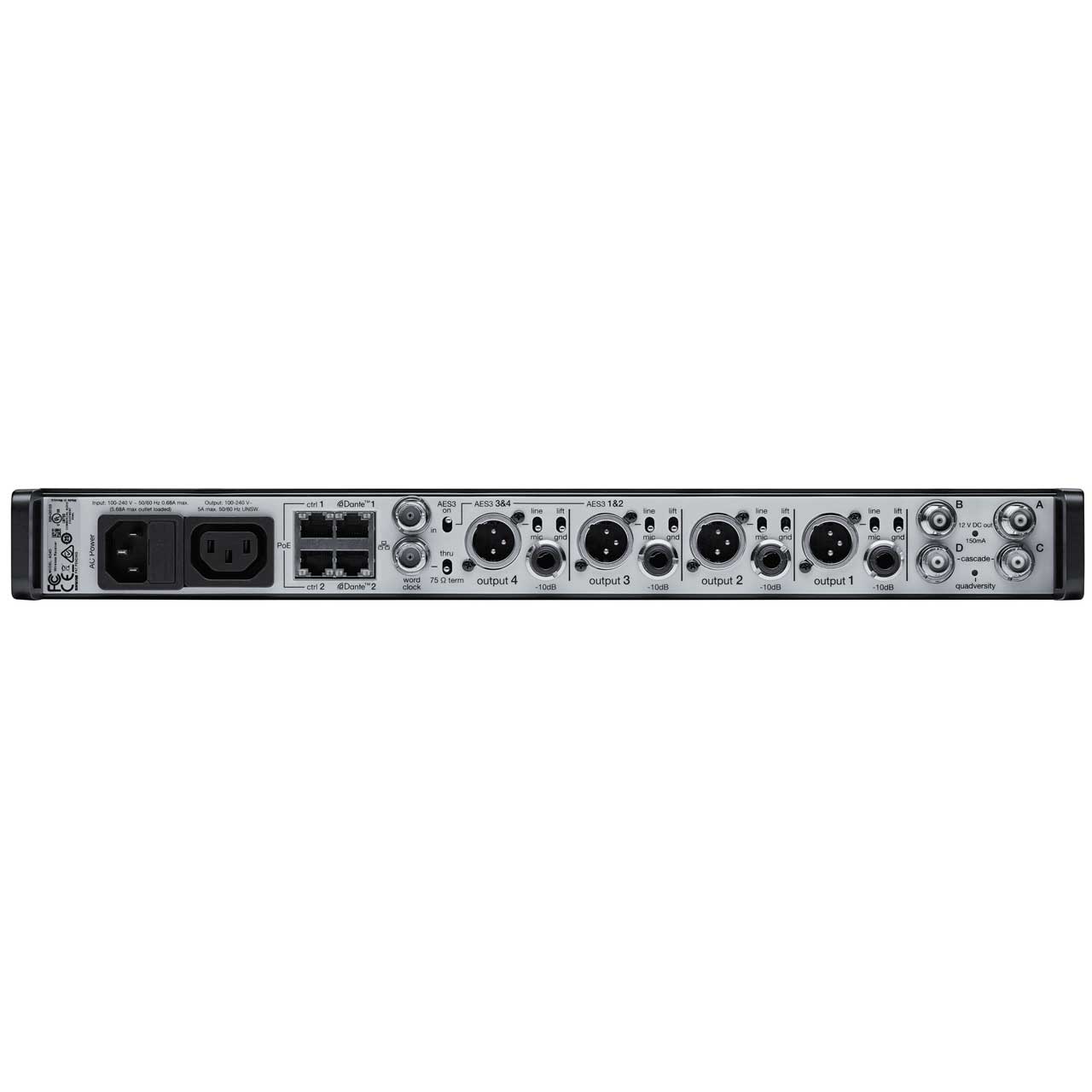

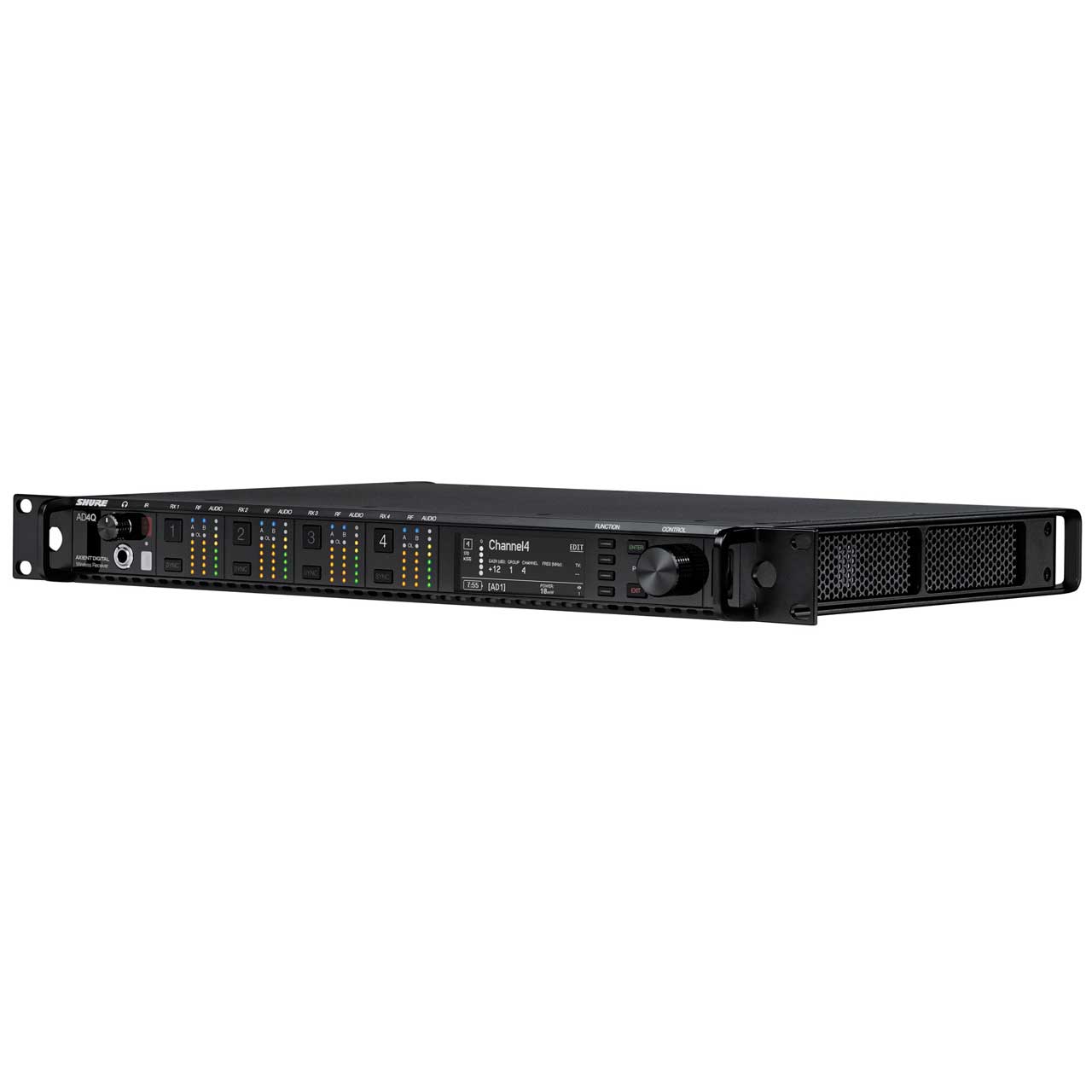

Shure AD4QUS-A Axient Digital Quad Channel Wireless Receiver - G56 Band (470 - 636MHz)

AD4QUS=-A - Overview

• Features:

  • Wide tuning range up to 184MHz
  • True digital diversity reception per channel for drop-out resistance
  • Networked control with Wireless Workbench and ShurePlus Channels app
  • Quadversity mode for extended antenna coverage and improved RF signal-to-noise
  • Front panel headphone jack enables Dante Cue and Dante Browse monitoring
  • Configurable Ethernet switch for redundant Dante digital output
  • Switchable XLR/AES3 outputs
  • Channel Quality meter displays RF signal-to-noise
  • Locking AC connectors
  • Optional DC module available to support redundant power


• Specifications:

  • Audio Output
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
  • Configuration: 1/4" (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground), XLR: Transformer-Coupled Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance: Typical, XLR Line Out 100 Ω
  • Full Scale Output: 200 kΩ load, 1/4" (6.35 mm): +8 dBV, XLR (LINE setting): +18 dBV, XLR (MIC setting): -12 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection: Yes

    Networking
  • Network Interface 10/100 Mbps, 1 Gbps, Dante Digital Audio
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)

    Cascade Output
  • Connector Type: BNC
    Note: For connection of one additional receiver in the same band
  • Configuration: Unbalanced, passive
  • Impedance: 50 Ω
  • Insertion Loss: 0 dB, typical

    RF Input
  • Spurious Rejection: >80 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Bias Voltage: 12-13.5 VDC, 150 mA maximium, per antenna, switchable on/off


• Item Includes:

  • 1x AD4Q Four--channel receiver (470-636 MHZ)
  • 1x Locking power and jumper cables
  • 1x BNC bulkhead adapter
  • 1x Coaxial antenna
  • 1x BNC cable assemblies
  • 1x BNC cable
  • 1x Ethernet cables
  • 1x Rackmount kit
  • 1x User guide


• GTIN:

  0042406501347
