Shure ULXD4 Single Digital Wireless Receiver - J50A Band - 572.125 - 615.850MHz

ITEM #: SH-ULXD4-J50A MFG #: ULXD4-J50A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,578.00

Our Price:

$1,127.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ULXD4-J50A - Overview

ZOOM CERTIFIED HARDWARE! Zoom Certified Hardware has undergone comprehensive testing by Zoom to ensure you a seamless communication experience.

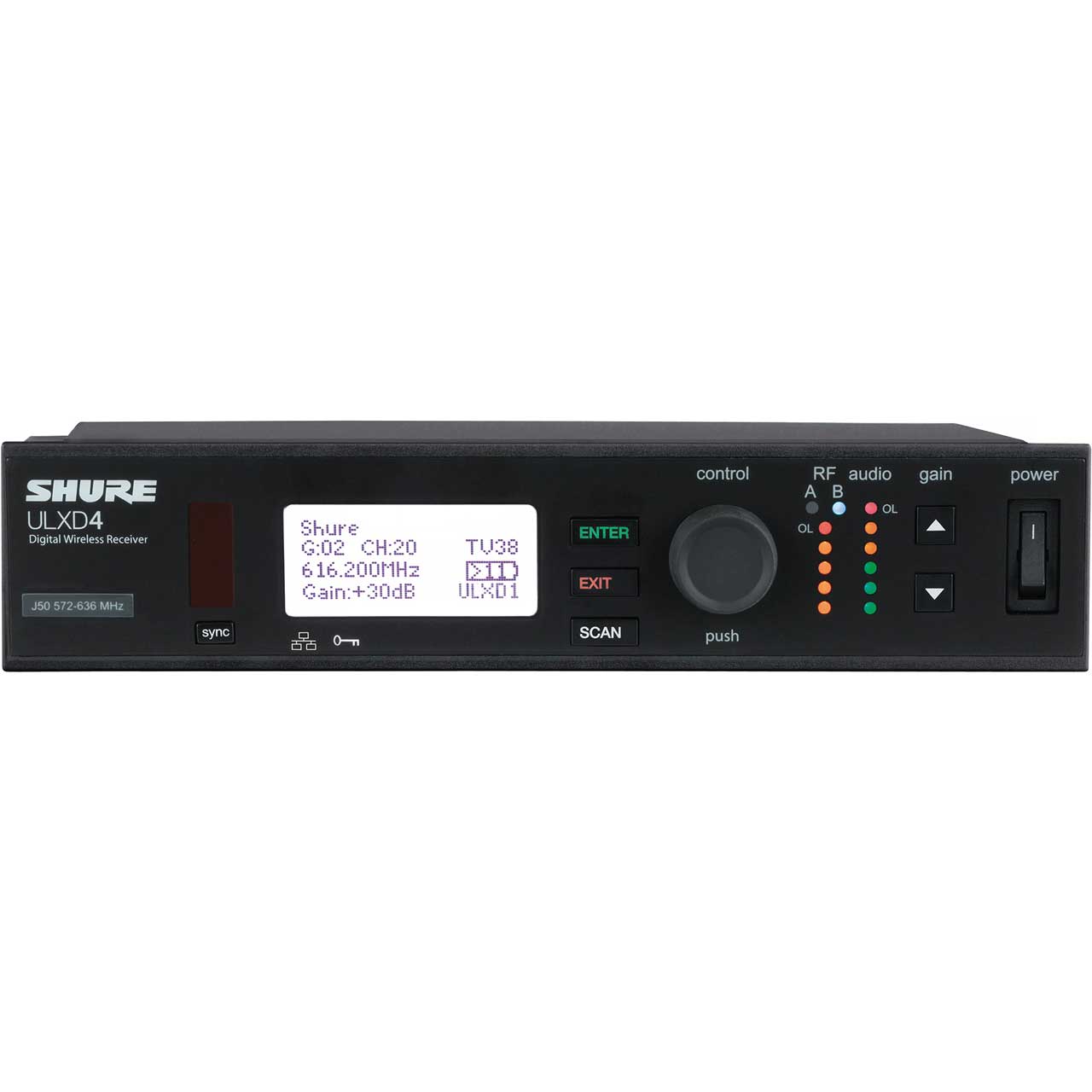

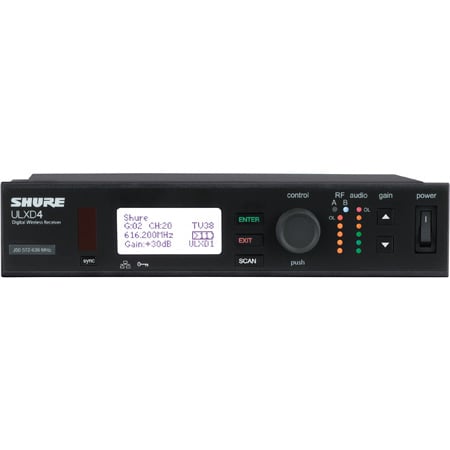

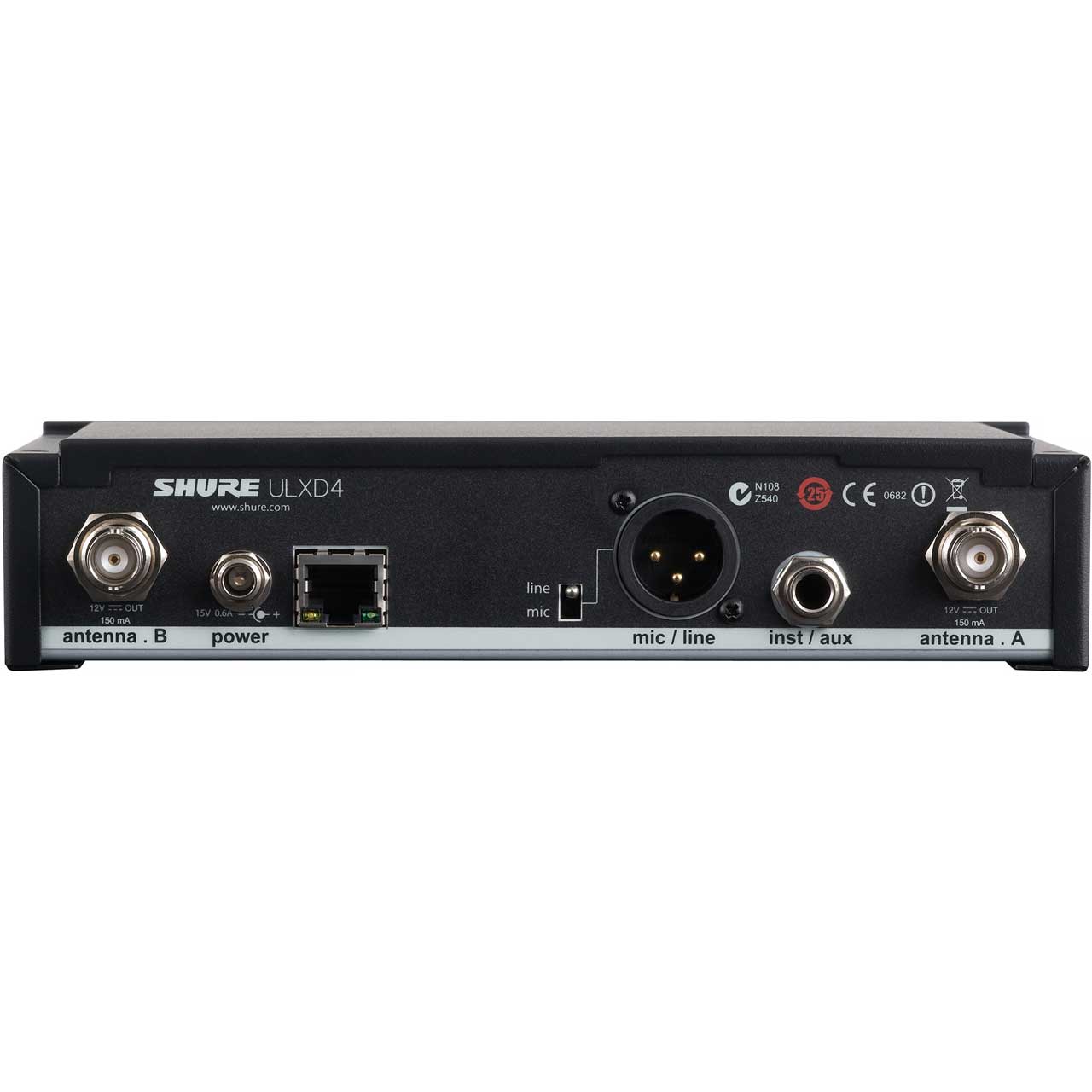

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D® Digital Wireless Systems. ULX-D Digital Wireless family offers uncompromising 24-bit audio clarity and extremely efficient RF performance for any size professional and installed sound reinforcement application and with scalable, intelligent hardware, it delivers the best performing digital wireless available. The unmatched spectrum efficiency enables a dramatic increase in the number of simultaneous active transmitters on one TV channel, with rock-solid signal over the entire range. Optional rechargeable accessories eliminate the need for disposable batteries while offering extended run time and metering accuracy in hours and minutes. For secure transmission, all ULX-D components include AES-256 encryption. Generations ahead of any other available system in its class, the ULX-D Digital Wireless family brings a new level of performance to professional and installed sound reinforcement.

Transparent 24-Bit Digital Audio
Signal stability with no audio artifacts extends over the entire 300ft (100m) line-of-sight range using standard supplied dipole antennas.

Signal Stability
The 24-bit/48kHz digital audio delivers incredibly clear and accurate capturing of source material. It offers a wide frequency range with flat response for superb low range and transient response.

Networked Control
Ethernet networking enables streamlined setup across multiple receivers, Wireless Workbench integration, frequency coordination via Axient Spectrum Manager, AMX and Crestron control as well as Dante™ digital networked audio.

Advanced Encryption
The 256-bit Advanced Encryption Standard guarantees unbreachable privacy - for all installations where secure transmission is key. A new, unique, randomized encryption key is generated every time encryption is enabled.

  • Features:

    • 20Hz - 20kHz frequency range with flat response
    • Greater than 120dB dynamic range
    • 60dB of adjustable system gain per channel
    • Digital predictive switching diversity
    • Up to 64MHz tuning range (region dependent)
    • Up to 17 active transmitters in one 6MHz TV channel
    • High Density mode enables up to 47 active transmitters in one 6MHz TV channel
    • Rock-solid signal stability with no audio artifactst over the entire range
    • Optimized scanning automatically prioritizes and delivers the cleanest frequencies
    • AES 256-bit encryption equipped for secure wireless transmission
    • Ethernet networking for streamlined setup across multiple receivers
    • Wireless Workbench® 6 Software for advanced coordination and control
    • AXT600 Axient® Spectrum Manager compatibility
    • Comprehensive 3rd party control and monitoring across subnets
    • Rugged metal housing
    • Remoteable 1/2 wave antennas
    • Furnished rack hardware

  • Specifications:

    • RF Carrier Range: 572.125 - 615.850MHz
    • Image Rejection: >70dB, typical
    • Latency: <2.9ms (3.2ms in High Density Mode)
    • RF Sensitivity: -98dBm @ 10-5 BER
    • Working Range: 300ft (100m) line-of-sight
      NOTE: Actual range depends on RF signal absorption, reflection and interference
    • Audio Frequency Range: 20Hz - 20kHz
      NOTE: Dependent on microphone type
    • Audio Dynamic Range (System Gain @ +10):
      Analog Output: >120dB, A-weighted
      Dante™ Digital Output: 130dB (typical), A-weighted
    • Total Harmonic Distortion (-12dBFS Input, System Gain @ +10): <0.1%
    • Operating Temperature Range: -0.4°F - 122°F (-18°C - 50°C)
      NOTE: Battery characteristics may limit this range
    • Gain Adjustment Range: -18dB - 42dB in 1dB steps (plus Mute setting)
    • Full Scale Output:
      XLR: LINE = +18dBV, MIC = -12dBV
      1/4" +12dBV
    • Network Interface: Single Port Ethernet 10/100Mbps
    • Network Addressing Capability: DHCP or Manual IP address, with or without gateway
    • Housing: Galvanized steel
    • Power Requirements: 15V DC @ 0.6A, supplied by external power supply (tip positive)
    • Dimensions (HxWxD): 1.65" x 6.73" x 7.76" (42mm x 171mm x 197mm)
    • Weight: 1.98lbs (0.9kg), without antennas

  • GTIN:

    0042406540711
