Lectrosonics CHSIFBR1B Battery Charging Station for IFBR1B Receivers - Charges 4 Batteries or 4 Receivers

ITEM #: LEC-CHSIFBR1B MFG #: CHSIFBR1B

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$986.00

Our Price:

$829.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CHSIFBR1B - Overview

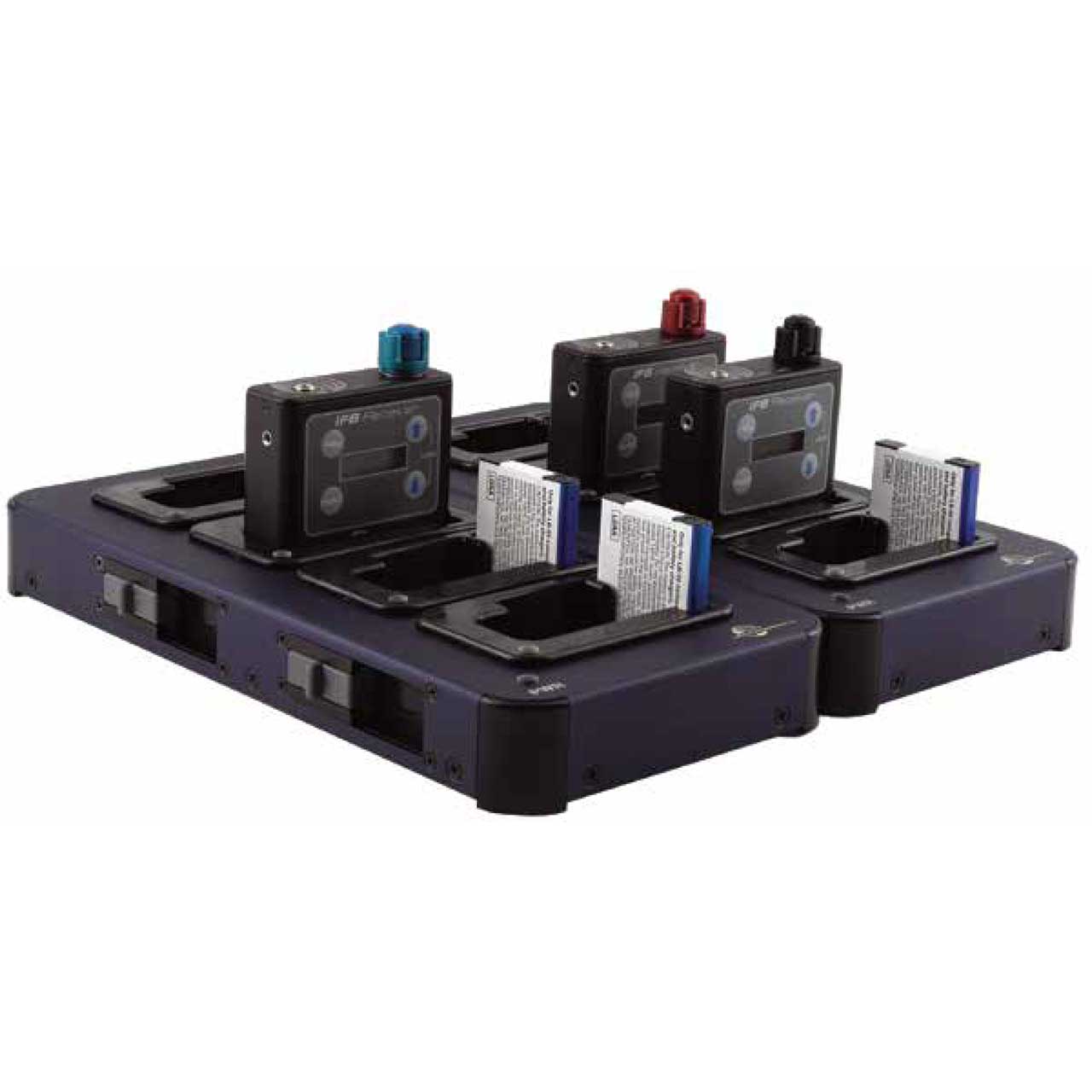

This Lectrosonics CHSIFBR1B battery charging station provides a convenient and organized means of recharging any combination of up to 4 LB-50 batteries or IFBR1B receivers. Each charging module may be daisy-chained to 3 additional modules using a single DCR5/A9U power supply for a total of up to 16 units charging at once (LB50's and/or IFBR1Bs). The CHSIFBR1B charging station features an individual LED on each charging module. Red indicates the battery is charging and green indicates the battery is completely charged. Each charging module is reverse polarity protected and individually fused (10A one-time fuse).

Note: The CHSIFBR1B does not ship standard with the DCR5/9AU power supply - it must be ordered separately.

  • Features:

    • Each module charges up to 4 LB-50 Lithium Ion batteries or IFBR1B receivers
    • Connect up to 4 CHSIFBR1Bs using a single power supply (16 batteries/IFBR1Bs charging at once)
    • Individual charging circuits and status indicators

  • Specifications:

    • Dimensions: 4.82 in. wide (122.30 mm) (including connectors) 1.20 in. high (30.43 mm) 9.00 in. long (228.60 mm)
    • Weight: 1.04 lbs. (471.74 grams)
    • Battery Charging Time: 3 hours
    • Power Requirements: 100-240 VAC, 50-60Hz, 2A max

  • Item Includes:

    • 1x Lectrosonics CHSIFBR1B Battery Charging Station for IFBR1B Receivers
