Shure AD4DUS-A Axient Digital 2-Channel Wireless Receiver - G56 Band (470 - 636MHz)

ITEM #: SH-AD4DUS-A MFG #: AD4DUS=-A

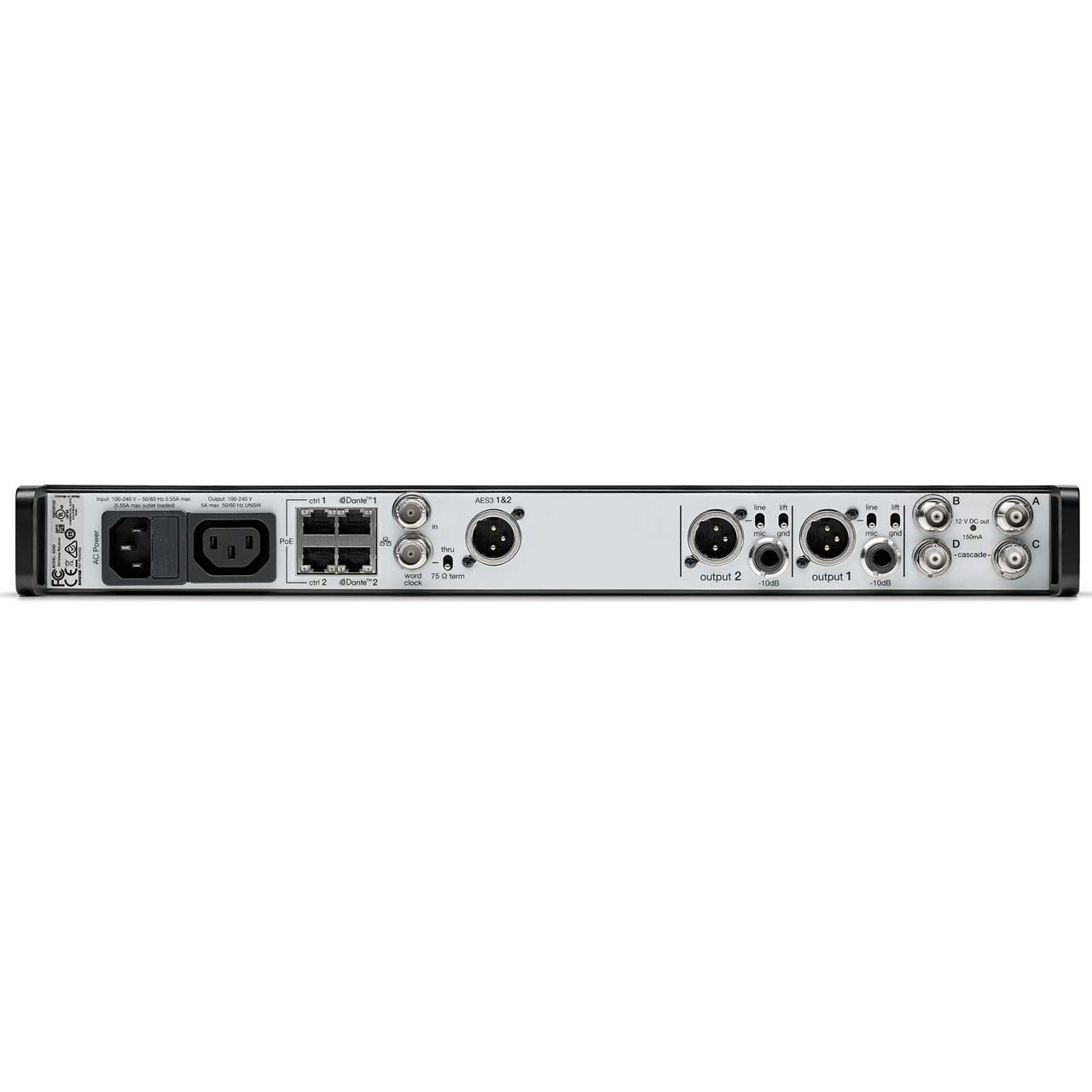

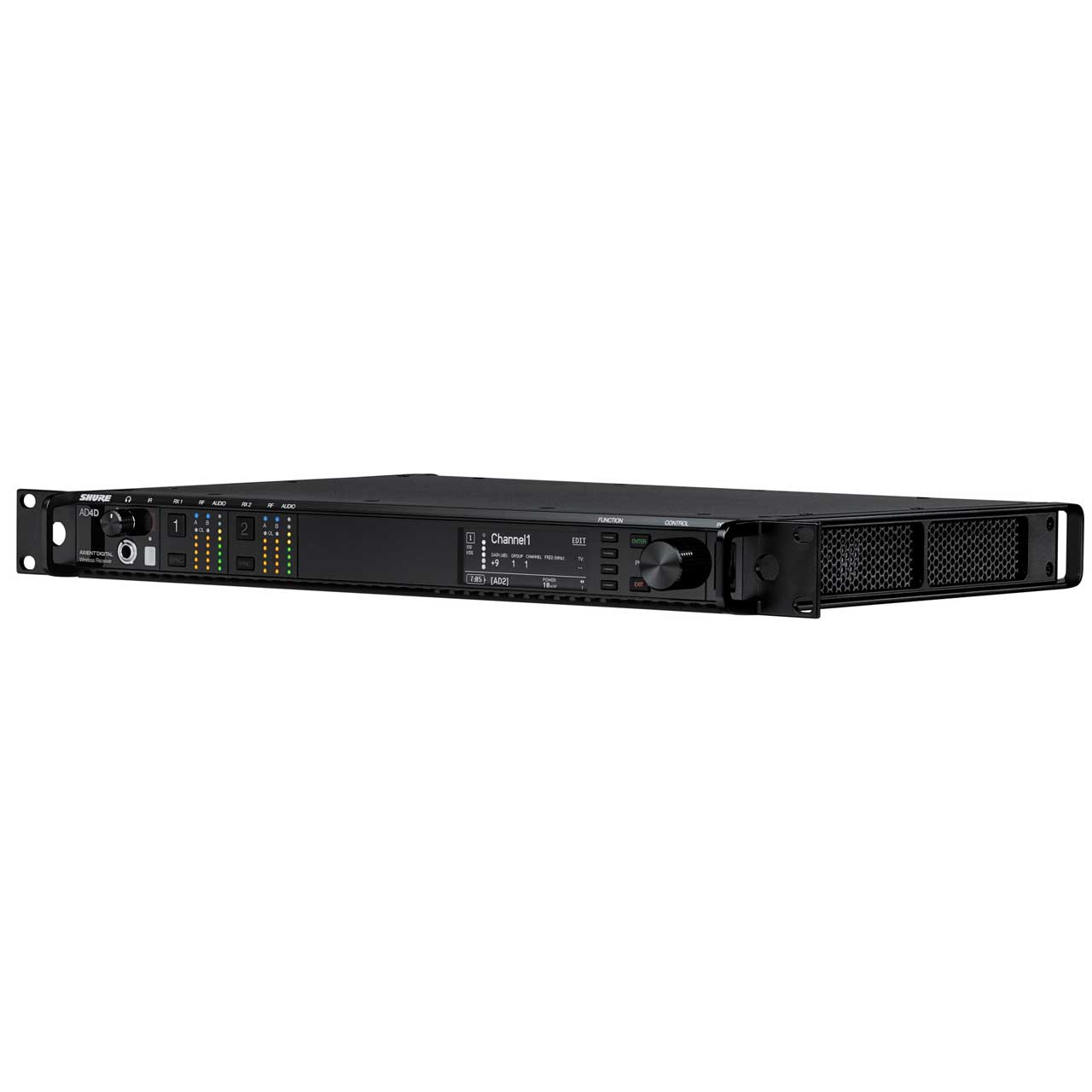

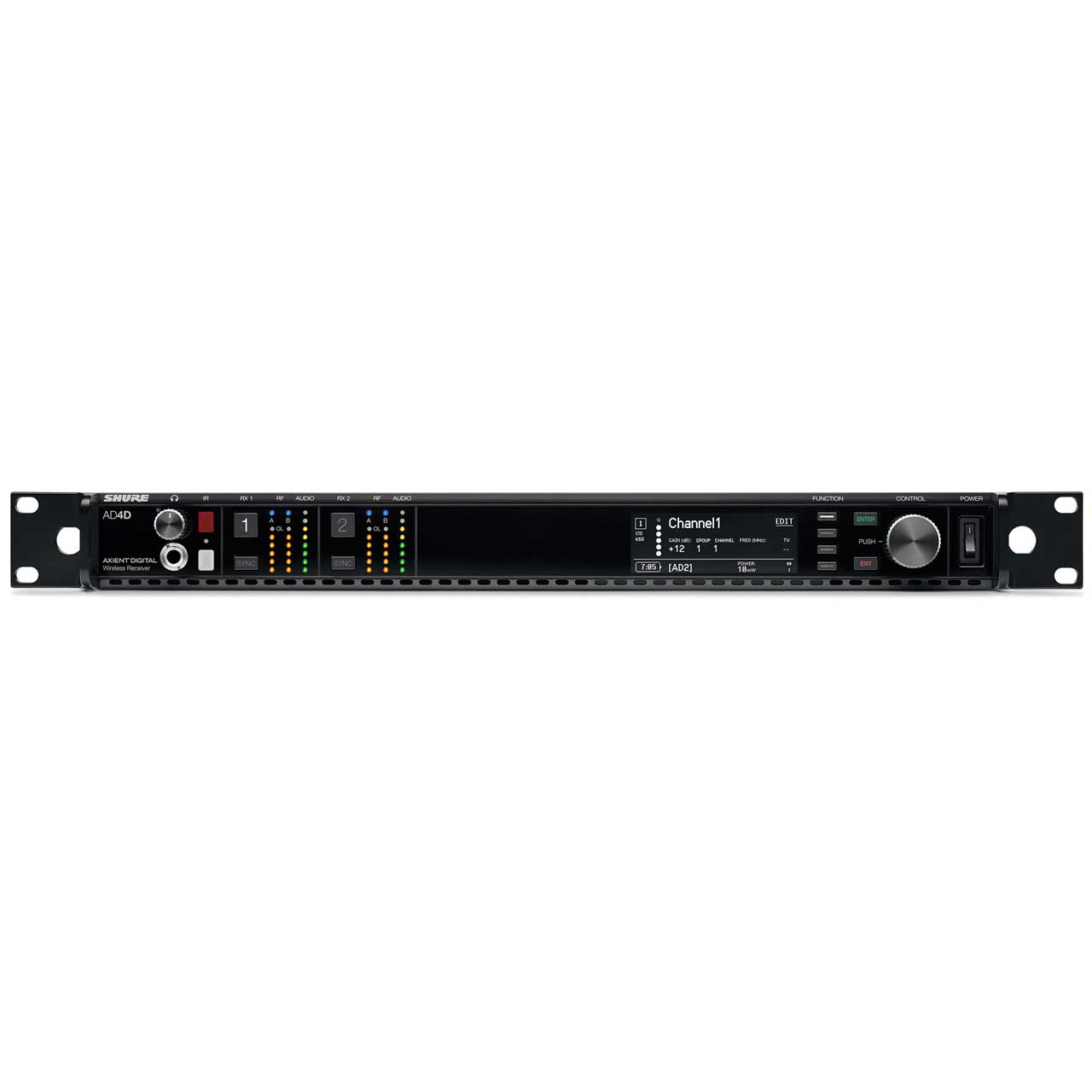

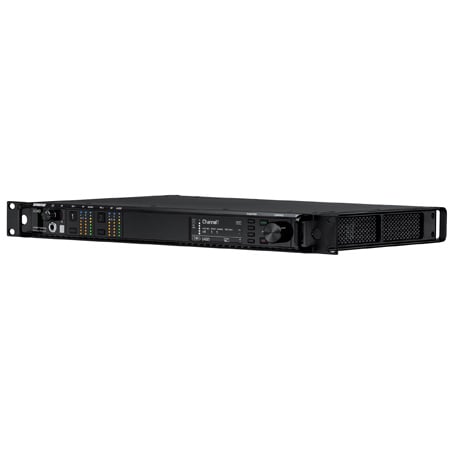

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,473.00

Our Price:

$3,578.00

Availability: In Stock
iAvailability Description Popup


AD4DUS=-A - Overview

A 2018 NAMM Show TEC Award Winner!


Axient Digital defies limitations for both RF and audio quality. With industry-leading low latency, transparent frequency response, and wide dynamic range, Axient Digital lets nothing get in the way of true, pure sound. No matter the setting, you'll hear Shure audio quality you can count on.

Dual and quad receiver options open the gateway to the full range of features, from high-performance RF and transparent digital audio to software control. With Quadversity, the AD4Q can assign four antennas to a single channel for greater coverage and signal quality.

  • Features:

    • Compatible with all AD and ADX transmitters.
    • Wide tuning range up to 184 MHz
    • True digital diversity reception per channel for drop-out resistance
    • Networked control with Wireless Workbench software and ShurePlus Channels app
    • Optional DC module available to support redundant power

  • Specifications:

    • Gain Adjustment Range: -18 - 42dB in 1dB steps (plus Mute setting)
    • Configuration: 1/4", XLR
    • XLR Impedance: 100Ω
    • Full Scale Output: 1/4": 8dBV; XLR (LINE): 18dBV; XLR (MIC): -12dBV
    • Mic/Line Switch: 30dB pad
    • Network Interface: 10/100Mbps, 1Gbps, Dante Digital Audio
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 328ft (100m)
    • CASCADE Connector Type: BNC
    • Configuration: Unbalanced, passive
    • Impedance: 50Ω
    • Insertion Loss: 0dB, typical
    • RF Spurious Rejection: >80dB, typical
    • RF Connector Type: BNC
    • RF Impedance: 50Ω
    • Bias Voltage: 12-13.5 VDC, 150mA maximium, per
    • antenna, switchable on/off
    • RF Carrier Frequency Range: 470-636MHz
    • Dimensions (HxWxD): 1.7" x 19.0" x 13.1" (44mm x 483mm x 333mm)
    • Weight: 10.1lb (4.6kg) without antennas
    • Housing: Steel; extruded aluminum
    • Power Requirements: 100-240 VAC, 50-60Hz, 0.68 A max
    • Thermal Dissipation: Maximum: 23W; Idle: 15W

  • GTIN:

    0042406501538
