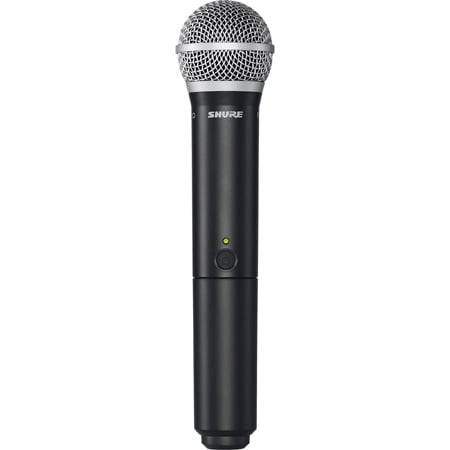

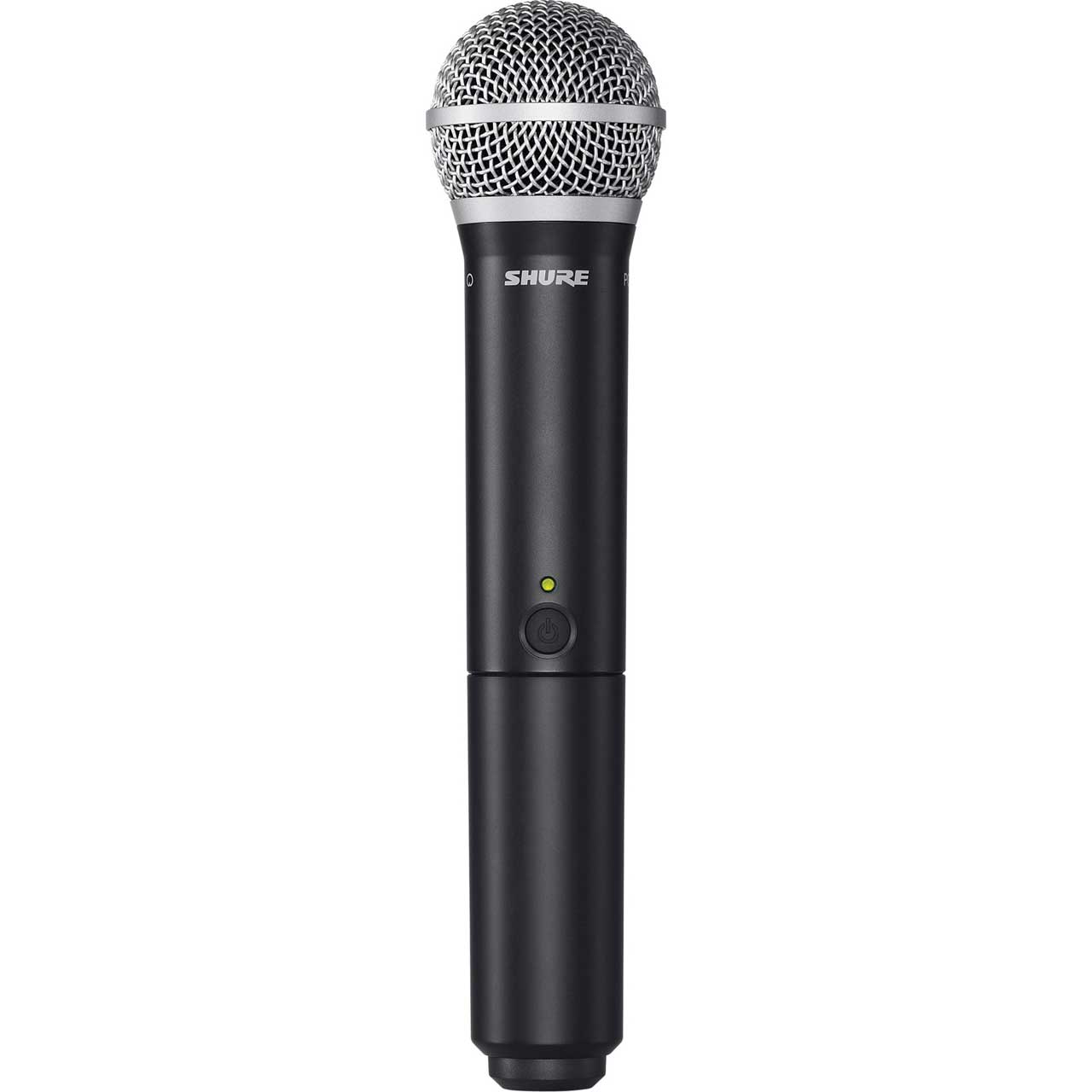

Shure BLX2-PG58-H9 Handheld Wireless Microphone H9 512-542 Mhz

BLX2-PG58-H9 - Overview

• Features:

  • Integrated microphone capsule design
  • Lightweight, rugged construction
  • -10 dB gain attenuation
  • Color ID caps (available separately)
  • Up to 12 compatible systems per frequency band (region dependent)
  • One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
  • Up to 14 hours of continuous use from 2 AA batteries (included)
  • Up to 300 ft (91 m) operating range for total wireless freedom
  • XLR and ¼" output connectors
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring integrated microphone capsule design


• Specifications:

  • Audio Input Level gain: 0dB: -20 dBV maximum / -10dB: -10 dBV maximum
  • Gain Adjustment Range: 10 dB
  • RF Transmitter Output: 10 mW, typical varies by region
  • Dimensions: 8 7/8 X 2 1/8 in.
  • Weight: 7.7 oz. (without batteries)
  • Housing: Molded ABS
  • Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life: up to 14 hours (alkaline)
  • Band: H9 (512.125 – 541.800 MHz)
  • Working Range: 91 m (300 ft) Line of Sight, Note: Actual range depends on RF signal absorption, reflection and interference.
  • Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
  • Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone, 0.5%, typical
  • Dynamic Range: 100 dB, A-weighted, typical
  • Operating Temperature: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
  • NOTE: All Specifications are subject to change. Performance may vary depending on country regulations and operating environment.


• GTIN:

  0042406470100
