DH5B/O-MTQG - Overview

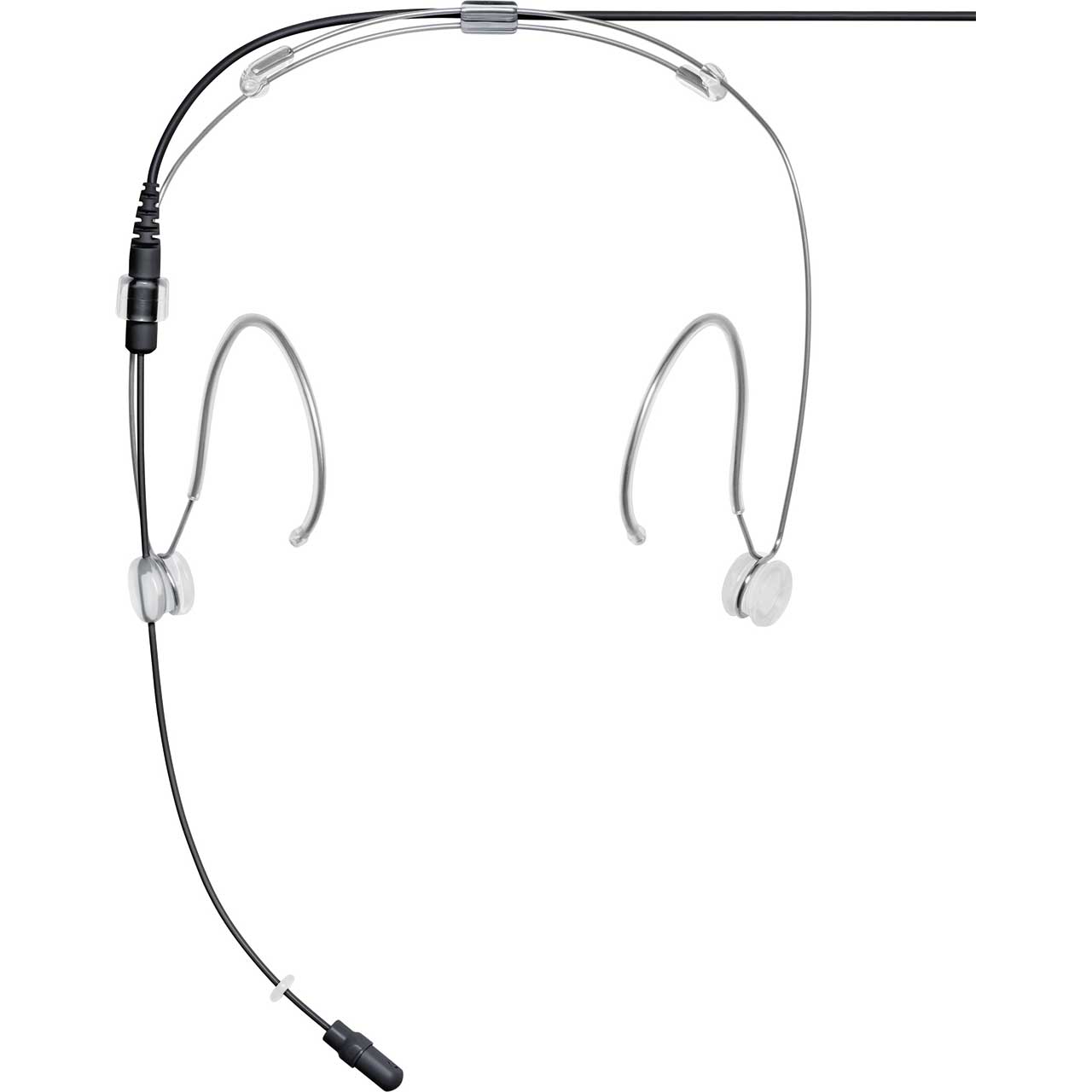

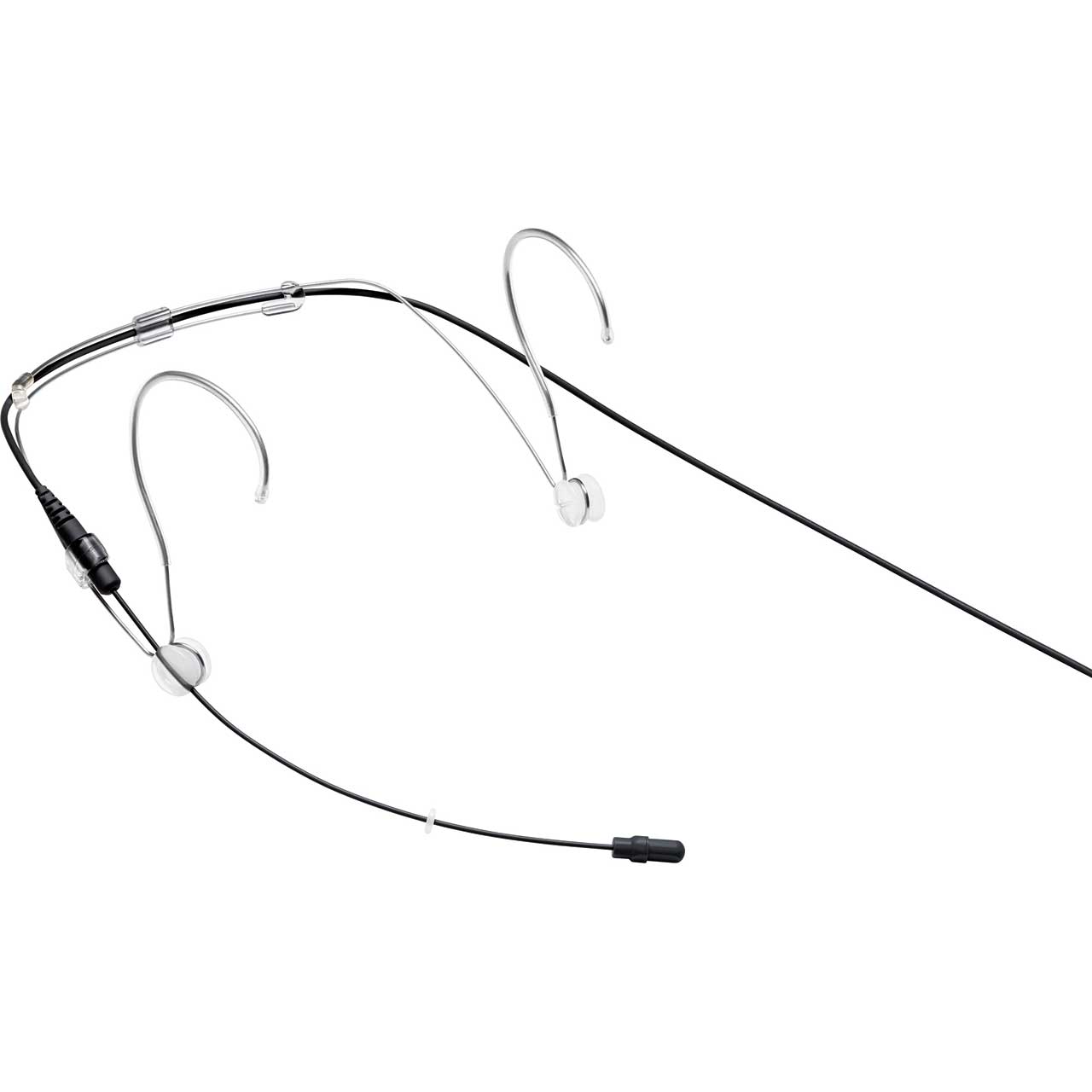

With an easy-to-wear headset frame, the Shure DH5B/O-MTQG DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.In the theater, on stage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

  • Features:

    • 5 mm omnidirectional subminiature design on a silicone boom pivot system that can be placed on the left or right ear
    • IP57 dust-resistant, waterproof rated
    • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
    • Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevityo - Immune to memory effect and kinks - Fully paintable with typical theater paints, pens, and polishes
    • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
    • Available in two connector types: TA4F (mTQG) and LEMO

  • Specifications:

    • Microphone Capsule: MEMS
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 Hz to 20 kHz
    • Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
    • Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
    • Signal-to-Noise Ratio: 63.0 dB
    • Maximum SPL1: 32.0 dB SPL 1 kHz @ 1% THD, typical
    • Dynamic Range: 101.0 dB Typical
    • Microphone Current Draw: 220 µA, maximum
    • Bias Voltage Recommended Operating Voltage: 5 VDC
    • Housing: Molded ABS
    • Polarity:
      MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
      LEMO: Positive pressure on dia-phragm produces positive voltage on Pin 3 with respect to Pin 1
    • Cable Diameter: 1.6 mm
    • Cable Length: 66.0 in (1.67 m)
    • Net Weight: 20 g (0.7 oz)
    • Capsule Dimensions (L x D): 14.5 mm x 5.2 mm
    • Boom Length: 13.6 cm

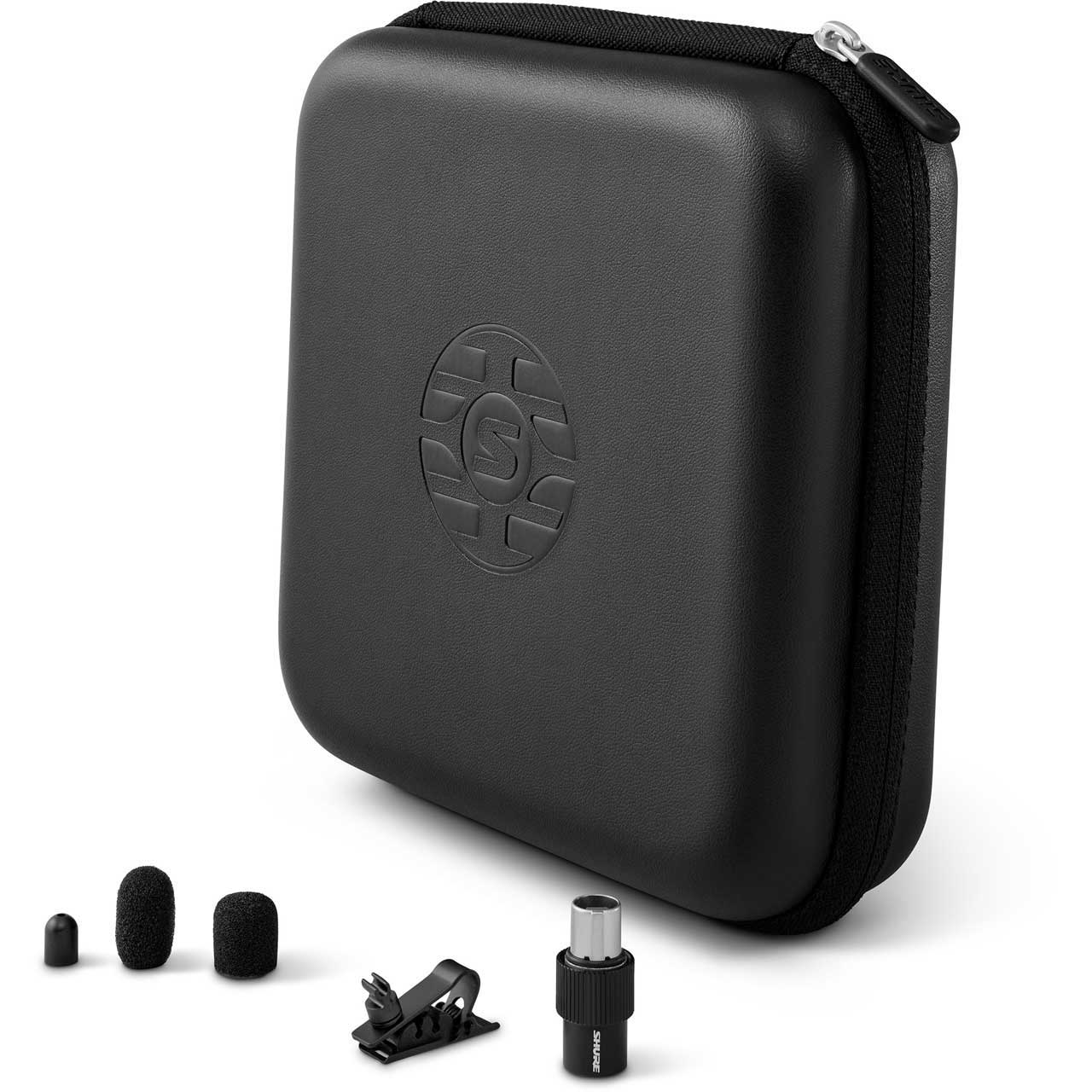

  • Item Includes:

    • 1x Shure DH5B/O-MTQG DuraPlex IP57 Omni Headset
    • 1x Case
    • 1x Foam Windscreen
    • 1x Snap-fit Windscreen
    • 1x Single Tie Clip
    • 1x MTQG Locking Collar (mTQG/TA4F SKUs only)

  • GTIN:

    0042406663885
