Shure QLXD14/85-G50 WL185m Lavalier Microphone System - (470 - 534 MHz)

QLXD14/85-G50 - Overview

• Features:

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output


• Specifications:

  • RF Carrier Range: 470-534MHz, varies by region
  • Working Range: 328ft (100m)
  • RF Tuning Step Size: 25kHz, varies by region
  • Image Rejection: >70dB, typical
  • RF Sensitivity: -97dBm @ 10-5 BER
  • RF Spurious Rejection: >80dB, typical
  • RF Connector Type: BNC
  • Impedance: 50Ω
  • Latency: <2.9ms
  • Gain Adjustment Range: -18 - 42dB in 1dB steps
  • Mic/Line Switch: 30dB pad
  • Audio Frequency Response: 20Hz - 20kHz (±1dB)
  • Audio Dynamic Range System Gain @ +10: >120dB, A-weighted, typical
  • Total Harmonic Distortion: -12dBFS input, System Gain @ +10: <0.1%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
  • Network Interface: Single Port Ethernet 10/100Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 328ft (100m)
  • Operating Temperature Range: 0°F - 122°F (-18°C - 50°C)
  • Storage Temperature Range: -20°F - 165°F (-29°C - 74°C)
  • Dimensions (HxWxD): 1.63" x 7.75" x 5.94" (41mm x 197mm x 151mm)
  • Weight: 1.71lbs (777g), without antennas

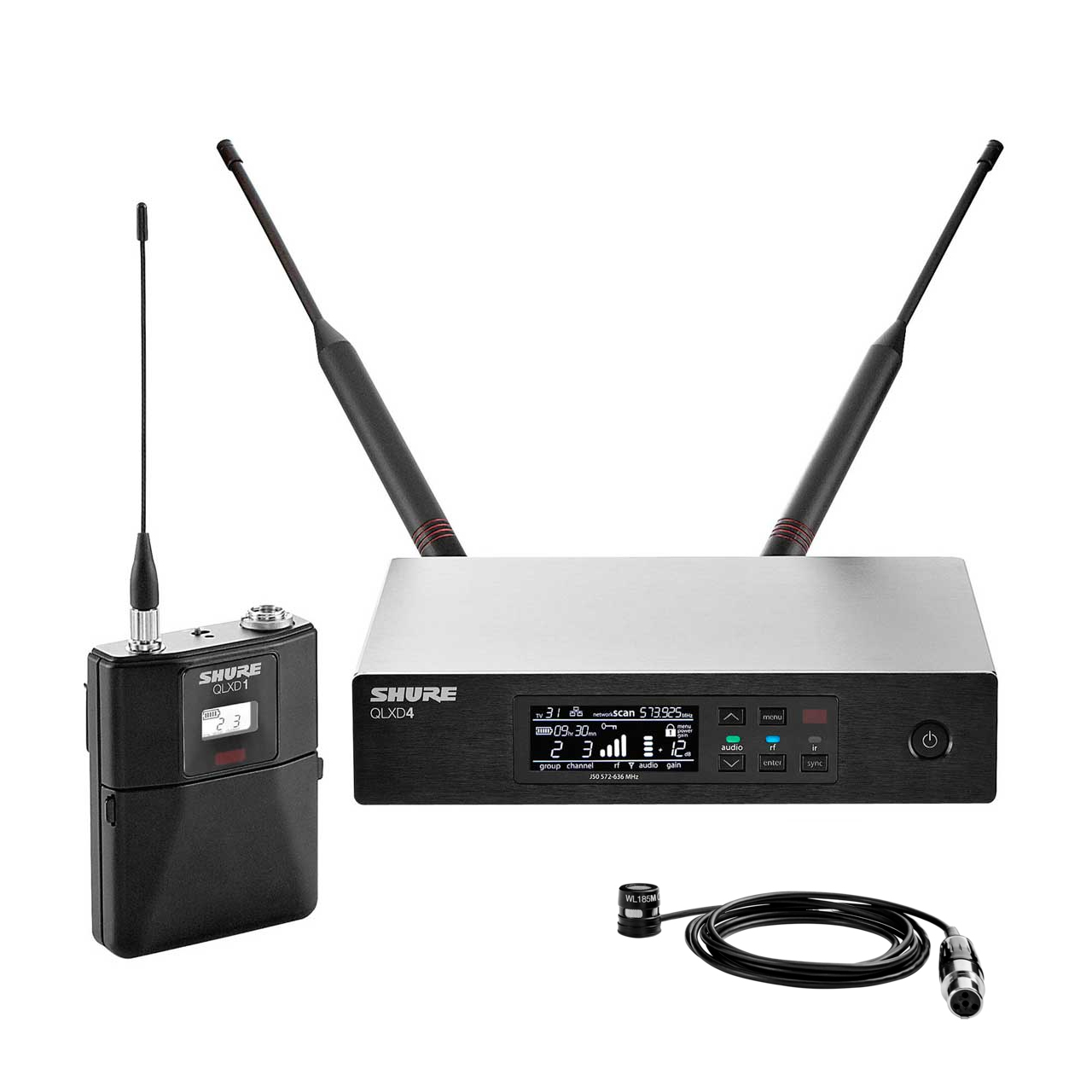

• Item Includes:

  • 1x WL185m
  • 1x QLXD1 Bodypack

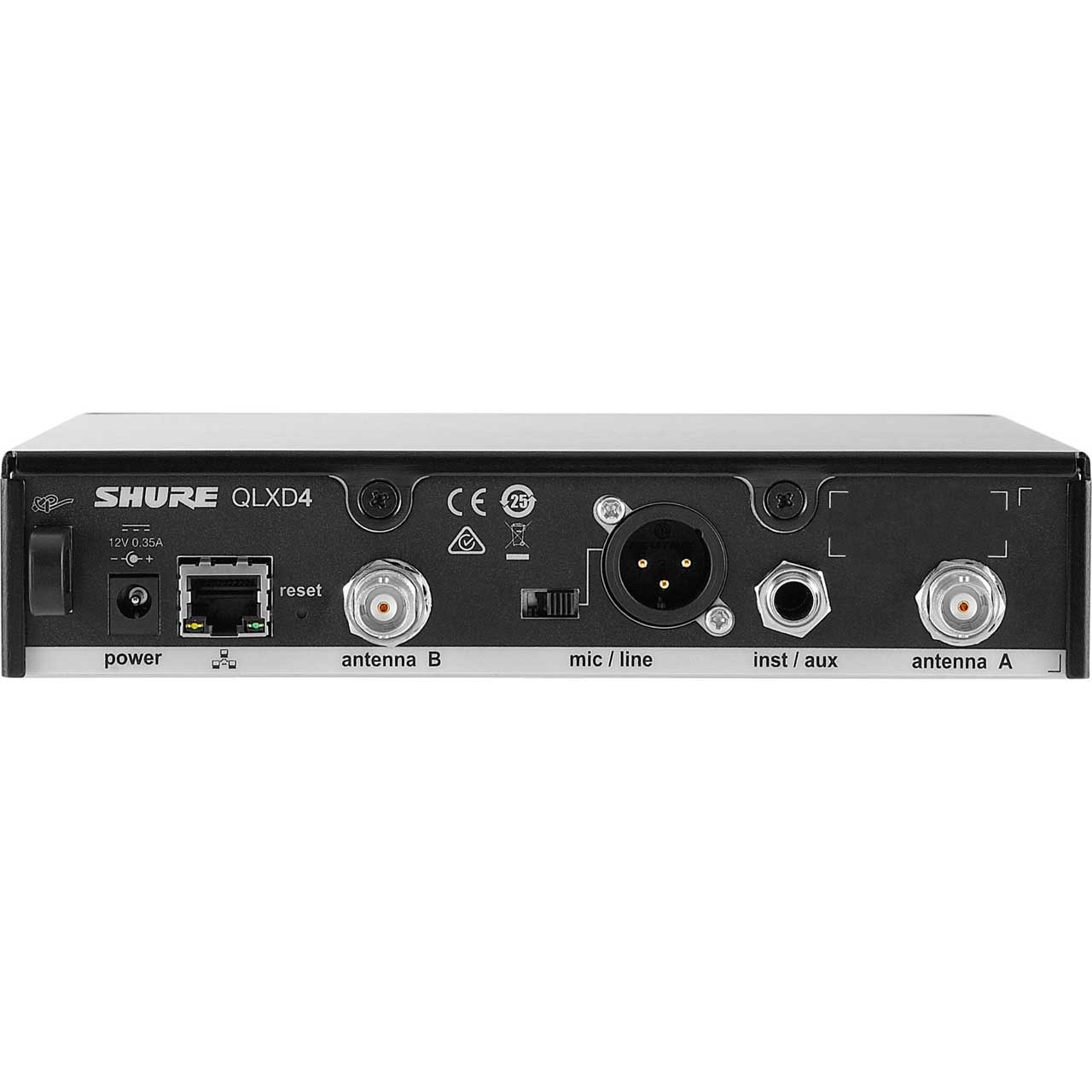

  • 1x QLXD4 Receiver
  • 1x Power Supply


• GTIN:

  0042406350310
