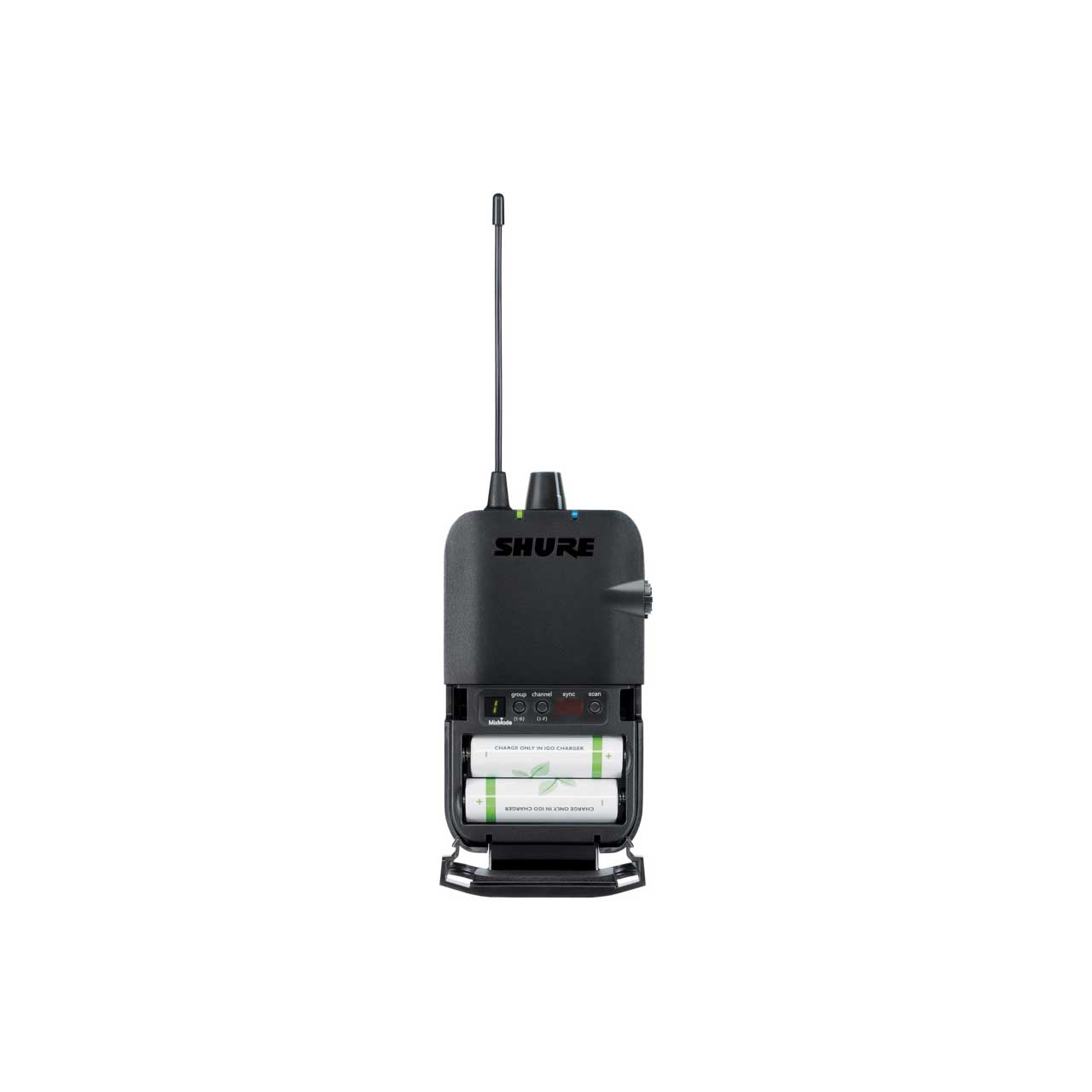

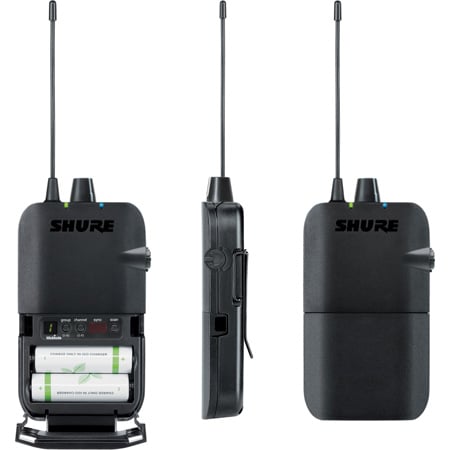

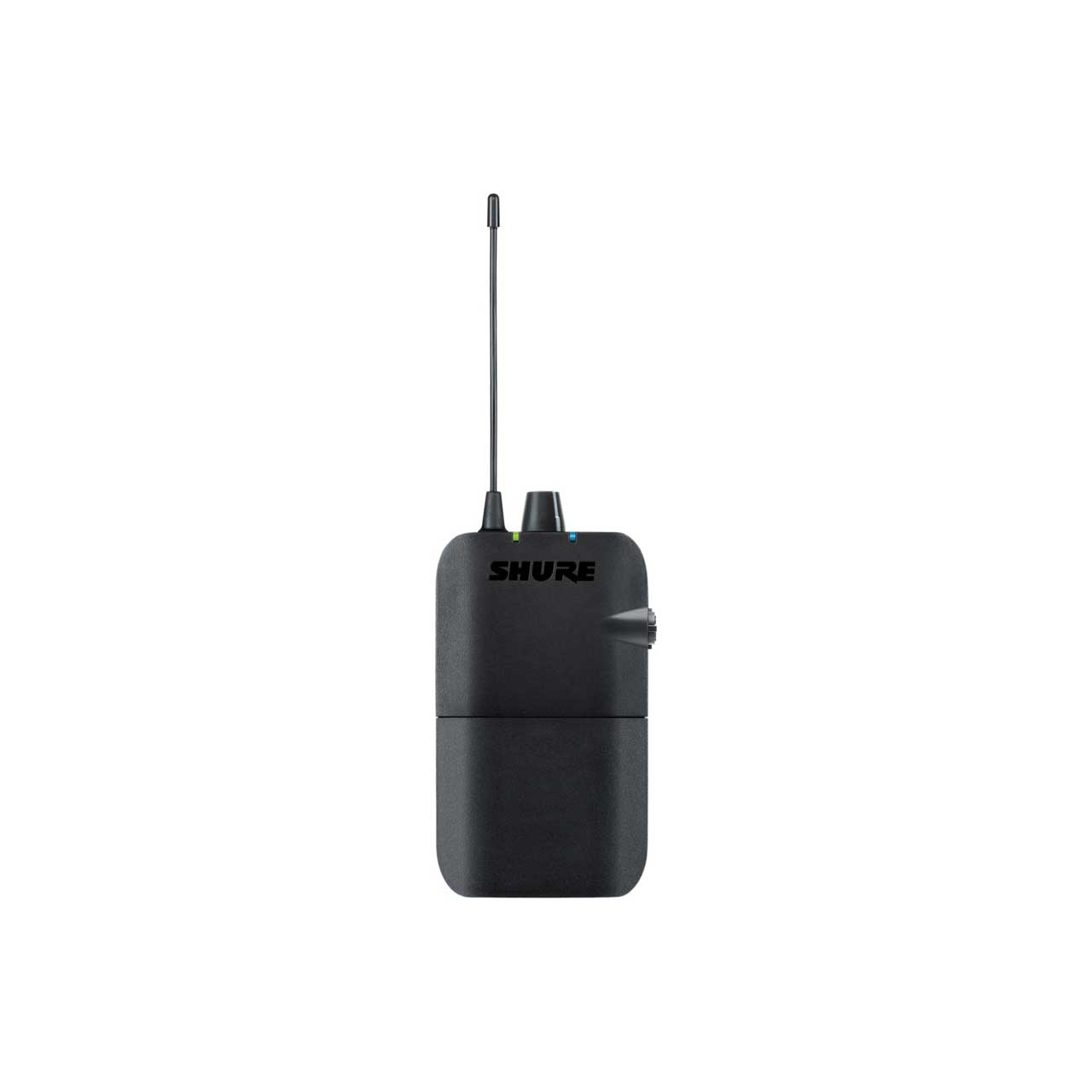

Shure P3R-G20 Wireless Bodypack Receiver for PSM300 In Ear Monitor System - G20 Frequency 488-512 MHz

ITEM #: SH-P3R-G20 MFG #: P3R-G20

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Shure Inc
Free Shipping with $49 Minimum Order

List Price:

$449.00

Our Price:

$359.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

P3R-G20 - Overview

THE NEXT STEP IN ONSTAGE CLARITY.
Easy to set up and operate, the Shure PSM 300 Stereo Personal Monitor System puts total freedom within reach of musicians at every level. Customizable two-channel mix and volume lets you hear every note in detailed, 24-bit digital audio from anywhere on the stage. So you can dedicate yourself to the performance. Never bound by wires or wedges.

With its slim, lightweight, durable design, the P3R offers reliable wireless freedom that covers every corner of the stage, with up to 300 feet (90 meters) of range. Simply connect a set of earphones and adjust the controls to create a wireless personal mix.

Patented Audio Reference Companding and 24-bit digital audio clarity ensure the clearest sound, with ultra-low noise and no artifacts.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

  • Features:

    • One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync
    • MixMode technology enables adjustment of two independent monitoring mix levels
    • Stereo mode enables adjustment of left / right balance
    • Volume knob and mix control are easy to adjust
    • Power save mode preserves battery life when earphones are not connected
    • Battery status LEDs provide clear indication of remaining charge


  • Specifications:

    • Active RF Sensitivity (at 20 dB SINAD) 2.2 uV.
    • Image Rejection >90 dB.
    • Adjacent Channel Rejection >60 dB.
    • Intermodulation Attenuation >50 dB.
    • Blocking >60 dB.
    • Audio Output Power 1 kHz @ <1% distortion, peak power, @32 ohm: 80 mW (per output).
    • Minimum Load Impedance 16 Ohm.
    • Headphone output 3.5 mm (1.8") stereo.
    • Net Weight 98 g (3.5 oz.)(without batteries).
    • Dimensions (H x W x D) 110 x 64 _x 21 mm (4.3 x 2.5 x 0.8 in.).
    • Battery Life 5.7 hours (continuous use) AA batteries.


  • Item Includes:

    • P3R
    • 2 AA batteries
    • Zipper bag
    • User guide


  • GTIN:

    0042406351621
