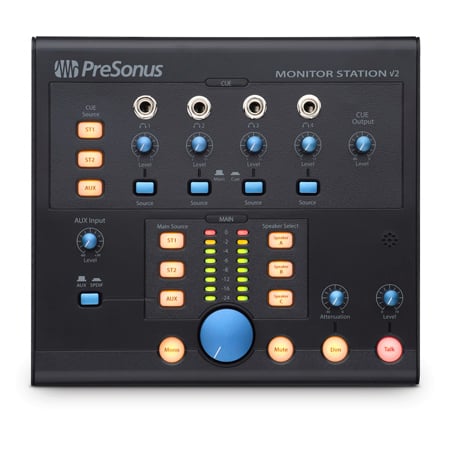

PreSonus Monitor Station V2 Desktop Studio Control Center with SPDIF Input

MONITOR STATION V2 - Overview

• Features:

  • Ins and Outs
  • 2x Stereo pairs of 1/4" TRS inputs
  • 1x Stereo pair of RCA Aux inputs
  • 1x Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
  • 3x Stereo pairs of 1/4" TRS speaker outputs with level controls
  • 1x Stereo pair of 1/4" TRS Main outputs
  • 1x Stereo pair of 1/4" TRS Cue outputs
  • 4x 1/4" TRS screaming-loud stereo headphone outputs

    Controls
  • Large Main level control
  • 3x Individual Main Source (ST1, ST2, Aux) select switches
  • 3x Individual Speaker Select switches
  • Cue section with Source select (ST1, ST2, Aux) and output-level control
  • Aux-S/PDIF Select switch
  • Aux Input level control
  • Main Mute, Mono, and Dim switches with variable Dim attenuation

    Additional Features
  • 8-segment color LED input meters with selectable reference level
  • Built-in electret-condenser talkback microphone with input-gain control and Talkback button
  • Convenient desktop design


• Specifications:

  • Audio Inputs - Internal Talkback Microphone
  • Gain Range: +15 to +55 dB
  • Type: Electret condenser
  • Sensitivity: -42 dB

    STEREO 1 and STEREO 2 Inputs
  • Type: 1/4" TRS Active Balanced
  • Input Impedance (Balanced): 10 kOhm
  • S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB
  • THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%
  • Frequency Response (±0.5 dB): 10 Hz to 65 kHz
  • Noise Floor (20 Hz to 20 kHz, 150O input termination): -96 dBu
  • Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu

    Auxilliary Inputs
  • Type: RCA Active Unbalanced
  • Input Impedance 47.5 kOhm
  • S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB
  • THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%
  • Frequency Response (±0.5 dB): 10 Hz to 50 kHz
  • Gain Range: 80 dB to +10 dB

    S/PDIF
  • Types: RCA 75O coax
  • Dynamic Range: 113 dB
  • THD+N 0.0025% (1 kHz @ -1 dBFS)
  • Maximum output at 0 dBFS: +18 dBu
  • Sample Rates: 44.1, 48, 88.2, 96 kHz

    Input Meters (ST1, ST2, and Aux only)
  • Type: Dual 8-segment LED w/peak hold
  • Sensitivity Range: -24 dB to 0 dB

    Audio Outputs
  • Type: 1/4" TRS Active Balanced
  • Output Impedance (Balanced): 51Ohm
  • THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%
  • Frequency Response (±0.5 dB): 10 Hz to 50 kHz

    Speaker A, B and C
  • Trim Range: -80 dB to 0 dB
  • Main Level Range: -80 dB to 0 dB
  • Dim Attenuation Range: -30 dB to -6dB

    Cue
  • Cue Level Range: -80 dB to 0 dB
  • Dim Attenuation (Talkback activated): -20 dB

    Headphones
  • Type: 1/4" TRS Active Stereo
  • Maximum Output (60O load): 150 mW / channel
  • Frequency Response (±1.0 dB): 10 Hz to 50 kHz


• GTIN:

  0673454002823
