Shure QLXD14/93-H50 WL93 Lavalier Microphone System - (534 - 598 MHz)

QLXD14/93-H50 - Overview

• Features:

  • WL93
  • Series Subminiature Lavalier Microphones
  • Wireless micro-miniature lavalier mic provides full, clear sound.

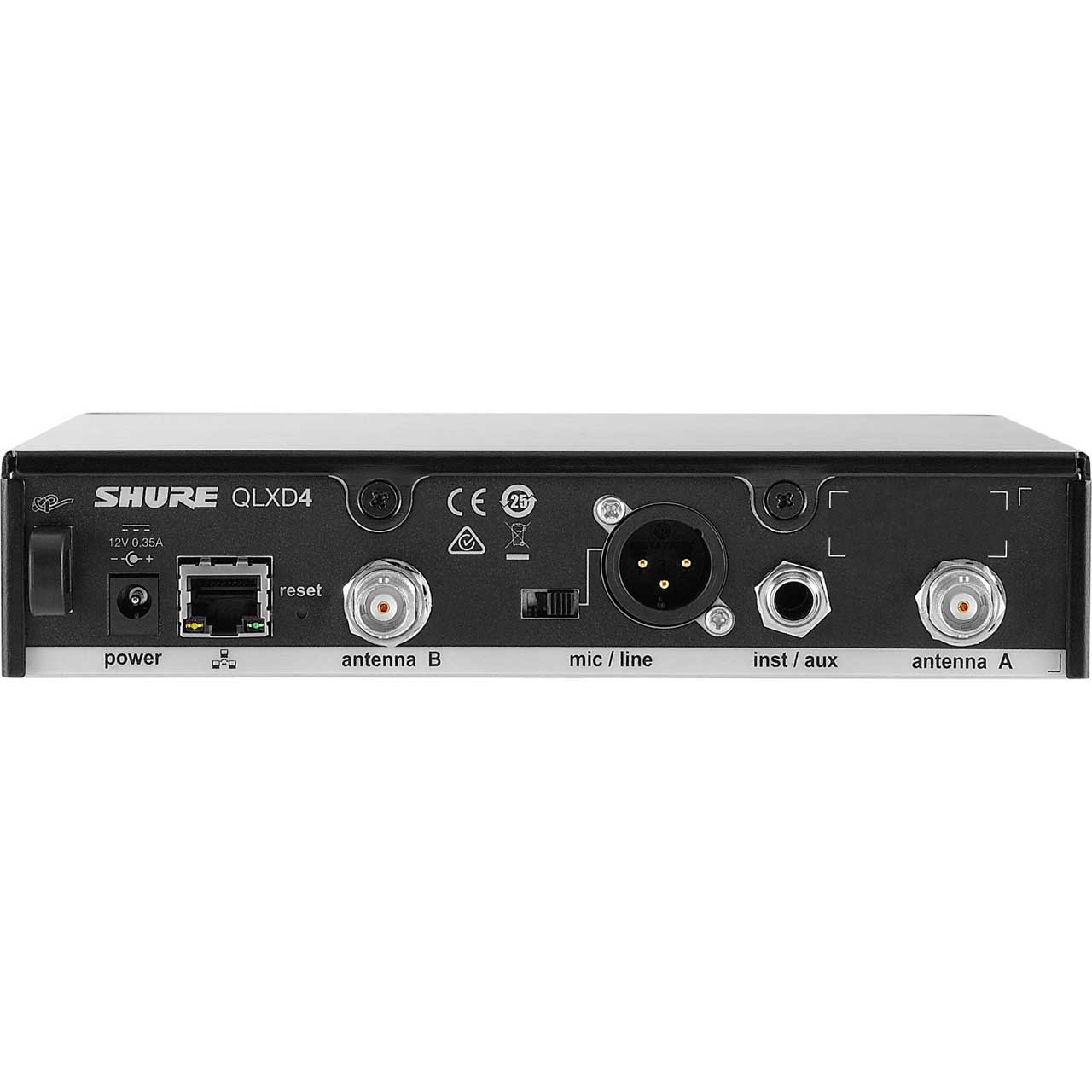

  • QLXD4
  • Digital Wireless Receiver
  • Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function.


  • QLXD1
  • Wireless Bodypack Transmitter
  • QLXD1 Wireless Bodypack Transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains a clear, uninterrupted signal over its entire range.


• Specifications:

  • RF Carrier Range: 470–937.5MHz, varies by region
  • Working Range: 100 m (328 ft)
  • Note: Actual range depends on RF signal absorption, reflection and interference.
  • RF Tuning Step Size: 25 kHz, varies by region
  • Image Rejection: >70 dB, typical
  • RF Sensitivity: ?97 dBm at 10?5 BER
  • Latency: <2.9 ms
  • Audio Frequency Response: QLXD1: 20 Hz – 20 kHz (±1 dB)
  • QLXD2: Note: Dependent on microphone type
  • Audio Dynamic Range System Gain @ +10: >120 dB, A-weighted, typical
  • Total Harmonic Distortion ?12 dBFS input, System Gain @ +10: <0.1%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
  • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
  • Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Note: Battery characteristics may limit this range.

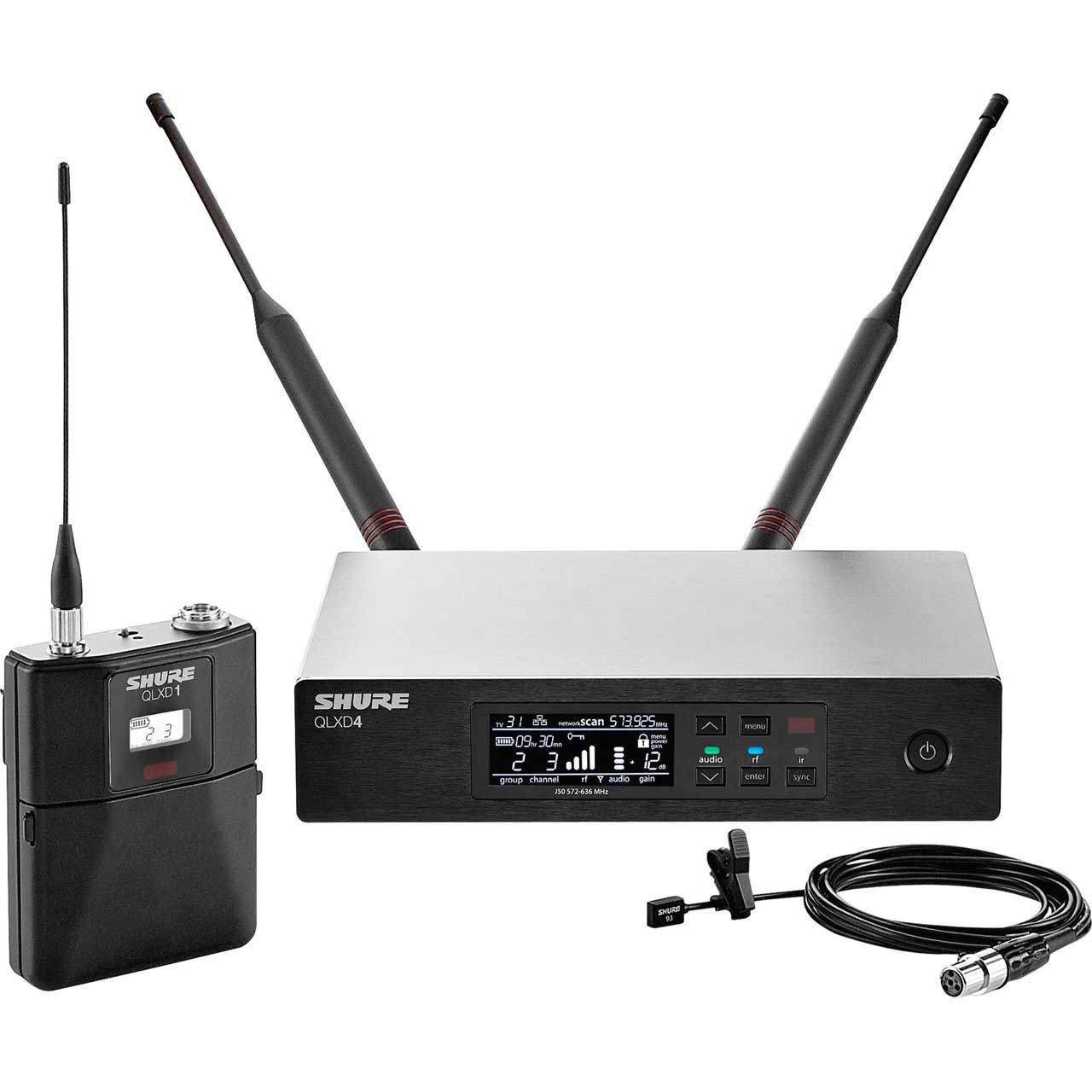

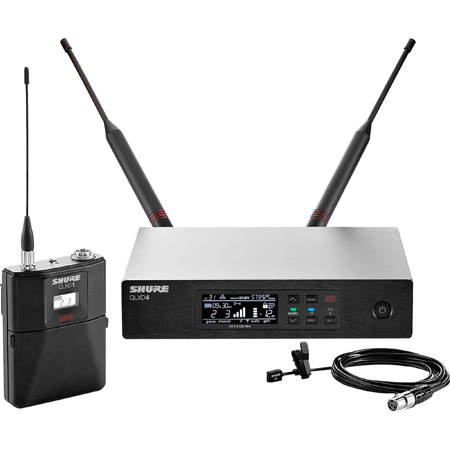

• Item Includes:

  • WL93 Lavalier Microphone
  • QLXD1 Bodypack Transmitter
  • QLXD4 Receiver


• GTIN:

  0042406350266
