Shure SLXD5 Single-Channel Portable Digital Wireless Receiver - 558-616MHz

ITEM #: SH-SLXD5-J52 MFG #: SLXD5=-J52

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$474.00

Our Price:

$379.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SLXD5=-J52 - Overview

The Shure SLXD5=-G58 (558-616MHz) Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries.

  • Features:

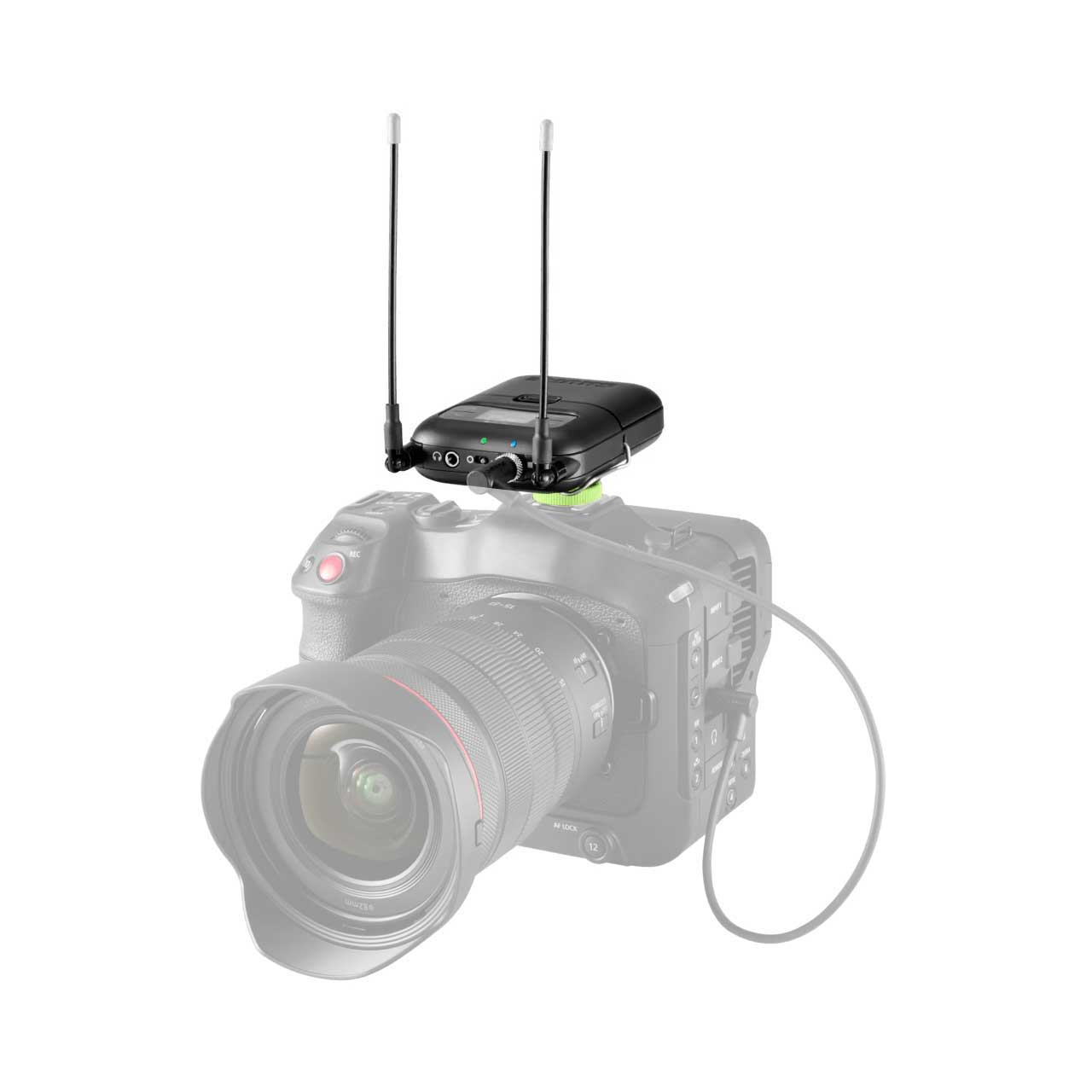

    • Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 118 dB dynamic range
    • Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
    • Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
    • Bright OLED display screen for key system function readouts and remaining battery life
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Rugged metal construction

  • Specifications:

    • Dimensions (HxWxD): 4.21" x 2.68" x 1.0" (107mm x 68mm x 25.3mm)
    • Weight: 1.8lb (182g)
    • Housing: Aluminum
    • Power Requirements: Battery: Rechargeable Li-Ion or 1.5 V AA batteries
    • Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C

      RF Input
    • Spurious Rejection: >75 dB
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip

      Audio Output:
    • Audio Frequency Response: 20 Hz - 20 kHz
    • Connector Type: 1/8" (3.5 mm), x2
    • Full Scale Output: Camera (Balanced Line): 15 dBV Headphone: 13 mW @ 64 ω Load

  • Item Includes:

    • 1x Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0042406811859
