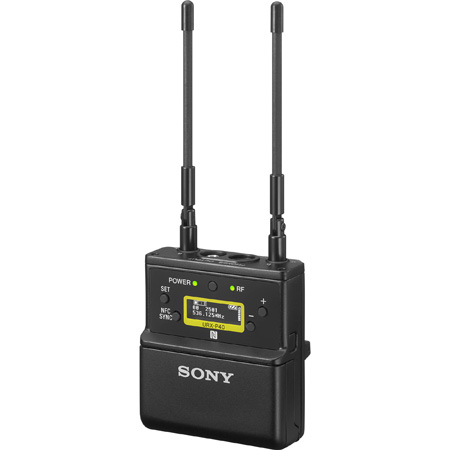

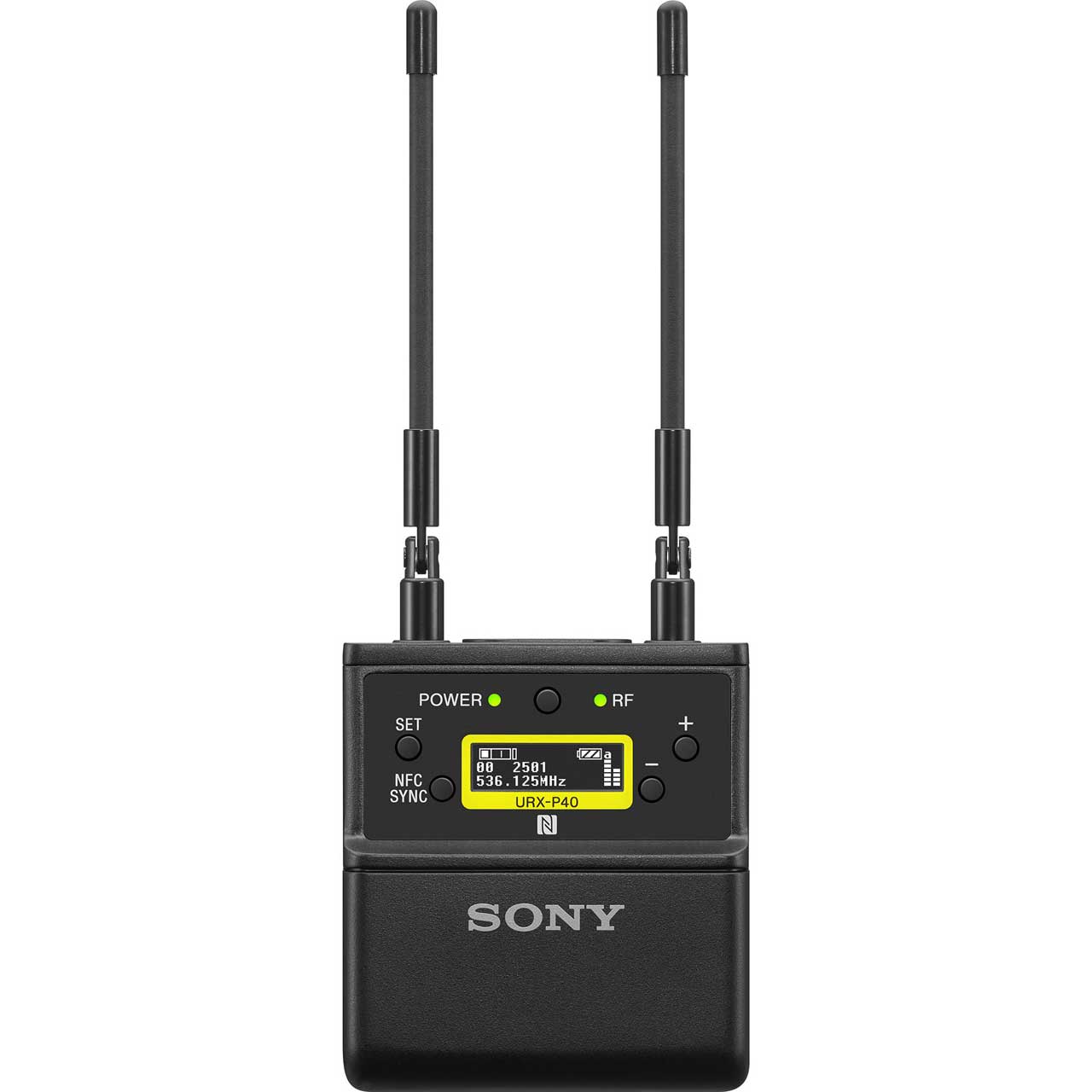

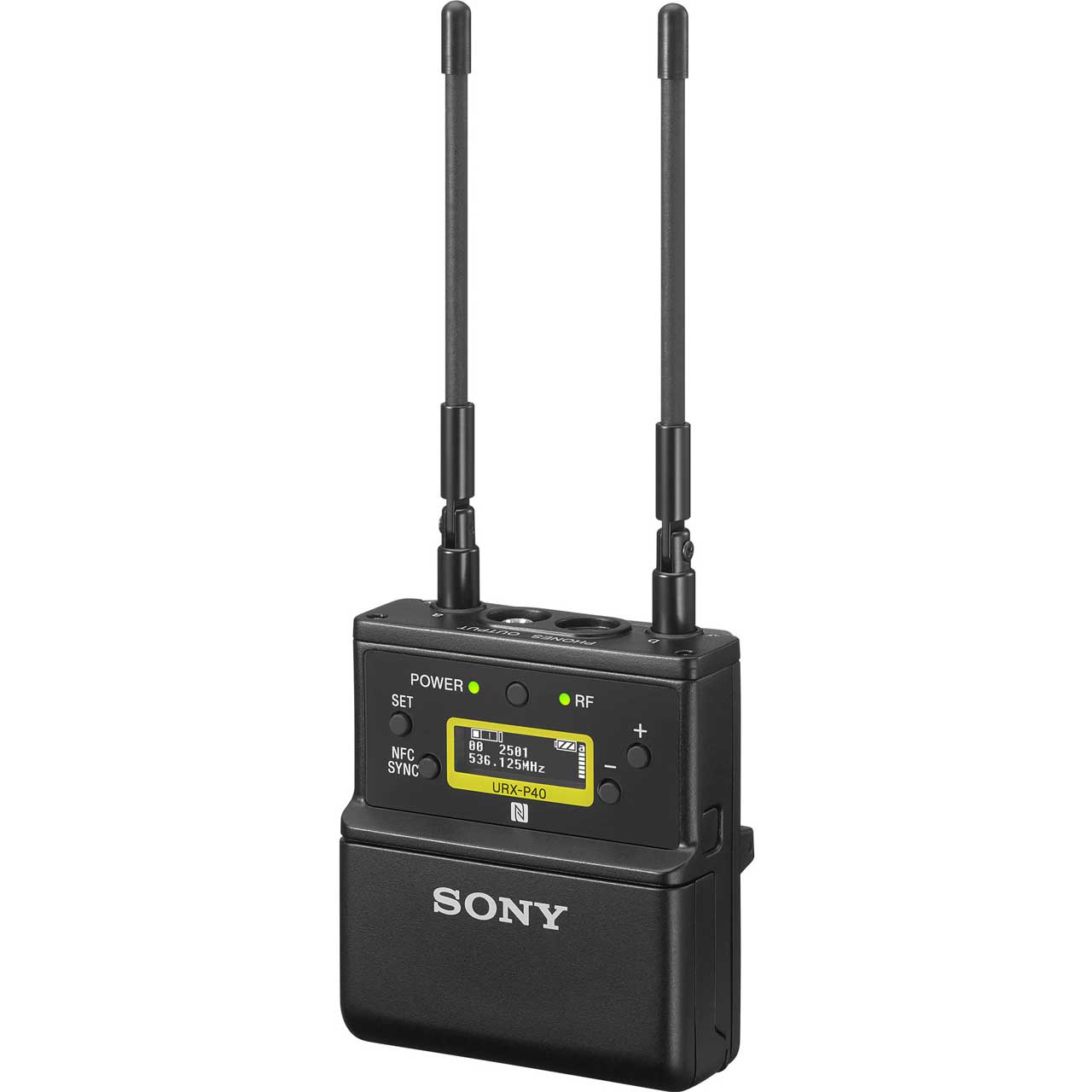

Sony URXP40/25 UWP-D WLS Portable Receiver - 536.125 MHz to 607.875 MHz

ITEM #: SNY-URXP40-25 MFG #: URXP40/25

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$349.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    URXP40/25 - Overview

    The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Todays content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.

    Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series (URXP40-25) is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

    • Features:

      • High quality sound with Sony digital audio processing
      • NFC SYNC function for quick and easy secure channel setting
      • True double tuner diversity for stable signal reception
      • Channel memory for fast switching between two receiver frequencies
      • Headphone output for monitoring
      • Monitor mode for using a receiver as an ear monitor
      • Compatibility with Sony WL-800/UWP series
      • Output level control for receiver
      • High visibility OLED display, ideal for indoor/outdoor use
      • USB connector for power supply
      • Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adapter (option)*
      • *For details on cameras that support this function, visit the Sony website.

    • Specifications:

      • Oscillator Type: Crystal-controlled PLL Synthesizer
      • Reception Type: True diversity
      • Antenna Type: Detachable
      • Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV Ch 14 to 25)
      • Frequency Response: 23Hz to 18kHz (typical)
      • Signal-to-Noise Ratio: 96dB (max deviation, A-weighted)
      • Distortion (T.H.D): 0.9% or less (-60dBV, 1kHz input)
      • Audio Delay: Approx. 0.375 msec
      • Analog Output: D-sub 15 pin, unbalanced
      • Analog Output Level*: -40 dBu (at ±5 kHz deviation)
      • Pilot Tone Signal: 32 kHz/ 32.382 kHz/ 32.768 kHz
      • Display: LCD
      • Power Requirements: DC 7.0 V
      • Operating Temperature: 32°F to 122°F (0°C to 50°C)
      • Storage/Transport Temperature: -4°F to 131°F (-20°C to 55°C)
      • Dimensions (WxHxD): 3.46 × 4.57 × 1.23" (88 x 116.2 x 31.2mm) (excluding the antennas)
      • Mass: Approx. 0.67Lbs (303g) (with supplied antennas attached)

    • GTIN:

      0027242918719
