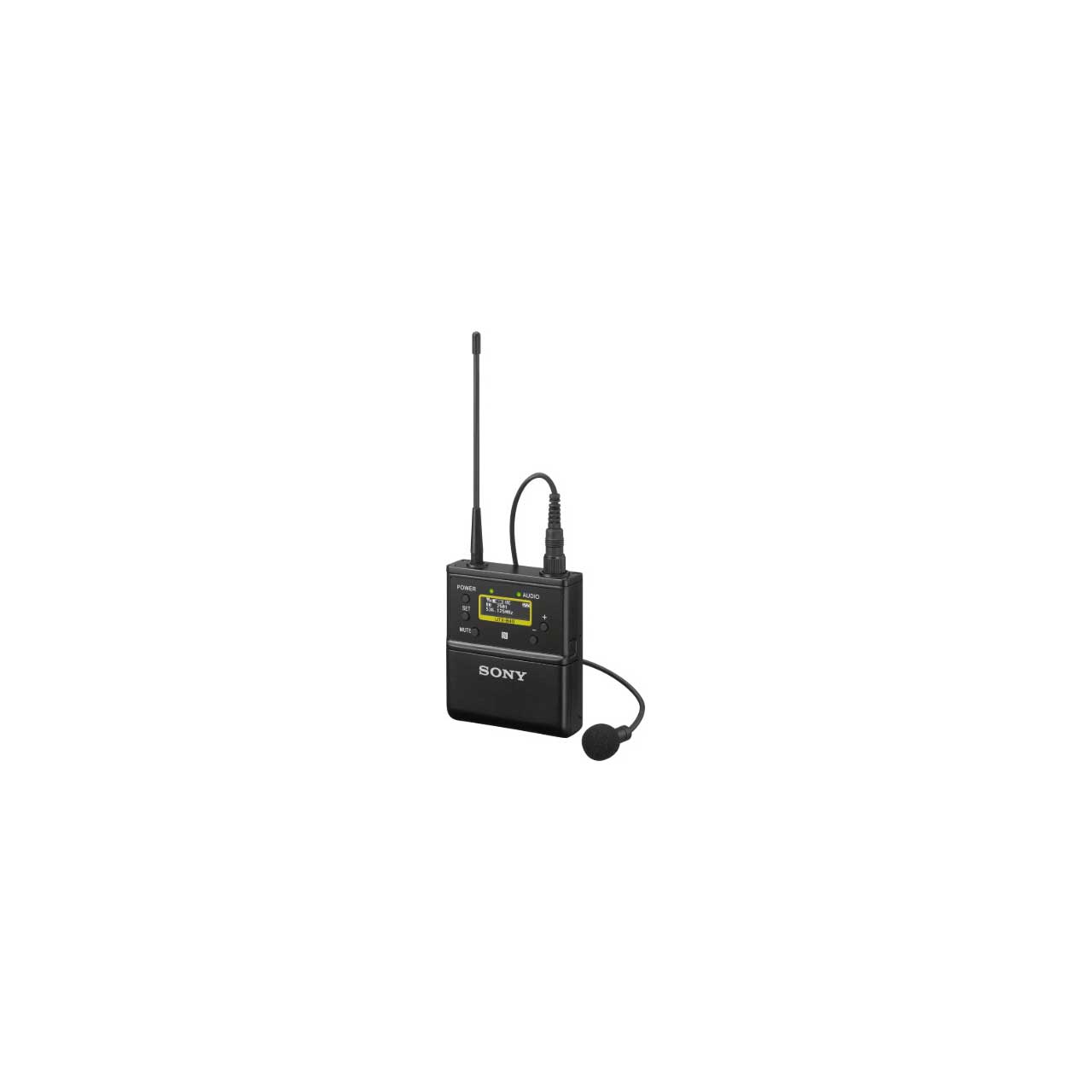

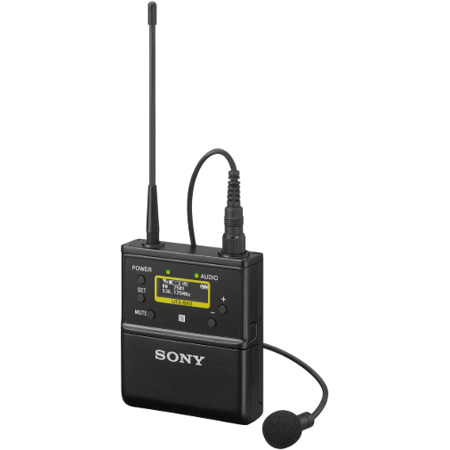

Sony UWP-D Series - UTXB40/25 UWP-D WLS Bodypack Transmitter - 536.125 MHz to 607.875 MHz

UTXB40/25 - Overview

• Features:

  • High quality sound with Sony digital audio processing
  • NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
  • Auto gain mode volume control
  • +15 dB gain volume boost mode for off-mic audio
  • Line Input
  • Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
  • Variable muting function
  • Compatibility with Sony WL-800/UWP/UWP-D series
  • High visibility OLED display, ideal for indoor/outdoor use

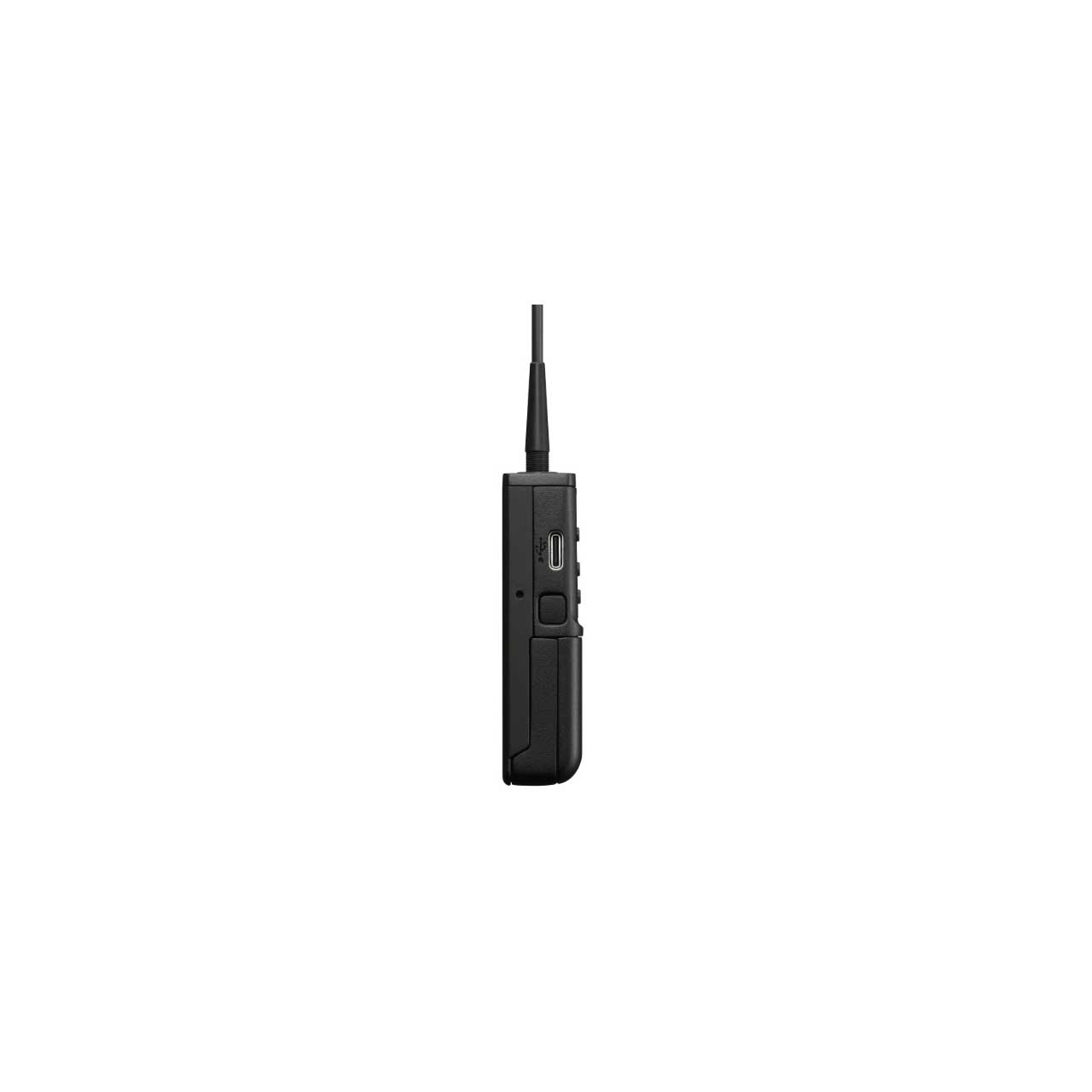

  • USB connector for power supply
  • Includes ECM-V1BMP lavalier microphone


• Specifications:

  • Oscillator Type: Crystal-controlled PLL synthesizer
  • Antenna Type: 1/4 λ wavelength wire antenna
  • Carrier Frequencies: 14UC: 470.125 MHz to 541.875 MHz (UHF-TV Ch 14 to 25)
  • RF Output Power:
    30 mW/5 mW selectable (UC, U, CE, LA, CN models)
    10 mW/2 mW selectable (J, E, KR models)
  • Capsule Type: Dynamic
  • Directivity: Uni-directional
  • Reference Audio Input level: -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
  • Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit)
  • Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)
  • Frequency Response:
    70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
    70 Hz to 15 kHz (Typical) (J model)
  • Signal-to-Noise Ratio:
    60 dB (-60 dBV, 1 kHz sine wave input)
    102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
    96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
  • Distortion: 0.9% or less (-60 dBV, 1 kHz input)
  • Audio Delay: Approx. 0.35 ms
  • Tone Signal Frequency:
    In UWP-D compander mode: 32.382 kHz
    In UWP compander mode: 32 kHz
    In WL800 compander mode: 32.768 kHz
  • Display: OLED

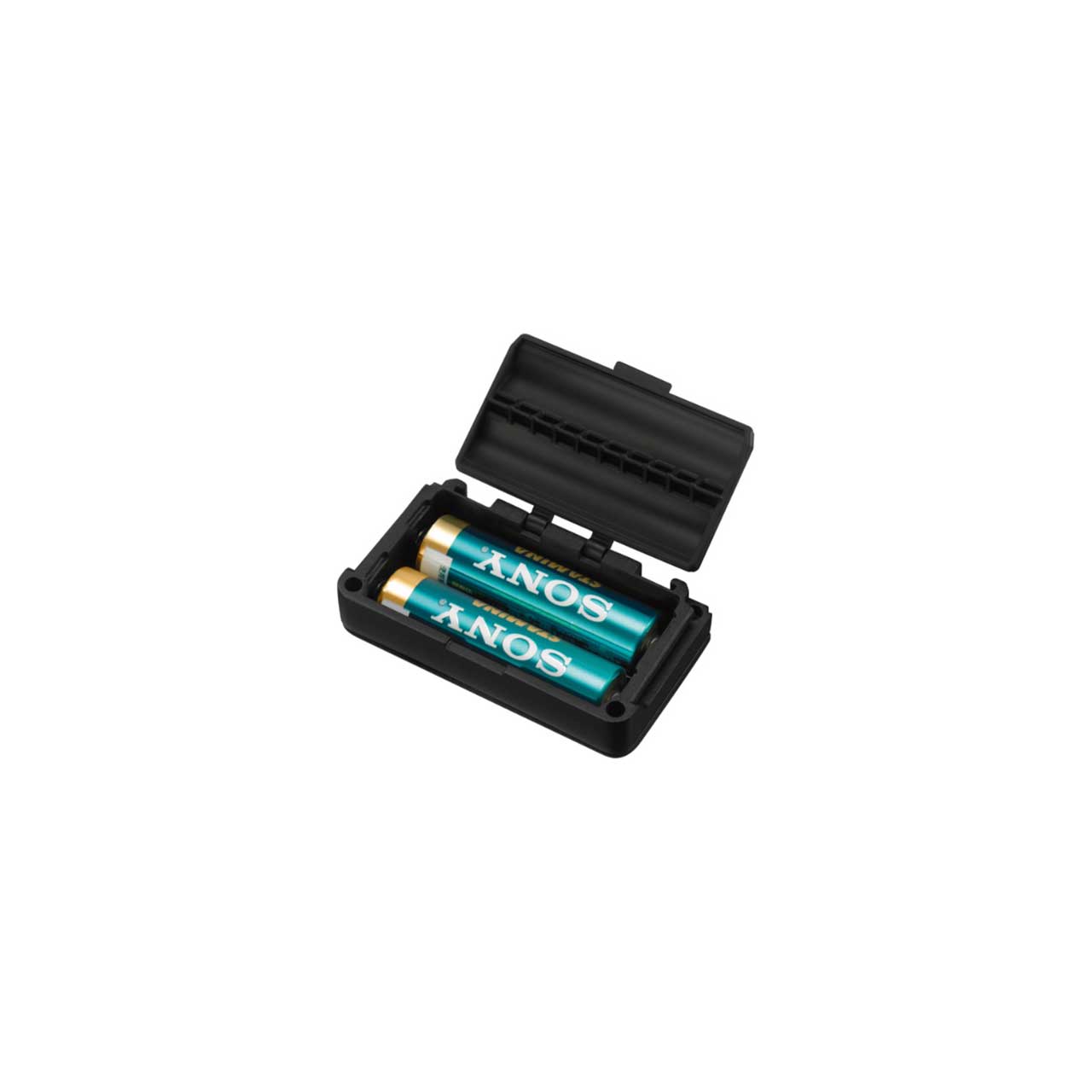

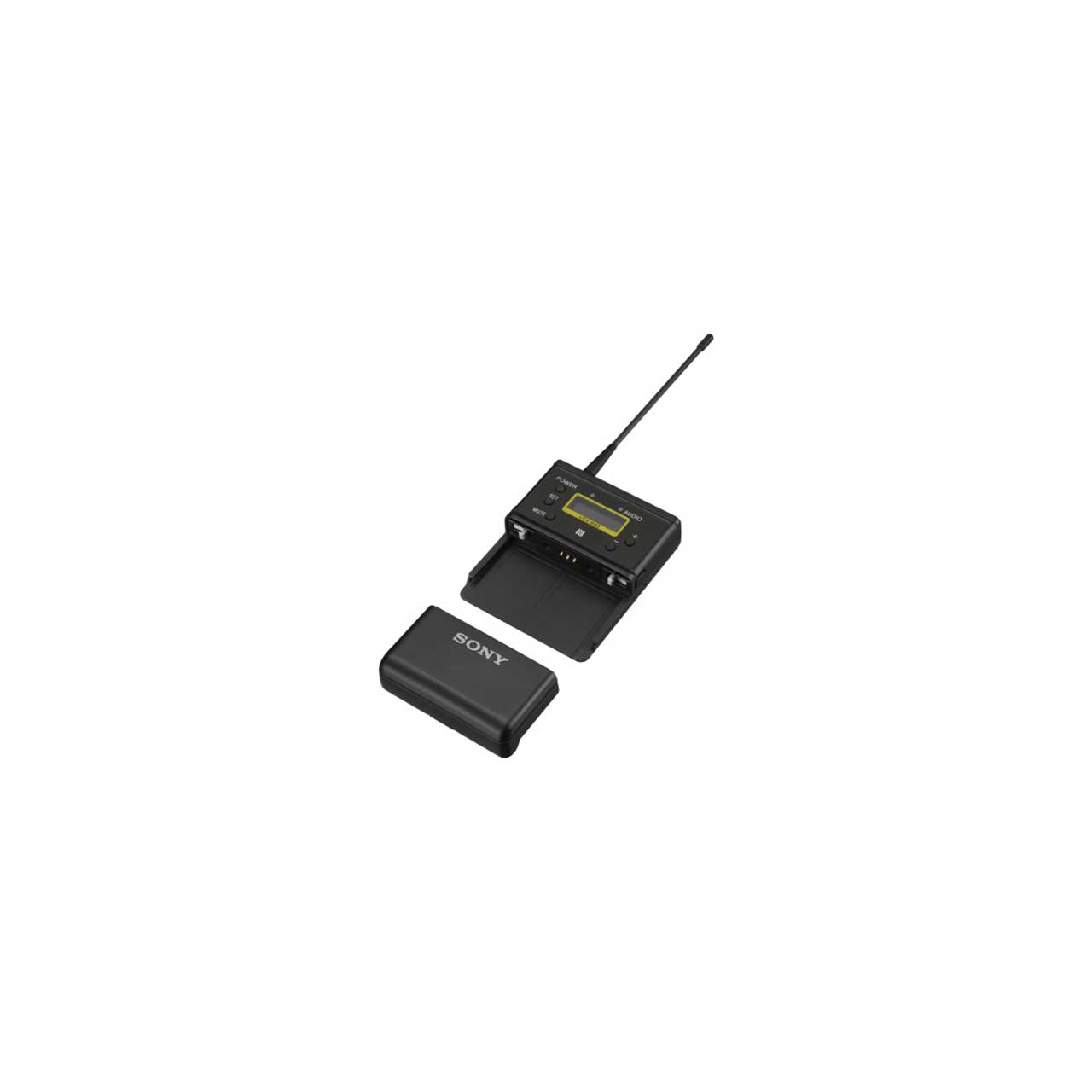

  • Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
  • Battery life*:
    Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
    Approx. 10 hours with output power of 10 mW (J, E, KR models)
  • Note: *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
  • Operating Temperature: 32 ° to 122°F (0 ° to 50°C)
  • Storage/Transport Temperature: -4° to 140°F (-20° to +60°C)
  • Dimensions (DxL): 1.89 + 10.16" (ø48 + 258mm)
  • Mass: Approx. 0.56Lbs (255g) (excluding batteries)


• GTIN:

  0027242918658
