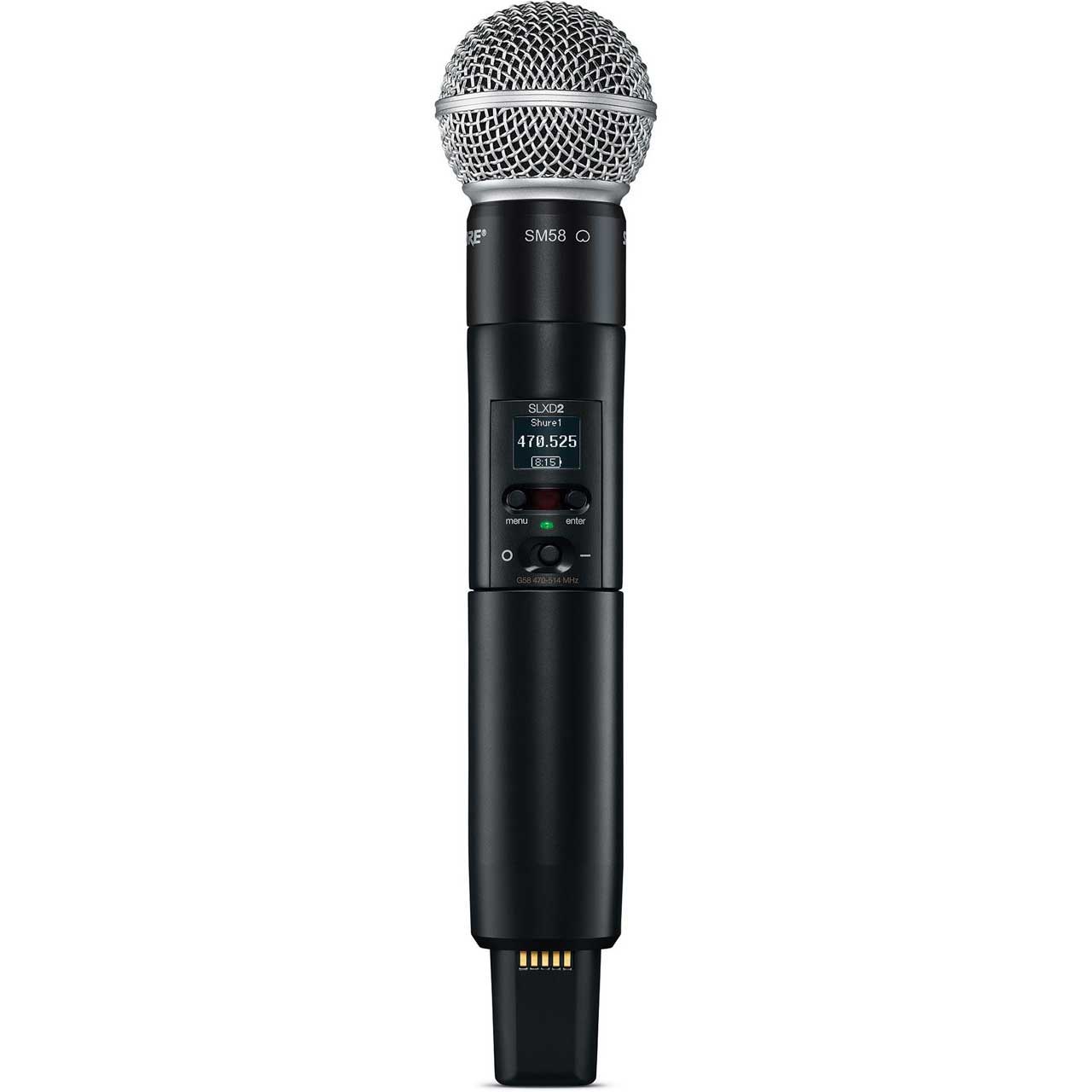

Shure SLXD24D SM58 2-Channel Handheld Wireless Mic System Kit with Batteries/Chargers/Antennas/Splitter - 470-514Mhz

ITEM #: SH-SLXD58-G58BN1 MFG #: SH-SLXD58-G58BN1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,451.90

Our Price:

$3,587.78

Availability: In Stock
iAvailability Description Popup


SH-SLXD58-G58BN1 - Overview

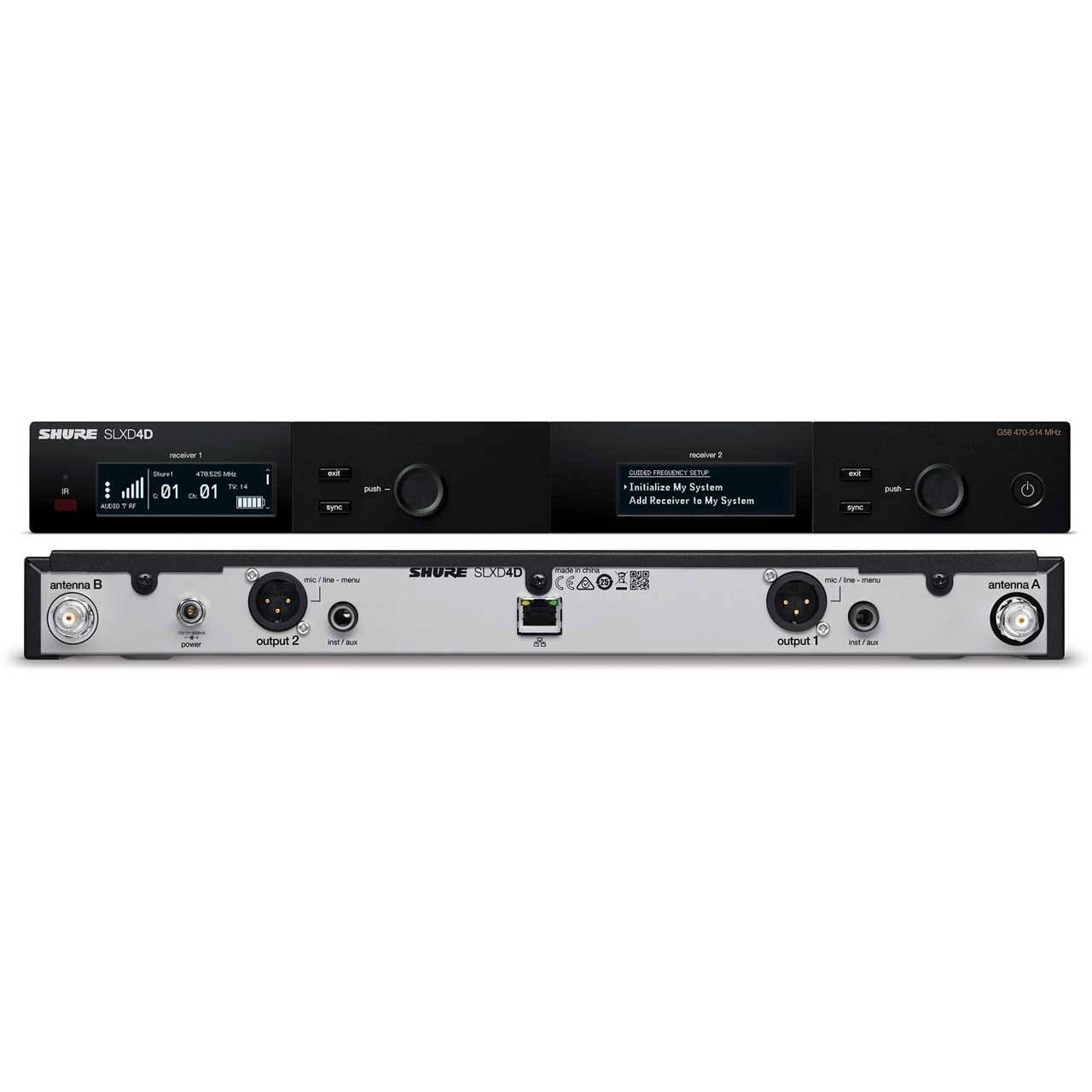

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With the Shure SLXD24D/SM58-G58 SM58 Dual Vocal Handheld Wireless Mic System you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances. Shure SLX D Wireless Systems are the digital wireless solutions for small and medium-sized facilities that provide affordable, worry-free UHF-band RF performance, transparent audio quality and streamlined maintenance because of spectrum efficiency, digital audio and ease of setup and rechargeability.

The Shure SLXD includes predictive diversity for extended antenna coverage and improved RF signal-to-noise ratio. It operates within an extended spectrum of UHF (470-938 MHz, region dependent). The tuning bandwidth goes up to 44MHz (selectable RF band) with up to 32 preset compatible channels and is capable of operating up to 10 compatible channels in a 6 MHz TV band or 12 compatible channels in an 8 MHz TV band. The entire system shall deliver high-quality transparent audio, with a flat frequency response over a wide range from 20Hz to 20kHz, providing accurate audio reproduction and a low-latency of 3.2ms. The dynamic range is up to 120 dB.

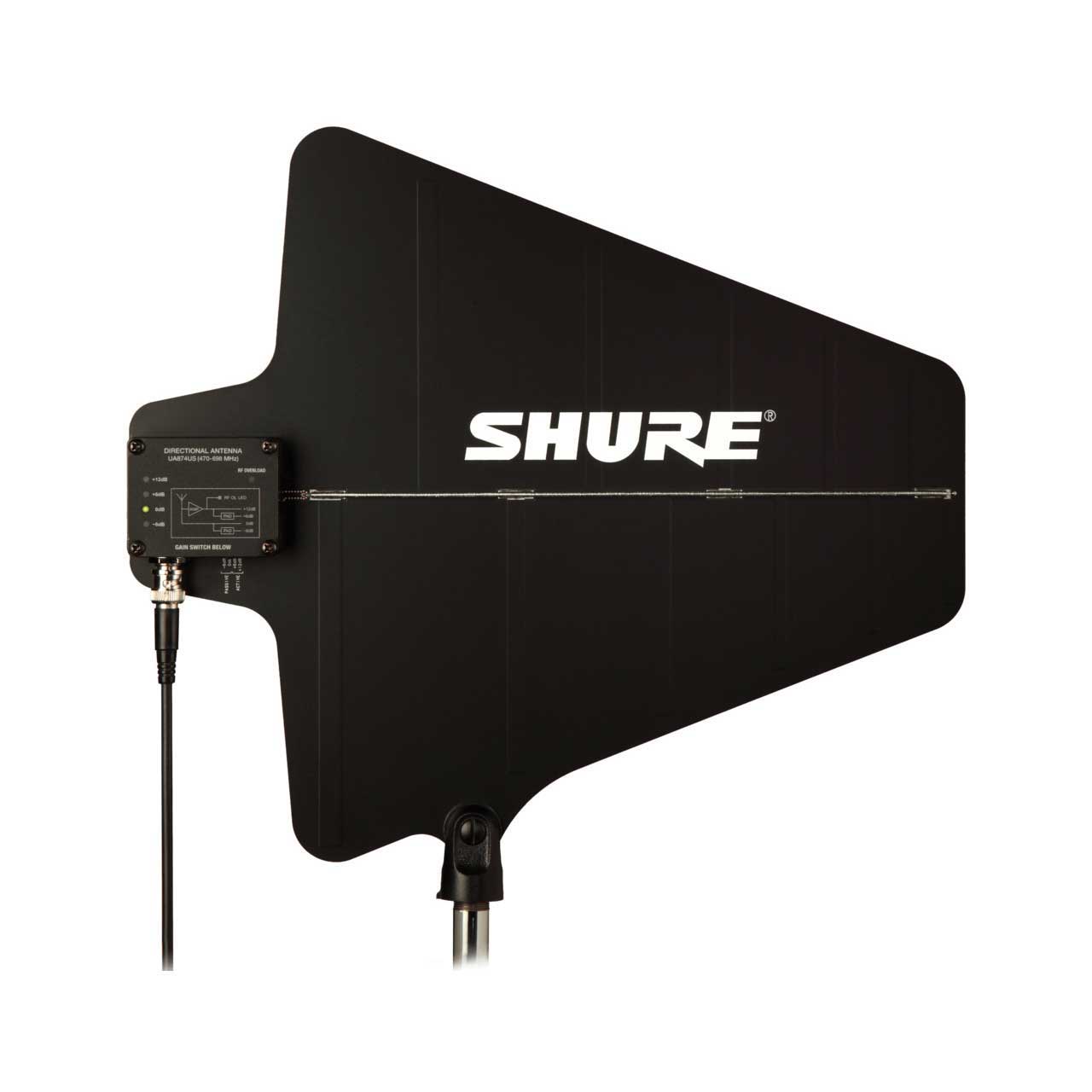

Shure UA874US Active Directional Antenna
Experience improved wireless reception with the UA874. This UHF antenna uses a log periodic dipole array to produce a cardioid pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard 1/2 wave omnidirectional antennas.

An integrated amplifier with four gain settings compensates for varying degrees of coaxial cable signal loss.

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

Shure UA221 Passive Antenna Splitter/Combiner
The Shure UA221 Antenna Splitter/Combiner Kit includes two adapters that can be used as one-input, two-output or two-input, one-output passive antenna splitter/combiners for UC4, SLX4, ULXS4, ULXP4, U4S, U4D, UR4S and UR4D receivers.

The UA221 Kit lets you split an incoming signal into two outgoing signals or combine two incoming signals into one signal. Each kit includes two UA221 Splitter/Combiners, four coaxial cables, and attaching hardware.

The UA221 Splitter/Combiners are designed for use with Shure Model UA400 1/4 wave UHF antennas, UA820 1/2 wave antennas, and UA802/UA825/850 50 ohm low loss antenna cable.

SB903 Lithium-ion Battery
The Shure SB903 rechargeable battery can be charged on both the SB203 dual docking charger or in the SBC10-903 single battery charger. When the SB903 rechargeable battery is used, the battery runtime shall be displayed on both receiver and transmitter in HH:MM format, accurate to within 15 minutes.

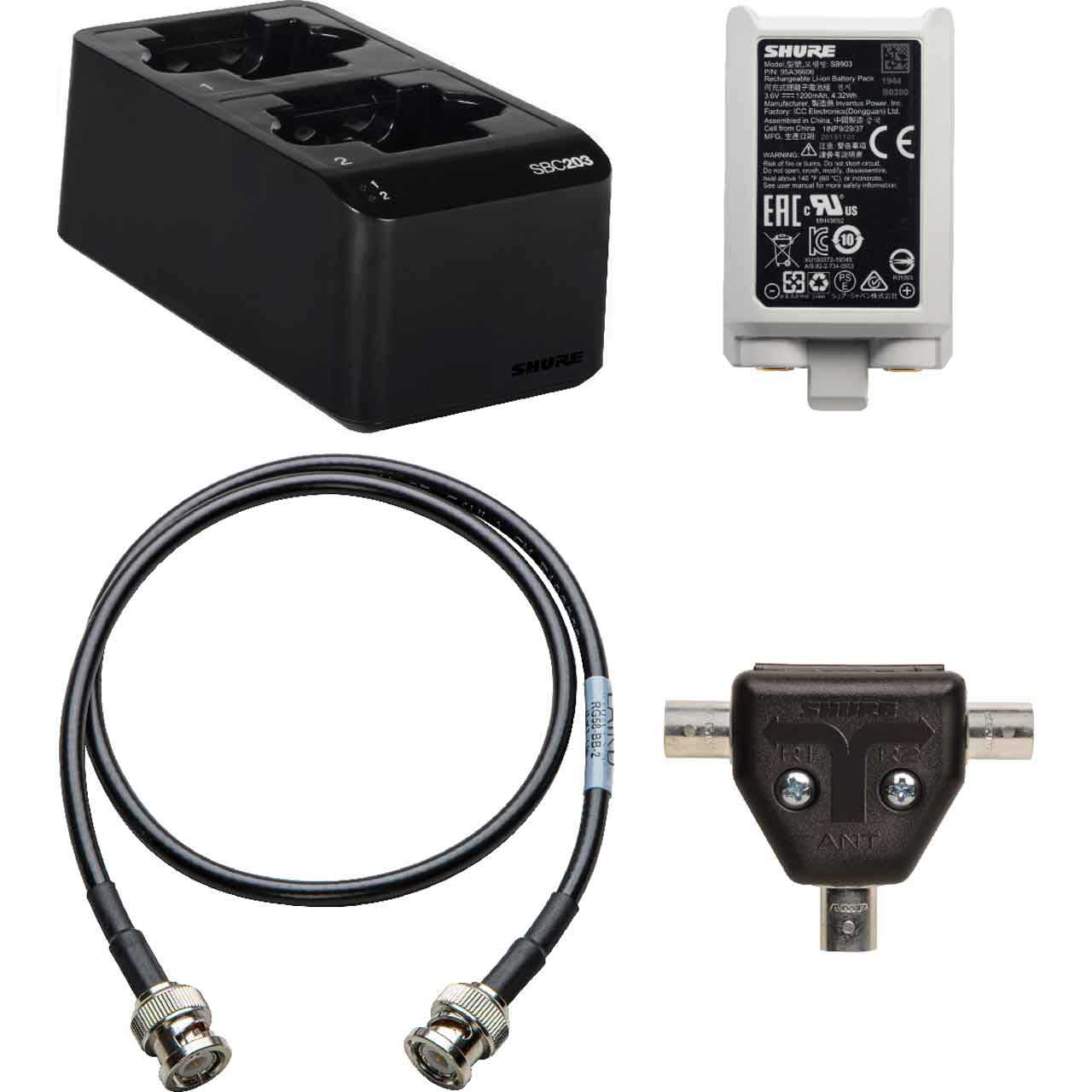

Shure SBC203-US Dual Docking Station
The Shure SBC203 dual docking battery charger is designed for the Shure SB-903 battery. The charger will stop charging when the temperature is above 45 degree Celsius for safety purposes.

  • Features:

    • Crystal-clear digital audio quality with >120 dB dynamic range
    • Stable signals with high efficiency for rock-solid, reliable RF performance
    • RF scan and IR sync for setup at the push of a button. Now featuring guided frequency setup tool embedded in every SLX-D receiver
    • Up to 32 compatible systems per 44 MHz band
    • Up to 8 hours of use from 2 AA batteries or optional Shure SB903 Lithium-ion rechargeable batteries and chargers
    • Install-friendly - manage multiple system group scans, firmware updates and local setup and control via Ethernet
    • Wide variety of microphones and system SKU configurations
    • Industry-leading Shure quality design and construction standards
    • Compatible with all Shure wireless receivers and antenna distribution systems that provide 12 V DC bias
    • Four-position gain selector switch
    • Low-noise signal amplifier that compensates for transmission loss in coaxial cable
    • Integrated threaded adapter that mounts easily to microphones stands
    • Legendary Shure build quality and reliability

  • Specifications:

    • Shure SLXD24D/SM58-G58 Mic System
    • RF Carrier Frequency Range: 470 - 514 MHz
    • Working Range: 328 Feet - Actual range depends on RF signal absorption, reflection and interference.
    • RF Tuning Step Size: JB Band: 125 kHz, All Other Bands: 25 kHz
    • Image Rejection: >70 dB typical
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz-20 kHz (+1, -2 dB)
    • Audio Dynamic Range: 120 dB @1% THD (A-weighted typical)
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
    • System Audio Polarity: TRS: Postiive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • Operating Temperature Range: 0°F to 122°F
    • Storage Temperature Range: -20°F to 165°F

      UA874US Active Directional Antenna
    • Connector Type: BNC, Female
    • Impedance: 50 Ω
    • Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
    • RF Frequency Range: 470-514Mhz
    • Reception Pattern: 3 dB Beam Width, 70 degrees
    • Third-order Overload Intercept Point (OIP3): >30 dBm
    • Antenna Gain: On Axis, 7.5dBi
    • Signal Gain: ±1 dB, Switchable, +12 dB, +6 dB, 0 dB, -6 dB
    • RF Overload LED Threshold: -5 dBm. RF overload LED does not operate for passive gain settings

      UA221 Splitter
    • Frequency Range: 10 MHz-1000 MHz
    • Voltage Standing Wave Ratio (VSWR): 2:0
    • Impedance: 50 Ω
    • Isolation: 20 dB
    • Insertion Loss: 2 dB (3 dB splitter loss not included)

      SB903 Lithium-ion Battery
    • Charge Voltage: 4.2 V (±0.03 V)
    • Nominal Voltage: 3.6 V
    • Nominal Capacity: 1200 mAh
    • Housing: Molded Polycarbonate
    • Dimensions (H x W x L): 0.57 x 1.28 x 2.19 in
    • Weight: 1 oz.

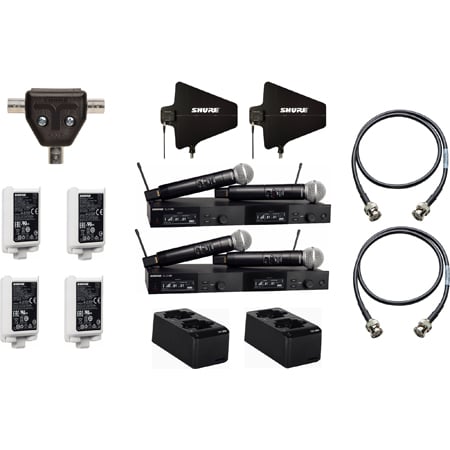

  • Item Includes:

    • 2x SLXD24D SM58 2-Channel Handheld Wireless Mic Systems
    • 2x SBC203 Battery Chargers
    • 4x SB903 Batteries
    • 2x UA874 Blade Antenna
    • 1x UA221 Antenna Combiner/Splitter
    • 2x RG58-BB-15 Laird 50 Ohm Antenna Cable

  • GTIN:

    0042406598361
