Shure UL4B/C-LM3-A UniPlex Cardioid Lavalier Microphone - LEMO3 - Cocoa

ITEM #: SH-UL4CC-LM3-A MFG #: UL4C/C-LM3-A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Shure Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$399.00

Our Price:

$319.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    UL4C/C-LM3-A - Overview

    The Shure UL4C/C-LM3-A UniPlex UL4 is a professional MEMS lavalier microphone that is ideal for speech and performance applications in broadcast, corporate, and conference environments. The subminiature design and custom cardioid element provide robust audio performance. Each microphone is supplied with a storage pouch, single tie clip, and snap fit windscreen.

    The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.

    NOTE: Shure UniPlex UL4 lavalier microphone with LEMO termination is compatible only with Shure LEMO bodypack transmitters and preamplifiers.

    • Features:

      • 5mm Cardioid Lavalier Microphone for Corporate A/V And Broadcast Situations
      • Exceptional sound quality
      • Advanced 1.6 mm Shure Plex cable
      • Dual redundant ground
      • Immune to memory effect and kinks
      • LEMO3 Connector


    • Specifications:

      • Microphone Capsule: MEMS
      • Polar Pattern: Cardioid
      • Frequency Response: 40 Hz to 20 kHz
      • Sensitivity: -42.5 dBV/Pa (Pa=94 dB SPL)
      • Self-Noise: 32 dB SPL-A; A-weighted, Equivalent Acoustical
      • Signal-to-Noise Ratio: 62 dB-A
      • Maximum SPL: 130.0 dB SPL 1 kHz @ 1% THD, typical
      • Dynamic Range: 98 dB Typical
      • Microphone Current Draw: 530 µA, maximum
      • Bias Voltage (Recommended Operating Voltage): 3.5-5 VDC (5.5VDC MAX)
      • Housing: Molded ABS
      • Polarity: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
      • Cable Diameter: 0.06" (1.6 mm)
      • Cable Length: 66.0" (1.67 m)
      • Net Weight: 0.02lbs / 0.44 oz (12.5g)
      • Capsule Dimensions (L x D): 0.66 x 0.19" (17 x 5mm)

        NOTE: Shure UniPlex UL4 lavalier microphone with LEMO termination is compatible only with Shure LEMO bodypack transmitters
      • and preamplifiers.

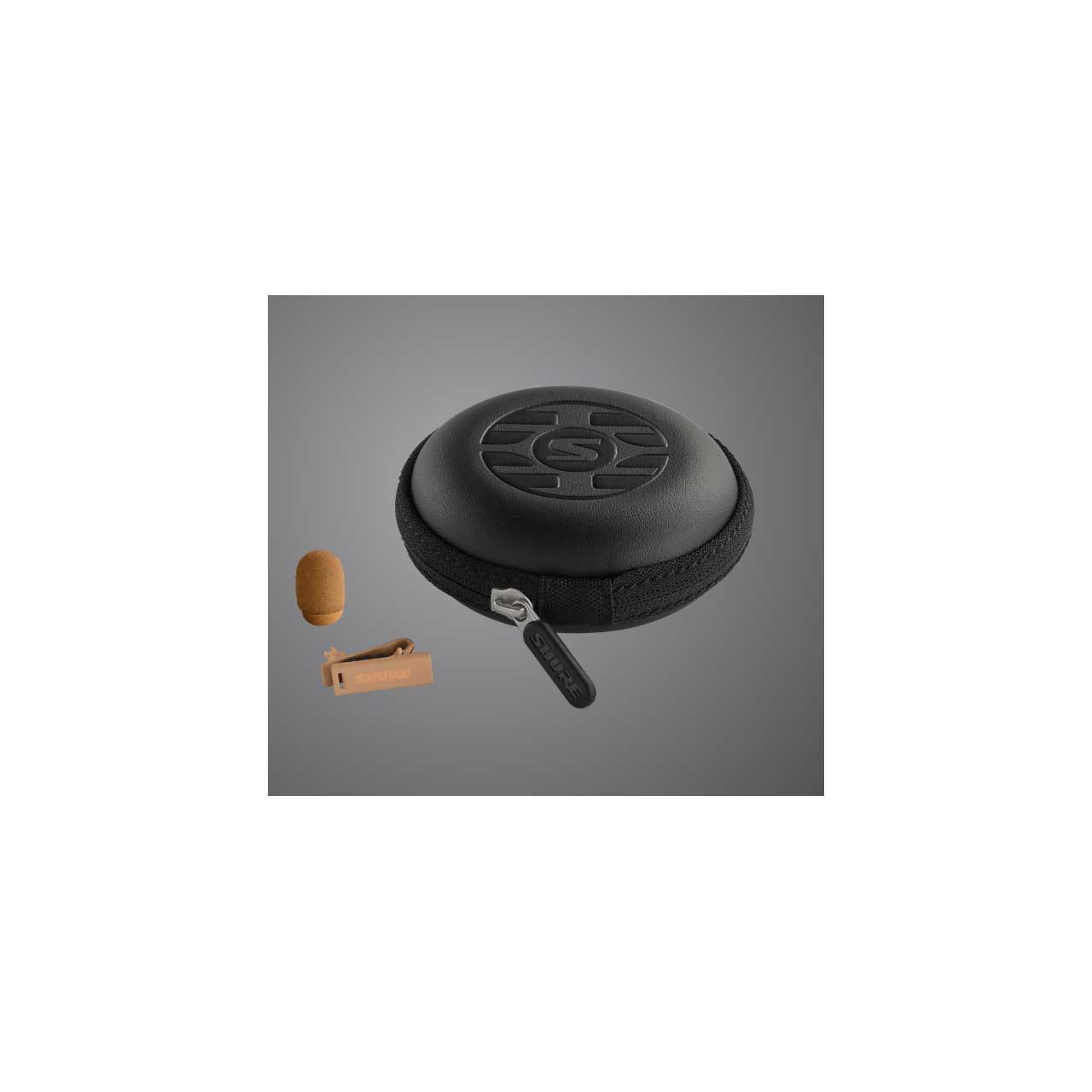

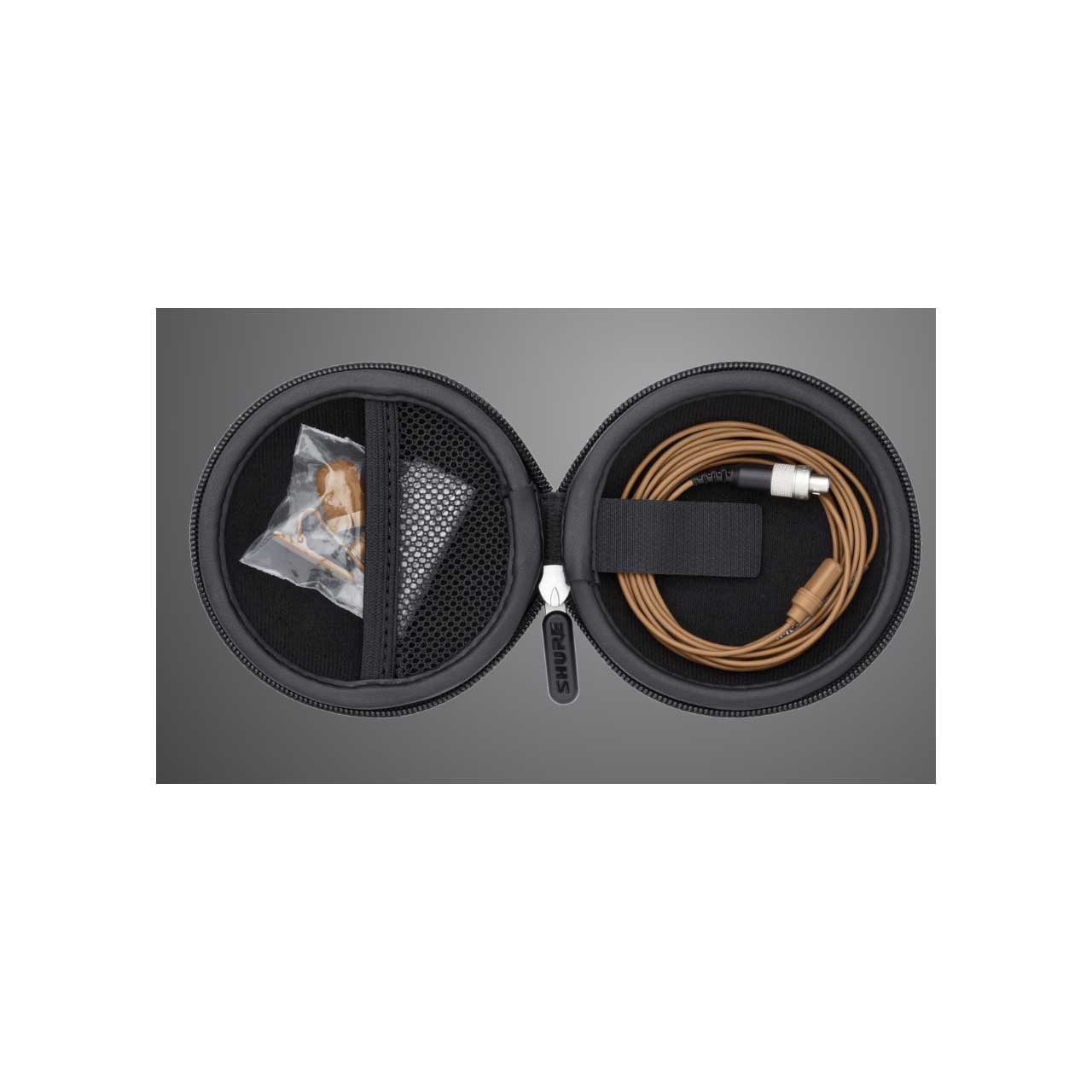

    • Item Includes:

      • 1x UL4 UniPlex Cardioid Lavalier Microphone with LEMO3 Connector (Cocoa)
      • 1x Single Tie-Clip
      • 1x Snap-fit Wind Screen
      • 1x Case


    • GTIN:

      0042406754293
