Audio-Technica AE5100 Cardioid Condenser Instrument Microphone

ITEM #: AE5100 MFG #: AE5100

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$299.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


AE5100 - Overview

The Audio-Technica Artist Elite AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments. With rich, warm, accurate sound, the AE5100 also incorporates the most essential ingredients for quality live sound in a choir microphone. Its large-diaphragm capsule delivers accurate, natural response, while its low-profile design permits innovative placement options. With a lower profile than the large studio microphones to which it compares sonically, the AE5100 offers an outstanding performance-to-size ratio. With its low noise and smooth response, the AE5100 is ideal for recording, too.

  • Features:

    • Large-diaphragm capsule delivers accurate and natural response
    • Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
    • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
    • Robust design for enduring dependability on the road

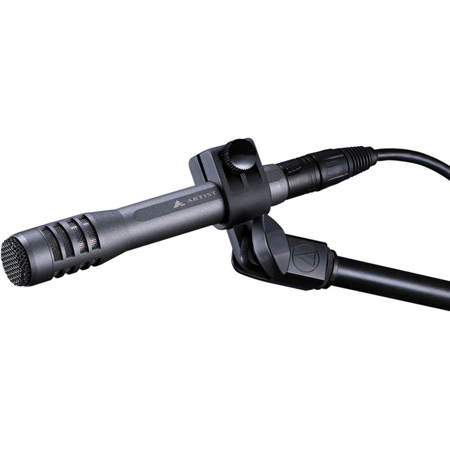

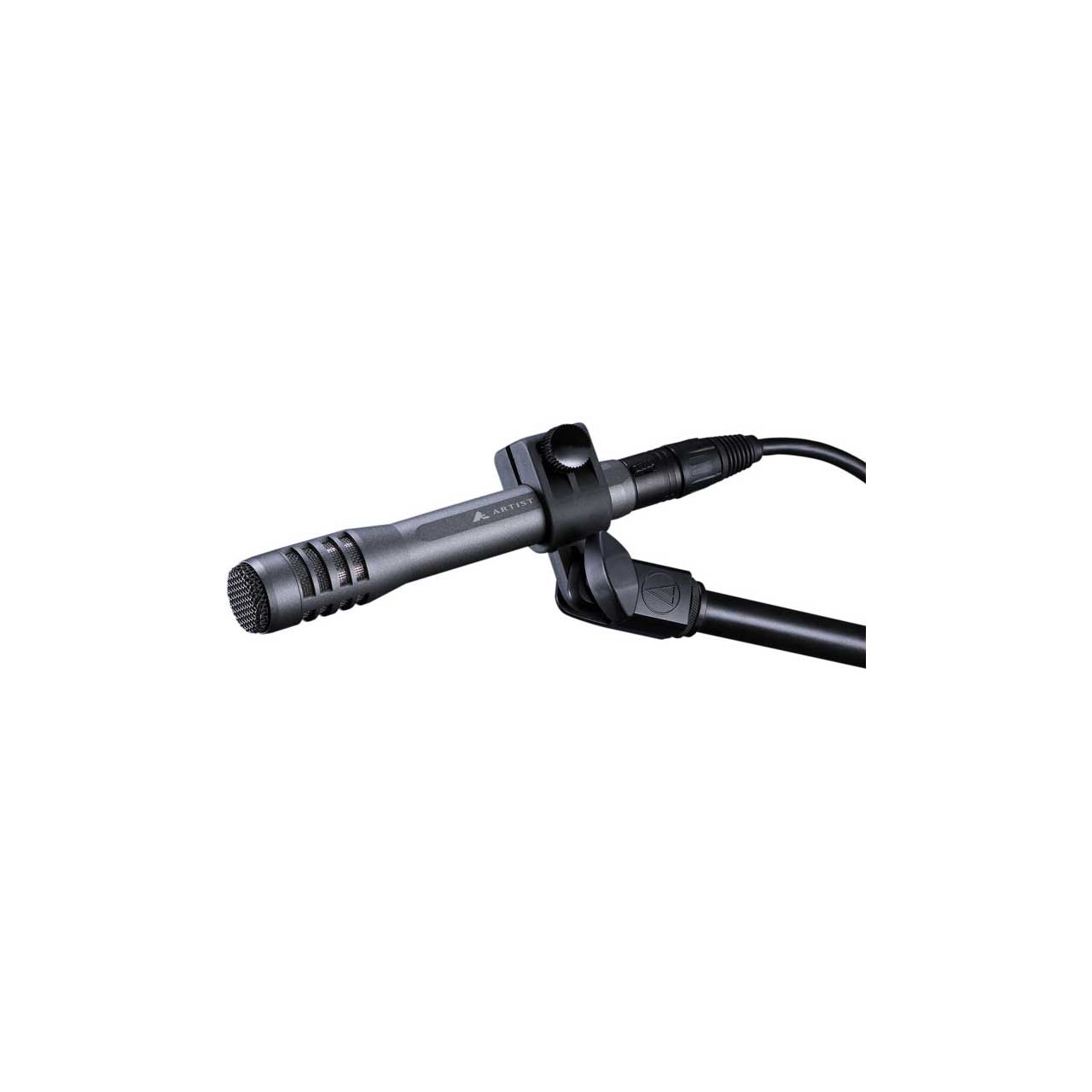

    • Includes isolation clamp for shock protection, secure mounting and easy positioning
    • Integral 80Hz HPF switch and 10dB pad

  • Specifications:

    • Element: Fixed-charge back plate, permanently polarized condenser
    • Polar Pattern: Cardioid
    • Frequency Response: 20 - 20,000Hz
    • Low Frequency Roll-Off: 80Hz, 12dB/octave
    • Open Circuit Sensitivity: -36dB (15.8mV) re 1V @ 1Pa
    • Impedance: 150Ω
    • Maximum Input Sound Level: 148dB SPL, 1kHz @ 1% T.H.D.; 158dB SPL with 10dB pad (nominal)
    • Noise: 11dB SPL
    • Dynamic Range (typical): 137dB, 1kHz @ Max SPL
    • Signal-To-Noise Ratio: 83dB, 1kHz @ 1Pa
    • Phantom Power Requirements: 11 - 52V DC, 3.2mA typical
    • Swithces: High-pass filter; 10dB pad (nominal)
    • Weight: 5.0oz
    • Dimensions: 5.85" long, 1.02" maximum diameter
    • Output Connector: Integral 3-pin XLRM-type
    • Audio-Technica Case Style: S4

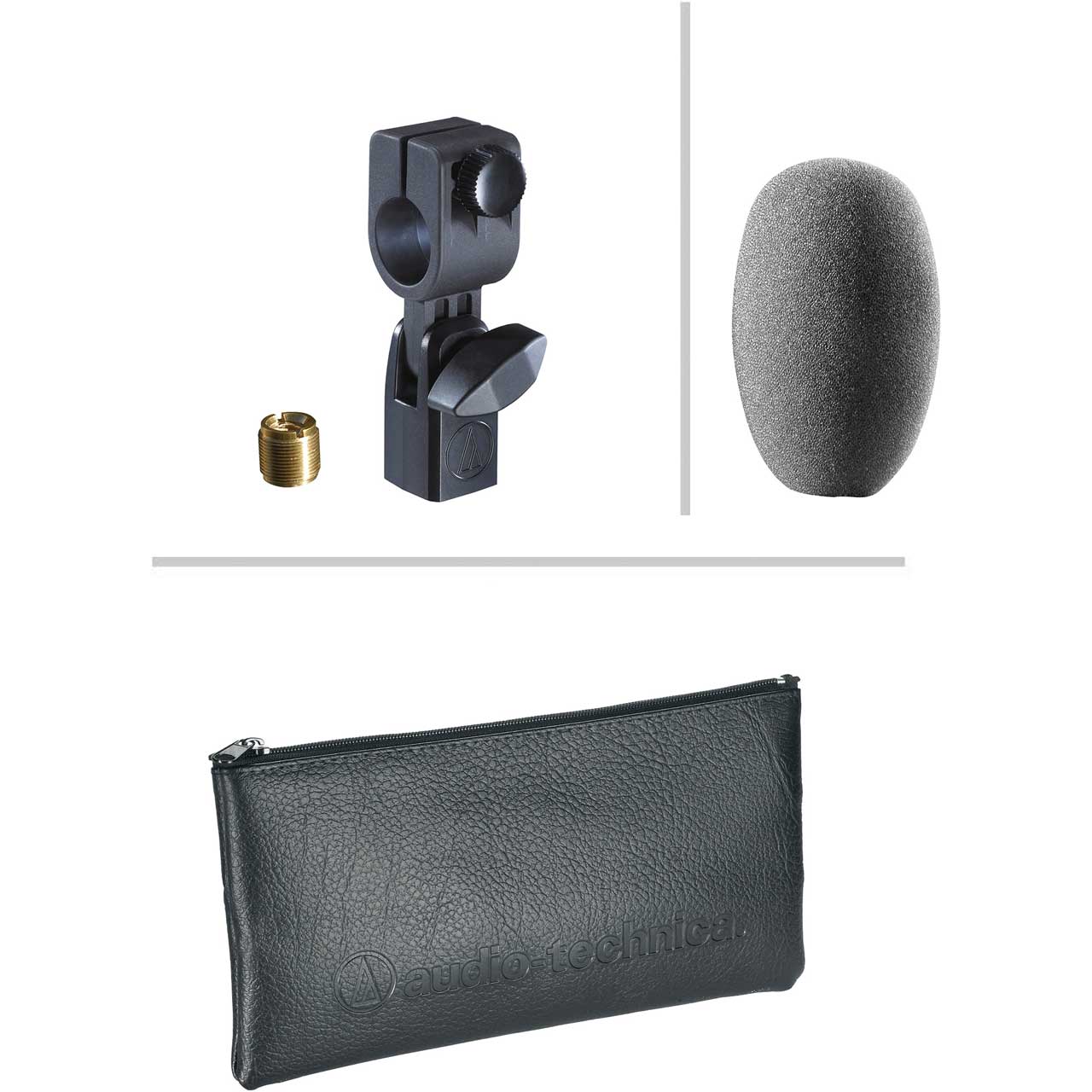

  • Item Includes:

    • AT8471 isolation clamp for 5/8"-27 threaded stands
    • 5/8"-27 to 3/8"-16 threaded adapter
    • AT8136 windscreen
    • Soft protective pouch

  • Warranty:

    • 5 Year Limited End-User

  • GTIN:

    0042005128143
