Shure ULXD8 Wireless Gooseneck Microphone Base For ULXD And QLXD - G50 (470-534 MHz)

ULXD8-G50 - Overview

• Features:

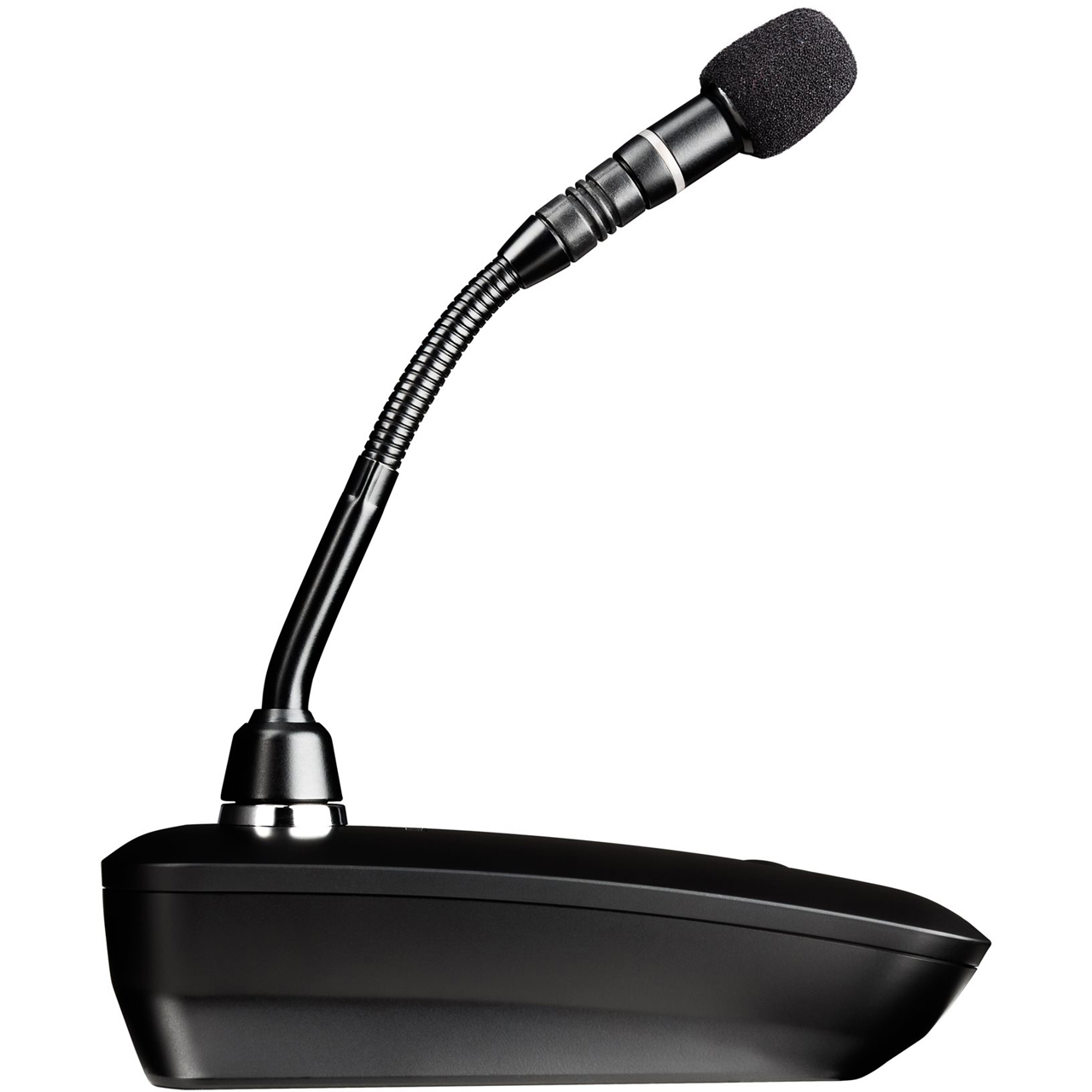

  • Designed for use with Shure Microflex MX405, MX410, and MX415 gooseneck microphones, as well as Microflex MX410DF and MX415DF Dualflex gooseneck microphones

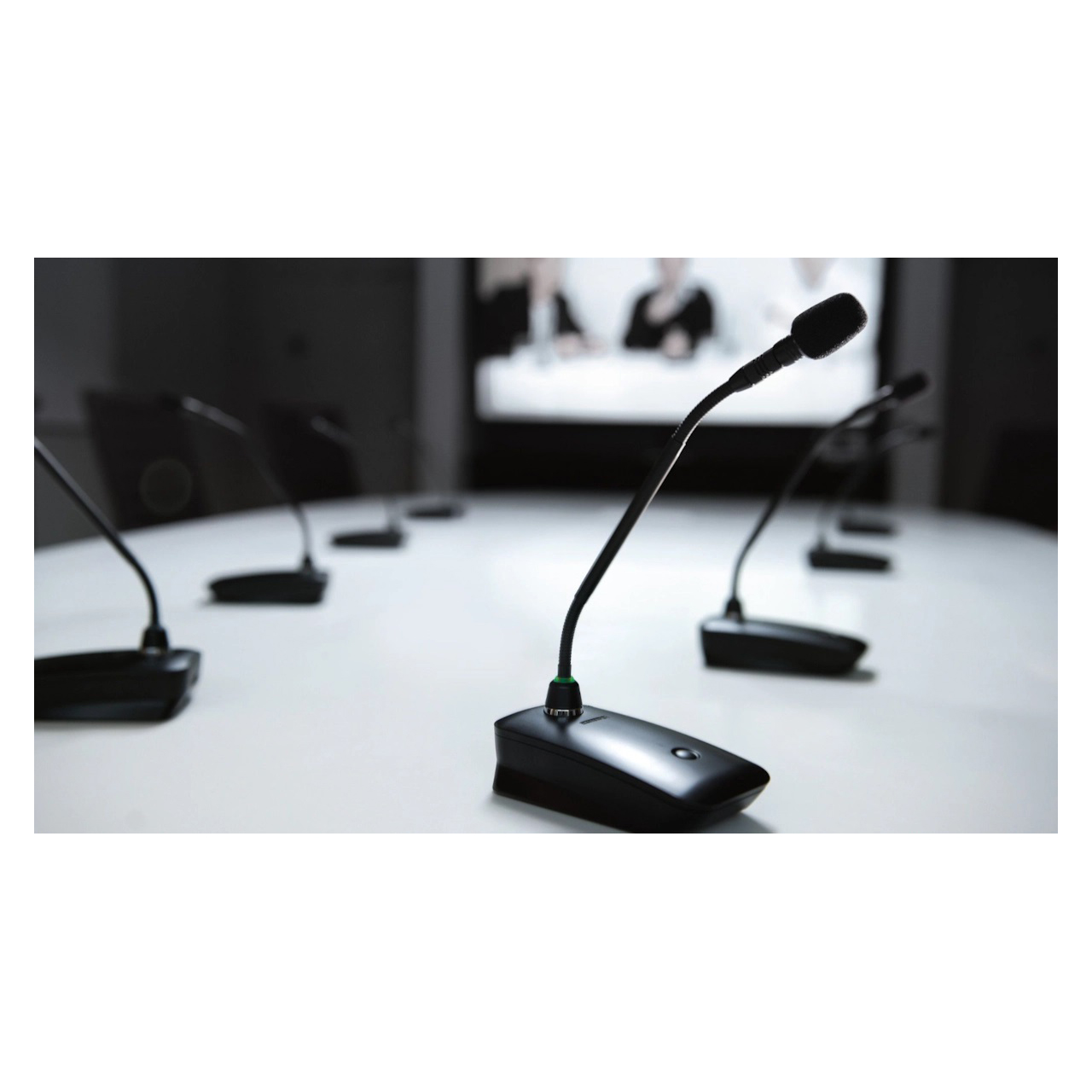

  • Very low latency makes the ULXD8 ideal for meetings that require live sound reinforcement
  • Long transmission range (up to 300 feet/100 meters) for reliable performance in very large meetings at conference and convention centers
  • Compatible with the full line of Shure antennas and distribution components, allowing up to 200 ULXD8 gooseneck base transmitters to be used with just one pair of receiving antennas for efficient setup
  • Compatible with ULX-D and QLX-D digital receivers
  • Optional SB900A rechargeable batteries provide up to 9 hours of runtime
  • Compatible with standard AA alkaline batteries
  • Optional SBC450 (4-bay) and SBC850 (8-bay) Networked Charging Stations allow convenient docking and charging when transmitters are not in use
  • Configurable Mute button (Toggle, Push-to-Mute, Push-to-Talk, disabled) and Mute LED behavior
  • Adjustable RF power, high-pass filter, and power lock settings


• Specifications:

  • General
  • Gain Offset Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type: Shure SB900A Rechargeable Li-Ion or AA batteries
  • Battery Runtime @ 10 mW: Shure SB900A: Up to 9 hours / Alkaline: Up to 8 hours 20 minutes
  • Dimensions (HxWxD): 5.4" x 3.1" x 1.6"
  • Weight: 0.64 lb, with 2 AA batteries
  • Housing: Molded Plastic

    Audio Input
  • Connector: 6-pin connector for Shure MX405/MX410/MX415
  • Configuration: Unbalanced
  • Impedance: >20 kΩ

    RF Output
  • Antenna Type: Integrated PIFA
  • Impedance: 50Ω
  • Occupied Bandwidth: <200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW, 10 mW, 20 mW


• Item Includes:

  • 1x Shure ULXD8 Wireless Gooseneck Base Transmitter - G50 (470-534 MHz) - Gooseneck Mic sold separately


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0042406493680
