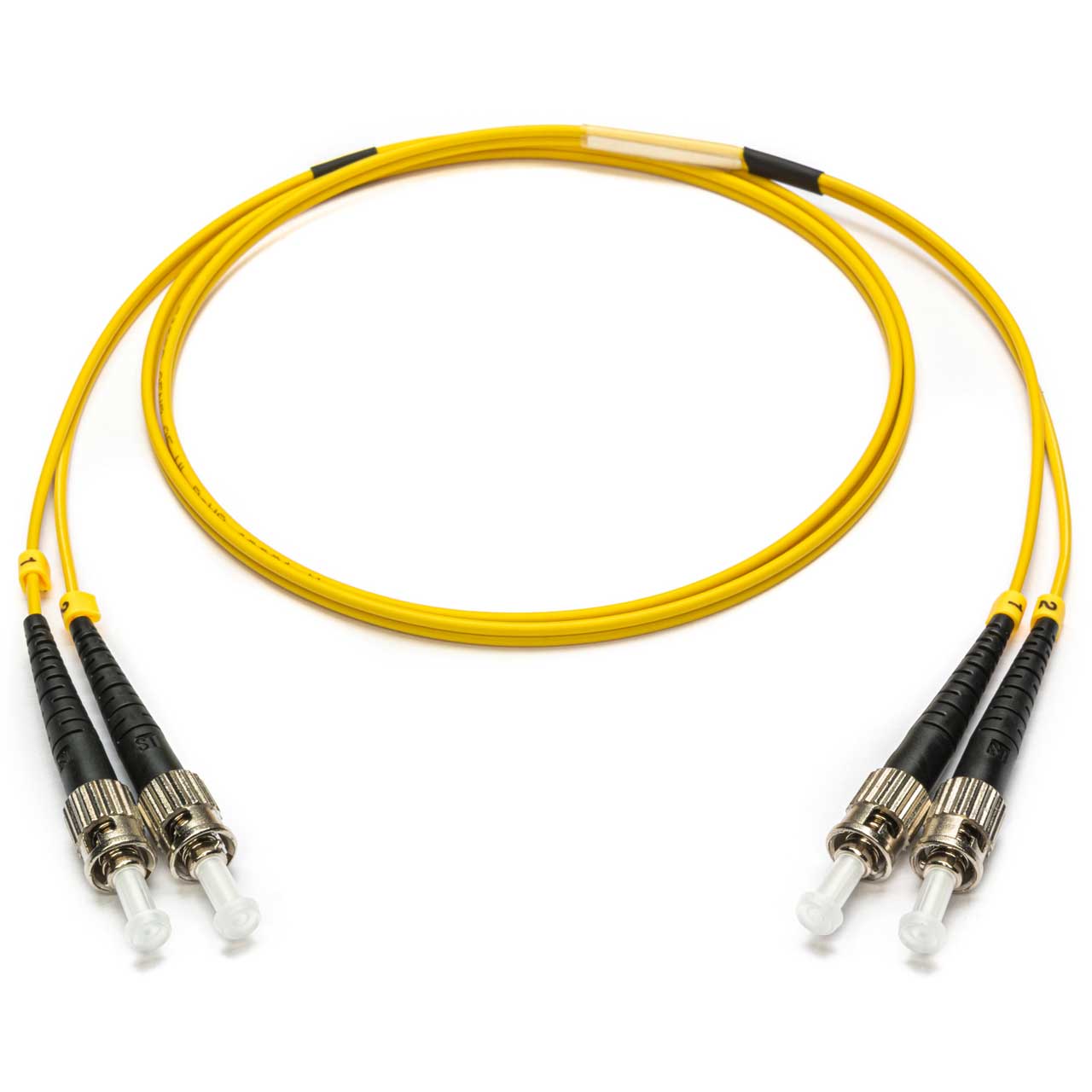

Camplex Premium Bend Tolerant Armored Fiber Patch Cable Single Mode Duplex ST to ST - Yellow - 1 Meter

ITEM #: SMXD9-ST-ST-001 MFG #: SMXD9-ST-ST-001

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$20.49

Our Price:

$19.49

Availability: In Stock
iAvailability Description Popup


SMXD9-ST-ST-001 - Overview

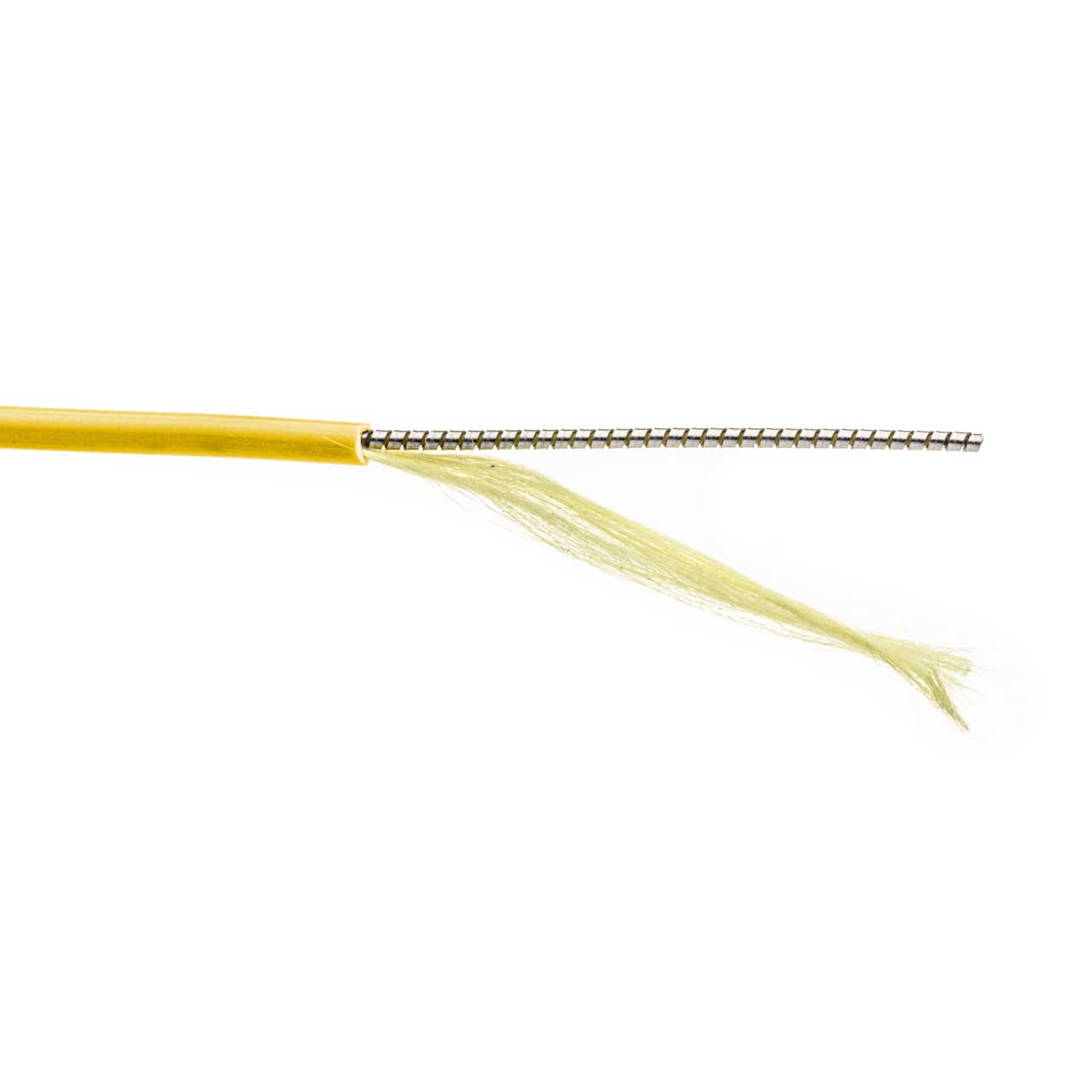

Protect your indoor network installations with Camplex armored fiber optic patch cables featuring stainless steel wrapped fibers and bend insensitive fiber for maximum flexibility. These riser cables are moisture, crush, and rodent-resistant making them highly reliable for applications such as high-speed network patching located in changeable indoor environments. Available as simplex and duplex with singlemode, OM4 multimode and OM1 multimode fiber and LC and ST connector configurations in 1 to 10-meter lengths.

  • Features:

    • Stainless Steel Armor Provides Added Durability Bend Insensitive Fiber for Maximum Flexibility Riser-Rated, PVC Jacket Flame Retardant and Crush Resistant Ideal for Patching Backbone Trunks to High-Speed Network Devices Ceramic Ferrules for Long-Lasting Reliability and Precision Alignment

  • Specifications:

    • OS2 Fiber
    • Insertion Loss: ≤0.30dB (UPC) / ≤0.30dB (APC)
    • Return Loss: ≤-55dB (UPC) / ≤-65dB (APC)
    • Tensile Strength: Long Term: 2.0mm 200N / Short Term 2.0mm: 400N
    • Pressive Strength: Long Term: 3000N / Short Term: 1500N
    • Bend Radius: Dynamic: 60mm / Static: 30mm
    • Attenuation: @1310nm:≤0.35dB/km / @1550nm:≤0.21dB/km
    • Temperature: -20°C ~ 60°C

  • Warranty:

    • 1 Year
