Patton SmartNode SmartSignal 16xE1 - 360 Channel VoIP Gateway and Signaling Converter for SIP/SS7/V5.2/DSS1 and R2/CAS

ITEM #: SN9000-16E-RUI MFG #: SN9000/16E/RUI

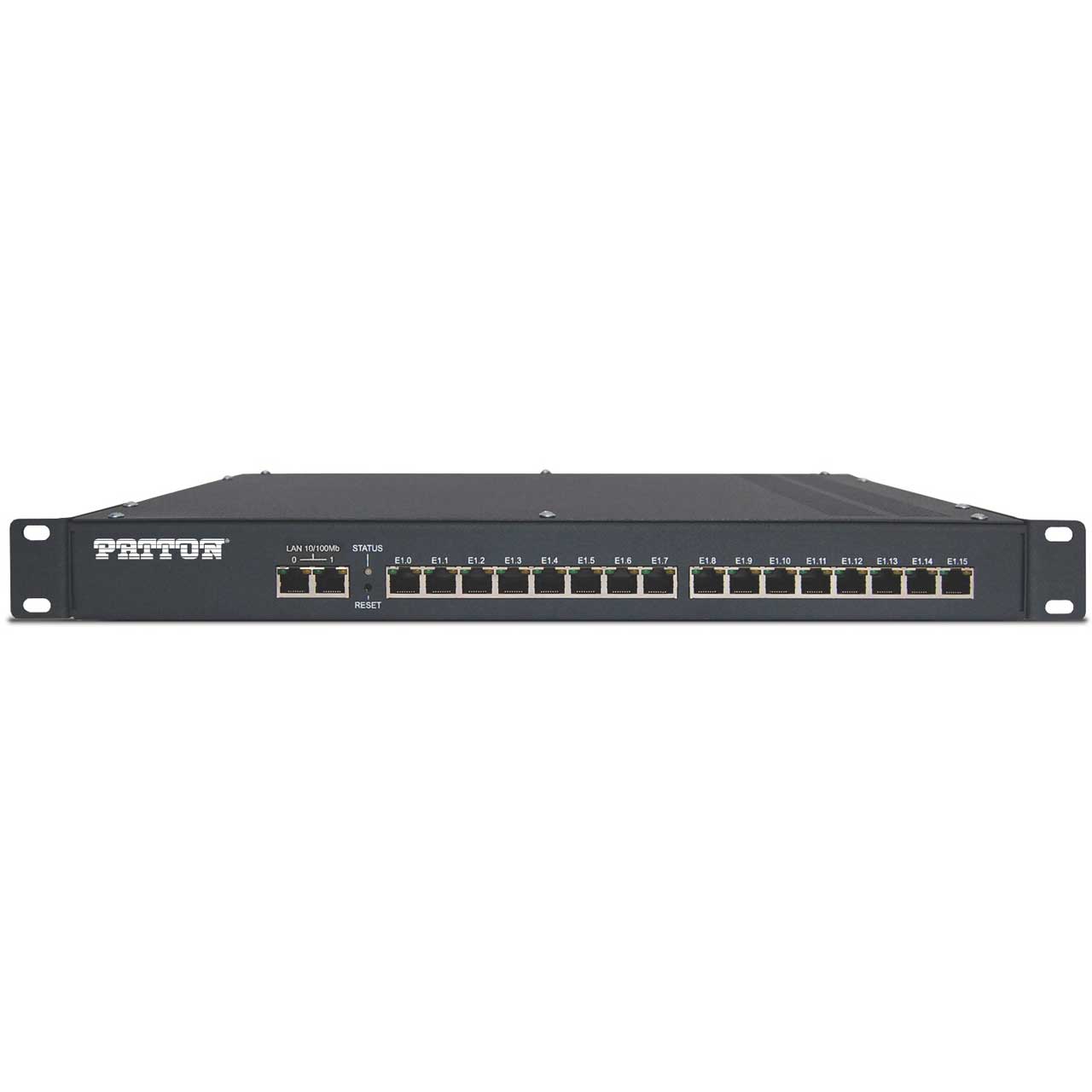

Primary Image

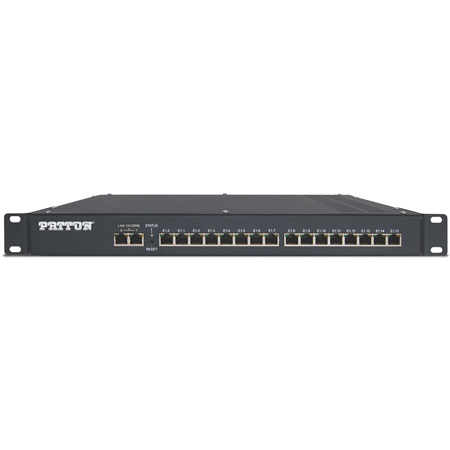

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Patton
Free Shipping with $49 Minimum Order

Our Price:

$19,323.00

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

SN9000/16E/RUI - Overview

The Patton SmartNode SN9000 Series Gateway is a flexible digital telecom switch for inter-networking TDM and SIP networks. The units support T1/E1 multiplexing, signaling conversion, digital switching, and media gateway functions.

As an SIP-to-SS7 and SS7-to-SIP Media Gateway the unit delivers the ability to integrate TDM equipment, trunks and inter-connects with SS7 into IP, IMS, and NGN networks. Similarly, the unit can act as a V5.2-to-SIP and DSS1-to-SIP VoIP gateway.

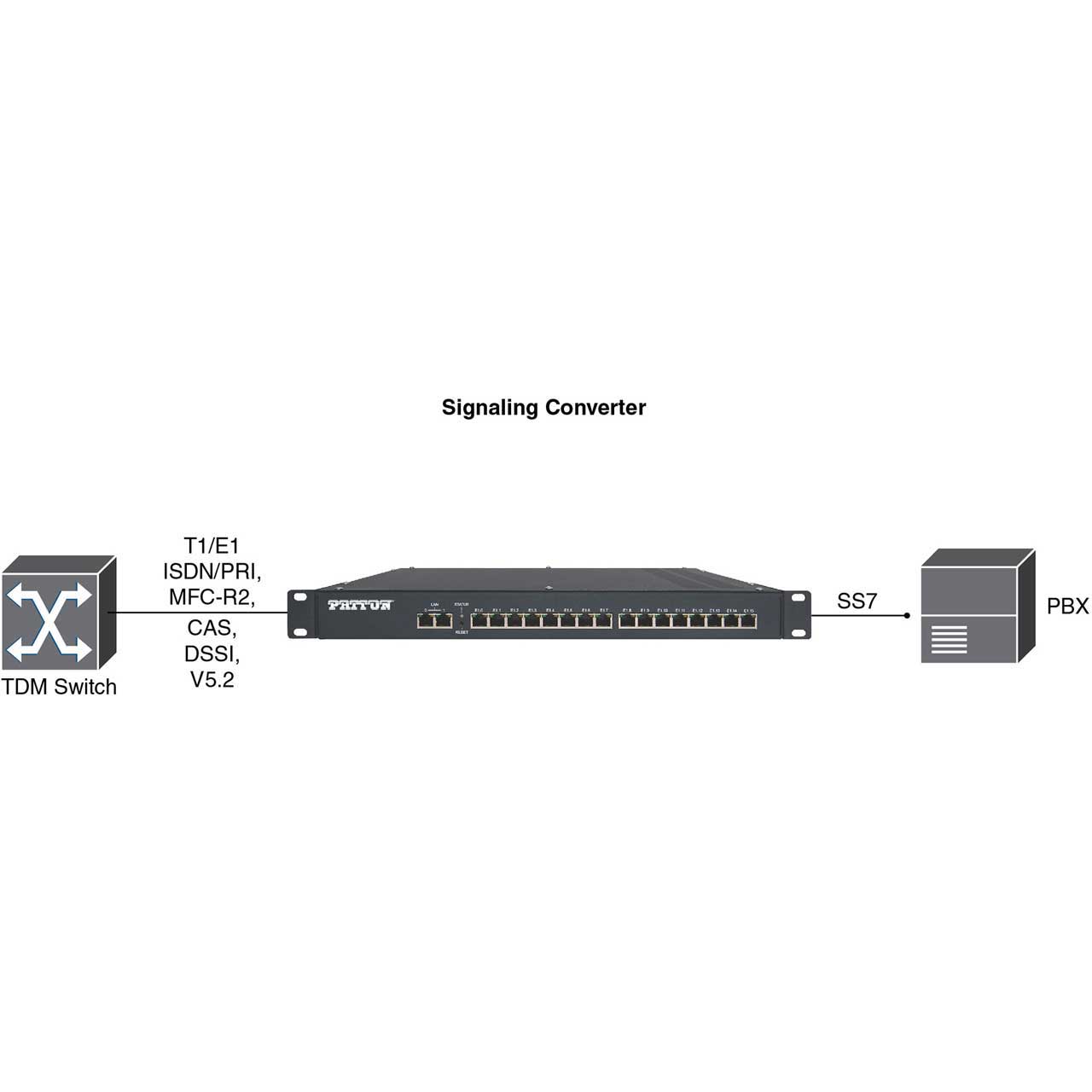

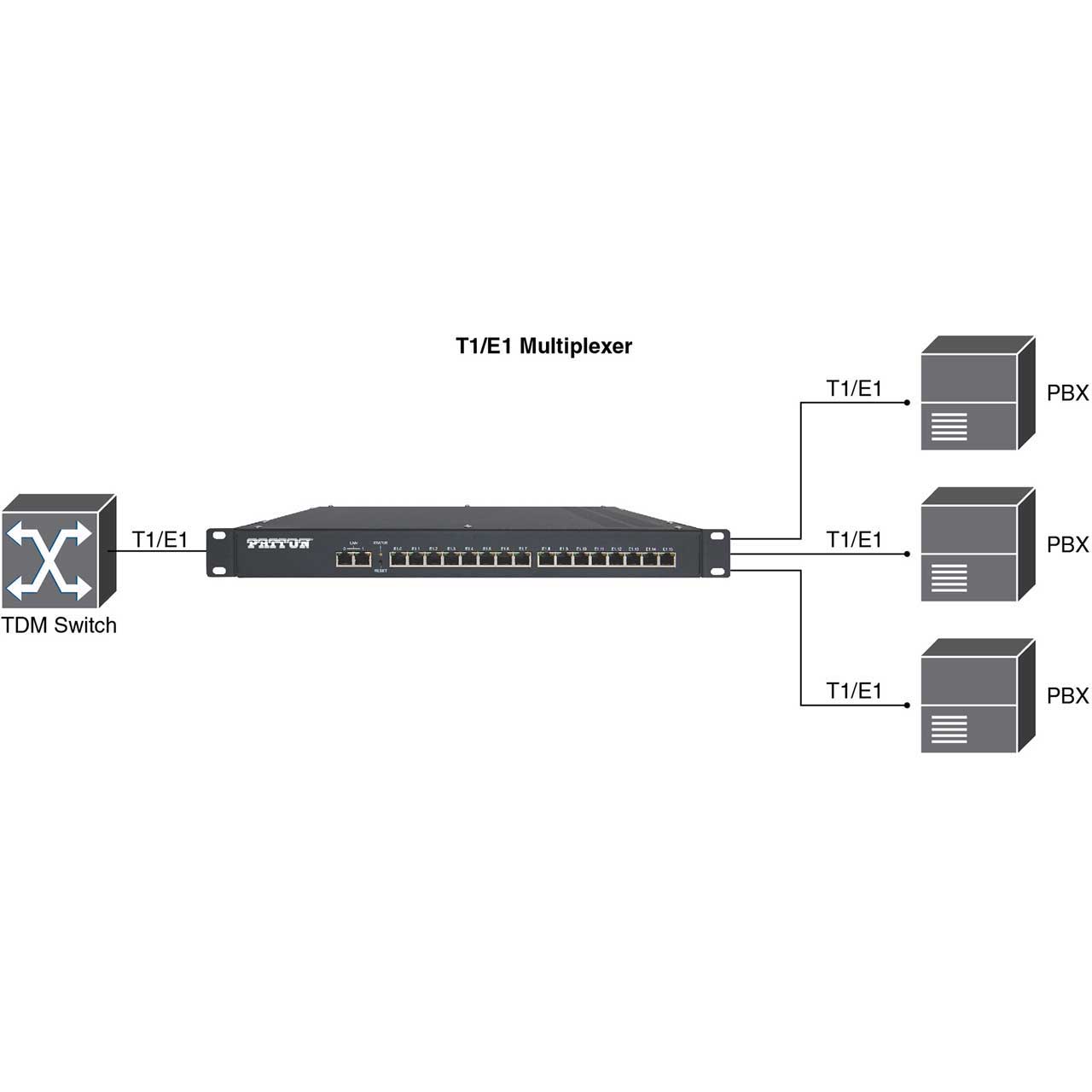

As a Signaling Converter the unit can be used to adapt and interwork between SS7, ISDN-PRI (QSIG), DSS1, V5.2, R2/CAS and Ethernet transferring media across PSTN and/or IP networks. Integrated TDM Multiplexing and Switching provides the ability to cross connect and groom E1 channels between several E1 links.

The unit is equipped with 16 T1/E1 ports, 2x Ethernet ports, and 1x RS-232 console port. It offers a full suite of routing, switching, signaling, and control protocols including IP SIP, RTP, RTCP, TCP, and UDP. On the TDM side SS7 (MTP2, MTP3, ISUP), ISDN PRI (DSS1), V5.2 (LE/AN mode), and MFC-R2.

The unit offers G.711, GSM, G.723, G.726, G.729 compression codecs, fax-over-IP using G.711 or T.38 fax relay. DTMF (via RFC2833) and, SIP INFO (via RFC 2976) are supported as well as Comfort Noise Generation.

The unit is rack mountable in 1U of space and the unit comes with either dual DC (48/60V) and/or AC (100 to 240 V) internal power supplies.

Applications:

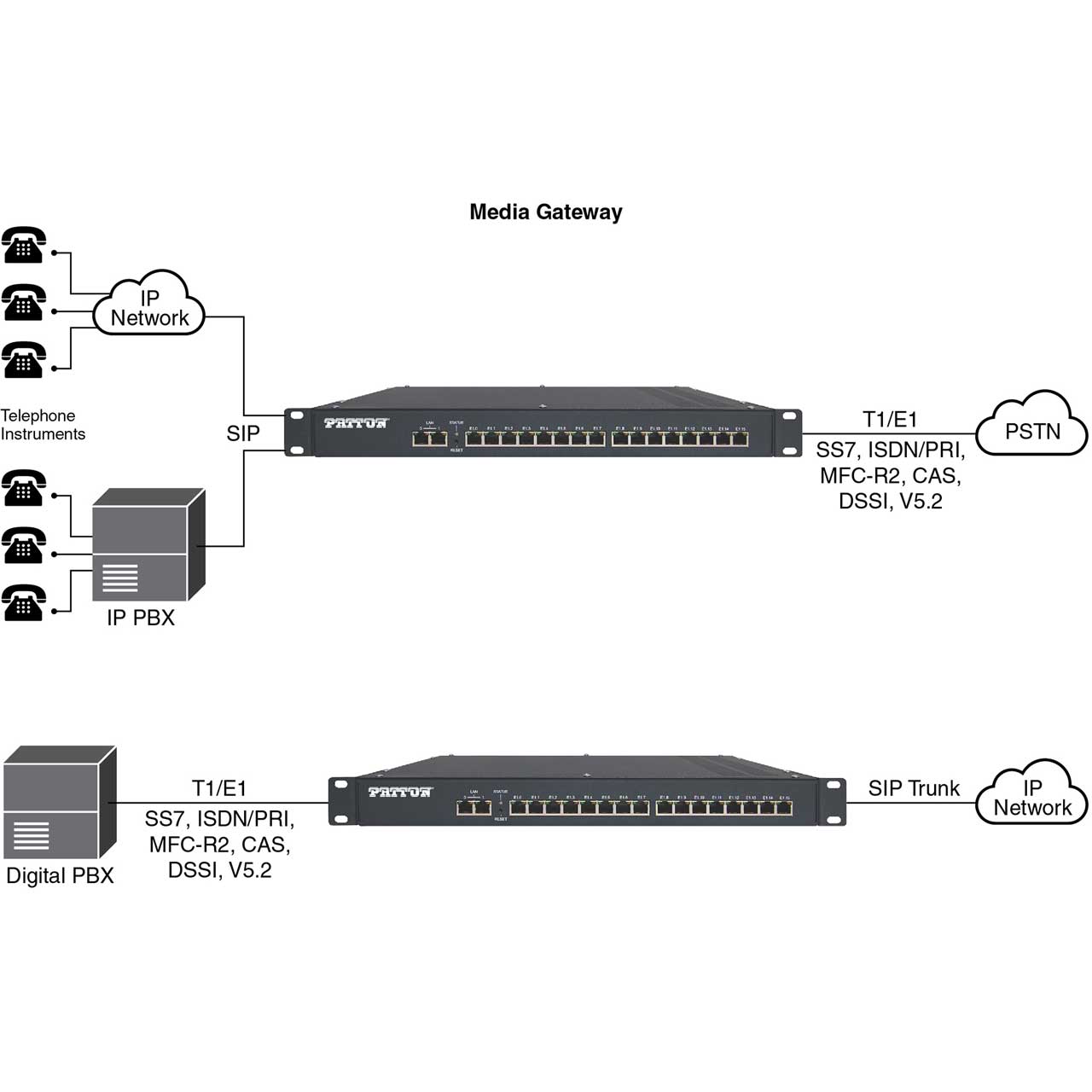

The SN9000 is a flexible device used for adaptation of VoIP and TDM telephony networks and equipment. As a Media Gateway, the devices are used to adapt legacy TDM trunks to SIP/VoIP. The unit supports all signaling types used with PSTN network and useful for converting signaling protocols or multiplexing TDM channels.

  • Features:

    • Low Profile Media Gateway: 16 x T1/E1 in a 1U chassis. Small size and our lowest cost-per-port SS7 solution.
    • Fully Loaded: 120, 240 or 480 VoIP channels (depending on model).
    • Full Signaling Stack: Full SS7 signaling supporting MTP2, MTP3 and ISUP. Up to 16 SS7 signaling links. Simultaneously supports SS7, ISDN PRI (DSS1, QSIG, Q.931), V5.2 and MFC R2.
    • Multi-Purpose Signaling Gateway: Can be used as an any-to-any signaling converter from V5.2 to SS7 to ISDN PRI to R2/CAS etc..
    • Full IP Support: SIP, SIP-T, SIP-I, RTP, RTCP, TCP, and UDP.
    • Any-to-Any Switching: Supports TDM-to-SIP, SIP-to-TDM, TDM-to-TDM and SIP-to-SIP with full Call Routing and integrated IP-PBX functionality.
    • Cascadable for High Density: One SS7 signaling link can serve up to 64 E1s.
    • Voice Codecs: G.711, G.723.1, G.726, G.729a/b, and GSM.
    • Voice Quality of Service: Adaptative programmable jitter buffer, VAD, SID, CNG and Hardware Echo Cancellation.
    • Scalable SIP Registration: Registration and authentication for up to 10,000 SIP-subscribers Fax Support: Fax over G.711, T.38 fax relay.
    • Management and Security: SNMPv2 monitoring, RADIUS login, integrated firewall, password protected access, and SSH.
    • Survivable: Single or Dual-redundant AC or DC Power.


  • Specifications:

    • Physical Interfaces: 16 Telephony Interfaces (E1 G.703 balanced and unbalanced cables with 75Ω and 120Ω. Unbalanced interfaces require an RJ-45 to Coax BNC adapter.); Dual RJ-45 Copper Ethernet (10/100/1000); One Console (RS-232).
    • IP/VoIP Protocols: SIP (RFC 3261), SIP-T, SIP-I, RTP, RTCP, TCP, and UDP.
    • Network Protocols: IP, TCP, UDP, FTP, TFTP, RTP, RTCP, ARP, ICMP, NTP, Telnet, IEEE 802.1Q, and IEEE 802.1P.
    • PSTN Signaling Protocols: SS7 (ITU-T Q.700 series), 24bit/14bit PC, ISUP/TUP, ISDN-PRI (ITU-T Q.931,Q.921), CAS R2 Q.400-Q.490, CAS DTMF BellCore TR-TSV-002275, and V5.2 (ETS 300 347-1).
    • Voice Codecs: G.711 u-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726, GSM, ARM, ILBC, DTMF, adaptive jitter buffer, VAD, CNG, G.165, G.168, silence suppression/echo cancellation, tone scheme in accordance with standard, and ITU v.152.
    • WAN Interfaces: Dual/Two 10/100 Ethernet, static IP address.
    • QoS and Security: 802.1Q, 802.1P. Filtering by IP addresses, 802.1Q.
    • Applications: Out-band Proxy, Reregister, Voice/Modem/Fax Calls, Prefix Number Routing, Dial Plan, Number Modification, 1+1 SS Protection
    • Configuration and Management: Web GUI, Telnet, SNMP v1/v2c Traps, updating software over FTP/TFTP, storing/recovering configuration, checking E1 ports/signaling status.
    • Power: Single/Dual-redundant 220 VAC or 48/60 VDC Input. 28W max Power Consumption.
    • Operating Temperature: 0°C to +60°C, humidity: 0% to 90% (non- condensing).
    • Dimensions: 485 mm x 286 mm x 44 mm.


  • Item Includes:

    • 1x SN9000/16E/RUI unit
    • 1x Regionally relevant power cord
