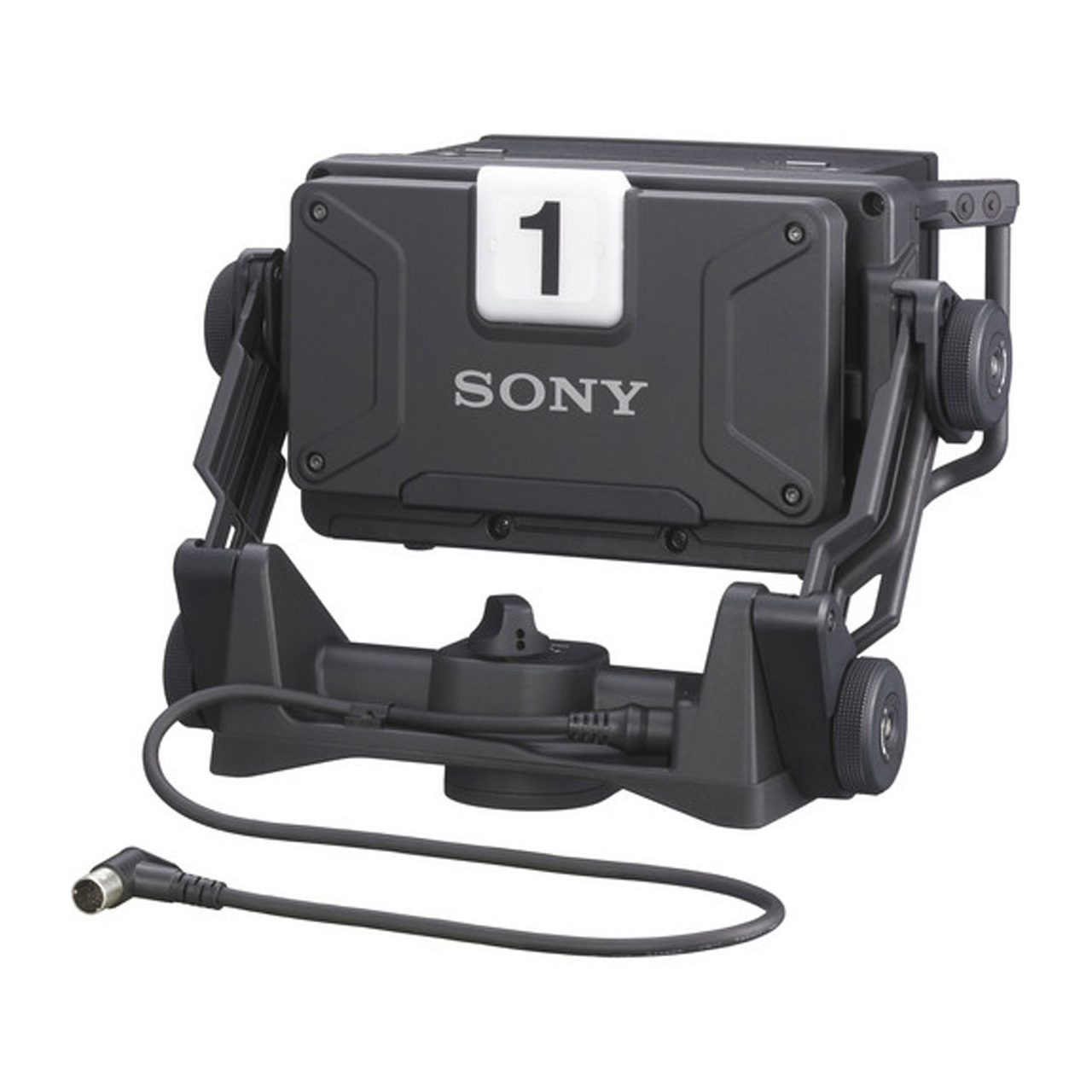

Sony HDVF-EL75 Quarter HD 960 x 540 7.4 Inch OLED Viewfinder for Sony Portable Cameras

ITEM #: SNY-HDVFEL75 MFG #: HDVF-EL75

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$10,610.00

Our Price:

$9,761.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDVF-EL75 - Overview

Compatible with Sony HDC Series Cameras

Stunning OLED image quality
The 7.4-inch Sony HDVF-EL75 Viewfinder delivers strikingly high contrast, a wide dynamic range, and a fast response time thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.

OLED panels help prevent light emission when reproducing dark shades, resulting in very deep blacks and a contrast ratio of more than 1,000,000:1. The lack of a backlight allows the device to control all phases of light emission from zero to peak brightness. The innovative technology delivers exceptional color expression and detail without wasting power, so it is also an exceptional energy-saver.

High Definition acquisition requires extremely precise focusing, so OLED image quality delivers significant benefits by allowing the operator to accurately see contrast and color levels when framing a shot. A wide viewing angle aids operator comfort while an extremely fast response time is particularly useful for applications such as sports coverage.

In addition, the HDVF-EL75 is packed with a wide range of sophisticated, user-friendly features such as Focus Assist, four assignable switches and a position-adjustment mechanism with unprecedented flexibility.

  • Features:

    • 7.4-inch, quarter HD (960 x 540) panel with advanced Organic Light Emitting Diode (OLED) display technology
    • Quick response for tracking and focusing on moving objects
    • High contrast and wide dynamic range, thanks to OLED panel characteristics such as deep black color reproduction and high-peak brightness
    • Incorporating a 10-bit panel driver, the OLED panel creates smoother-than-ever gradation from dark to bright portions
    • Stable and long-term color reproduction with Sony's unique feedback circuit
    • Focus Assist function supports accurate focusing
    • Image Magnification function magnifies just the portion of the image that is in the viewfinder display
    • Peaking Plus function enhances the edge of an object by color, area selected, or both
    • Four assignable switches
    • Waveform Monitor function

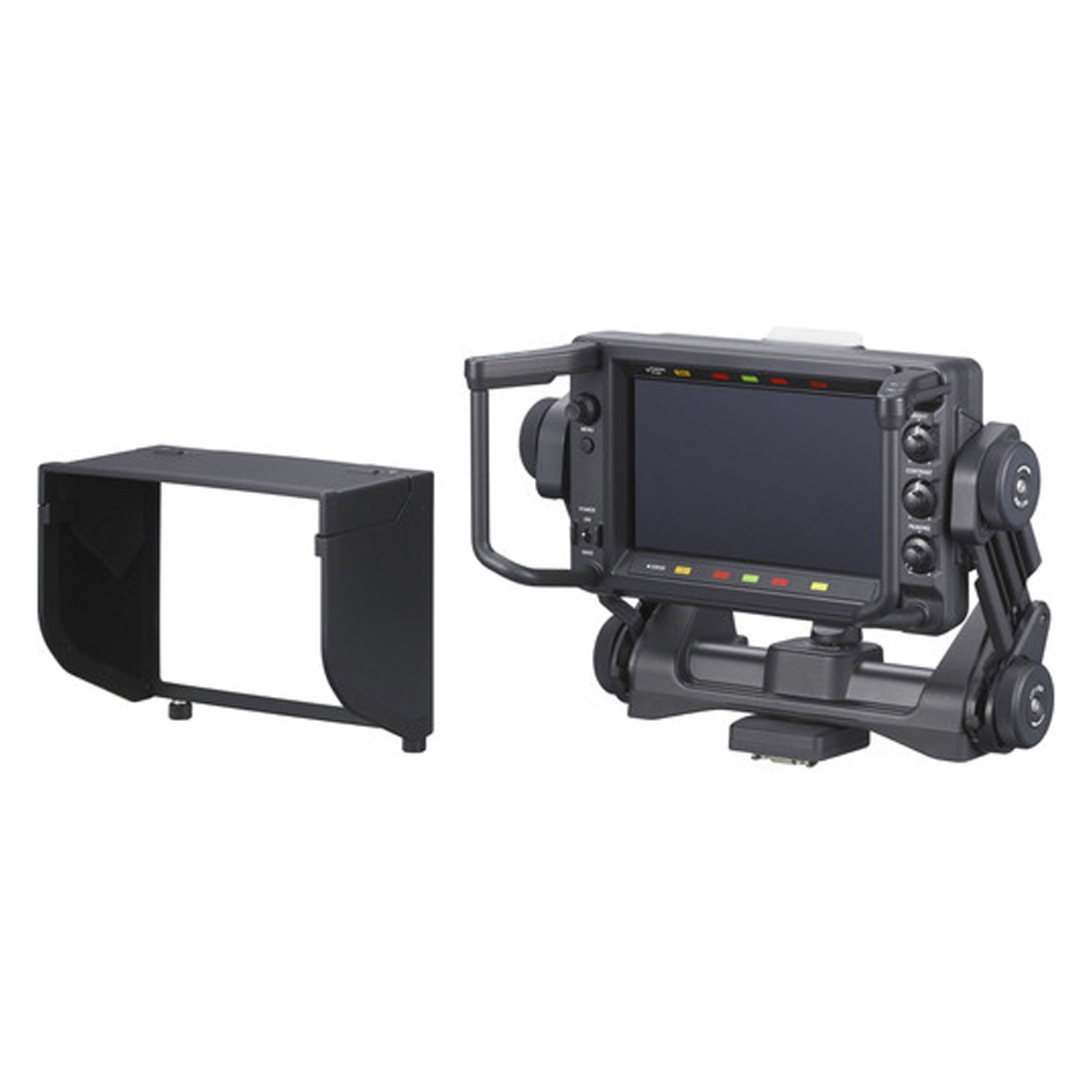

    • Flexible position adjustment mechanism makes it easy to place the viewfinder to suit the operator - or even fold downwards when not in use

  • Specifications:

    • General
    • Power Supply: 10.5 V to 17.0 V DC (supplied by the camera)
    • Power Consumption: 19.5 W
    • Operating Temp: -4°F to +113°F (-20°C to +45°C)
    • Storage Temp: -4°F to +140°F (-20°C to +60°C)
    • Mass: 7lbs 11oz (3.5 kg) (Not including hood)

      Display Unit
    • Panel: 7.4-inch (188 mm) color OLED panel
    • Effective Picture Size [H/V, 16:9 aspect ratio]: 6.5 x 3.625 In (164 x 92 mm)
    • Effective Pixels: 960 (H) x 540 (V) x 3 (RGB)

      Performance
    • Brightness: 350 cd/m2 (typical)
    • Resolution: 500 or more lines
    • Color Temperature: D65

      Supported Formats (SDI IN)
    • 1080: 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 59.94i, 60i
    • 720: 50p, 59.74p, 60p

      Connectors
    • Camera Connector: Round type 20-pin (x1)

  • Item Includes:

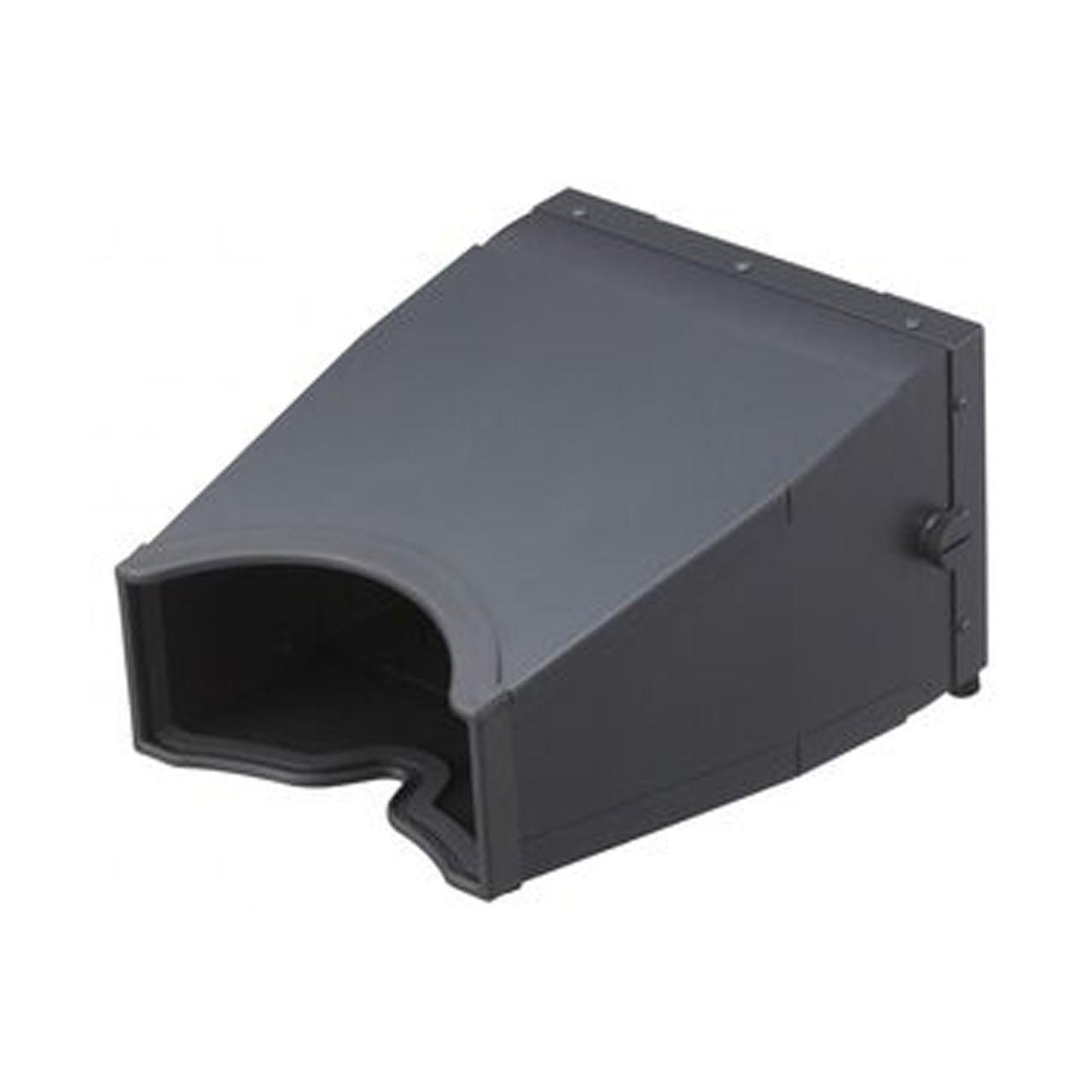

    • 1x Indoor Hood
    • 1x Number Plate
    • 1x Cleaning Cloth
    • 1x V Wedge Shoe Attachment
    • 1x Hexagonal Wrench
    • 4x Socket Head Cap Screws
    • 1x Connecting Cable
    • 1x Operation Manual CD
