Sony XDCA-FX9 Extension Unit for FX9 Camera - Compatibility with Sony BP-GL and BP-FL Series Batteries

XDCA-FX9 - Overview

• Features:

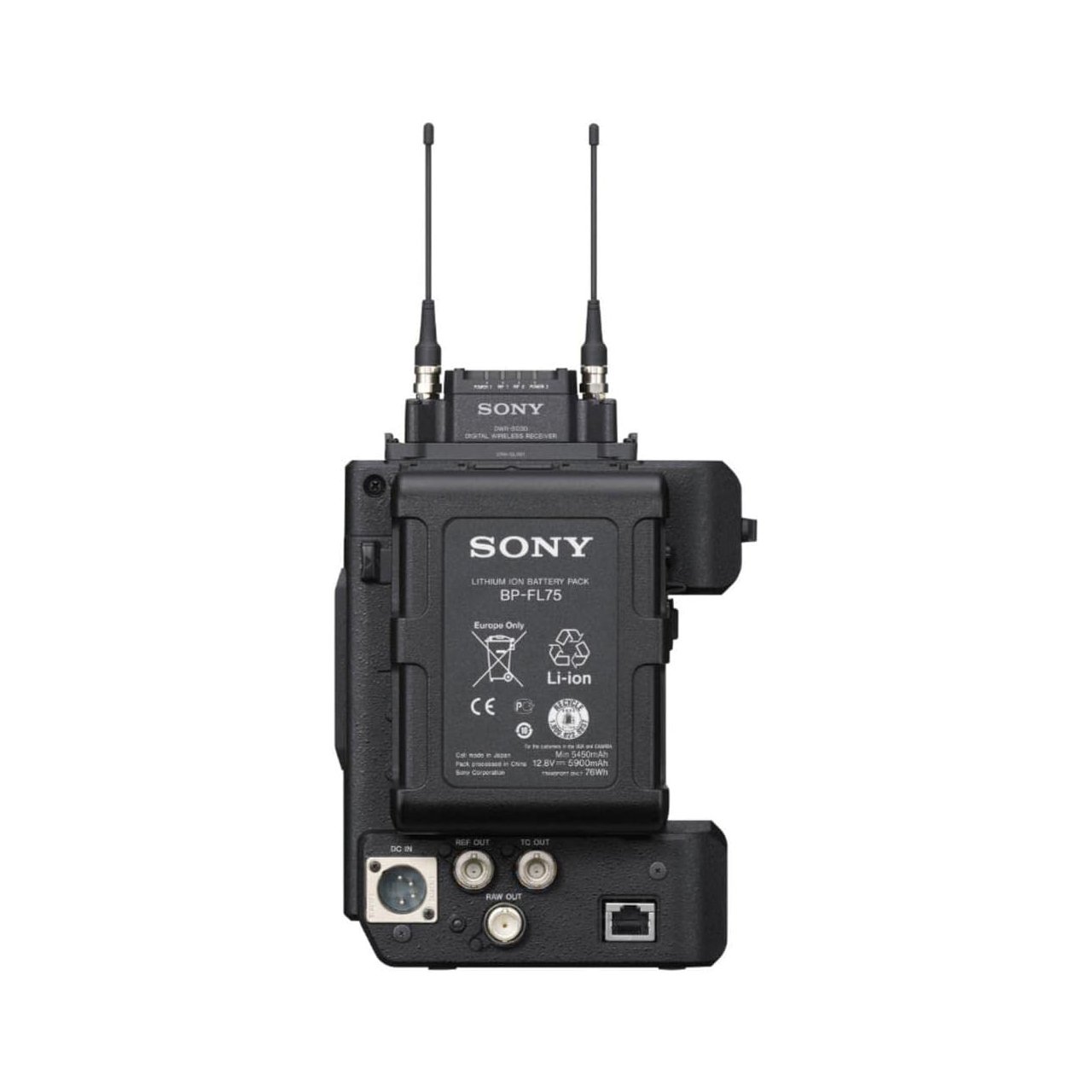

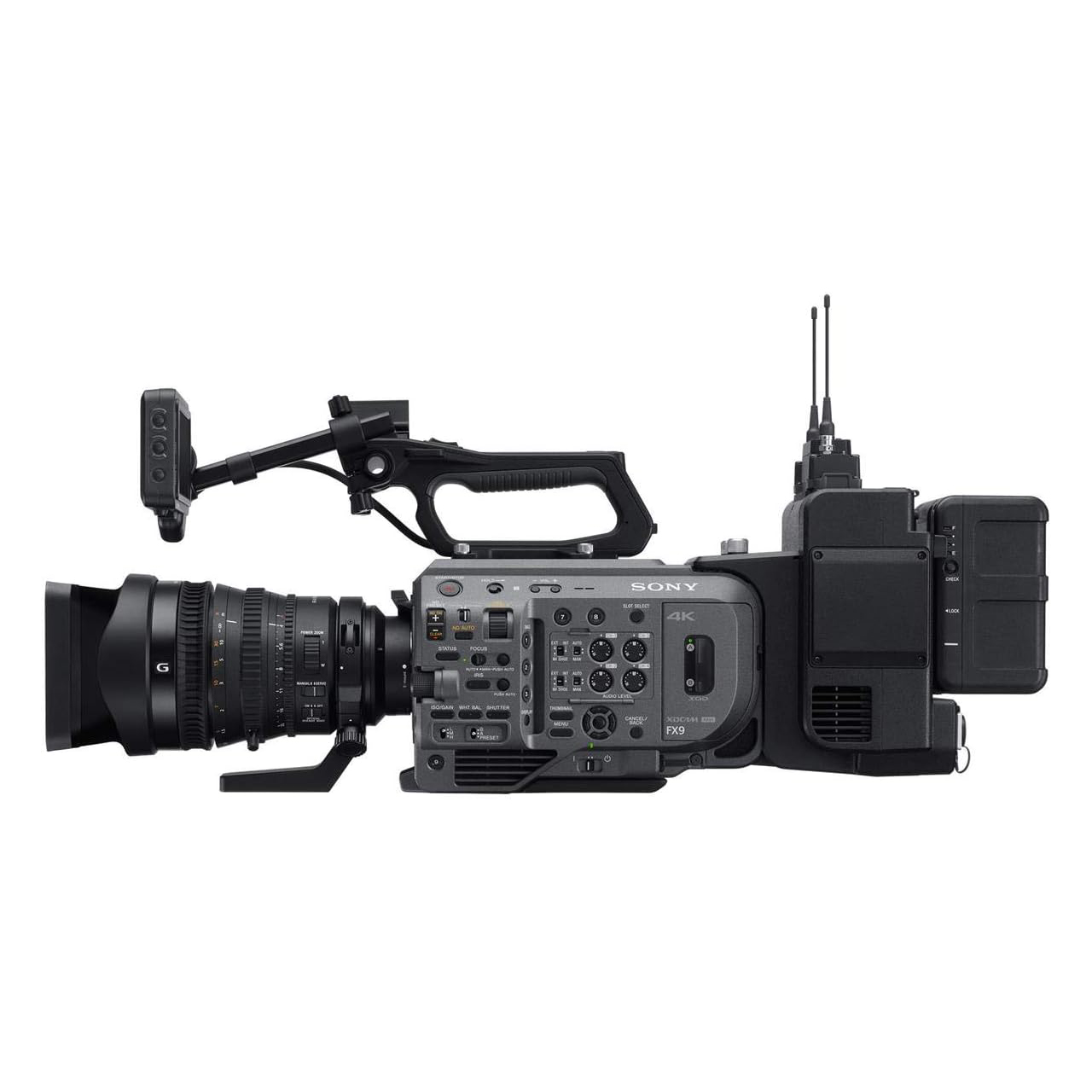

  • Seamless attachment, superb ergonomics - The XDCA-FX9 attaches directly to the PXW-FX9 via MultiPin connector, with no additional cabling required. Shooting time is extended by compatibility with Sony BP-GL and BP-FL series batteries. When using larger lenses, the extension unit balances any possible front heaviness while increasing stability when the camera is shoulder mounted.
  • Advanced network capabilities - The built-in networking capabilities of the PXW-FX9 enable streaming and file transfer via Wireless LAN. The XDCA-FX9 adds QoS Streaming with Dual Link connection via multiplexing of two cellular networks or Ethernet connection to improve image quality and stability.
  • Wireless audio support - Ideal for field-based news production, the extension unit adds a wireless audio receiver slot for compatibility with receivers such as the DWX series and URX series.
  • 16-bit RAW recording with external recorder - Adding the XDCA-FX9 extension unit to the PXW-FX9 allows recording of 16-bit RAW video footage from the camera on a third-party RAW recorder (available separately). RAW data is output directly via the extension unit's RAW interface.
  • Wireless audio support - Ideal for field-based news production, the extension unit adds a wireless audio receiver slot for compatibility with receivers such as the DWX series and URX series.


• Specifications:

  • Power
  • Power Requirements: 12 V DC (11 V to 17.0 V)
  • Power Consumption: Approx. 43 W (connected to PXW-FX9V/FX9T, lens attached, XAVC-I QFHD 59.94P recording, viewfinder on, 5.6 W XDCA-FX9 consumption)
  • Approx. 69 W (connected to PXW-FX9V/ FX9T, lens attached, XAVC-I QFHD 59.94P recording, viewfinder on, 2.0 A output from the DC OUT connector)

    Inputs
  • Wireless receiver D-sub 15-pin
  • Analog CH1: -40 dBu
  • Digital CH1/CH2: -40 dBFS

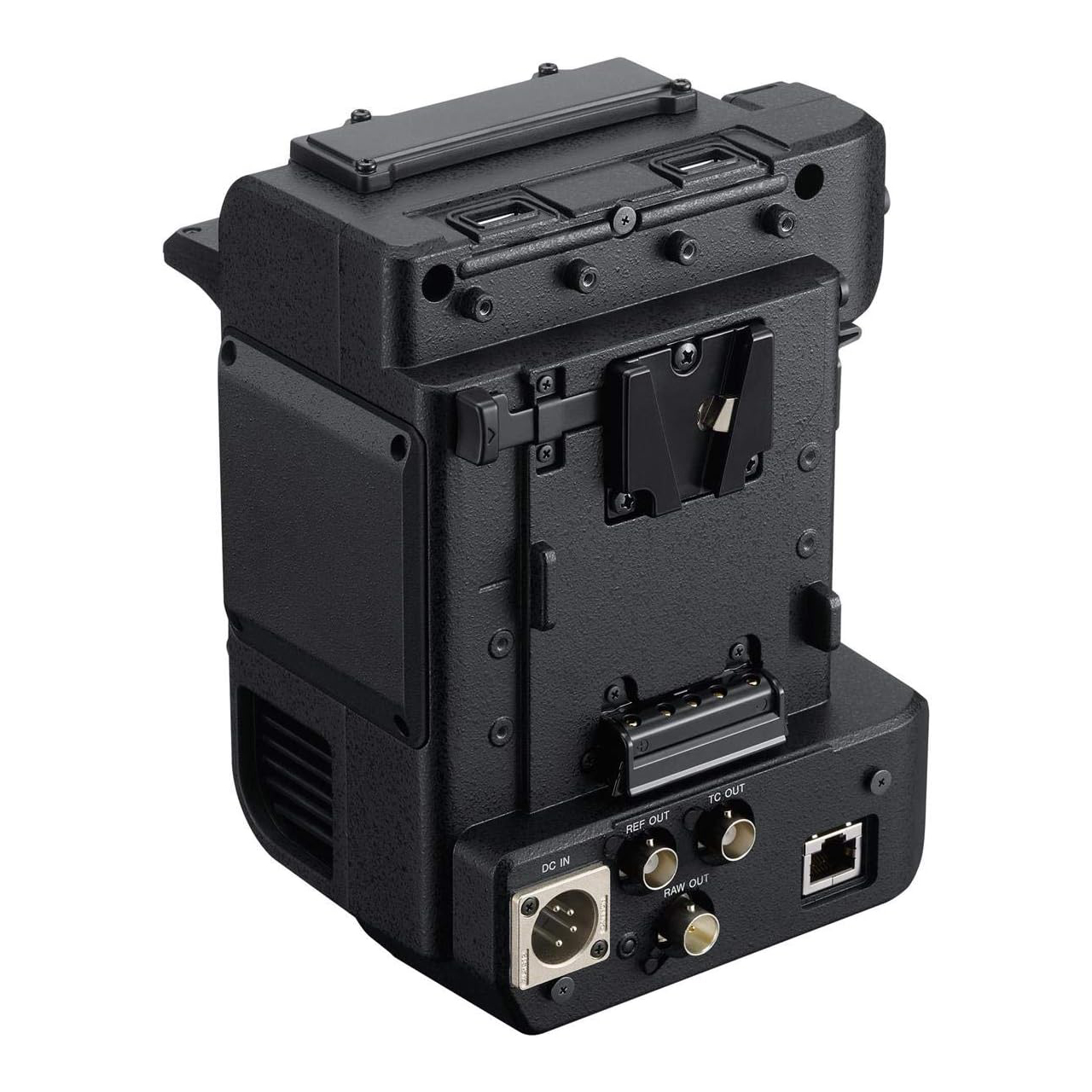

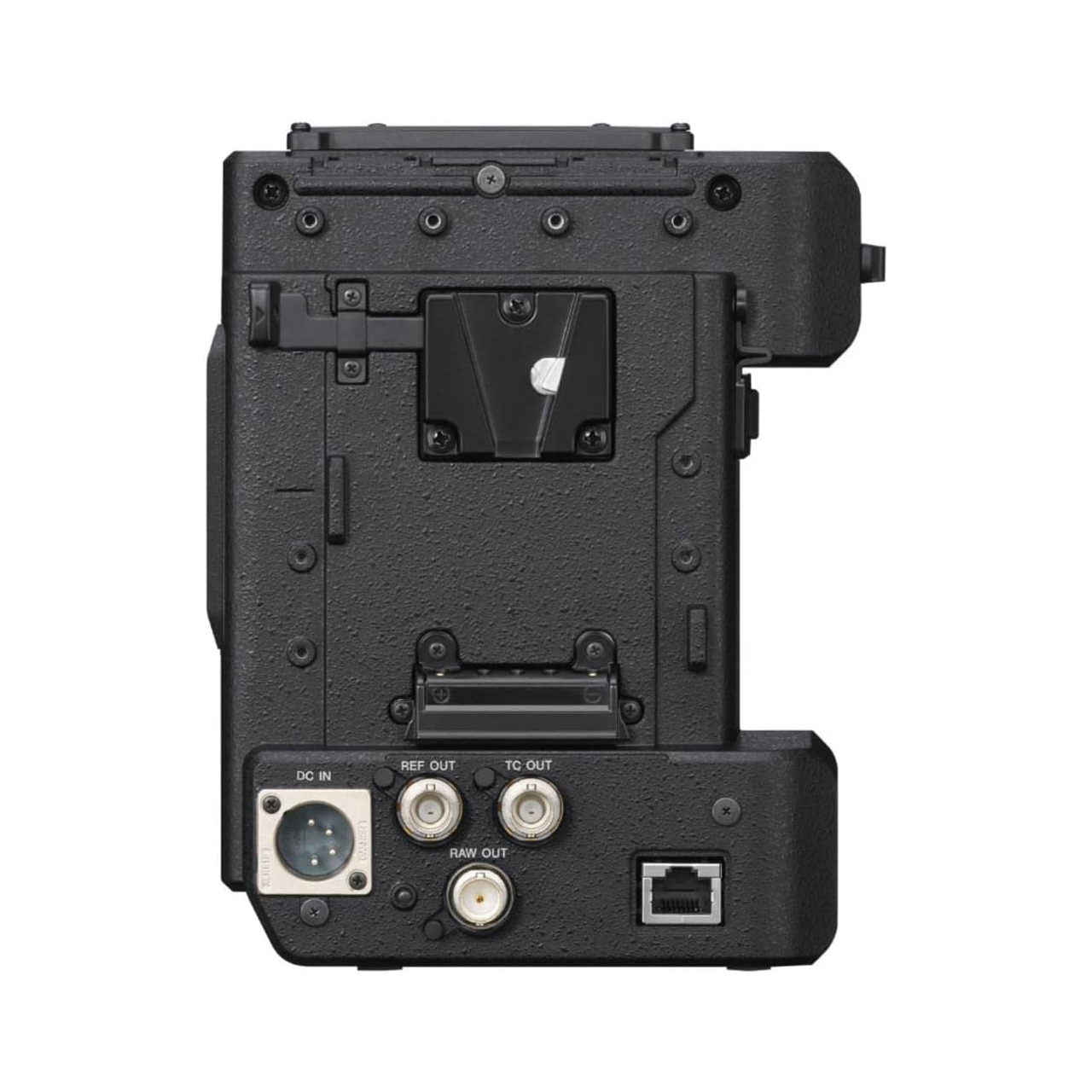

    Outputs
  • RAW OUT: BNC type, 0.8 Vp-p, unbalanced proprietary format output
  • REF OUT: BNC type, 0.6 Vp-p ±0.1 Vp-p REF SYNC output, 75 Ω
  • TC OU:T BNC type, 1.0 Vp-p, 75 Ω

    Other
  • LAN connector: RJ-45 (1), 1000BASE-T, 100BASE-T, 10BASE-T
  • DC IN: XLR type, 4-pin, male, 11 V to 17 V DC
  • DC OUT: 4-pin round type, 10 V to 12.5 V DC, 2.0 A maximum rated current (total, including LIGHT connector). REC Tally signal output and REC Trigger signal input are supported via the DC OUT connector.
  • LIGHT: 2-pin, 12 V DC (20 W or lower)
  • USB connector: USB 2.0 compliant, type A, for modem (2)

    General
  • Mass Approx. 2 lb. 3.3 oz.(body only)
  • Dimensions: 7 x 6.5 x 5.20"
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Storage temperature: -4 °F to +140 °F ( -20 °C to +60 °C )


• Item Includes:

  • 1x Sony SNA-XDCAFX9 Extension Unit for FX9 Camera


• GTIN:

  0027242919389
