AVN-DIO14 - Overview

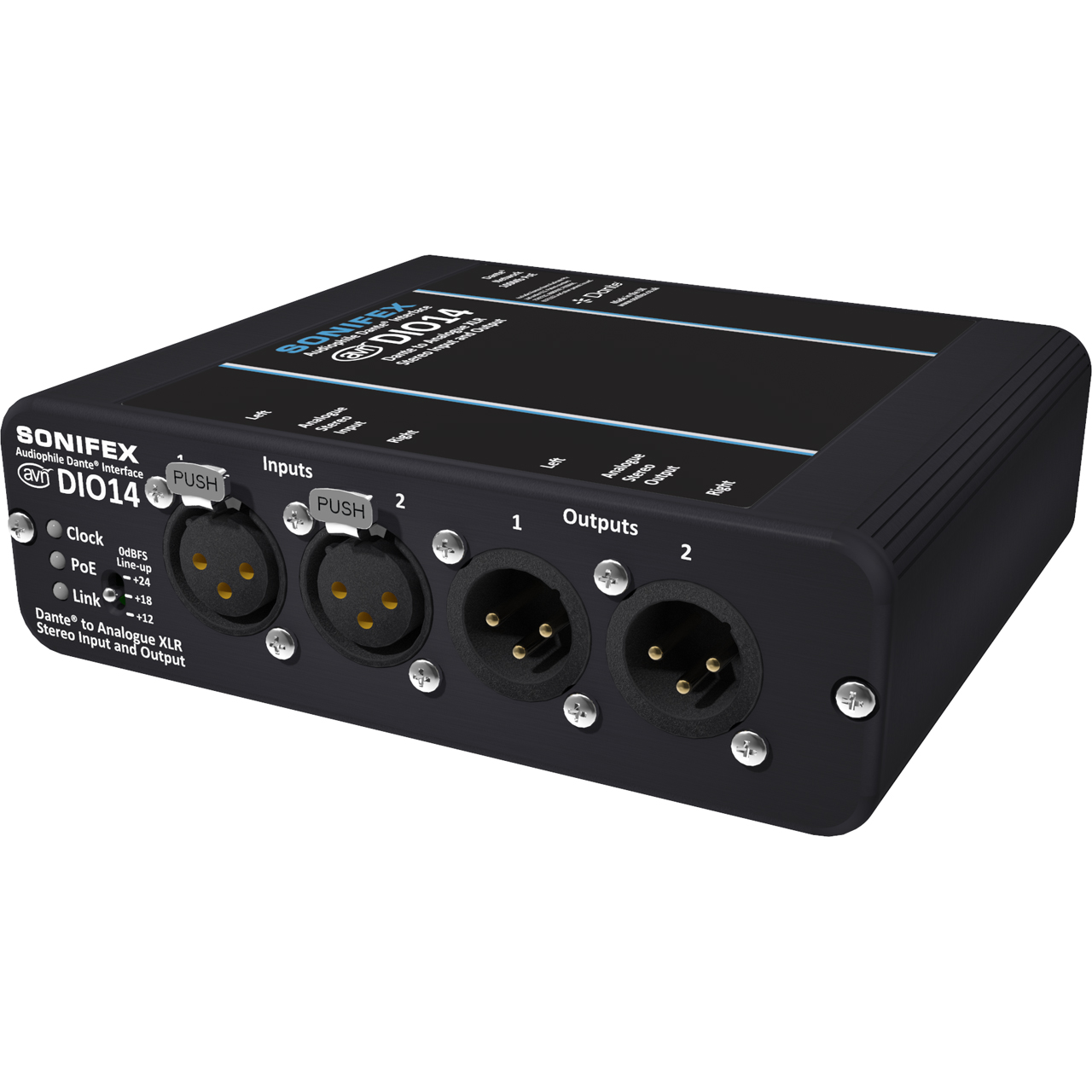

The AVN-DIO14 is a Dante to XLR analog stereo input and output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analog XLR outputs, two balanced analog XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.

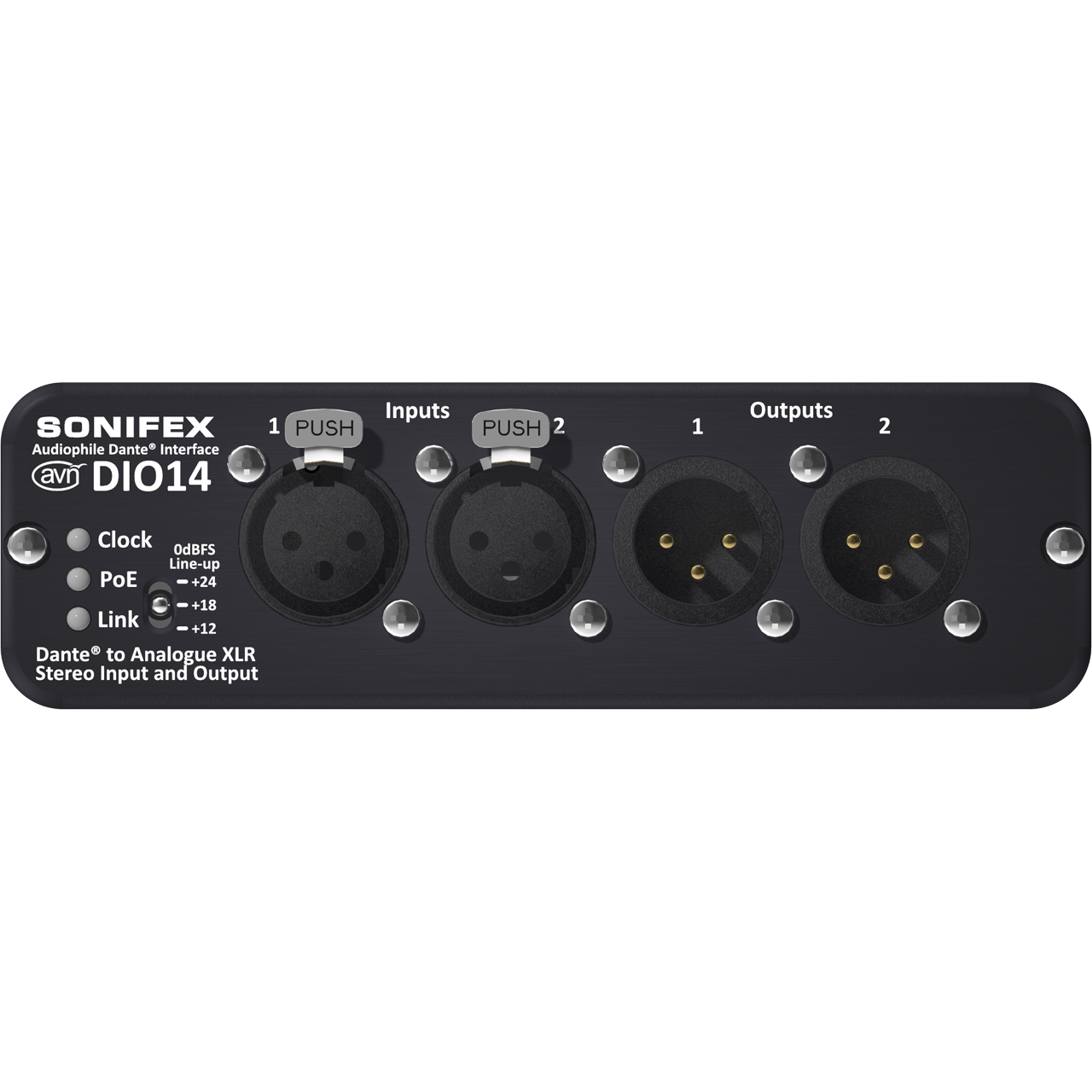

The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu using the recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.

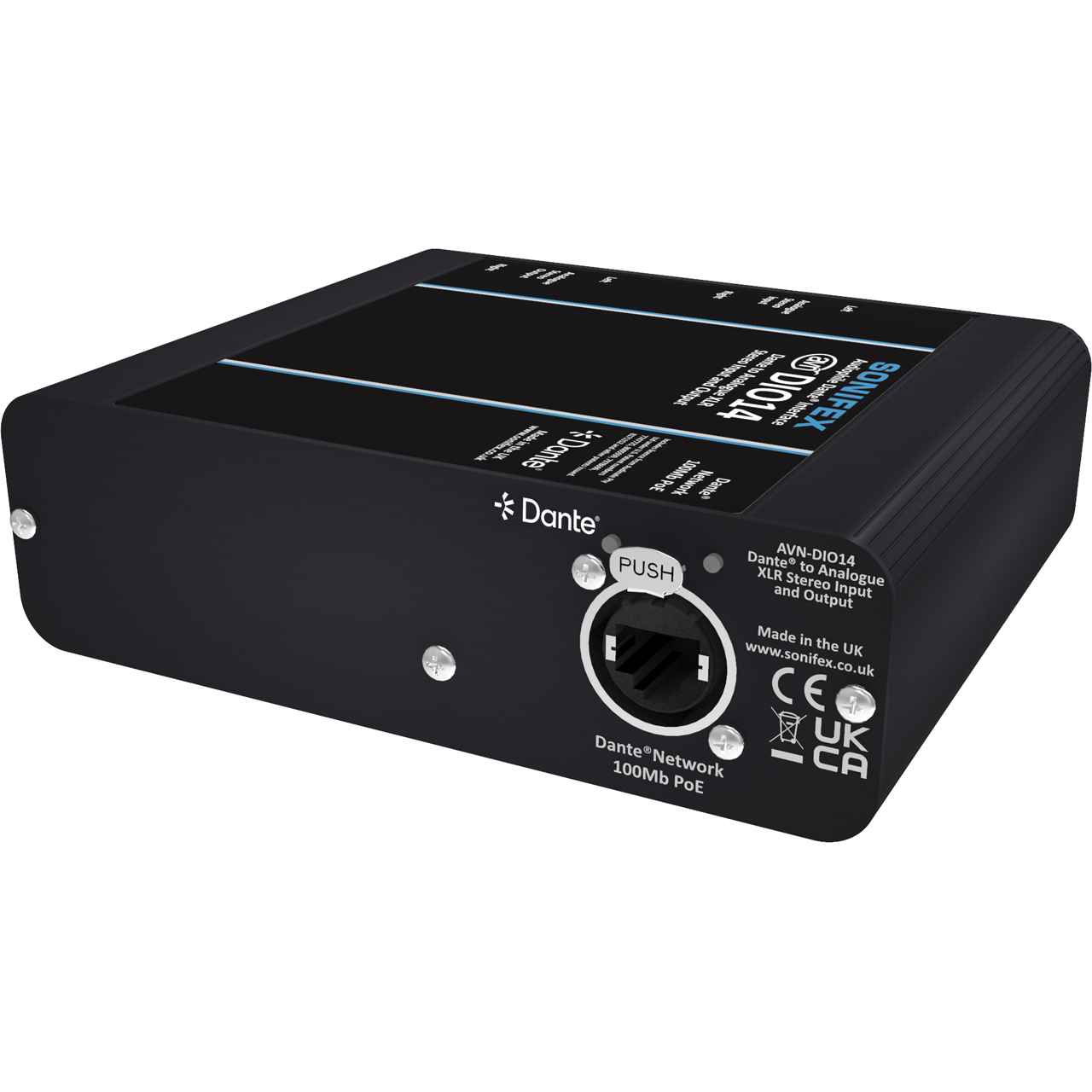

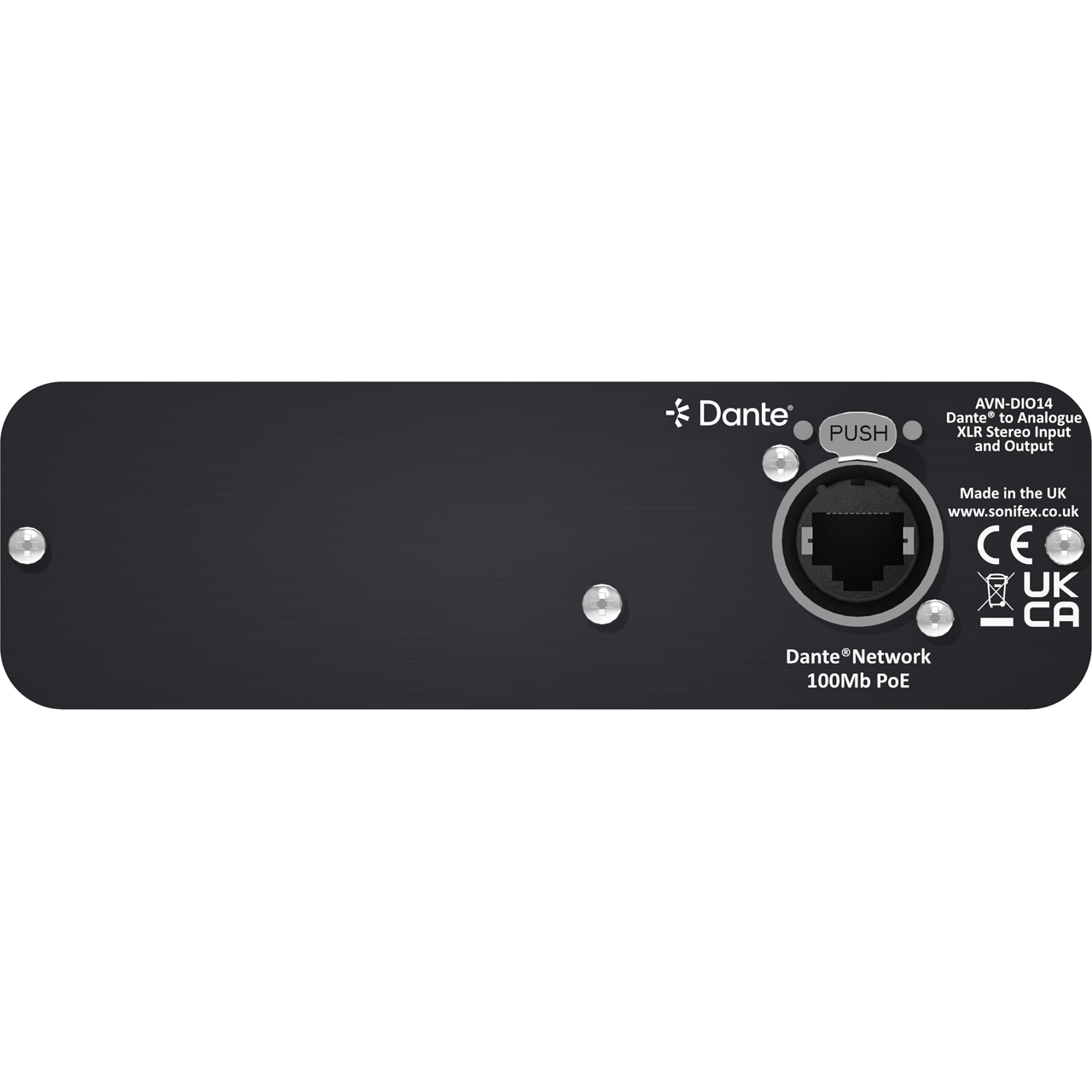

It's powered using Power over Ethernet (PoE), via a Neutrik etherCON connector. The AVN-DIO14 uses the latest Audinate Dante chipset so is AES67 and is Dante Domain Manager compliant.

Specifications:
- Analog XLR Input/Output Pin-out
- Pin 1: Chassis Ground
- Pin 2: Phase
- Pin 3: Non Phase

  Line Inputs - XLR
- Input Impedance: 5kΩ Unbalanced
- 0dBFS Line-Up: Selectable +12/+18/+24dBu
- Frequency Response: 20Hz to 20kHz, +0/-0.2dB (ref 1kHz)
- THD+N: <-118dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW
- Dynamic Range: 120dB, 20kHz BW, Rs=200Ω
- Cross Talk: <-110dB
- Common Mode Rejection: >60dB @ 1kHz

  Line Outputs - XLR
- Output Impedance: <200Ω balanced
- 0dBFS Line-Up: Selectable +12/+18/+24dBu
- Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
- THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
- Dynamic Range: 120dB, 20kHz BW
- Cross Talk: <-110dB

  Network and AoIP
- AoIP Standard: Dante
- Channels: 2 transmit, 2 receive
- Flows: 2 transmit, 2 receive
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Encoding: PCM 16, PCM 24, PCM 32
- AES67 Support: Yes
- Connectivity: etherCON (RJ45 compatible)
- Speed: 100Mbps
- Dante Domain Manager Ready: Yes
- Clock Source: Internal (PTP Leader) or Network PTP Leader

  PoE Power
- Standard: 802.3af
- Class: 0
- PD Power Range: 0.44 W to 12.94 W
- Typical PSE Power Usage: 6 W
- Max PSE Usage: 15.4 W

  Physical
- Dimensions (Raw): 5.5" x 5.4" x 1.7" (14.0cm x 13.6cm x 4.2cm)
- Dimensions (Boxed): 7.0" x 6.7" x 2.2" (17.8cm x 17cm x 5.6cm)
- Net Weight: 0.95lbs (0.42kg)
- Gross Weight: 1.25lbs (0.56kg)
