Sonifex RB-DA6G 6 Way Stereo Distribution Amplifier With Output Gain Control

Name: Sonifex RB-DA6G 6 Way Stereo Distribution Amplifier With Output Gain Control
Brand: Sonifex Ltd.
SKU: SON-RB-DA6G
Price: 683.00 USD
Availability: InStock

ITEM #: SON-RB-DA6G MFG #: RB-DA6G

Sonifex Ltd.

Our Price:

$683.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RB-DA6G - Overview

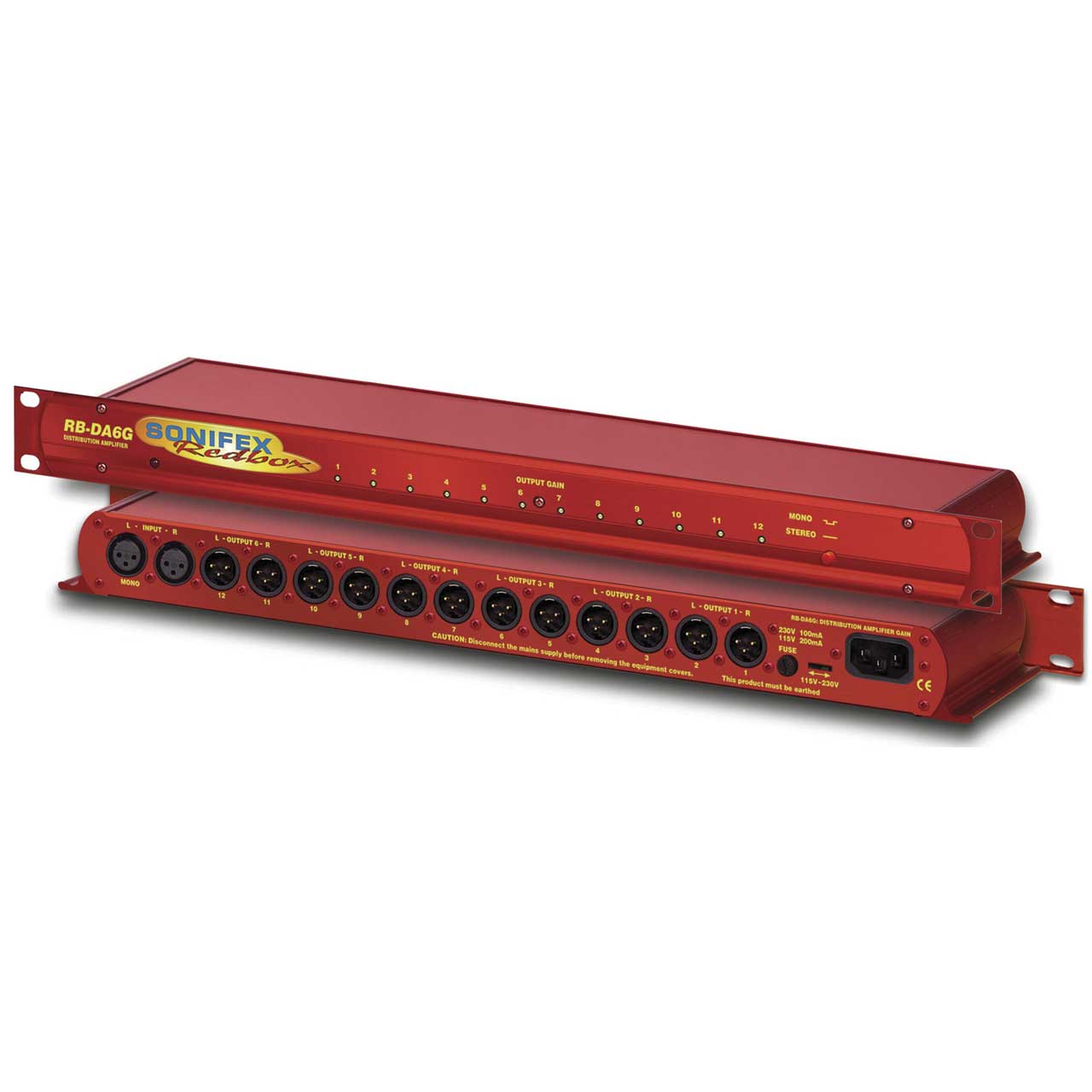

The RB-DA6G is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. It is identical to the RB-DA6 with the addition of individual output gain adjustment, instead of global stereo gain adjustment.

Specifications:
- Audio Specification
- Maximum Input Level: +28dBu
- Maximum Output Level: +28dBu
- Frequency Response: 20Hz to 20kHz ±0.1dB (600O load, ref 1kHz)
- Gain Range: Adjustable 8dB loss to 18dB gain (12 adjustable pots)
- Common Mode Rejection: >66dB typically
- Input impedance: >20k Ohm bridging
- Output impedance: <50 Ohm
- Distortion: 0.01% THD @ 1kHz, ref +8dBu output
- Noise: -88dB unity gain, ref +8dBu output
- Connections

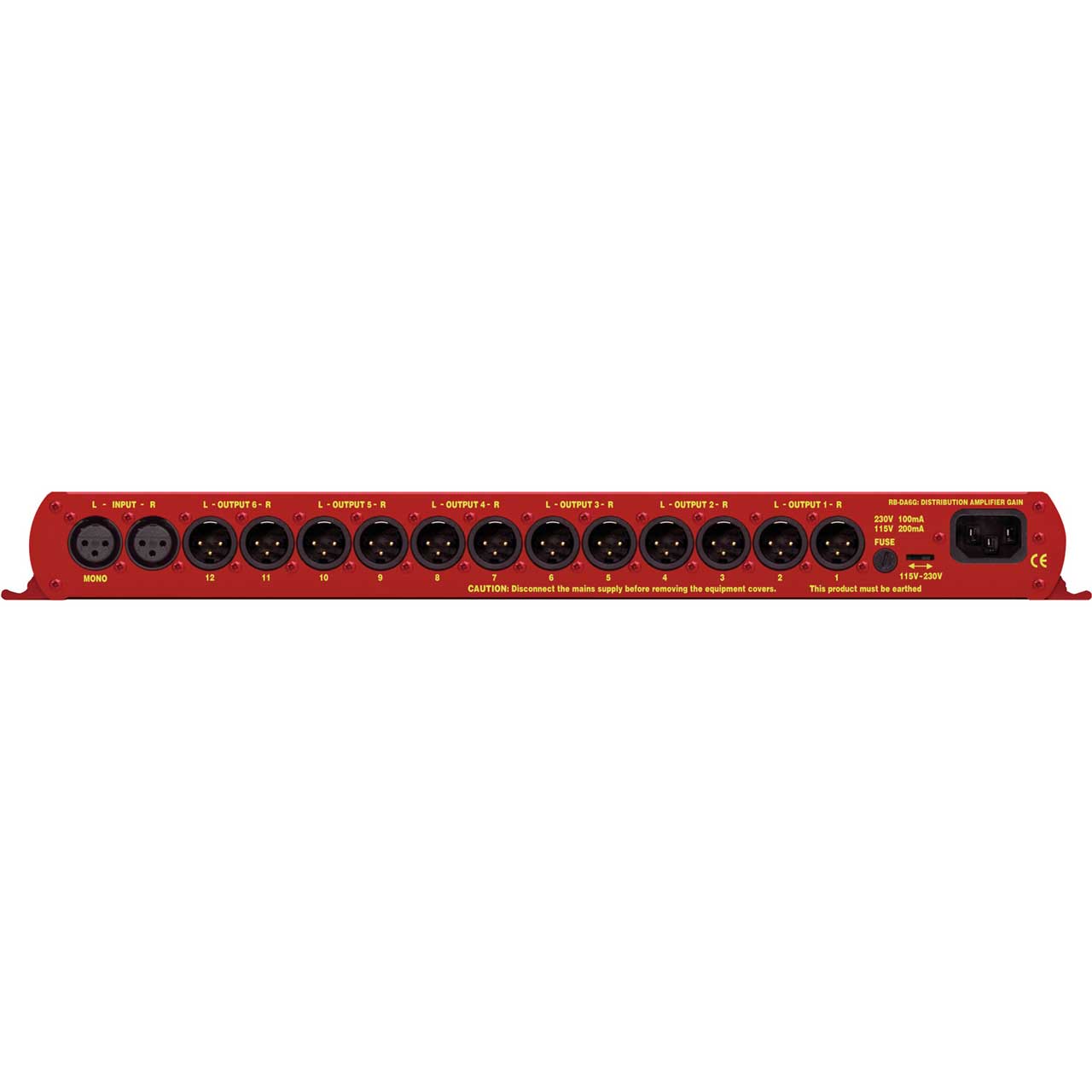

- Inputs: 2 x XLR 3 pin female (balanced, can be unbalanced)
- Outputs: 12 x XLR 3 pin male (balanced, can be unbalanced)
- Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
- Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
- Anti-surge fuse 250mA 20 x 5mm (115VAC)
