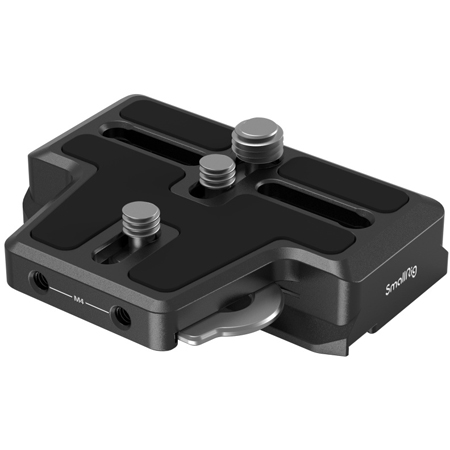

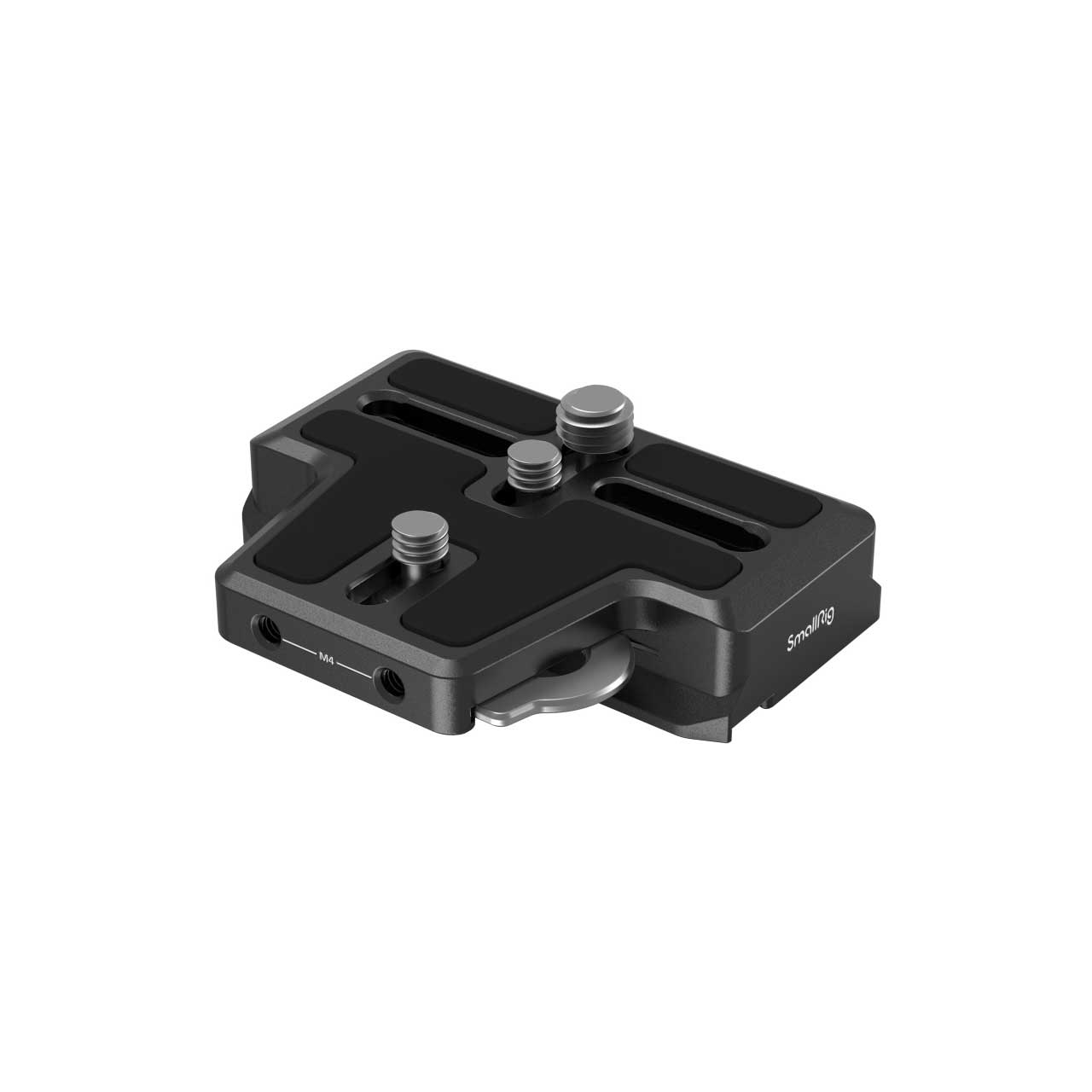

SmallRig 3162 Extended Arca-Type Quick Release Plate for DJI RS 2 and RSC 2 Gimbal

ITEM #: SR-3162B MFG #: 3162B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$18.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


3162B - Overview

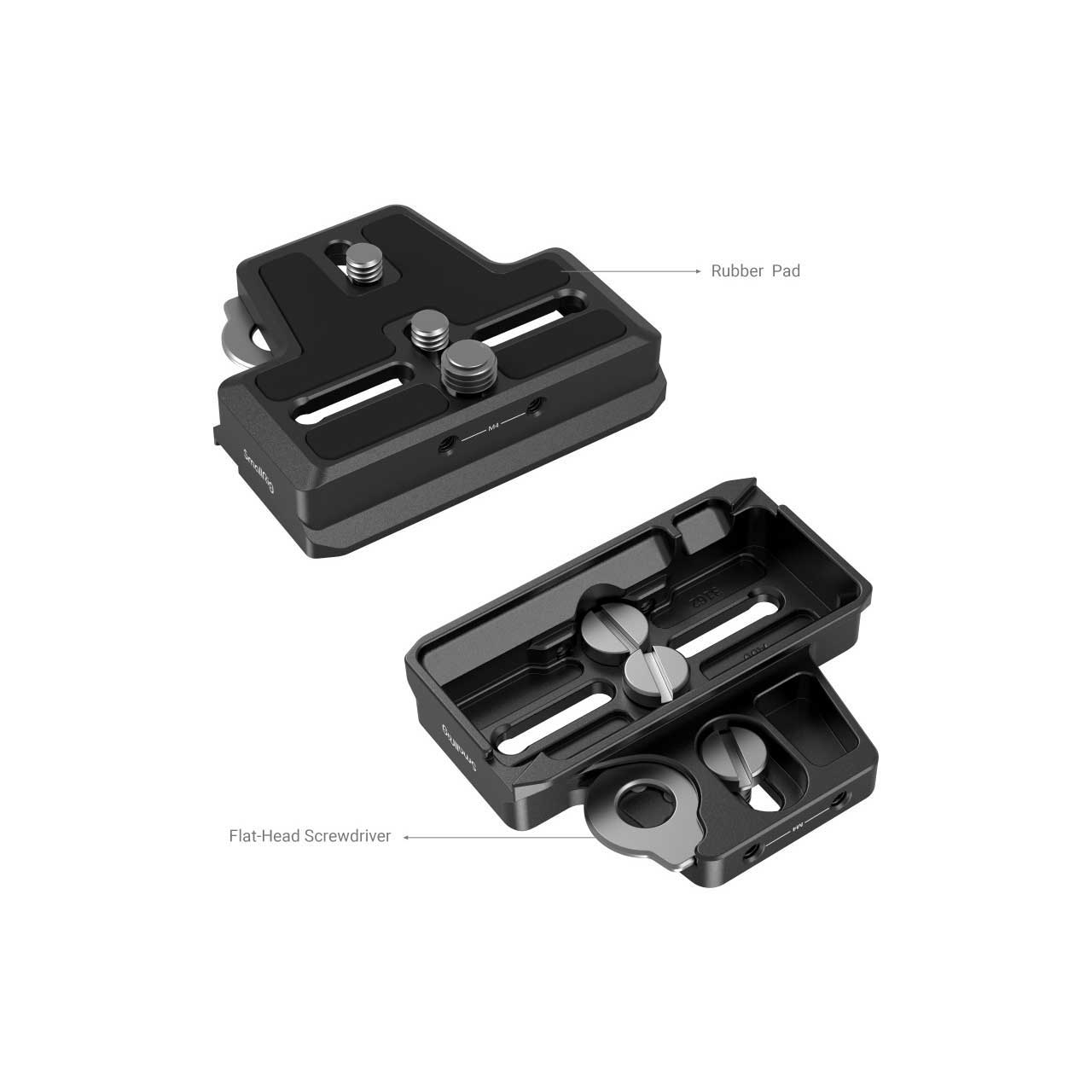

SmallRig Extended Arca-Type Quick Release Plate for DJI RS 2 / RSC 2 RS 3 / RS 3 Pro 3162 is designed to attach to camcorders or camera cages with 1/4”-20 screw and 3/8”-16 screw to prevent twists and fit in the RS 2 and RSC 2 gimbals. Compared with the original Arca plate, the plate is extended 25mm longer and increases the range for left and right adjustments to mount cameras in special shapes, such as BMPCC 4K camera equipped with a cage. A built-in magnetic flat head screwdriver is placed on the bottom for easy assembly and disassembly. Rubber pads are featured on the top to protect the camera and cage from scratching and increase the friction to secure the connection.

  • Features:

    • Extended Arca plate for DJI RS 2 / RSC 2 RS 3 / RS 3 Pro gimbal.
    • Locks camcorder or camera cage via two captive screws to prevent twists.
    • Built-in magnetic flat head screwdriver for easy assembly and disassembly.

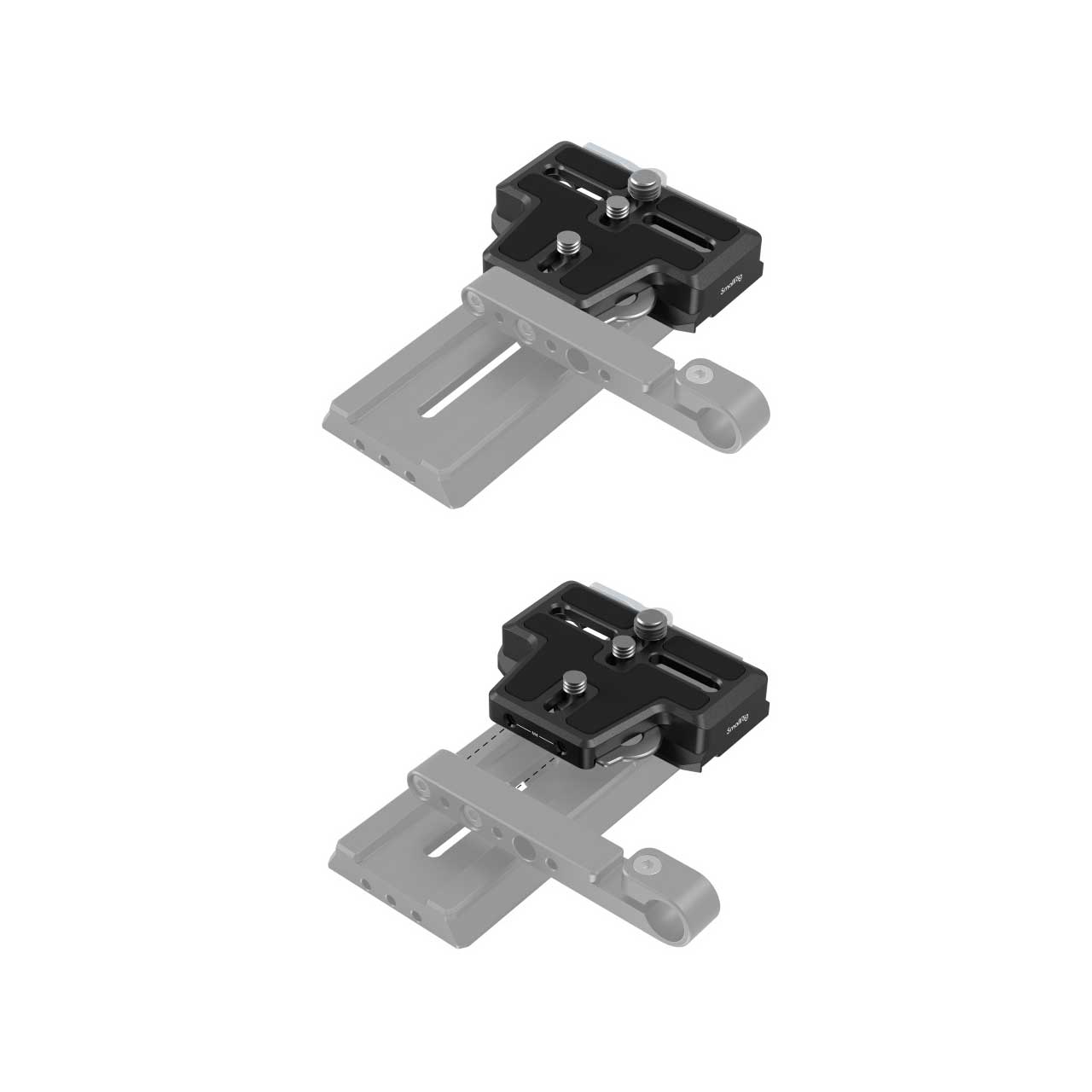

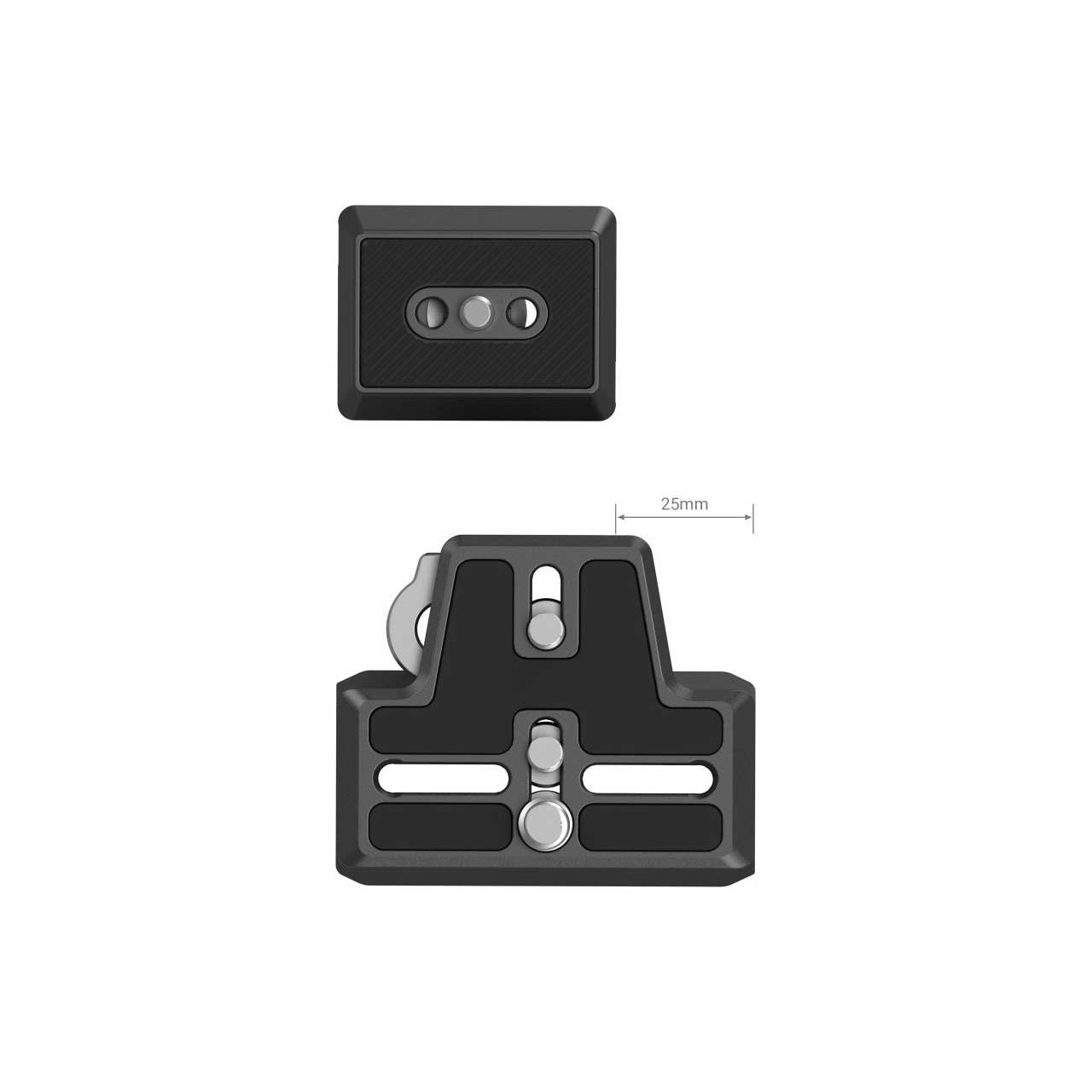

    • Extended 25mm to increase the horizontal adjustments.
    • Thickness 15.5mm with compact and low-profile design.

  • Specifications:

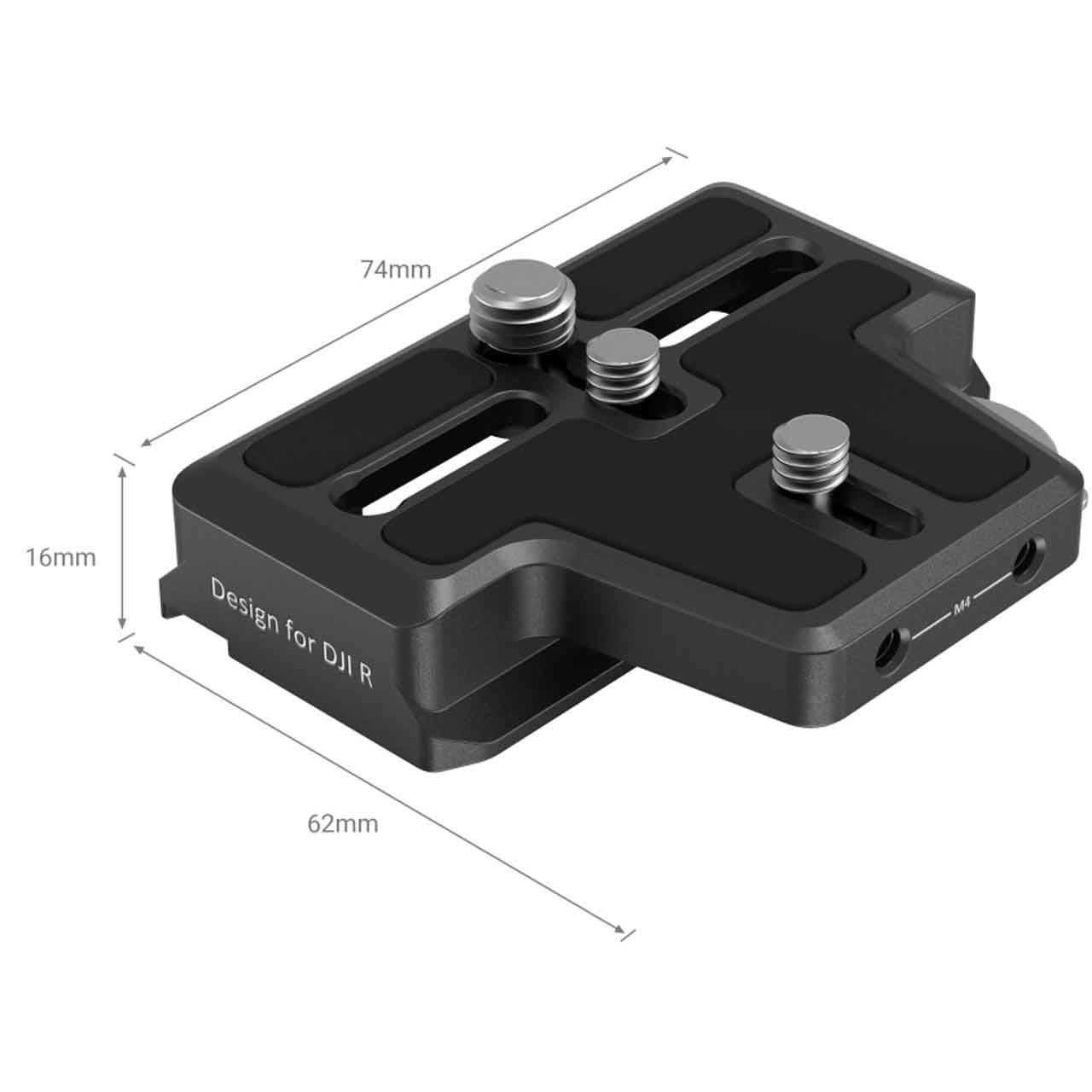

    • Product Dimensions: 74 x 62 x 15.5mm (2.91 x 2.44 x 0.61in)
    • Package Dimensions: 105 x 95 x 30mm (4.13 x 3.74 x 1.81in)
    • Net Weight: 63g±5g (2.22±0.18oz)
    • Package Weight: 100g±5g (3.53±0.18oz)
    • Material(s): Aluminum Alloy, Stainless Steel

  • Item Includes:

    • 1x Extended Arca Plate

  • Warranty:

    • 2 year

  • GTIN:

    6941590003740
