StarTech 104B USB-C Multiport Adapter - 3-Port USB Hub / 4K 60Hz HDMI with HDR / 100W Power Delivery Pass-Through

ITEM #: ST-104B-USBC-MP MFG #: 104B-USBC-MULTIPORT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$47.48

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


104B-USBC-MULTIPORT - Overview

The StarTech 104B USB-C Multiport Adapter supports up to 4K 60Hz HDMI 2.0b (HDR10) via DP Alt Mode. The USB-C dock converts a USB-C laptop or tablet, such as a Chromebook, Dell XPS, or a MacBook, into a workstation. The adapter connects to your host computer's USB-C, USB4, or Thunderbolt™ 3/4 port. It features one HDMI video output, and a 3-Port USB Hub (1x USB 3.2 Gen 1 5Gpbs, 2x USB 2.0 480Mbps). Connect a laptop USB-C power supply to the dedicated USB Power Delivery (PD) 3.0 port, located on the Multiport Adapter, to charge the laptop. The Multiport Adapter features an extra-long built-in 12-inch (30 cm) USB-C host cable.

Works With Chromebook (WWCB) Certified
This USB-C Multiport Adapter is tested and certified to meet Google's compatibility standards ensuring seamless operation with Chromebook devices. The Multiport Adapter is ideal for setup and deployment in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.

Connect USB Peripherals
The USB-C to USB-A hub features three USB Type-A ports, including one USB 3.2 Gen 1 (5Gbps) port, and two USB 2.0 (480Mbps) ports for connecting USB peripherals.

Multiple Use Cases
A versatile dock solution for use at your office, home office, hotel, or in the boardroom. It's portable enough to be carried in a bag or backpack. This lightweight USB-C Adapter can operate with bus-power alone, or use the dedicated USB-C Power Delivery port to connect a USB-C power adapter (not included with Multiport Adapter) for laptop charging.

Charge Your Laptop
Connect a USB-C power source (sold separately), such as the power adapter included with a laptop, to the USB-C Power Delivery pass-through port. With support for USB Power Delivery 3.0 pass-through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop. USB PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when disconnecting the power source.

  • Features:

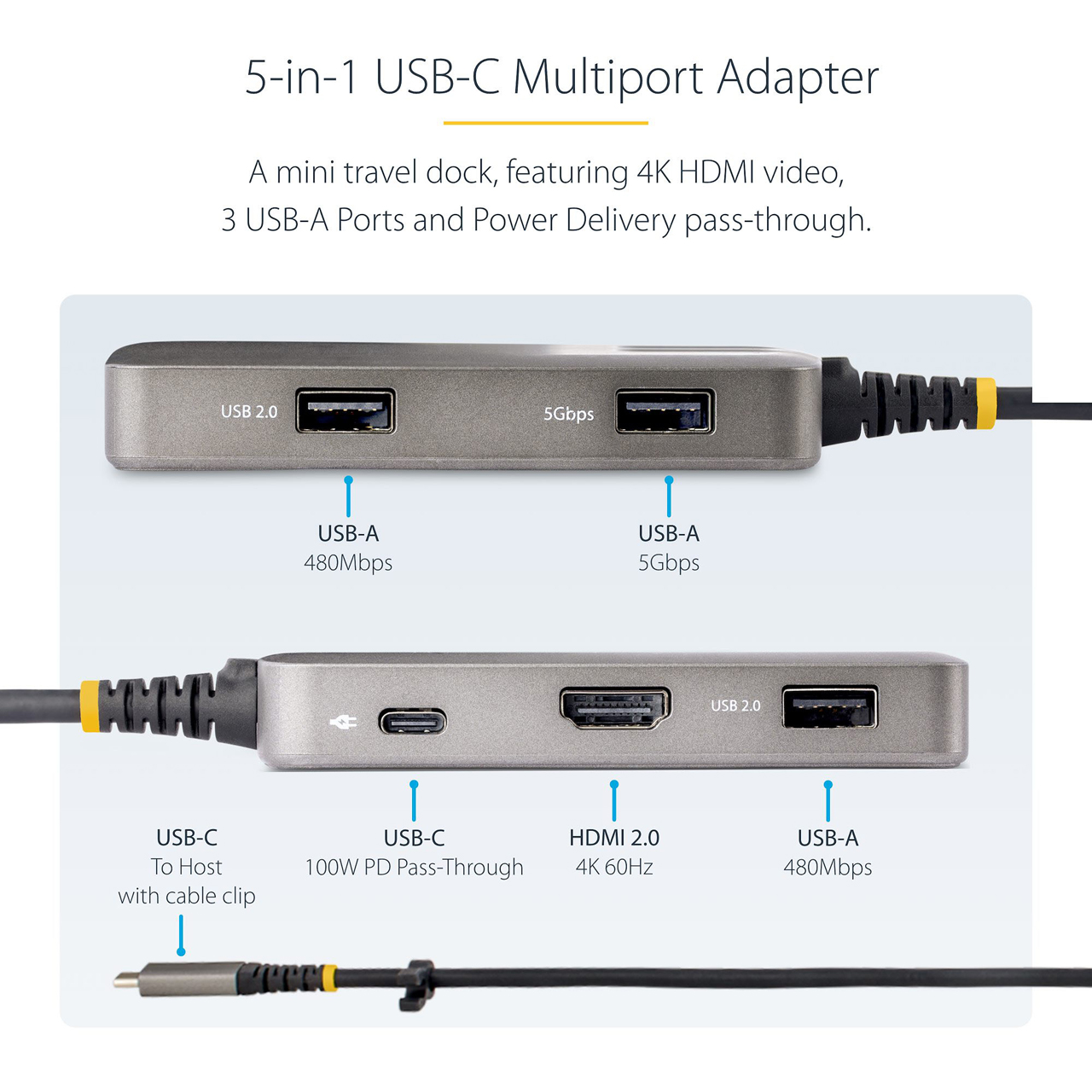

    • 5-in-1 Multiport Adapter: Portable USB-C travel dock supports UHD 4K 60Hz HDMI 2.0b (HDR10) video via DP 1.4 Alt Mode for connecting monitor/display, 3-port USB-A hub (2x USB 3.2 Gen 1 5Gbps), 100W USB-C Power Delivery Pass-Through

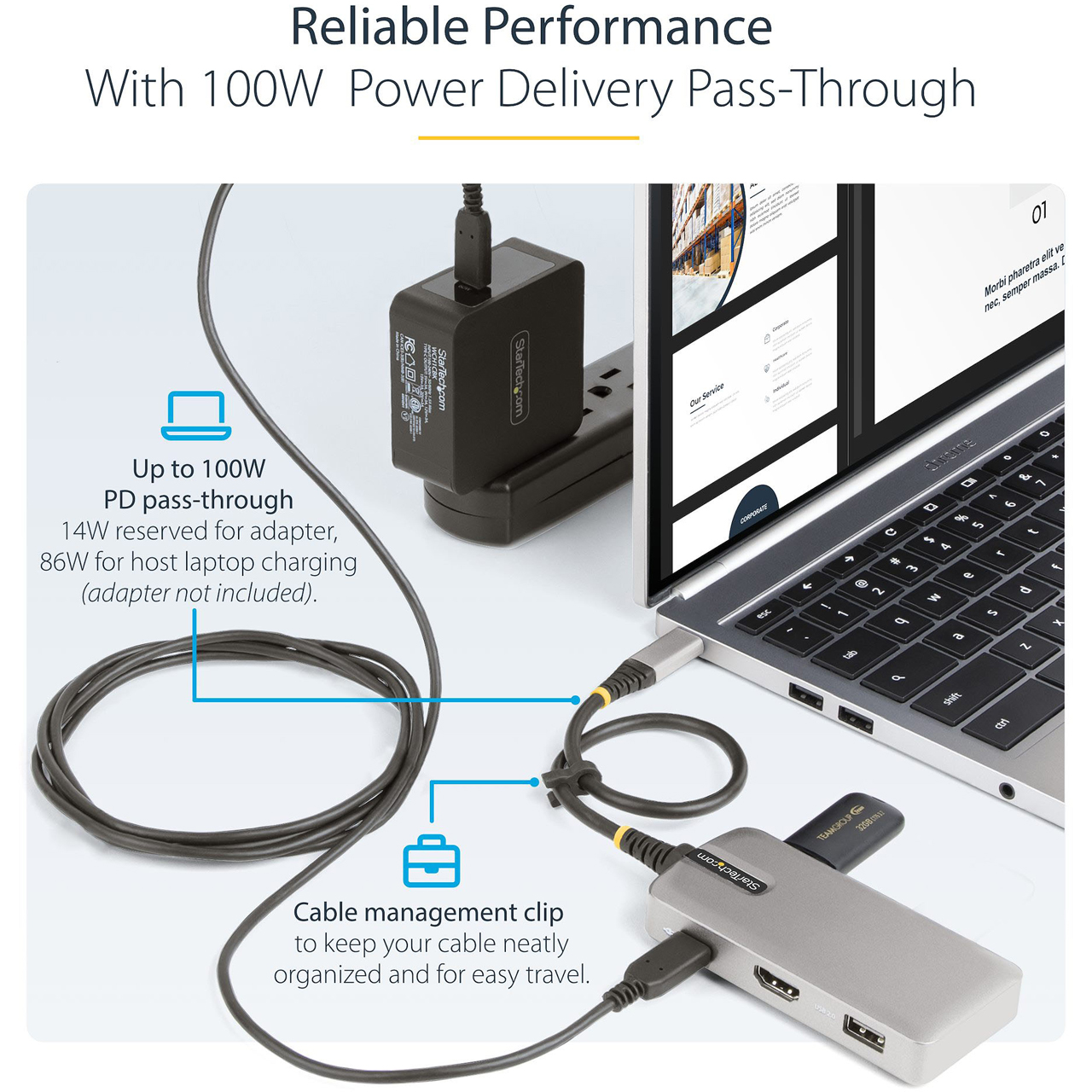

    • Reliable Performance: Port Replicator with 100W PD Pass-Through; 14W reserved for adapter (when using one or all ports) & up to 86W available for host laptop charging; Prevents device dropouts, video flickering, and/or power overdraw common in other hubs
    • USB Ports with Dedicated Power: Two downstream USB-A ports support USB 3.2 Gen 1 (5Gbps) and with a USB-C power adapter connected, each port provides 4.5W (5V/0.9A) of dedicated Power, ideal for connecting USB devices that require a consistent power draw

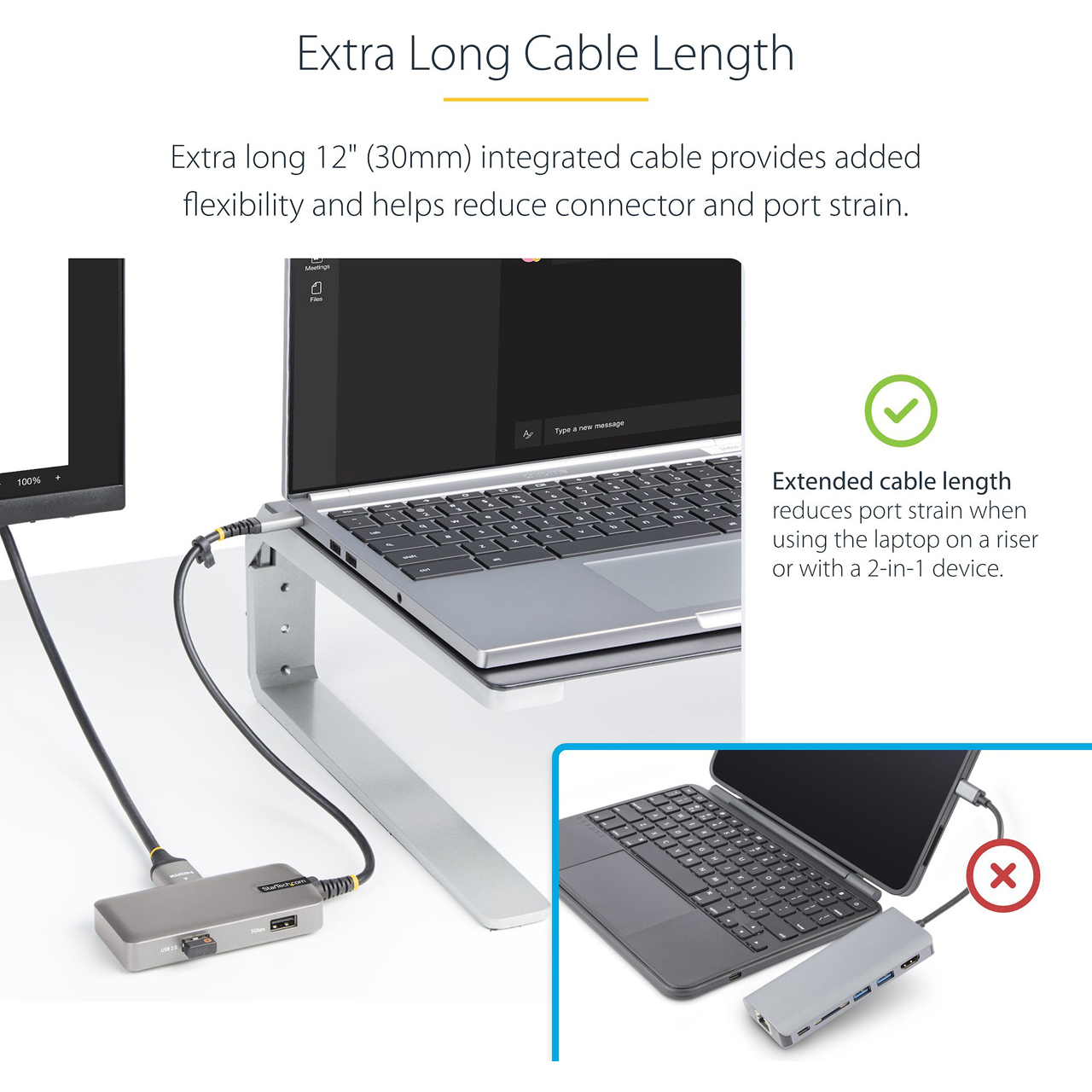

    • Extra-Long Cable: Extended port reach w/attached 12" host cable, clip for cable management, automatic driver setup, weighted design to keep adapter more stable on work surface, ideal for office or work-from-home workstations & presenting from a boardroom
    • Universal Compatibility: USB-C Hub/Dock supports Windows, macOS; WWCB certified for compatibility with all Chromebooks; Works with USB-C, TB3 & TB4 host computers; Auto firmware updates through ChromeOS for max performance, compatibility & security

  • Specifications:

      Connector(s)
    • External Ports:
      - 1x HDMI (19 pin)
      - 1x USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
      - 2x USB 2.0 Type-A (4 pin, 480Mbps)
      - 1x USB Type-C (24 pin) USB Power Delivery Only
    • Host Connectors:
      - 1x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)

      Environmental
    • Operating Temperature: 32°F - 95°F (0°C - 35°C)
    • Storage Temperature: -13°F - 149°F (-25°C - 65°C)
    • Humidity: 0% - 95% RH (Non-condensing)

      Hardware
    • 4K Support: Yes
    • Fast-Charge Port(s): No
    • Displays Supported: 1
    • Interface: USB 3.2 Gen 1 (5Gbps)
    • Bus Type: USB-C
    • Industry Standards:
      - HDMI 2.0b
      - USB 3.2 Gen 1 (5Gbps)
      - USB Power Delivery Specification Rev. 3.0
      - Certified Works with ChromeBook (WWCB)
    • Chipset ID:
      - Analogix - ANX7327
      - Analogix - ANX7518
      - VIA - VL817-Q7

      Packaging Information
    • Package Length: 7.1" (18.0cm)
    • Package Width: 4.5" (11.5cm)
    • Package Height: 1.6" (4.0cm)
    • Shipping (Package) Weight: 4.2oz (120.0g)

      Performance
    • Wake On Lan: Yes
    • Maximum Data Transfer Rate: 5Gbps
    • Maximum Digital Resolutions: Up to 4K (4096x2160) 60Hz
    • Type and Rate: USB 3.2 Gen 1 - 5 Gbit/s
    • UASP Support: Yes
    • Maximum Laptop Charging: 86W

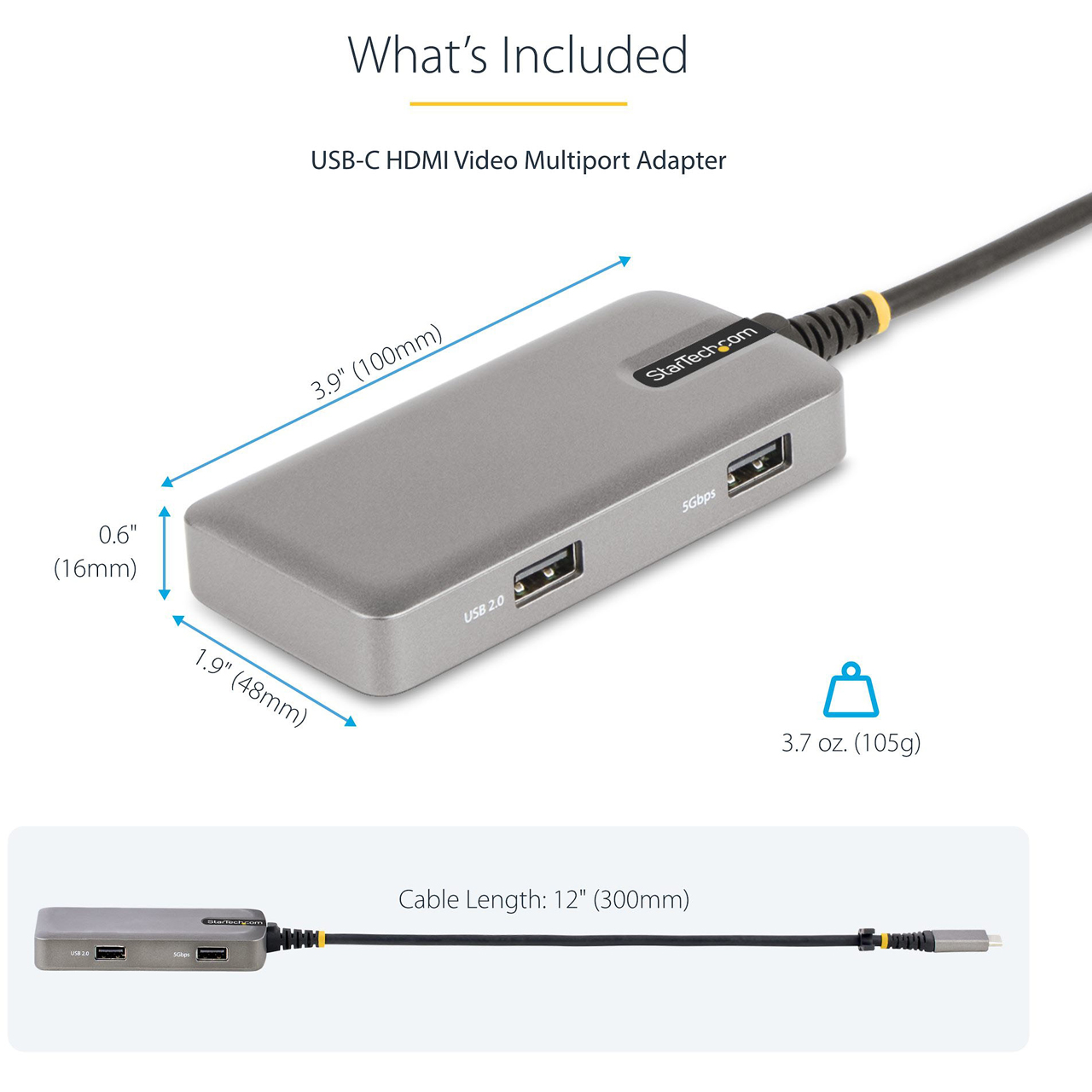

      Physical Characteristics
    • Color: Space Gray
    • Product Length: 3.9" (10.0cm)
    • Product Width: 1.9" (4.8cm)
    • Product Height: 0.6" (1.6cm)
    • Weight of Product: 3.7oz (105.0g)
    • Material: Plastic: Cable Length: 13.8" (35cm)

      Power
    • Power Source: Bus Powered and Host USB-C Power Adapter
    • Power Delivery: 100W
    • Power Consumption: 14W

      Software
    • OS Compatibility:
      - Windows® 10, 10 ARM, 11, 11 ARM
      - macOS 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
      - Android™
      - Linux® Ubuntu 18.04, 20.04
      - ChromeOS™ (Certified Works with Chromebook)

  • Item Includes:

    • 1x USB-C Multiport Adapter
    • 1x Quick-Start Guide

  • Warranty:

    • 3 Year Warranty
