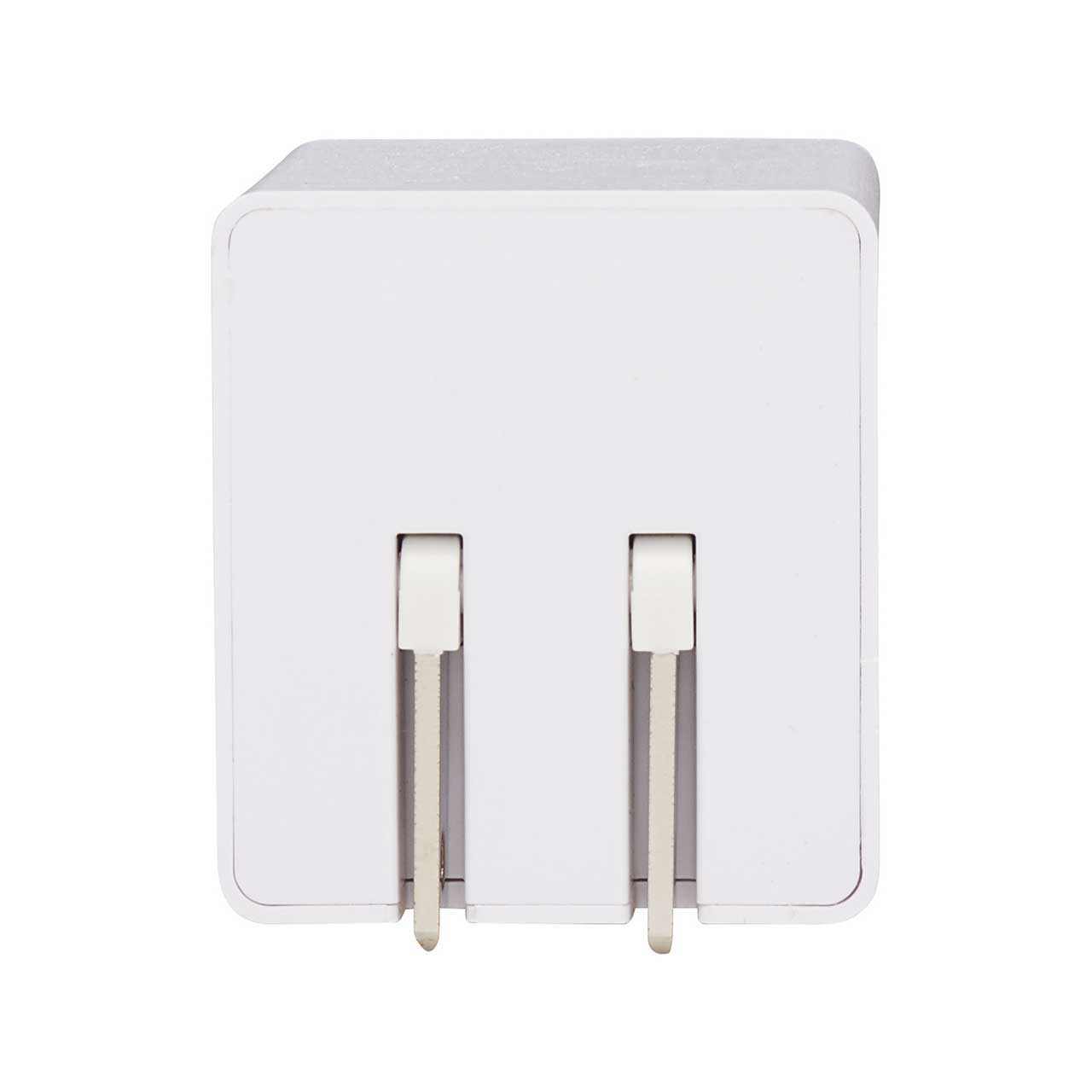

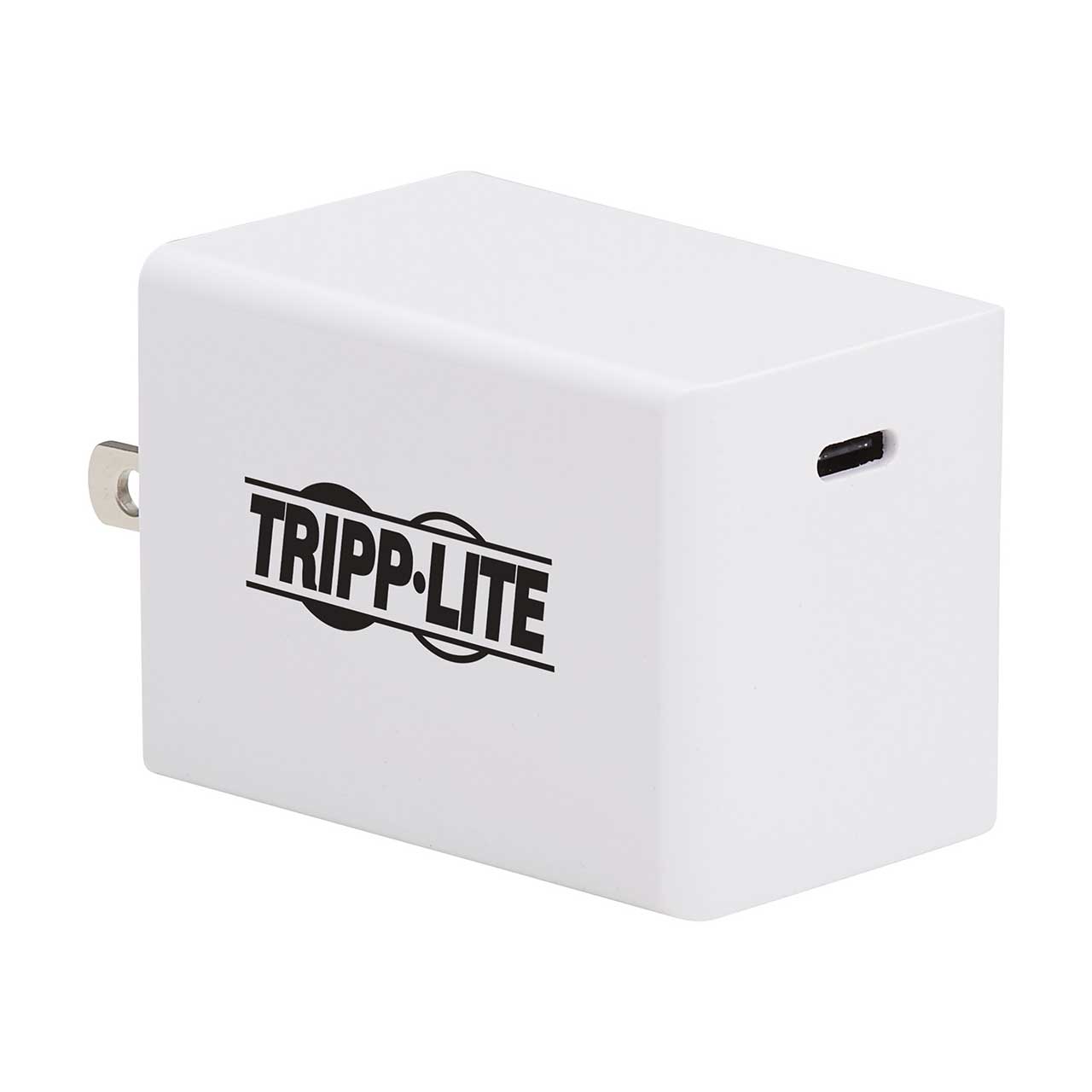

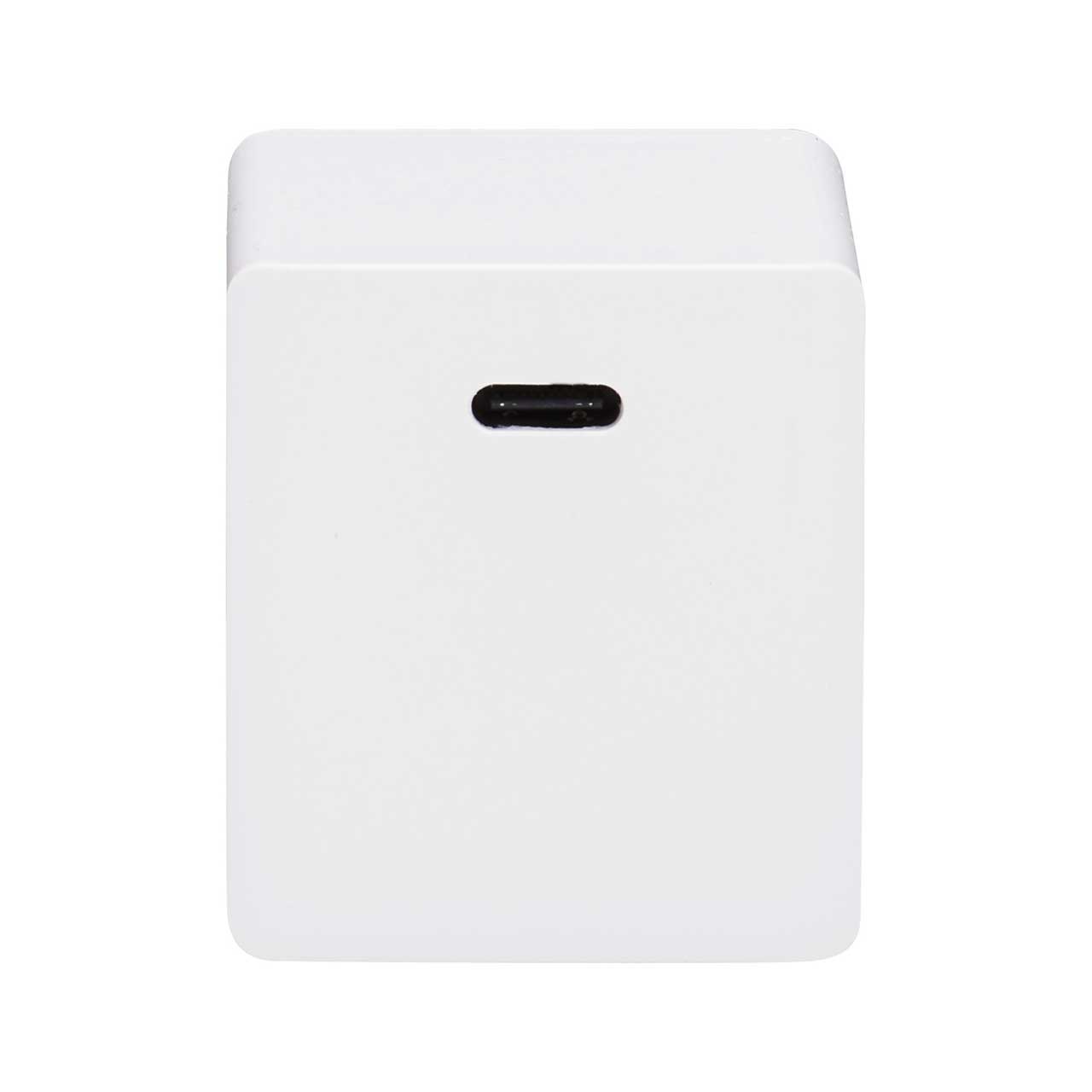

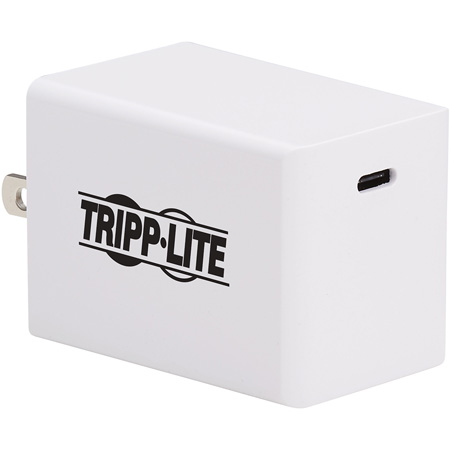

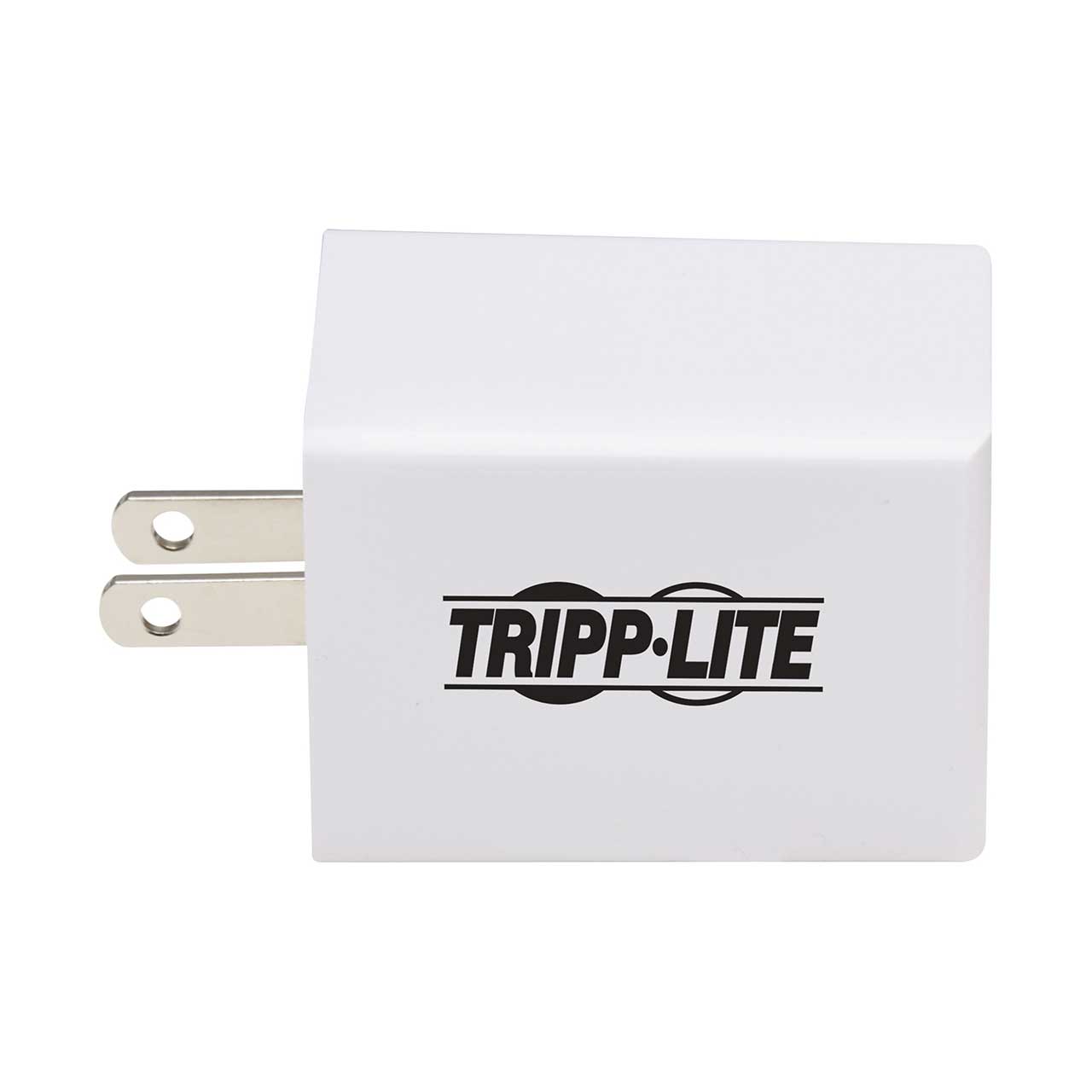

Tripp Lite U280-W01-60C1-G USB C Wall Charger Compact 60W GaN Technology Phones Laptops

ITEM #: TRL-U280W0160C1G MFG #: U280-W01-60C1-G

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$100.41

Our Price:

$42.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


U280-W01-60C1-G - Overview

60W USB Type-C Charger Gets Your Mobile Device Ready in a Hurry, Wherever You Are
This Tripp Lite U280-W01-60C1-G single-port USB charger lets you quickly and safely charge your USB-C mobile device. Plug it into any NEMA 1-15R, NEMA 5-15R or NEMA 5-15/20R AC outlet to ensure your laptop, smartphone, tablet or other USB-C device charges at its fastest possible speed. The USB-C port supports USB Power Delivery (PD) 3.0 charging up to 5V 3A (15W), 9V 3A (27W), 15V 3A (45W) and 20V 3A (60W).

Gallium Nitride Technology Allows High-Wattage Capacity in a Compact Package
This USB wall charger is smaller and lighter than most standard wall chargers that come with a laptop, measuring less than five cubic inches. Ideal for travel, it is designed using GaN technology, which has a higher power density than silicon and provides higher efficiency than standard USB-C fast chargers. It also operates under much cooler temperatures, despite its small size, meaning it won’t get hot while charging your device.

Built-In Auto-Sensing Adjusts to Proper Power Level to Get Your Device to 100%
The USB-C port features auto-sensing technology that automatically adjusts to your device’s appropriate power level, perfect for fast-charging tablets and e-readers. The unit protects against overheating, overcurrent and overcharging-in fact, it stops charging as soon as your device’s batteries are at full capacity.

Folding Plug Design Perfectly Sized for Travel
The compact USB Type-C charger, small enough to fit in the palm of your hand, is easy to carry in your purse, suitcase, backpack or laptop bag. The NEMA 1-15P plug folds into the unit when not in use to shield it from damage and prevent it from snagging or scratching your bag’s contents.

Typical Applications:
Charge a smartphone, tablet, laptop or other mobile device without taking up a valuable USB port on your computer.

  • Features:

    • Ideal for charging smartphones, tablets, e-readers and laptops while traveling
    • USB-C PD 3.0 port supports a maximum power capacity of 60W for fast charging
    • Gallium nitride (GaN) technology generates less heat to support high-efficiency charging
    • Connects to any NEMA 1-15R, 5-15R or 5-15R/20R AC outlet for immediate charging
    • Measures less than 5 cu. in., making it perfectly sized for convenient travel use
    • 2-year limited warranty

  • Specifications:

    • Input
    • Input Connection Type: NEMA 1-15P
    • Voltage Compatibility (VAC): 100; 110; 110-240; 120; 125; 127; 200; 200-240; 208; 208/240; 220; 220-240; 230; 240
    • Input Frequency: 50/60 Hz
    • Input Current: 100-240V, 1.5A (MAX)

      Dimensions
    • Product Length (in.): 2.118
    • Product Length (cm.): 5.38
    • Product Length (ft.): 0.177
    • Product Length (m.): 0.054

      Output
    • Output Capacity: 5V 3A (15W), 9V 3A (27W), 15V 3A (45W) and 20V 3A (60W)

      Battery
    • Battery Charging (1.2 Port): Yes

      Charging
    • Charging Ports / Amps: 1.5A
    • Charging Method: USB

      Physical
    • Color: White
    • Material of Construction: PC945
    • Unit Dimensions (hwd / in.): 2.11 x 1.574 x 1.433
    • Unit Packaging Type: Box
    • Unit Weight (lbs.): 0.243

      Environmental
    • Operating Temperature Range: 32 to 77 F (0 to 25 C)
    • Storage Temperature Range: -4 to 185 F (-20 to 85 C )
    • Power Consumption (Watts): 60W
    • Operating Humidity Range: 20 to 90 %, RH Non-Condensing
    • Storage Humidity Range: 5 to 95 %, RH Non-Condensing

      Connections
    • Ports: 1
    • Side A - Connector 1: NEMA 1-15P (NON-POLARIZED)
    • Side B - Connector 1: USB Type-C (FEMALE)

      Features & Specifications
    • Driver Required: No
    • Quick Charge Compliant: 3.0
    • Technology: USB 3.0 (SuperSpeed); USB 3.1 (Gen 1)

      Standards & Compliance
    • Certifications: RoHS, REACH, FCC, UL

  • Item Includes:

    • 1x U280-W01-60C1-G USB-C Wall Charger, GaN, USB-C PD 3.0, 60W

  • GTIN:

    0037332250469
