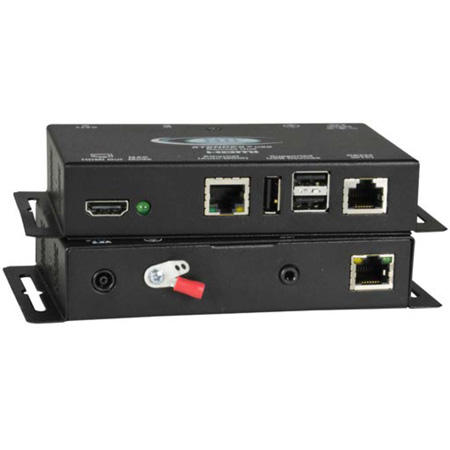

NTI ST-C6USBHE-HDBT HDMI USB KVM Extender over HDBase-T with Ethernet to 328 Feet

ST-C6USBHE-HDBT - Overview

• Features:

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6/7 cable
  • Supports HDTV resolutions to 1080p and computer resolutions to 4096x2160
  • Only one power supply is necessary to power both the local and remote units
  • HDMI features supported: 4K x 2K - 3840x2160 and 4096x2160 resolutions
  • HDCP compliant
  • Supports the DDC2B protocol
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control
  • USB ports for keyboard and mouse
  • Features an additional USB port on the remote unit for a touch screen monitor, interactive whiteboard, or CAC card reader
  • Bi-directional RS232 interface
  • Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players
  • Integrated mounting brackets for easy surface/wall mounting
  • High quality, rugged steel construction with durable powder coat finish


• Specifications:

  • Mechanical
  • Width: 6.06 in.
  • Height: 1.08 in.
  • Depth: 3.05 in.

    Environmental
  • Operating Temperature: 32 to 144°F (0 to 50°C)
  • Operating Humidity: 5 to 90% non-condensing RH
  • Power Consumption: 100V-240VAC @ 50/60Hz-24VDC/2.5A

    Video
  • Video Compatibility: 4K x 2K - 3840x2160 and 4096x2160 resolutions/ HDTV resolution up to 1080p @60Hz
  • Video Connectors: HDMI Type A
  • Input Video Signal: TMDS
  • Video Color Format: 48bit Deep color
  • HDMI Version: HDMI 1.4
  • DVI Support: DVI 1.0
  • DDC Support: DDC2b
  • HDCP Version: HDCP 1.2

    Audio
  • Audi Format: LPCM,Dolby Digital (AC3)(Plus),DTS, Dolby TrueHD,DTS-HD Master Audio
  • Output Ports: 4 x USB Type A; 1 x HDMI; 1 x RS-232, 1 x IR Receiver; 1 x 3.5mm Audio Out

    IRR
  • Input/Output: 3.5mm Stereo Jack
  • Signal Type: TTL, 0-5VDC
  • Input Impedance: 1.5 kohm
  • Output Impedance: 44 ohm
  • Maximum Input/Output Level: 5.2 Vp-p
  • Frequency Range: 30-50kHz
  • Maximum Distance (from receiver): 10 ft. straight; 5 ft. 45 degree angle

    General
  • Interconnect Cable: CAT5e solid UTP; CAT6/6a Solid UTP; CAT7 Solid STP EIA/TIA 568 B wiring with male RJ45 connectors
  • CATx Cable Range: 328 ft. maximum
  • Compliance Certifications: CE, RoHS


• Item Includes:

  • 1x ST-C6USBHE-HDBT Local Unit
  • 1x ST-C6USBHE-HDBT Remote Unit
  • 1x HD-3-MM 3 ft. Male-to-Male HDMI Video Cable
  • 1x 100-240VAC, 50/60Hz, 24VDC, 2.5A AC Adapter
  • 1x Power Cord
  • 1x 3 ft. IR-EMITTER (IR-EMTR-3)
  • 1x 3 ft IR-RECEIVER (IR-RCVR-3)
  • 1x CB4306 USB2-AB-1M-5T 1m USB 2.0 Type A to Type B Transparent Cable
  • 1x CT6182 DB9 Female to RJ45 Female Adapter
  • 1x CT6488 DB9 Male to RJ45 Female Adapter
  • 2x CB4352 5 ft. RJ45 to RJ45 CAT5 patch cable
  • 1x CD containing User Manual
