ADDERLink XD642P-DP-US XD Dual 4K KVMA Extender Pair DisplayPort/USB2.0/Audio on a Single CATx or Fiber Cable

XD642P-DP-US - Overview

• Features:

  • High-resolution video, real-time control: The system supports resolutions up to 4096x2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling.

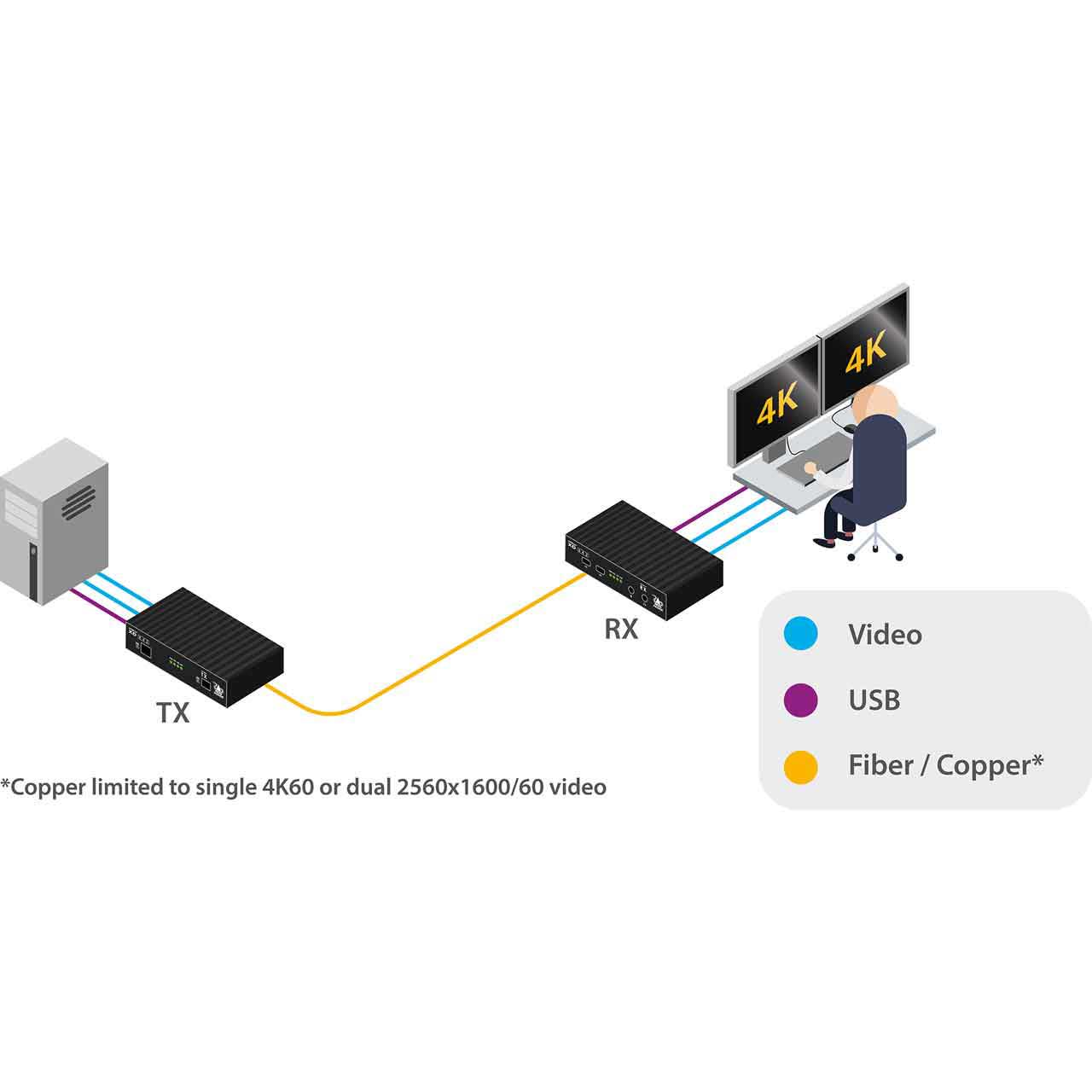

  • Single cable: Video, audio, USB HID (human interface device), hi-speed transparent USB and RS232 signals are transmitted over a single CATx or fiber cable.
  • Up to 4km/2.5 mile extension distances: The ADDERLink XD642 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.
  • Emulated USB2.0: Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and joysticks.
  • Transparent USB2.0: Mass storage devices and isochronous devices, such as webcams and audio headsets can be used through the transparent USB2.0 hi-speed port.
  • EDID management: The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
  • Plug and Play: The ADDERLink XD642 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.
  • Digital audio: Video: Encapsulates up to eight channels of 24-bit, 192kHz sampled "Pulse-code modulation" PCM uncompressed audio integrated with video signal.
  • USB: Up to two channels of 24-bit, 96kHz sampled PCM audio.
  • HD quality analog audio: HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone or speakers.
  • Serial communications: RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.


• Specifications:

  • Video resolutions
  • The system supports resolutions up to 4096x2160 @ 60Hz


  • Software compatibility
  • All known operating systems. No drivers required.


  • Extension technology
  • 5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression.


  • Connections

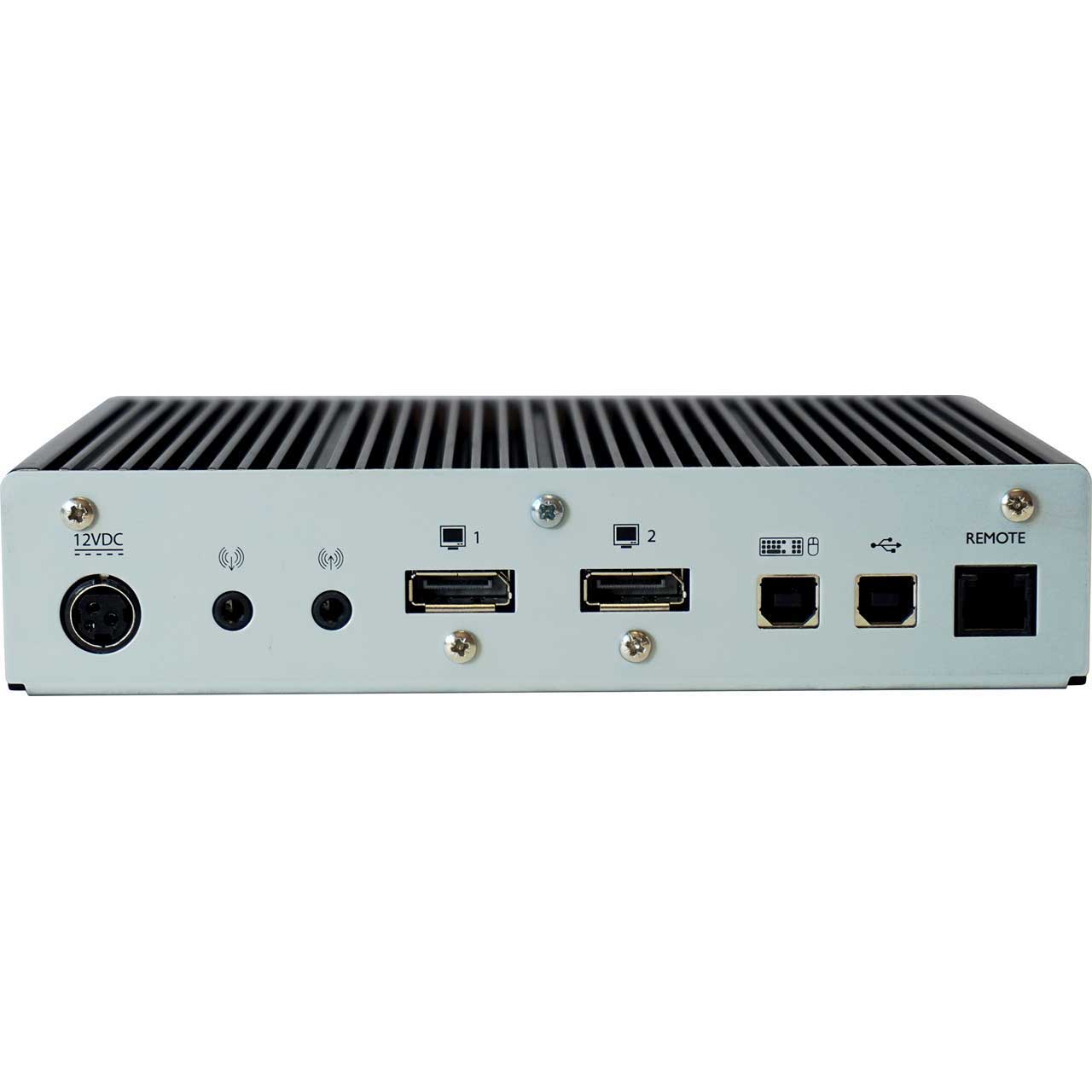

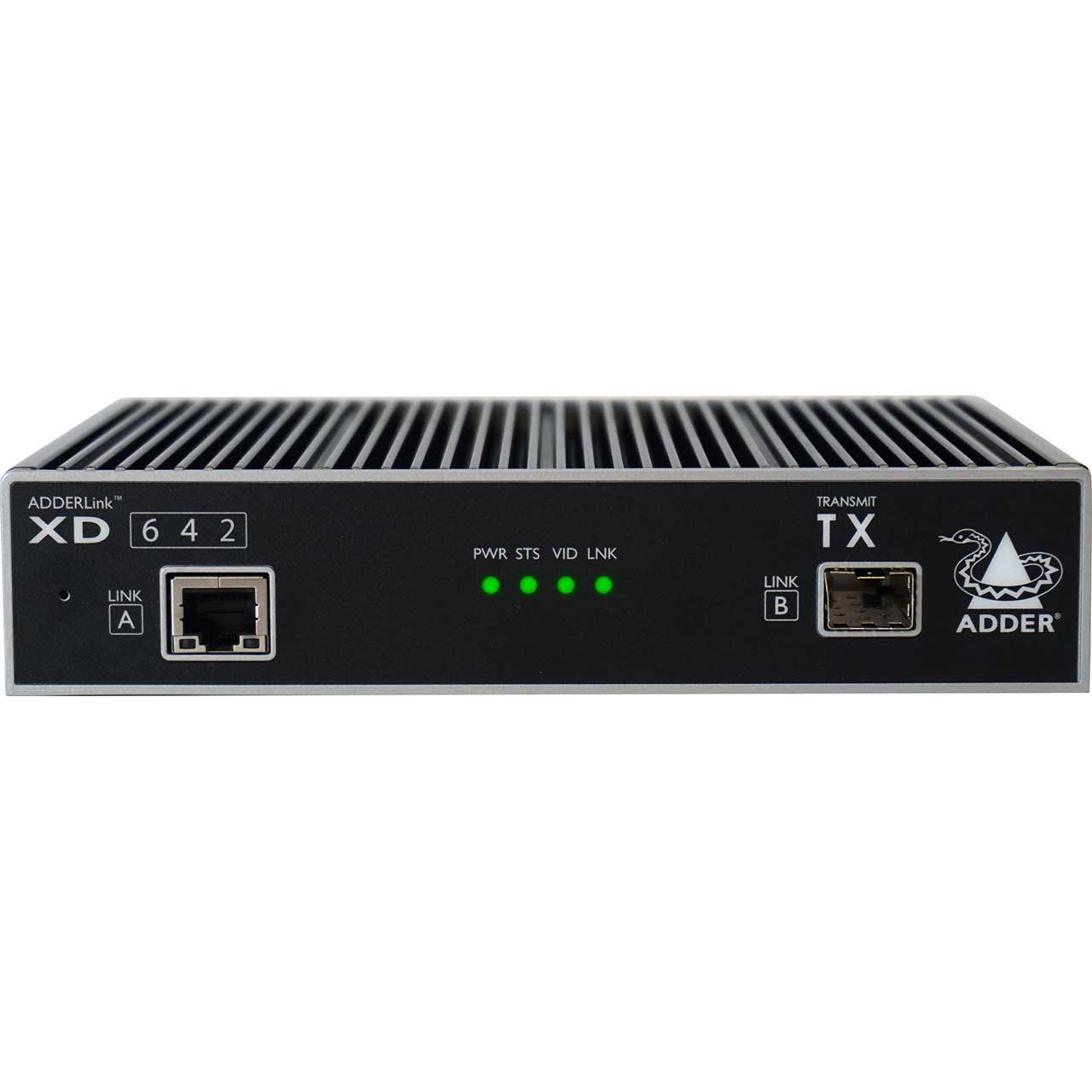

  • Local unit - Transmitter (TX)
  • 4 x Tri-color status LEDs
  • 2 x DisplayPortT in
  • 1 x USB2.0 Type B for HID
  • 1 x USB2.0 Type B for hi-speed
  • Line in and out analog audio
  • RJ12 serial port
  • RJ45 and SFP+ ports

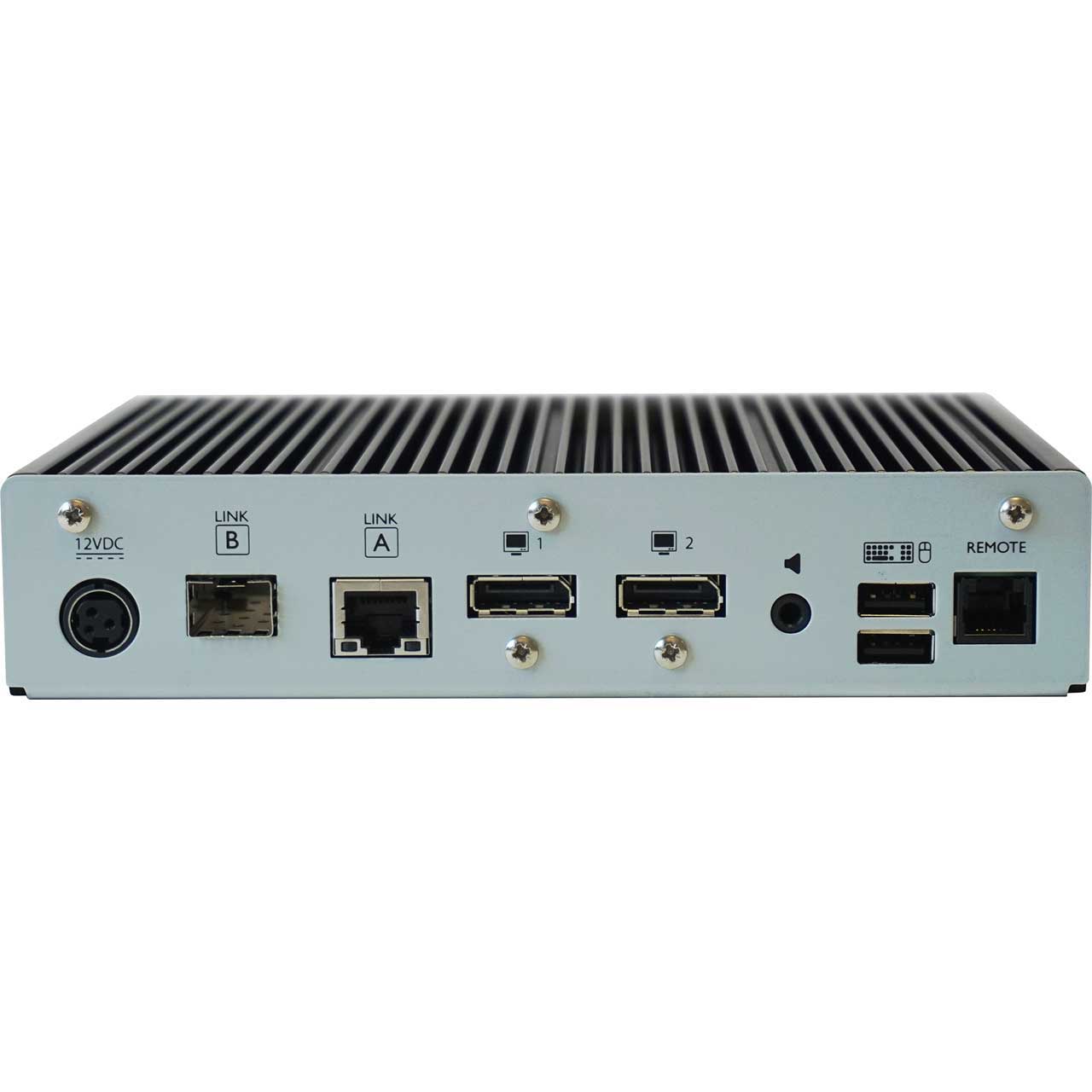

  • Remote unit - Receiver (RX)
  • 4 x Tri-color status LEDs
  • 2 x DisplayPortT out
  • 3 x USB2.0 full speed Type A
  • 1 x USB2.0 transparent hi-speed Type A
  • Mic in, headset and speaker out
  • RJ12 serial port
  • RJ45 and SFP+ ports


  • Physical Design
  • Robust metal construction
  • TX and RX: 186mm/7.32" (w), 39mm/1.54" (h), 148mm/5.83" (d)
  • TX: 1.29kg/2.84lbs
  • RX: 1.24kg/2.73lbs


  • Power supply
  • 100-240 VAC, 47/63Hz
  • 12 VDC 18W output from power supply unit


  • Operating temperature
  • 0°C to 40°C/32°F to 104°F


  • Storage temperature
  • -10°C to 50°C/14°F to 122°F


  • Humidity
  • 0% to 80% (non-condensing)


  • Approvals
  • UKCA, CE, FCC, ICES, RCM, cULus


• Item Includes:

  • (1) XD64x Local Transmitter (TX)
  • (1) XD64x Remote Receiver (RX)
  • (2) VSCD17: DisplayPort Cable
  • (1) VSC24: USB Cable
  • (1) VSC22: 6.6ft / 2m audio cable (3.5mm jacks)
  • (2) PSU-IEC-12VDC-1.5A: Power adapter + US power cord (for TX and RX)


• Warranty:

  • 2 Year Limited
