ADDERLink ALIF101T-DP INFINITY High Peformance ZeroU IP KVM A/V Extender Transmitter - Display Port/USB2.0

ITEM #: ADR-ALIF101T-DP MFG #: ALIF101T-DP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,095.00

Our Price:

$1,040.25

Availability: In Stock
iAvailability Description Popup


ALIF101T-DP - Overview

330ft (100m) extension distance on single CATx

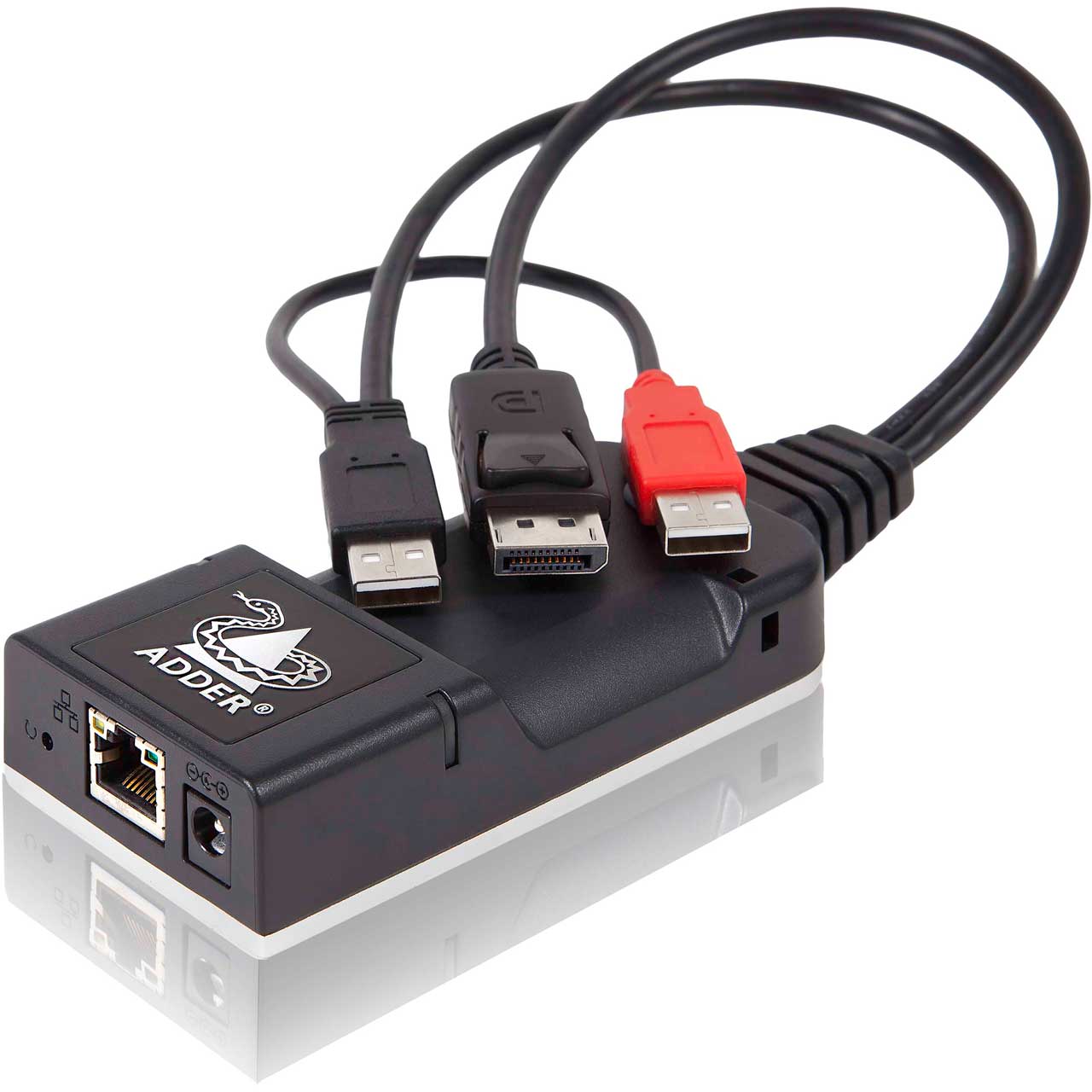

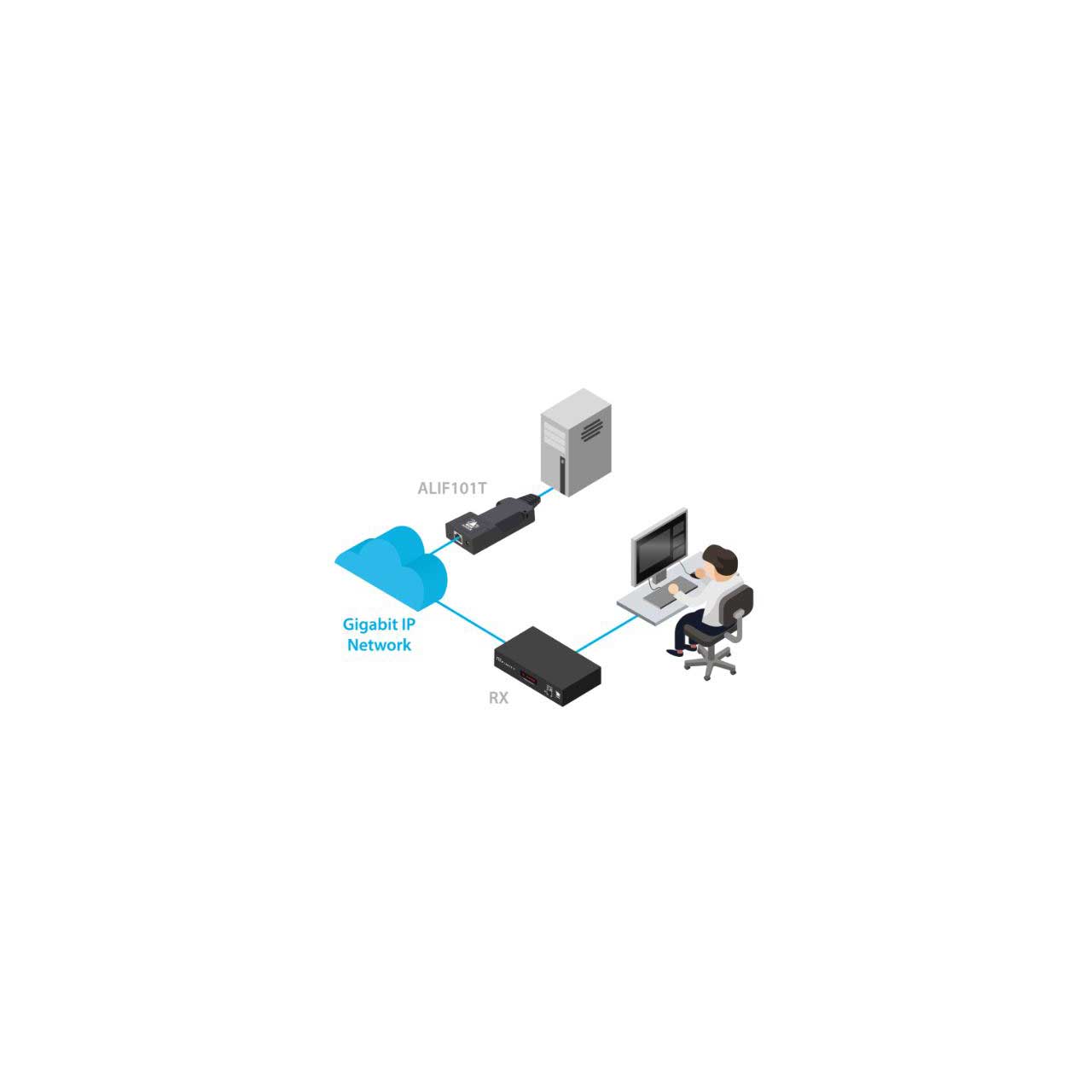

The ADDERLink Infinity ALIF101T-DP is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Please Note: The ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.

  • Features:

    • DisplayPort configuration
    • Zero-U form factor
    • USB powered with Low power consumption
    • 1920 x 1200 @ 60Hz maximum resolution with minimal lag
    • 330ft (100m) extension distance on single CATx
    • Unlimited extension using IP network
    • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast

  • Specifications:

    • Video resolutions
    • The system supports resolutions up to 2560x1600 @60Hz

    • Operating/storage conditions
    • Operating temperature: 0°C to 50°C/122°F
    • Storage temperature: -10 to 60°C/140°F
    • Storage and operating relative humidity: 10-90% non-condensing
    • Altitude: <3000m
    • MTBF: >500,000 hours

    • Power
    • USB power: 2x USB2.0 (2x 500mA @5V) 5W
    • External power: 5VDC, 1A, (LPS)
    • Typical power consumption: 3W
    • BTU: 10.2BTU/hr

    • Physical Design
    • Dimensions: (L)110mm/4.3" x (W)55mm/2.17" x (D)25mm/1" with 30cm/11.8" cable length
    • Weight: 0.2kg/0.4lb
    • Materials: ABS and aluminium construction

    • Connectors
    • Computer: 1x DisplayPort&trade/2x USB Type-A
    • Ethernet: 1x 8p8c (RJ45)/Power: 2.5mm socket

    • Specification
    • USB: USB2.0 Low, full and hi-speed
    • USB features: Keyboard, mouse, touch and hard drives
    • USB device seen as: 7 or 13 port hub
    • Max video resolution: Up to 2560x1600 @60Hz
    • Audio: Bi-directional USB audio 2 channel 16bit 48KHz
    • DisplayPortT Audio: 2 channel linear PCM
    • Ethernet: 1GbE (No 10/100 support)
    • Requires source to be DisplayPortT Dual-Mode (DP++) compliant

  • Item Includes:

    • 1x Adder ALIF101T-DP High Performance ZeroU IP KVM Dongle - Extension or Matrix of Video - Audio and USB Over Single Cable

  • Warranty:

    • 2 Year Limited

  • GTIN:

    0753464141382
