ADDERLink ALIF1002R-US INFINITY USB2.0 KVM Extender Receiver

ALIF1002R-US - Overview

High Performance KVM Extender Receiver

• Features:

  • Plug and play

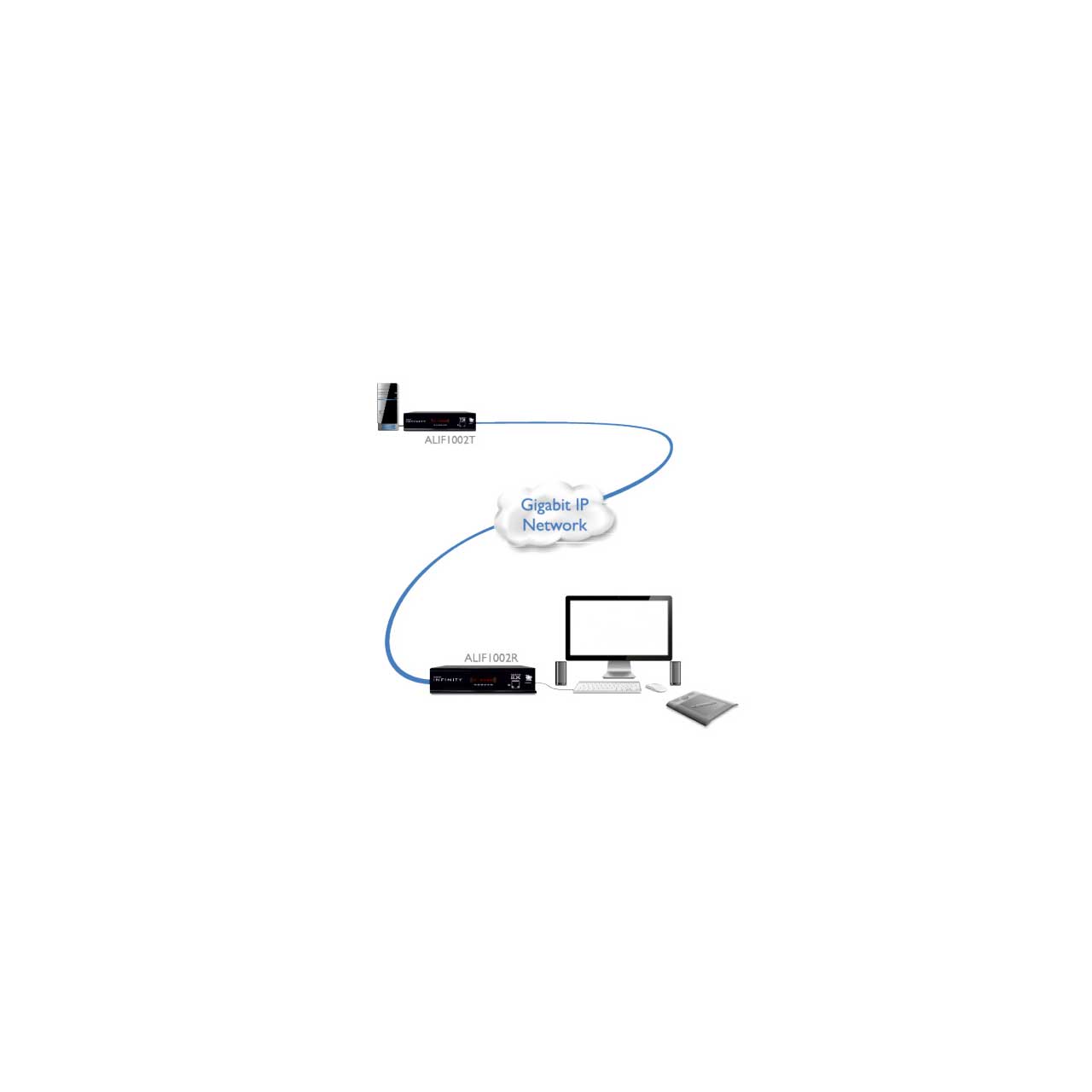

  • 100m/300ft extension distance on single CATx; unlimited using standard IP network
  • From 500m/1500ft up to 10km/6 miles over fiber
  • Single link or single head configuration
  • 1920x1200 @60Hz maximum resolution
  • USB mass storage supported plus: keyboard, mouse tablet and touch
  • Support for MacPro®
  • Redundant network operation


• Specifications:

  • Hardware Compatibility:
  • All computers with DVI-D, USB, Audio, RS232 - requirement dependent.


  • DVI-D - Digital Visual Interface (digital only):
  • The system supports a Single Link DVI-D resolution to a maximum of 1920 x 1200 @ 60Hz.


  • USB 2.0 with Class Control:
  • Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).


  • Digital Stereo Audio:
  • The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.


  • RS232:
  • RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.


  • Software Compatibility:
  • All known operating systems.


  • Computer Connections Transmitter (TX):
  • 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.


  • Peripheral Connections Receiver (RX):

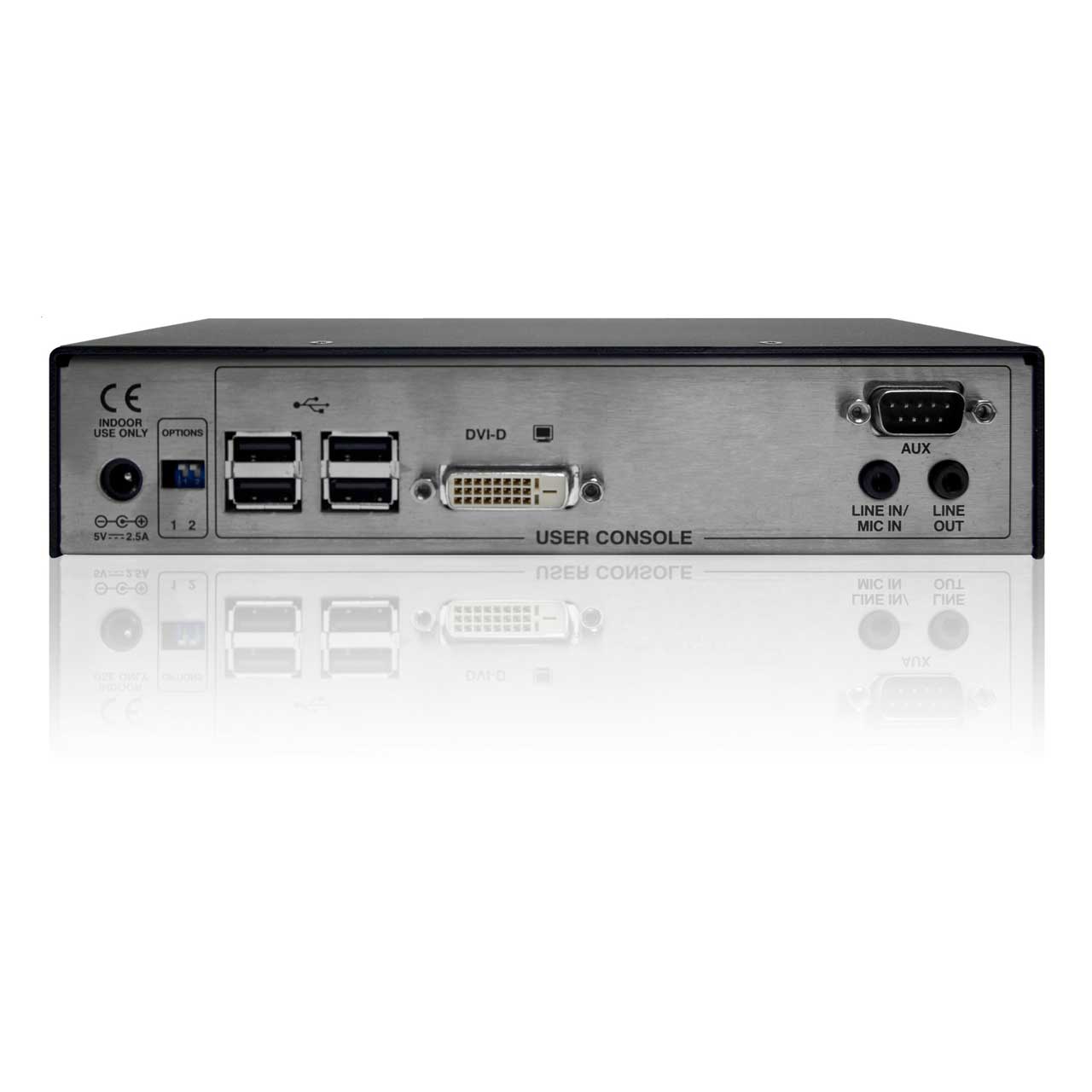

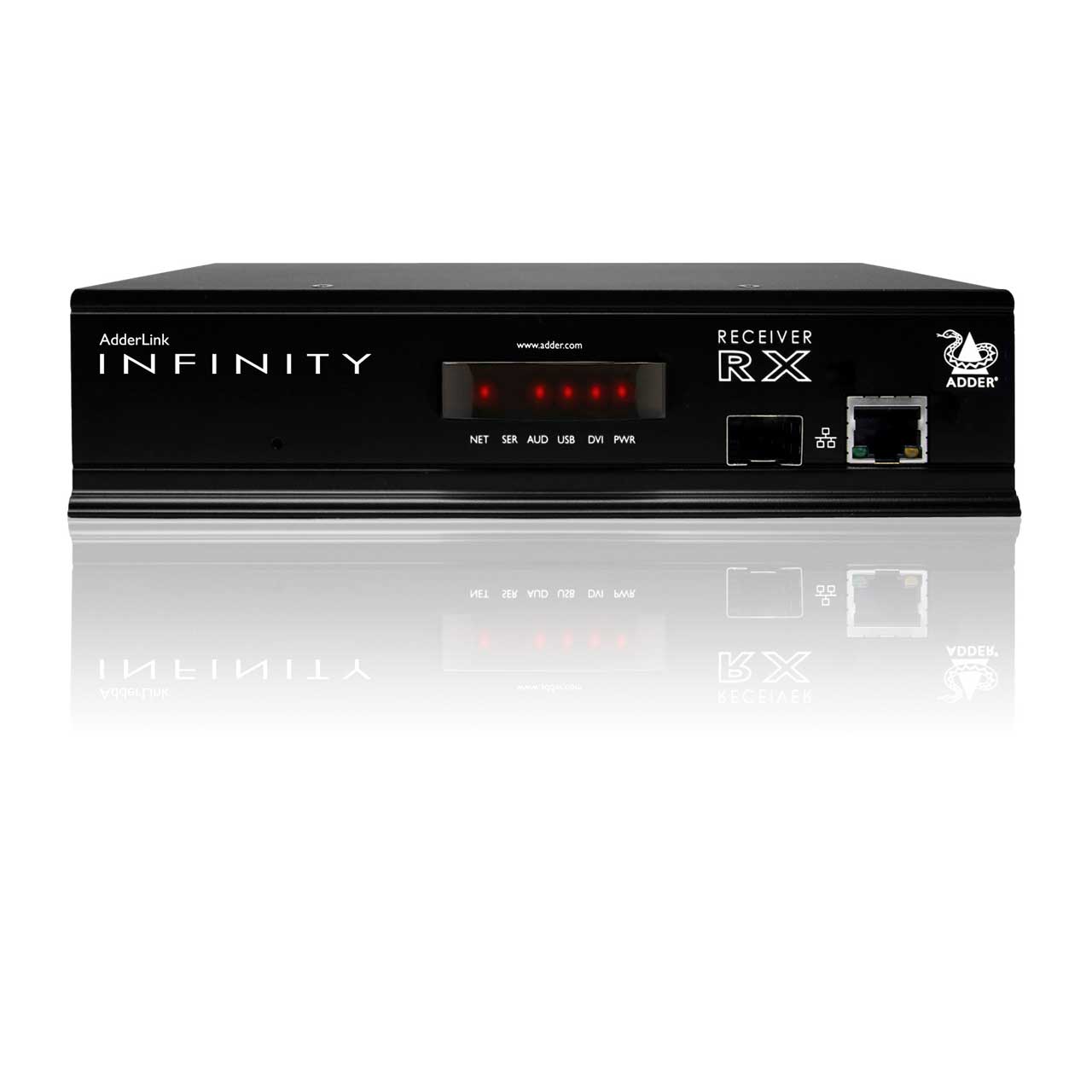

  • 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.


  • Physical Design:
  • 1U compact case, robust metal construction. 198mm/7.92" (w), 44mm/1.76" (h), 150mm/6.0" (d), 1.1kg/2.7lbs.


  • Power:
  • 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.


  • Operating Temperature:
  • 0 to 40°C / 32 to 104°F.


  • Approvals:
  • CE, FCC.


• Item Includes:

  • 1x ALIF1002R unit
  • 1x Power adapter (20W) and US power cord
  • 1x Combined Dvi-D and USB cable 1.8m
  • 1x 3.5mm Audio cable 2m


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385919817
