ALIF1002T-US - Overview

High Performance KVM Extender Transmitter

ADDERLink™ INFINITY 1002T is a high performance KVM (Keyboard, Video and Mouse) extender transmitter that forms part of the ADDERLink™ INFINITY matrix solution.This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining a Pixel-Perfect desktop experience.

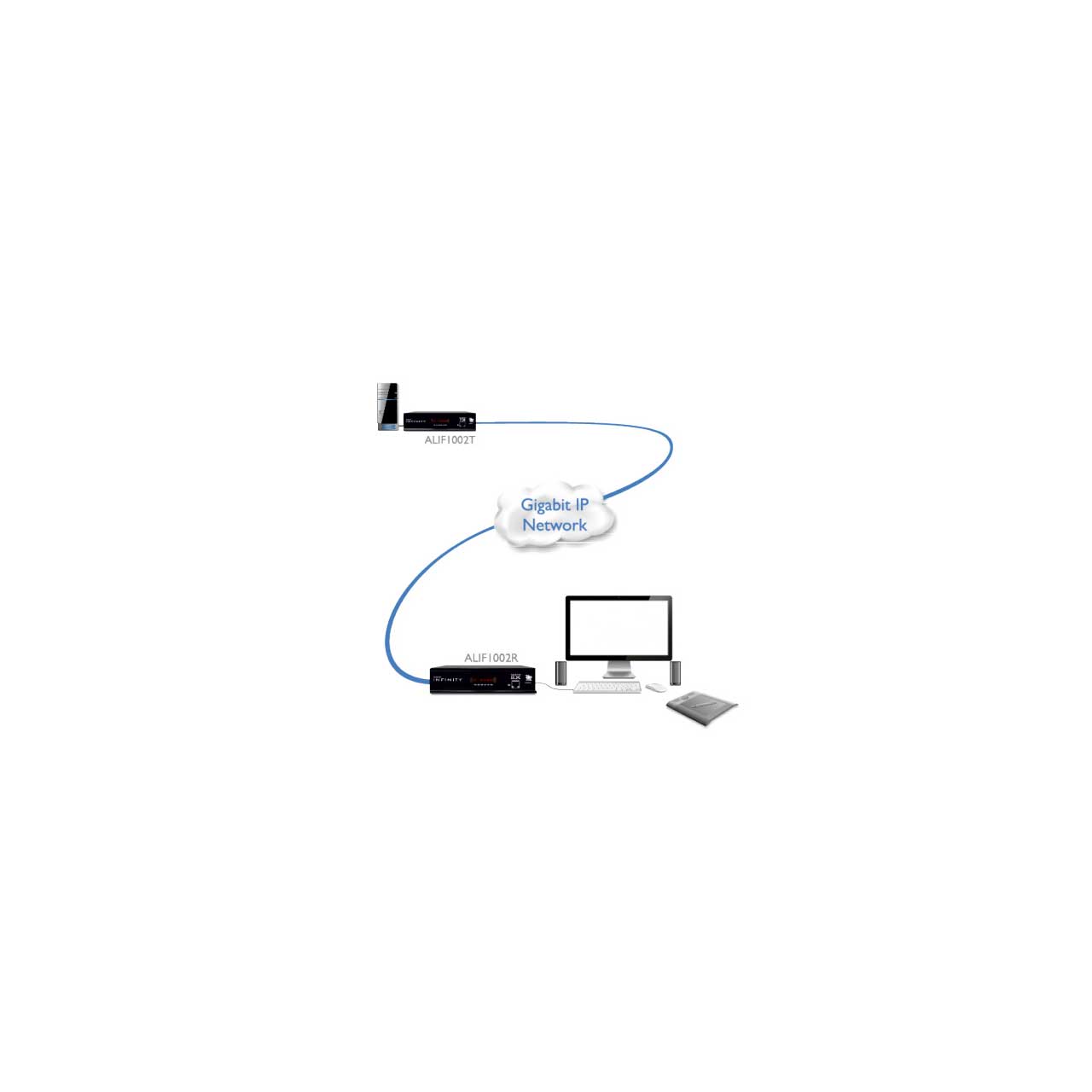

Part of the ADDERLink™ INFINITY range the 1002 is configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21 miles/10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).

Using a spatially-lossless encoding system, with 1:1 pixel mapping, ADDERLink™ INFINITY provides pixel-perfect and color accurate video with no artifacts. The digital video you receive is the same as the digital video leaving the remote computer.

Please note: The ALIF1002T transmitter requires at least one ALIF1002R receiver to operate.

  • Features:

    • Plug and play
    • 100m/300ft extension distance on single CATx; unlimited using standard IP network
    • From 500m/1500ft up to 10km/6 miles over fiber
    • Single link or single head configuration
    • 1920x1200 @60Hz maximum resolution
    • USB mass storage supported plus: keyboard, mouse tablet and touch
    • Support for MacPro®
    • Redundant network operation


  • Specifications:

    • Hardware Compatibility:
    • All computers with DVI-D, USB, Audio, RS232 - requirement dependent.

    • DVI-D - Digital Visual Interface (digital only):
    • The system supports a Single Link DVI-D resolution to a maximum of 1920 x 1200 @ 60Hz.

    • USB 2.0 with Class Control:
    • Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).

    • Digital Stereo Audio:
    • The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.

    • RS232:
    • RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.

    • Software Compatibility:
    • All known operating systems.

    • Computer Connections Transmitter (TX):

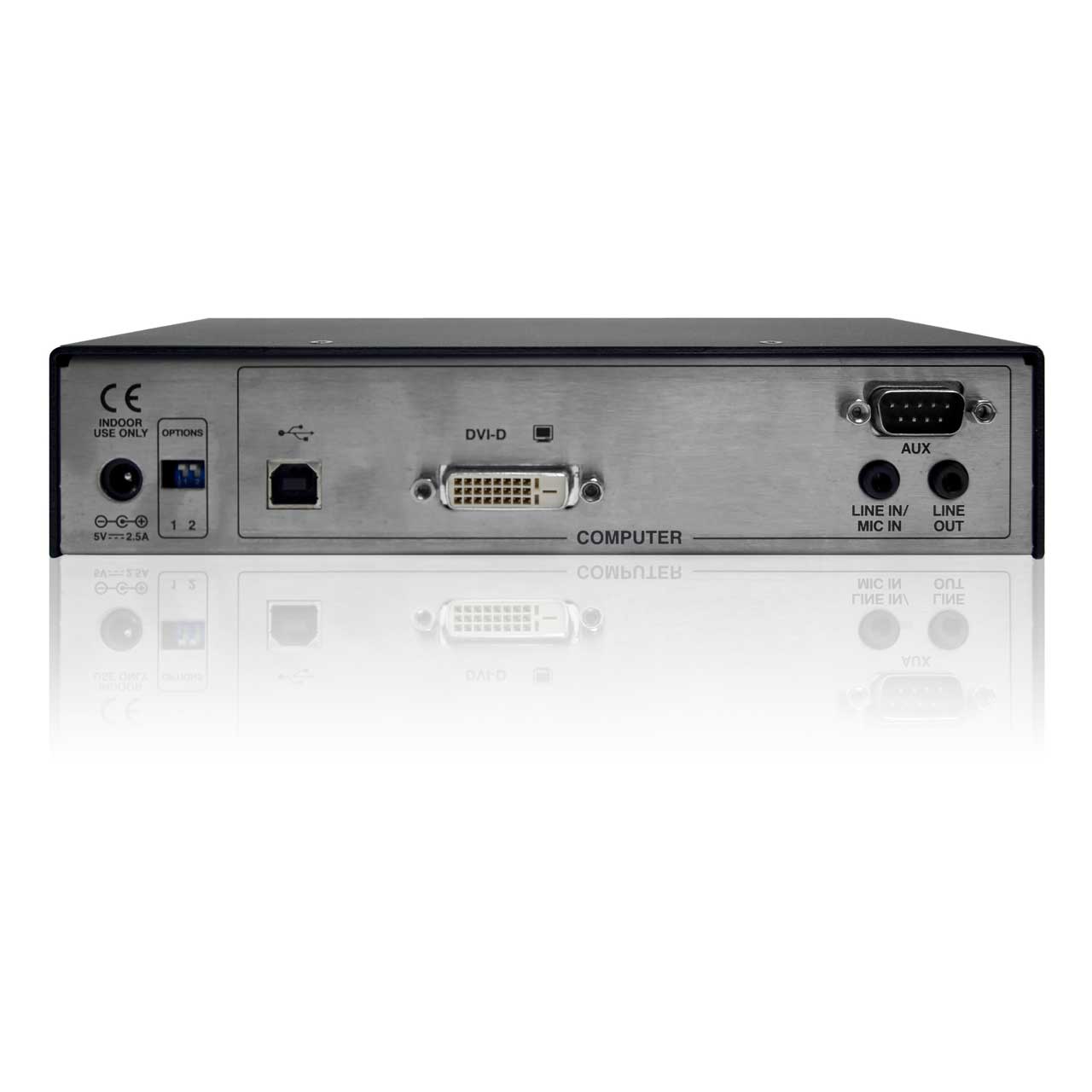

    • 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

    • Peripheral Connections Receiver (RX):
    • 1 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type. 1 x 8p8c and 1 x SFP for ADDER Link Infinity network connections.

    • Physical Design:
    • 1U compact case, robust metal construction. 198mm/7.92" (w), 44mm/1.76" (h), 150mm/6.0" (d), 1.1kg/2.7lbs.

    • Power:
    • 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

    • Operating Temperature:
    • 0 to 40°C / 32 to 104°F.

    • Approvals:
    • CE, FCC.


  • Item Includes:

    • 1x ALIF1002T unit
    • 1x Power adapter (20W) and US power cord
    • 1x Combined Dvi-D and USB cable 1.8m
    • 1x 3.5mm audio cable 2m


  • Warranty:

    • 2 Year Limited


  • GTIN:

    0609385498787
