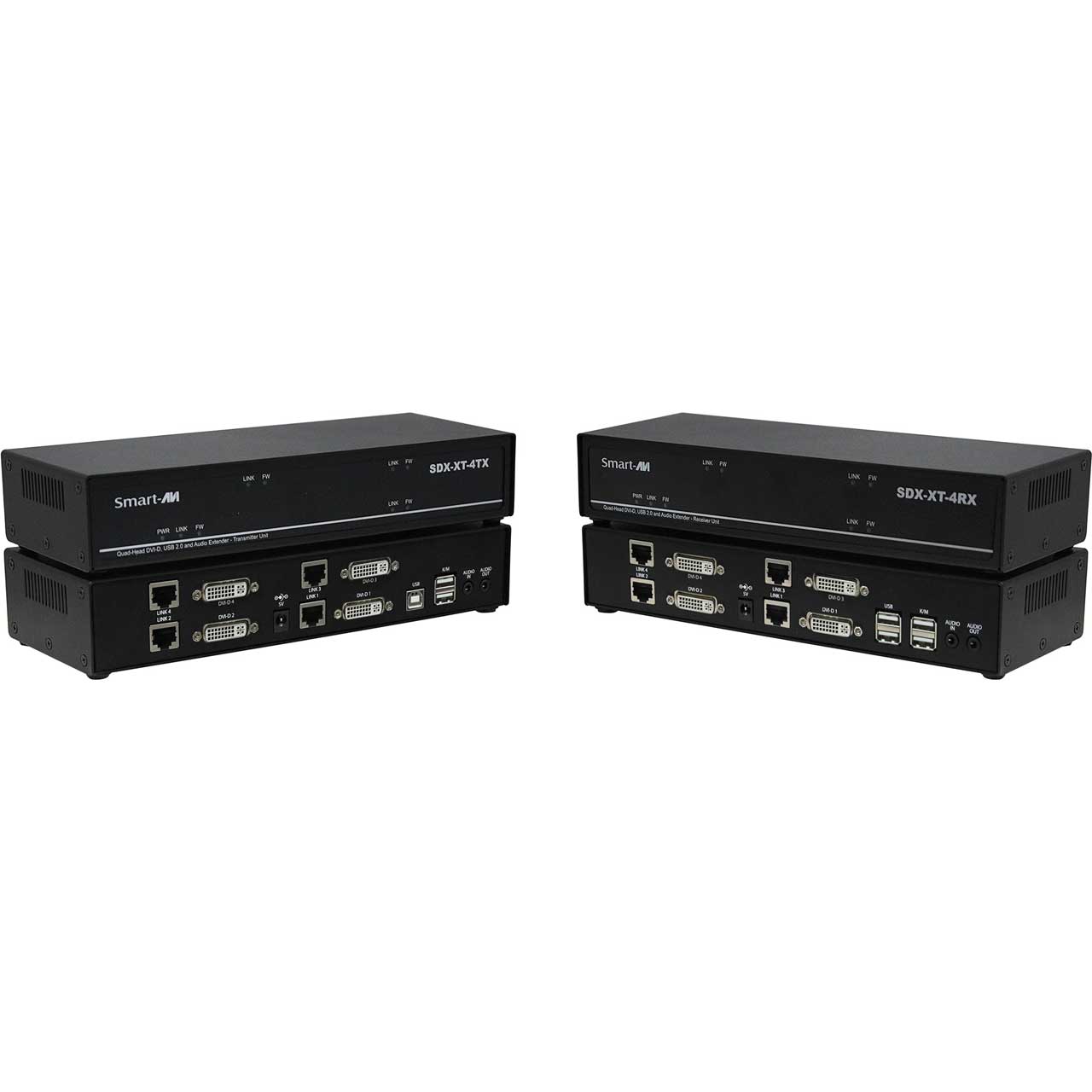

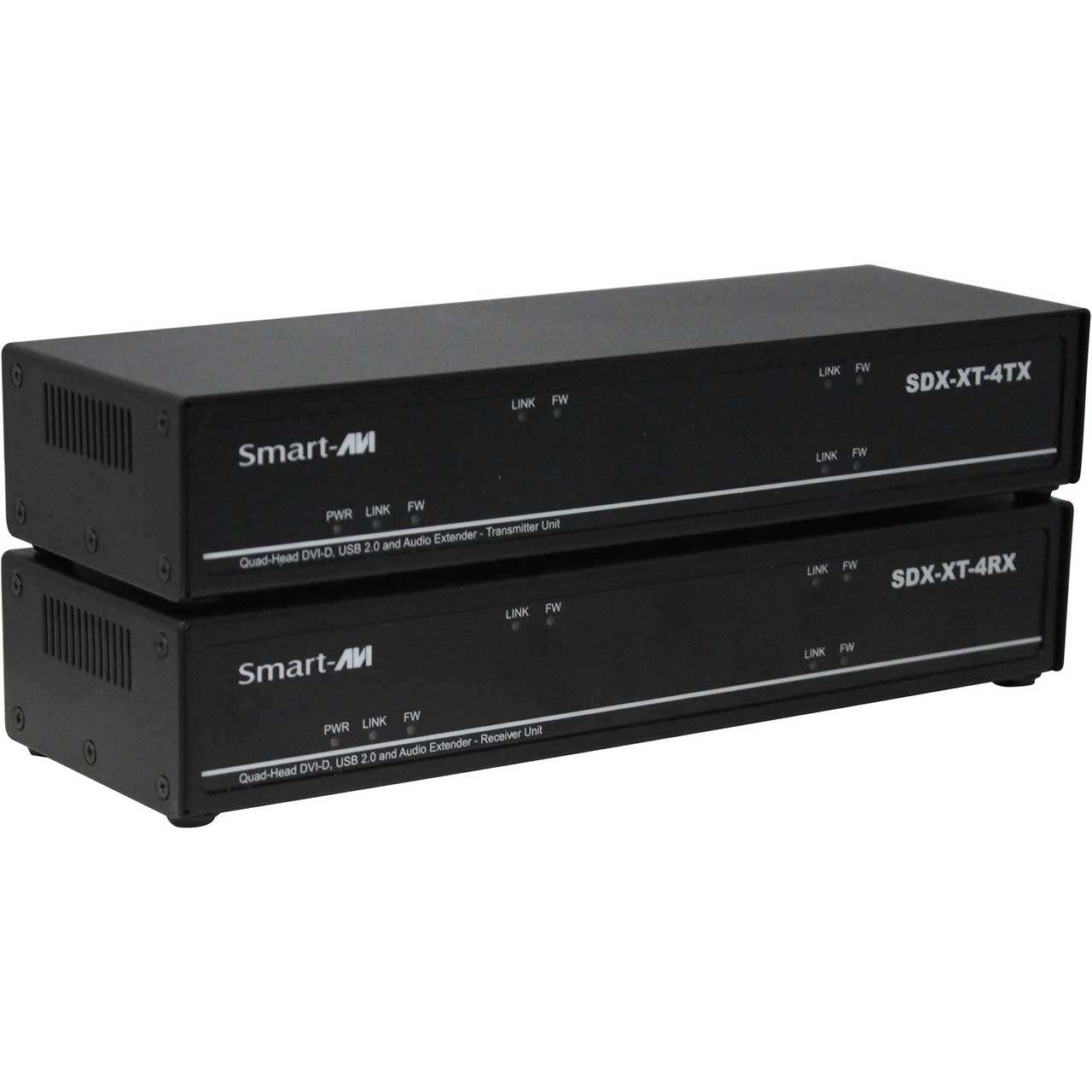

Smart-AVI SDX-XT-4P-S 4K Quad Head DVI-D - USB 2.0 - Audio - CAT5/5e/6 Extender

SDX-XT-4P-S - Overview

• Features:

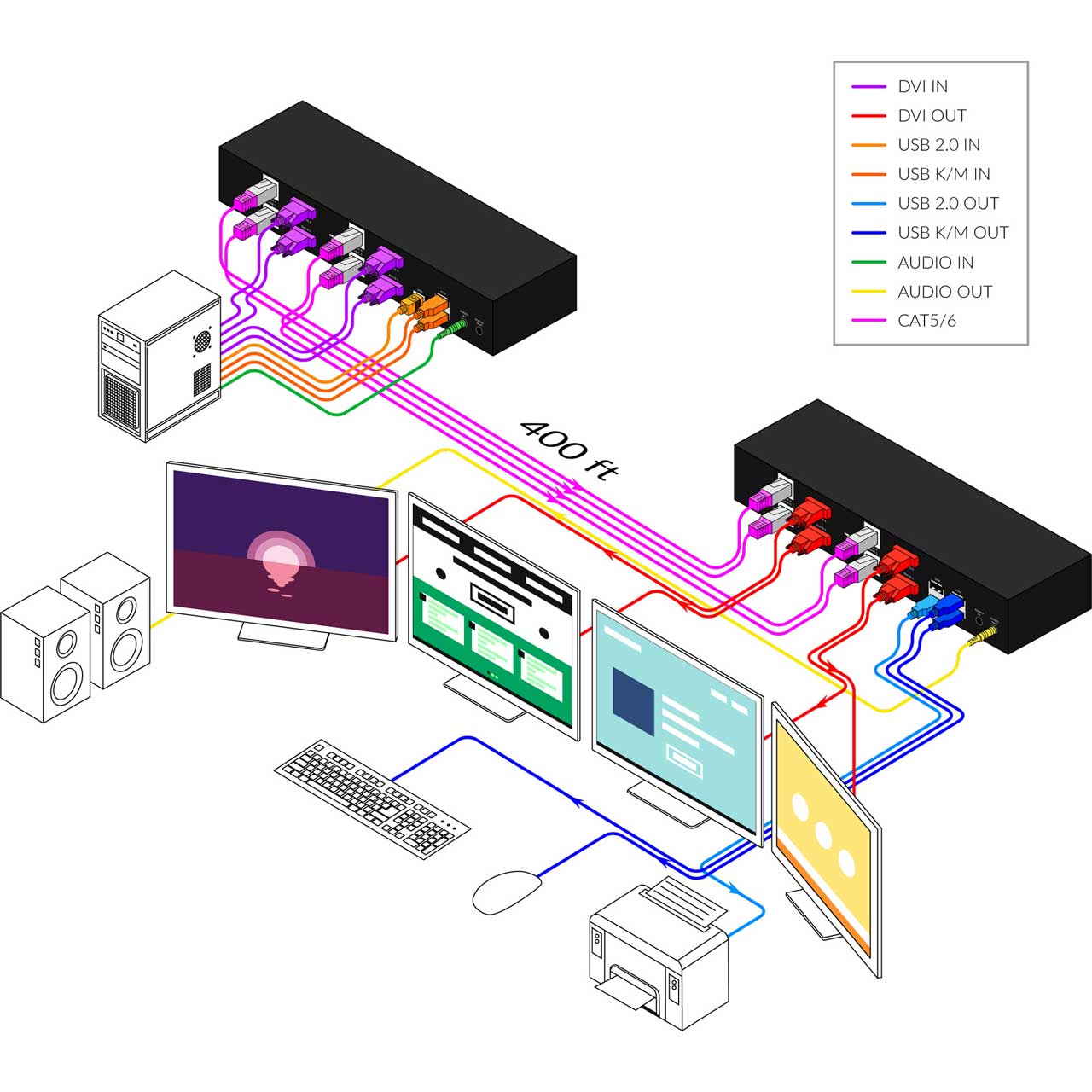

  • Extends quad DVI-D up to 400 feet from the source
  • HDCP Support
  • Supports up to 1920 x 1200 digital video resolution @ 60 Hz
  • Automatic DDC Learning
  • USB Keyboard and Mouse extension
  • Uncompressed Video
  • External power adapter for transmitter and receiver unit
  • Supports Stereo Sound
  • Compatible with Windows, Mac and Linux Operating Systems
  • Transparent USB 2.0 extension


• Specifications:

  • Video
  • Format: DVI-D (HDMI-Ready with Adapter)
  • Video Resolution: Resolution - High Definition 1920 X 1200 Color Depth: 24-Bit
  • Color Depth Latency: Less Than 1 MS
  • Video Bandwidth: Single-Link 340 Mhz (10.2 Gbps)
  • Input Interface (TX): (1) Dvi-I 29-Pin
  • Output Interface (RX): (1) Dvi-I 29-Pin
  • Max Output Distance: Up To 1920 X 1200 @ 60 Hz
  • Equalization: Automatic
  • Input TMDS Signal: 1.2 Volts [Peak-To-Peak]
  • Input DDC Signal: 5 Volts [Peak-To-Peak, Ttl]
  • Data Rate: 1.65 Gbps Per Color

    USB
  • Input Interface (TX): (1) Usb Type B
  • Output Interface (RX): (2) Usb 1.1 Type A For Km Devices; (2) Usb 2.0 Type A Transparent
  • Keyboard And Mouse: Keyboard And Mouse Emulation

    Audio
  • Format: Stereo
  • Input Interface: 3.5 Mm Jack Socket (Female)
  • Output Interface: 3.5 Mm Jack Socket (Female)

    System
  • Interface: RJ-45 Cable
  • Requirements: Cat5/5e/6
  • Maximum Length: 400 Ft

    Other
  • Power: 100-240 Vac/ 5vdc @ 3a/15w
  • Dimensions: 11.9" W X 1.7" H X 2.9" D
  • Weight: 1.75 Lb (.5 Lbs Per Unit)
  • Approvals: Ul, CE, RoHS Compliant
  • Environmental Operating Temperature: +32 To +104°F (0 To +40°C)
  • Environmental Operating Humidity: 20% To 80% (Non Condensing)
  • Storage Temperature: -4 To 140°F (-20 To +60°C)
  • Storage Humidity: Up To 95% (No Condensation)
  • Compliance: EMC FCC (Class A), CE (Class A), ICES-003
  • Environmental Compliance: RoHS2 (CE)
  • Support Warranty: 1-Year


• Item Includes:

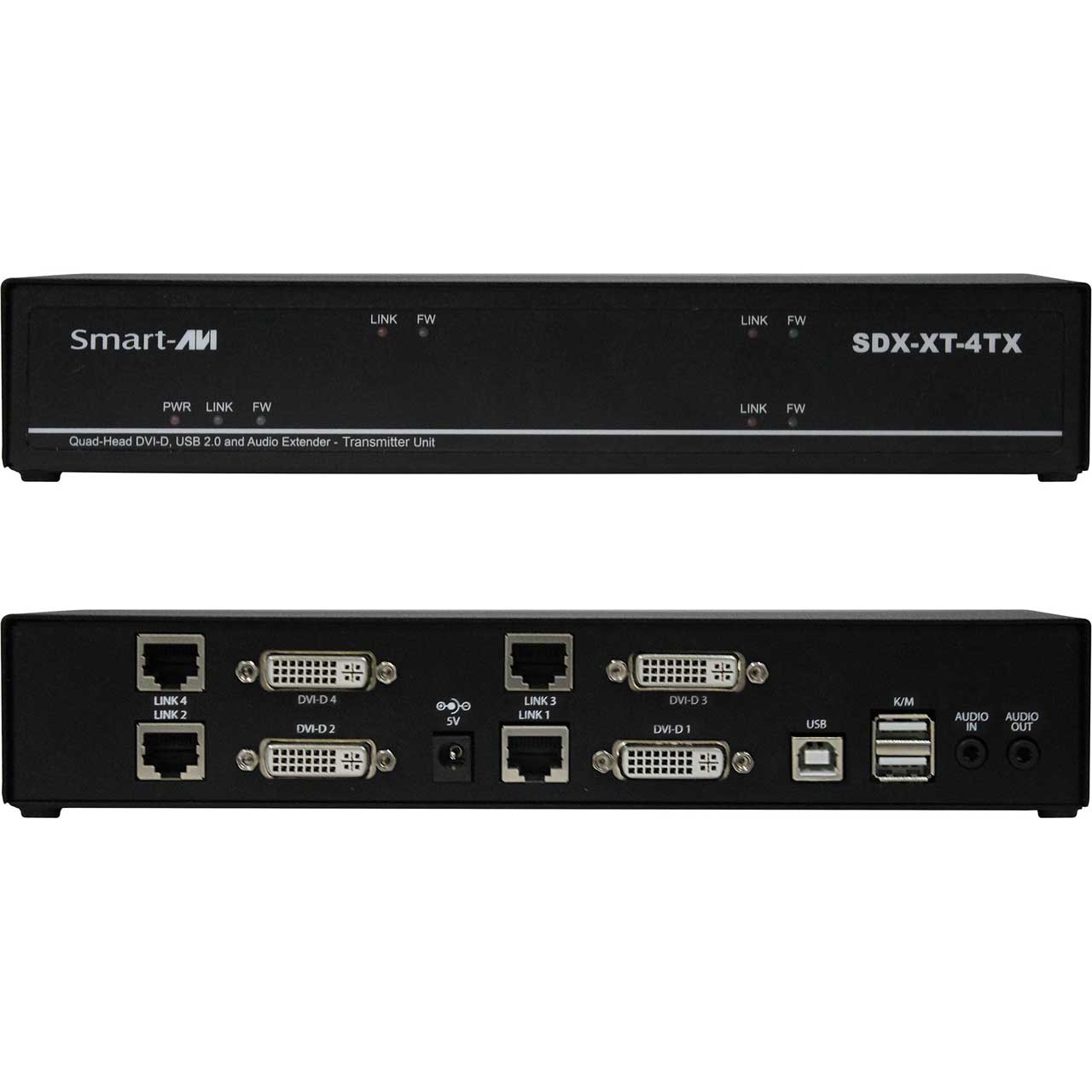

  • 1x SDX-XT-4P-TX-S

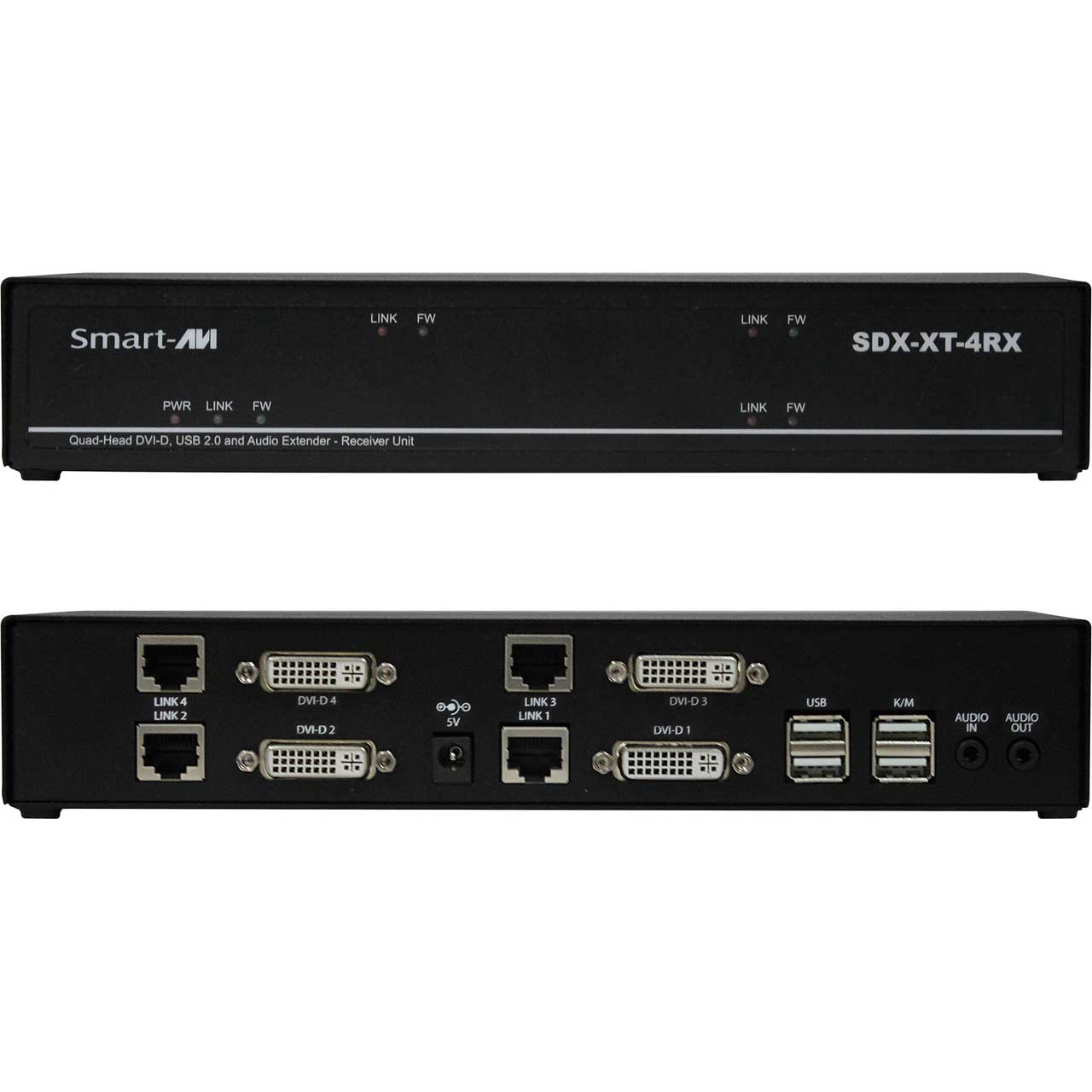

  • 1x SDX-XT-4P-RX-S
  • 2x PS5VD3A
