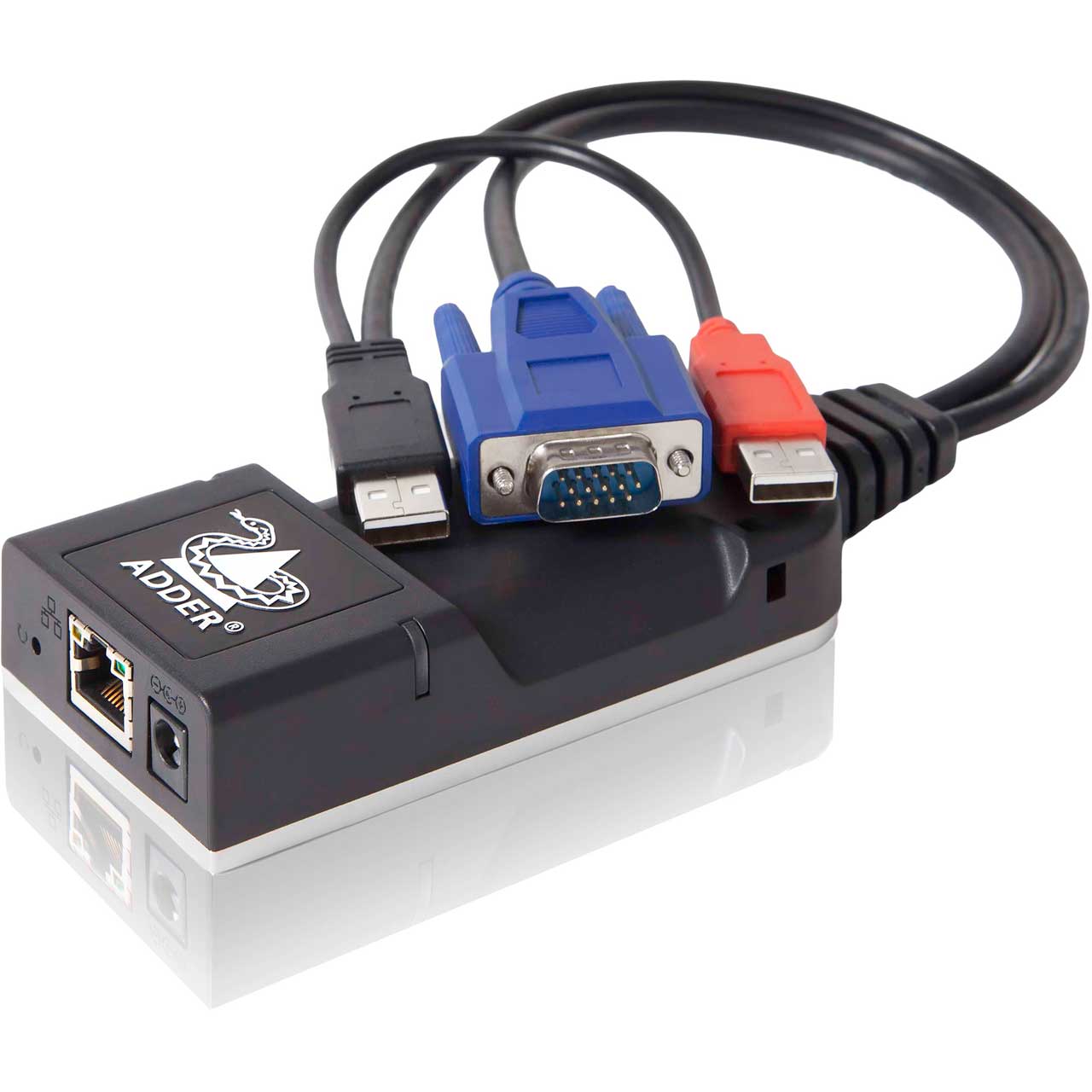

ADDERLink ALIF100T-VGA INFINITY High Peformance ZeroU IP KVM A/V Extender Transmitter - VGA/USB1.1

ITEM #: ADR-ALIF100T-VGA MFG #: ALIF100T-VGA

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$875.00

Our Price:

$831.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ALIF100T-VGA - Overview

IP-based: use your existing network!

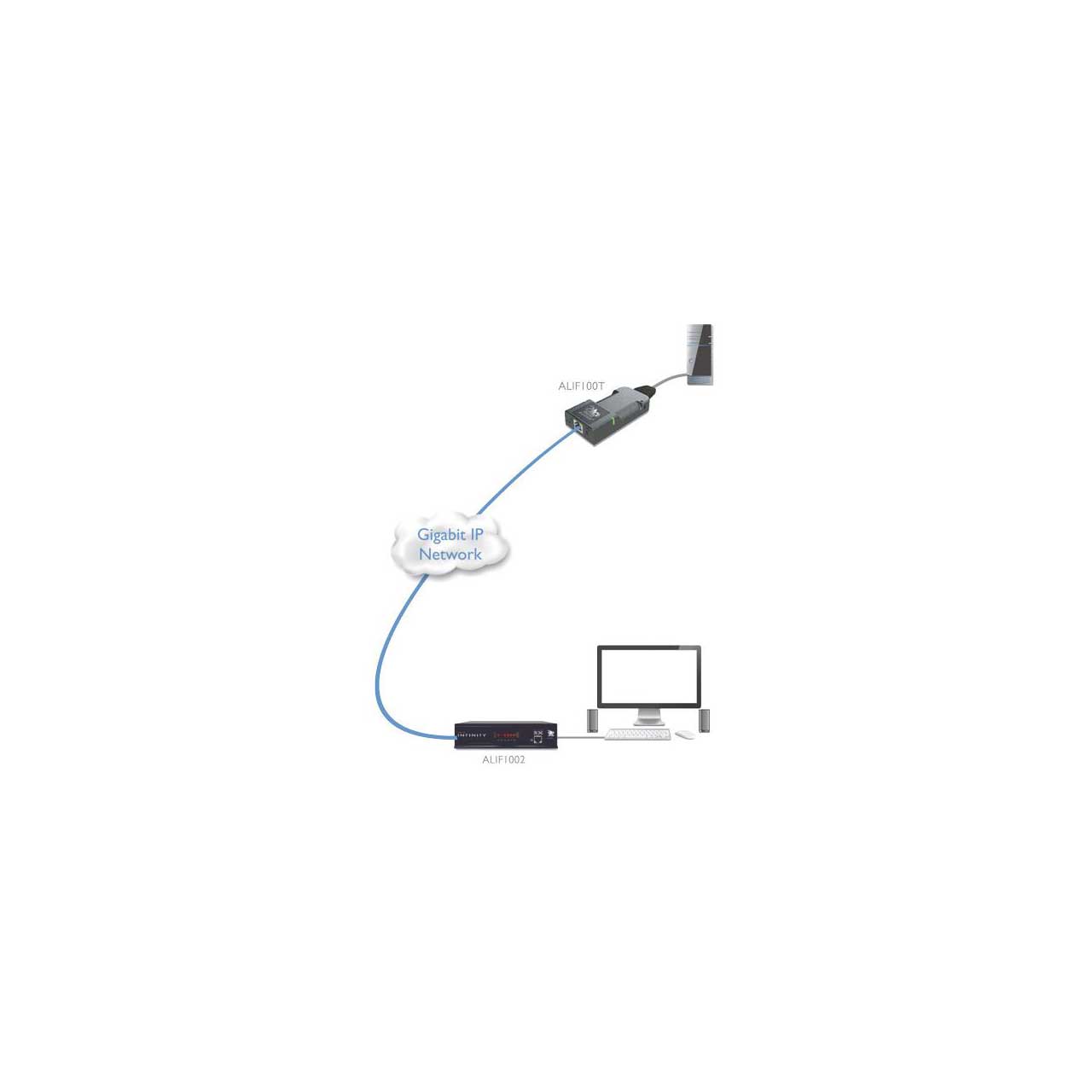

The ADDERLink Infinity ALIF101T-VGA is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Please Note: The ALIF101T-VGA transmitter requires at least one ALIF1002R receiver to operate.

  • Features:

    • Analog VGA configuration
    • Zero-U form factor
    • USB powered with Low power consumption
    • 1920 x 1200 @ 60Hz maximum resolution with minimal lag
    • 330ft (100m) extension distance on single CATx
    • Unlimited extension using IP network
    • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast

  • Specifications:

    • Connectors
    • Computer: VGA, USB Type-A x2
    • Ethernet: 1x 8p8c (RJ45)
    • Power: 2.5mm socket

    • Specification
    • USB: USB1.1 full and low speed (No HS support)
    • USB features: Keyboard, mouse, and touch
    • USB device seen as: 7 or 13 port hub
    • Max video resolution: Up to 1920x1200 @60Hz
    • Audio: Line in/out USB audio 2 channel 16bit 48KHz
    • Ethernet: 1GbE (No 10/100 support)
    • Approvals: CE and FCC/UKCA & ICES and cULus

    • Cable types recommendations:
    • Cat5e and above

    • Operating/Storage Conditions
    • Operating Temperature: 32 to 122°F
    • Storage Temperature: 14 to 140°F
    • Storage and operating relative humidity: 10- 90% non-condensing
    • Altitude: < 3000m
    • MTBF: >500,000 hours

    • Power
    • USB power: 2 x USB1.1 (2 x 500mA@5v) 5W
    • External power: 5VDC, 1A, (LPS)
    • Typical power consumption: 3 watts
    • BTU: 10.2BTU/hr

    • Physical
    • Dimensions: 4.3" x 2.17" x 1" with 30cm cable length
    • Weight: 0.2kg / 0.4lb
    • Materials: ABS and aluminium construction

  • Item Includes:

    • 1x ALIF100T-VGA
    • 1x Quick Start Guide

  • Warranty:

    • 2 Year Limited
