ADDERLink ALIF101T-DVI INFINITY High Performance ZeroU IP KVM A/V Extender Transmitter - DVI/USB2.0

ITEM #: ADR-ALIF101T-DVI MFG #: ALIF101T-DVI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$985.00

Our Price:

$935.75

Availability: In Stock
iAvailability Description Popup


ALIF101T-DVI - Overview

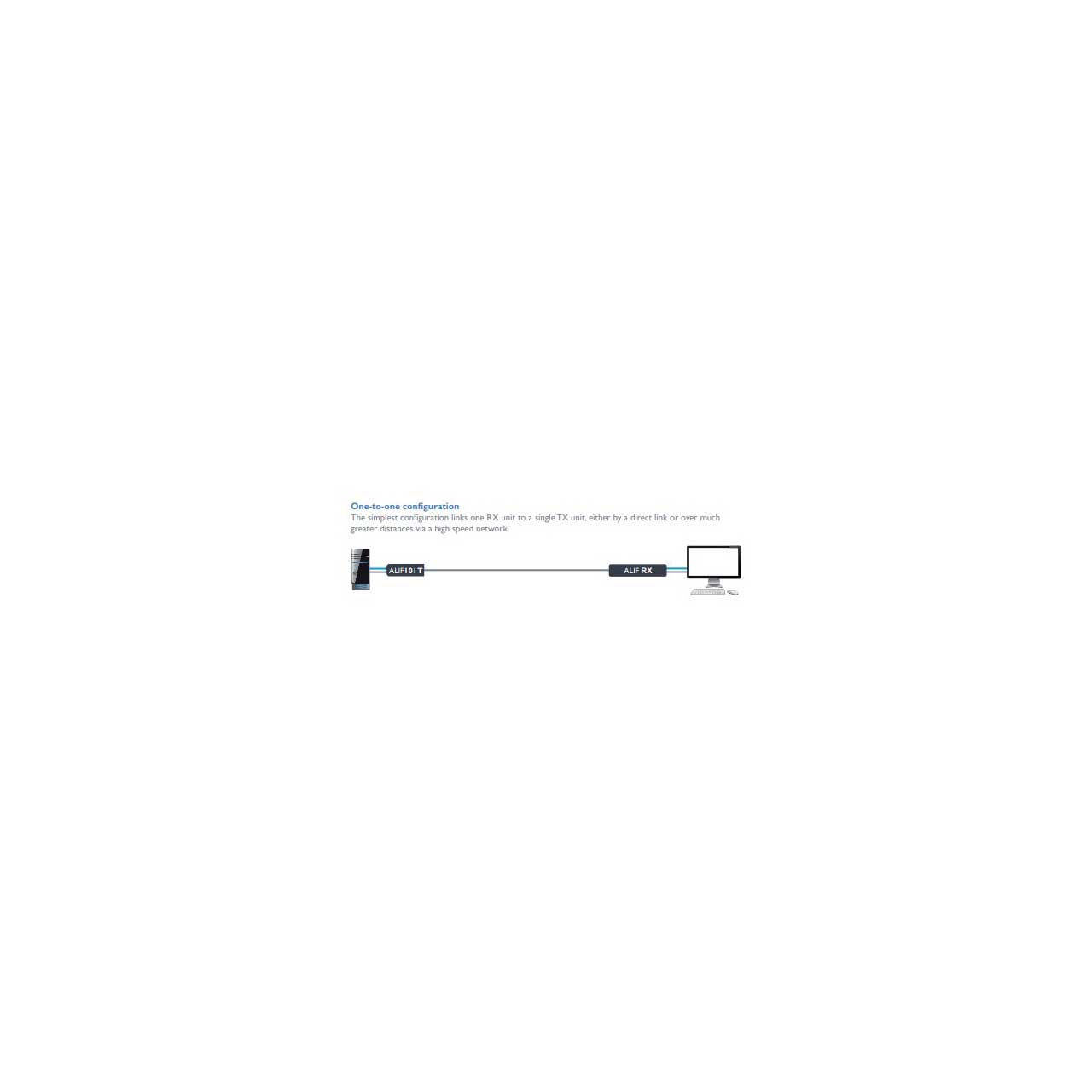

330ft (100m) extension distance on single CATx

The ADDERLink Infinity ALIF101T-DVI is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Please Note: The ALIF101T-DVI transmitter requires at least one ALIF1002R receiver to operate.

  • Features:

    • Single-link DVI-D configuration
    • Zero-U form factor
    • USB powered with Low power consumption
    • 1920 x 1200 @ 60Hz maximum resolution with minimal lag
    • 330ft (100m) extension distance on single CATx
    • Unlimited extension using IP network

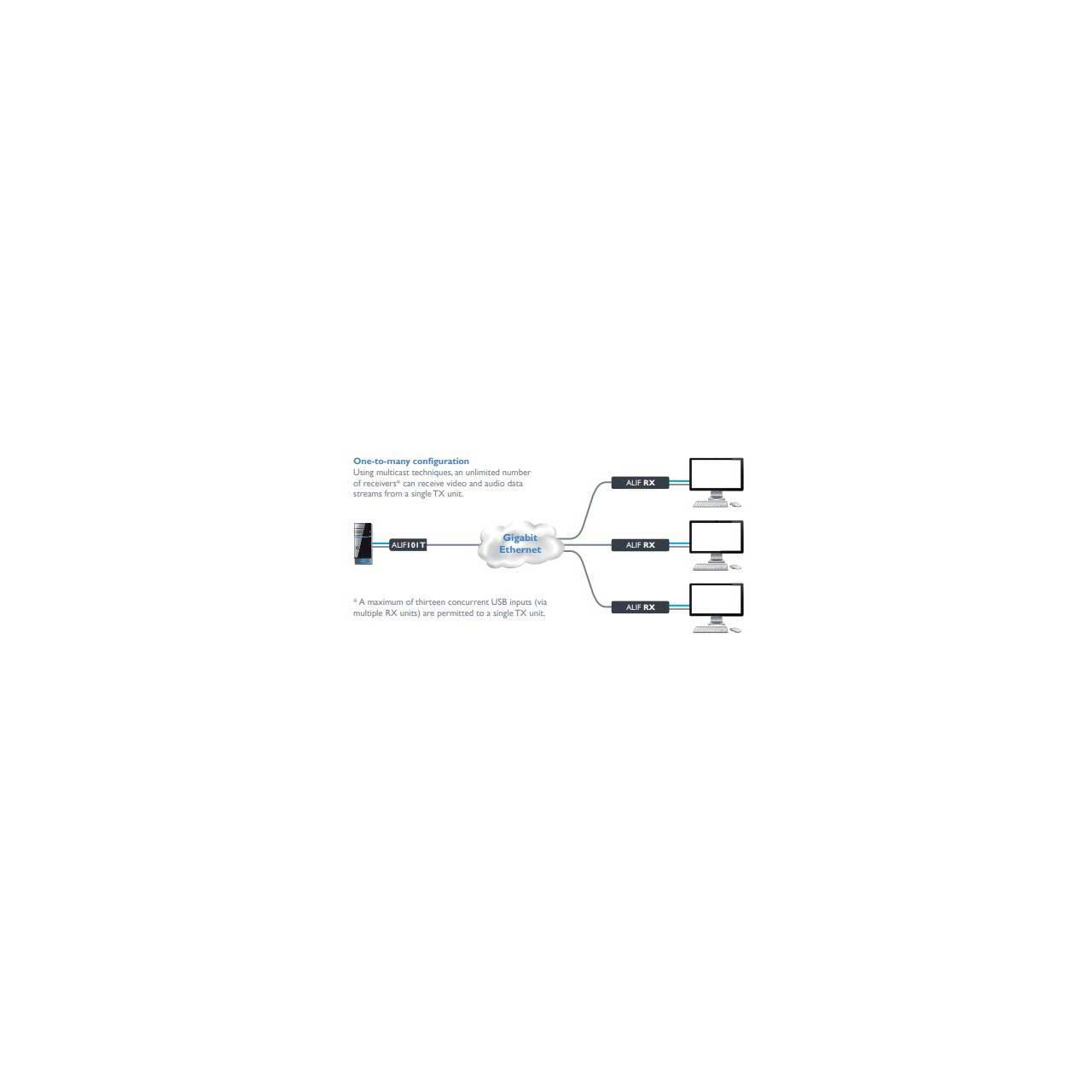

    • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast

  • Specifications:

    • Video Resolutions
    • Supports Resolutions up to: 1920x1200 @60Hz

    • Environmental
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Storage Temperature: 14° to 140°F (-10° to 60°C)
    • Storage and Operating Relative Humidity: 10-90% non-condensing
    • Altitude: <2000m
    • MTBF: >500,000 hours

    • Power
    • USB Power: 2x USB2.0 (2x 500mA @5V) 5W
    • External Power: 5VDC, 1A, (LPS)
    • Typical Power Consumption: 3W
    • BTU: 10.2BTU/hr

    • Physical
    • Dimensions: (L)110mm/4.3" x (W)55mm/2.17" x (D)25mm/1" with 30cm/11.8" cable length
    • Weight: 0.2kg/0.4lb
    • Materials: ABS and aluminum construction

    • Connectors
    • Computer: 1x DVI, 2x USB Type-A
    • Ethernet: 1x 8p8c (RJ45)
    • Power: 2.5mm socket

    • Specification
    • USB: USB2.0 Low, full and hi-speed
    • USB Features: Keyboard, mouse, touch and hard drives
    • USB Device Seen as: 7 or 13 port hub
    • Max Video Resolution: Up to 1920x1200 @60Hz
    • Audio: Bi-directional USB audio 2 channel 16bit 48KHz
    • Ethernet: 1GbE (No 10/100 support)

    • Packing Box
    • Dimensions (LxWxD): 11.5 x 9.6 x 2.1" (292 x 245 x 55mm)
    • Weight: 1.1Lbs (0.5kg)

    • Cable Types Recommendations
    • Cat5e and above

    • Cable Length Rules
    • Ethernet specifications rules apply 100m/300ft maximum run

    • Approvals / Compliance
    • CE and FCC
    • UKCA & ICES and cULus

  • Item Includes:

    • 1x ALIF100T-VGA
    • 1x Quick Start Guide

  • Warranty:

    • 2 Year Limited
