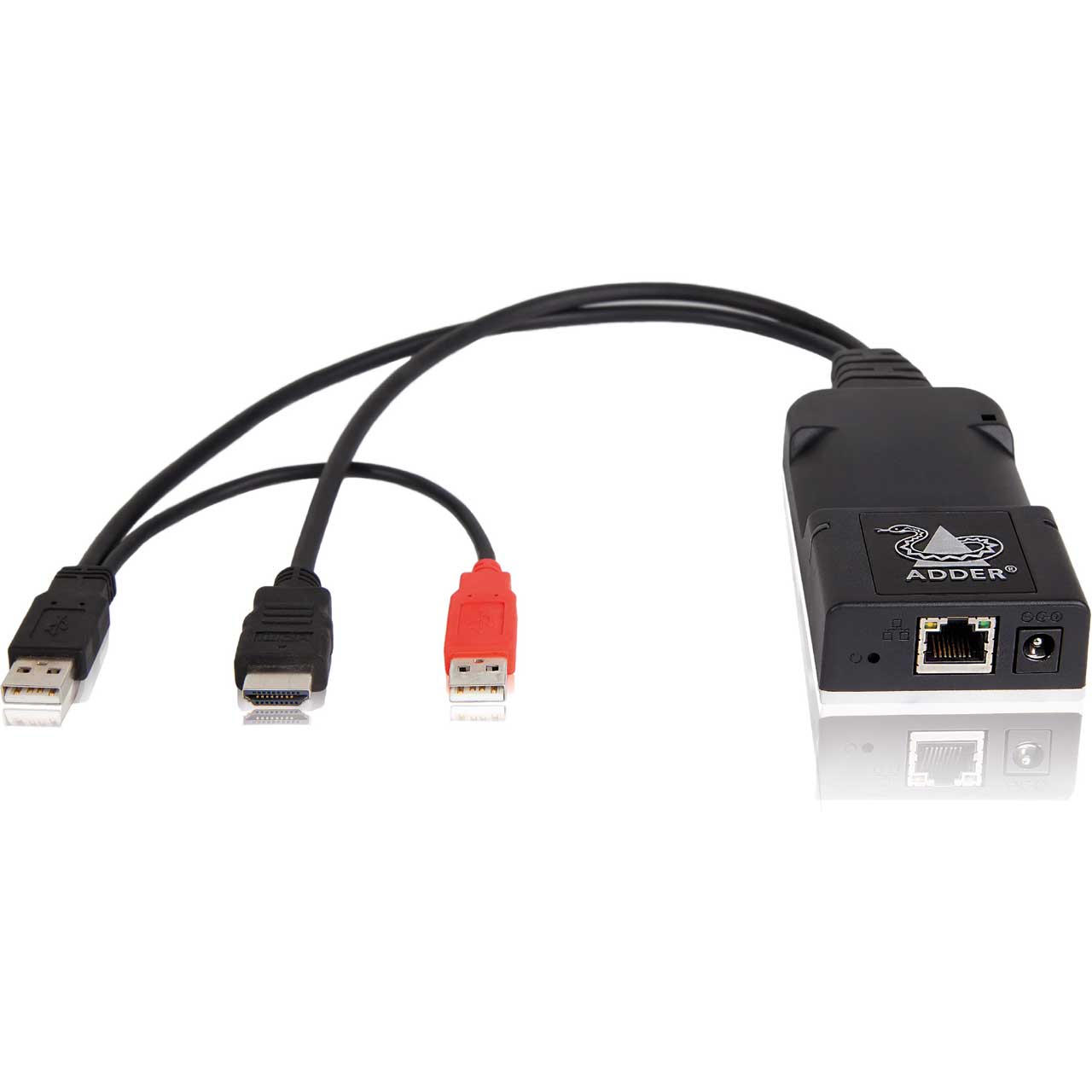

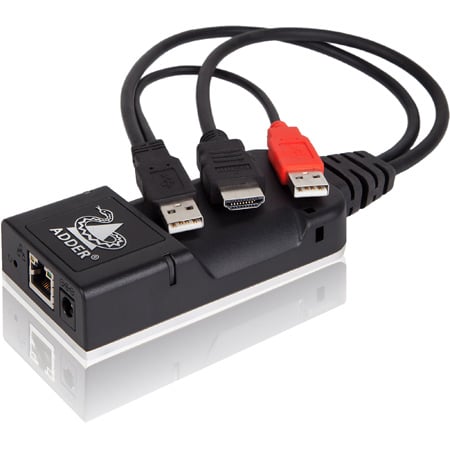

ADDERLink ALIF101T-HDMI INFINITY High Performance ZeroU IP KVM A/V Extender Transmitter - HDMI/USB2.0

ITEM #: ADR-ALIF101THDMI MFG #: ALIF101T-HDMI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,095.00

Our Price:

$1,040.25

Availability: In Stock
iAvailability Description Popup


ALIF101T-HDMI - Overview

Utilizes existing IP infrastructure - USB powered

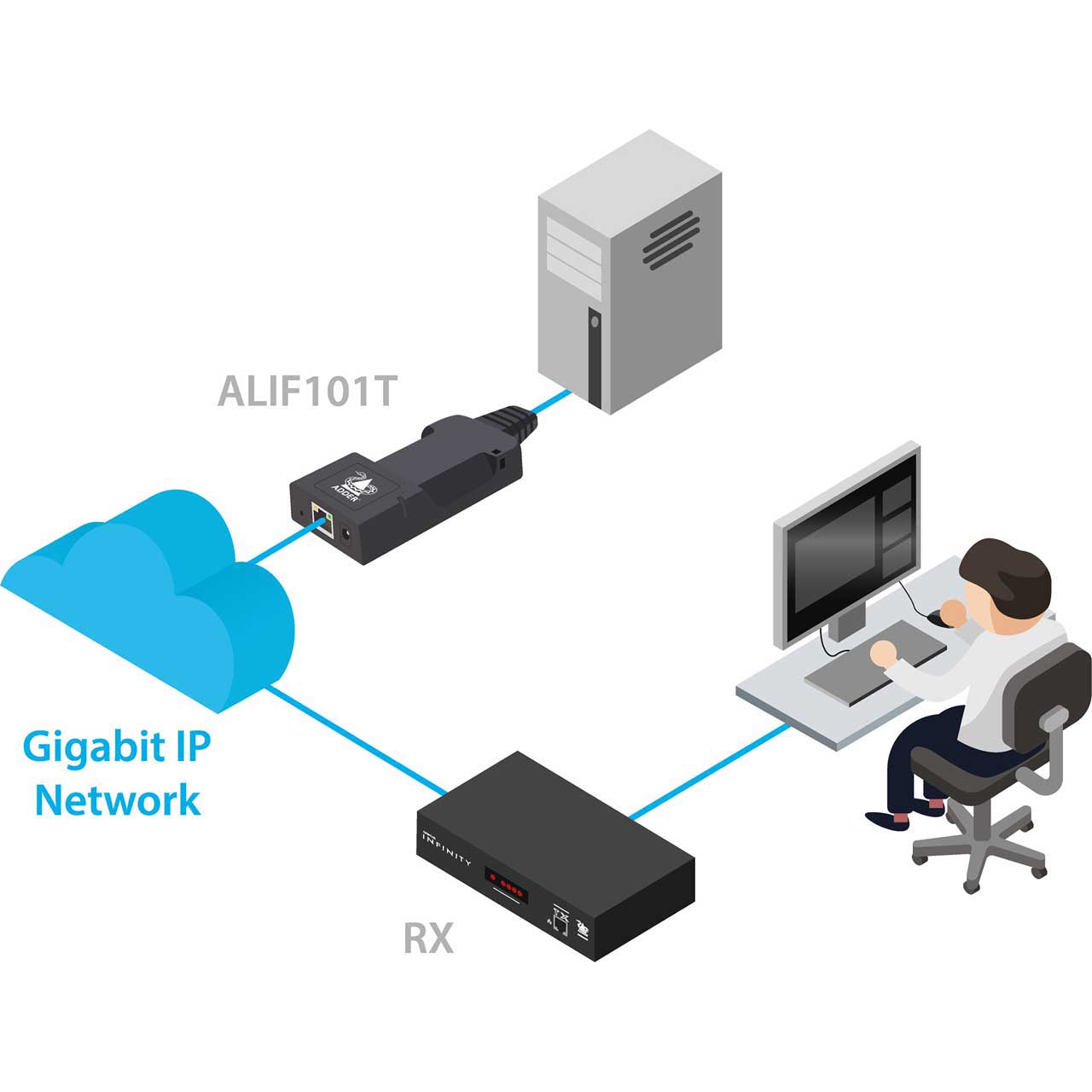

The ADDERLink Infinity ALIF101T-HDMI is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Please Note: The ALIF101T-HDMI transmitter requires at least one ALIF1002R receiver to operate.

  • Features:

    • ZeroU™ form factor
    • Utilizes existing IP infrastructure
    • USB powered
    • Low power consumption
    • Easy retrofit into existing infrastructure
    • Plug and play

  • Specifications:

    • Video resolutions:
    • The system supports resolutions up to 2560x1600 @60Hz

    • Specification
    • USB: USB2.0 Low, full and hi-speed
    • USB features: Keyboard, mouse, touch and hard drives
    • USB device seen as: 7 or 13 port hub
    • Max video resolution: Up to 2560x1600 @60Hz
    • Audio: Bi-directional USB audio 2 channel 16bit 48KHz
    • HDMI Audio: 2 channel linear PCM
    • Ethernet: 1GbE (No 10/100 support)
    • Does not support HDCP or CEC control

    • Connectors
    • Computer: 1x HDMI, 2x USB Type-A
    • Ethernet: 1x 8p8c (RJ45)
    • Power: 2.5mm socket

    • Materials:
    • ABS and aluminium construction

    • Cable Length Rules:
    • Ethernet specifications rules apply 100m/300ft maximum run

    • Cable Type Recommendations:
    • Cat5e and above

    • Power
    • USB Power: 2x USB2.0 (2x 500mA @5V) 5W
    • External Power: 5VDC, 1A, (LPS)
    • Typical Power Consumption: 3W
    • BTU: 10.2BTU/hr

    • Physical Dimensions:
    • 4.3" x 2.17" x 1" with 11.8" cable length

    • Weight:
    • 0.4lb

    • Box Dimensions:
    • 11.5" x 9.6" x 2.1"

    • Weight:
    • 0.5kg/1.1lb

    • Operating Temperature:
    • 0°C to 50°C/122°F

    • Storage Temperature:
    • -10 to 60°C/140°F

    • Humidity:
    • 10% to 90% (non-condensing)

    • Approvals:
    • CE, FCC

  • Item Includes:

    • 1x Adder ALIF101T-HDMI AdderLink 101 Infinity Cam HDMI / USB IP KVM Transmitter Dongle

  • Warranty:

    • 2 Year Limited
